Snapper H1732ES - Petrol Snowplough - B&S 1650 Snow

Name: Snapper H1732ES - Petrol Snowplough - B&S 1650 Snow
Brand: Snapper
Price: 4039.65 EUR
Availability: InStock

ID: K605666

EAN: 0047282136874

MPN: ZMH1732ES

Catalog Snapper

8,6/10

After-sales assistance & Spare parts

56Pictures

1Videos

Snapper H1732ES - Petrol Snowplough - B&S 1650 Snow

FREE

Snow blower cover

2 bottles of 600 ml engine oil each

Blower type

Two-stage

Winterised engine

Yes

Power supply

Petrol

Motor brand

Briggs&Stratton

Motor Model

1650

Cubic capacity

420 cm³

Nominal power

15 HP

Electric start

Yes

Self-propelling

Traction / self-propelled

Gears

6+2

Standard milling cutter width

81 cm

Discharge chute rotation

Electric control on the panel

Upper chute deflector tilt

Electric control on dashboard

Heated handles

Yes

Assisted steering system (power steering)

Yes

Wheel Type

Pneumatic

Manufacturing country

USA

Product Features

Model:

H1732ES

Power supply:

Petrol

Type:

Wheeled

Self-propelling:

Traction / self-propelled

Electric start:

Yes

Assisted steering system (power steering):

Yes

Heated handles:

Yes

Manufacturing country:

USA

Motor data

Motor brand:

Briggs&Stratton

Motor Model:

1650

Motor type:

4-stroke

Winterised engine:

Yes

Electric start:

Yes

Cubic capacity:

420 cm³

No. of cylinders:

Nominal power:

15 HP

Fuel:

Petrol

Power supply:

Overhead valve OHV

Engine lubrication system:

Oil bath

Decompression system:

Automatic

Tank capacity:

5 L

Oil tank capacity:

0.8 L

Manufacturing country:

USA

Transmission data

Transmission type:

Disc - with speed variator

No. of forward speeds:

No. of reverse speeds:

Gears:

6+2

Operating mode:

Gear lever

Cutting data

Body material:

Enamelled steel

Standard milling cutter width:

81 cm

Turbine housing height:

58 cm

Milling cutter diameter:

35 cm

Blower type:

Two-stage

Discharge chute material:

Steel

Chute rotation angle:

200 °

Discharged snow distance:

Up to 10 m

Equipment

Pair of tractor wheels:

Yes

Primer pump :

Yes

Discharge chute rotation:

Electric control on the panel

Upper chute deflector tilt:

Electric control on dashboard

Recoil start system (with rope):

Yes

Rear wheels size:

13x4.10-6

Wheel Type:

Pneumatic

Rubber-coated soft grip:

Yes

Folding/removable handle/s:

Yes

Headlight:

Led

Pair of adjustable skids:

Yes (made of polyethylene)

Free gifts/extra features

Engine oil bottle for free:

Yes

Starting keys:

Yes

Clean-out tool:

Yes

Safety bolts:

Yes

Funnel:

Yes

Instructions manual:

Yes

Dimensions and logistics

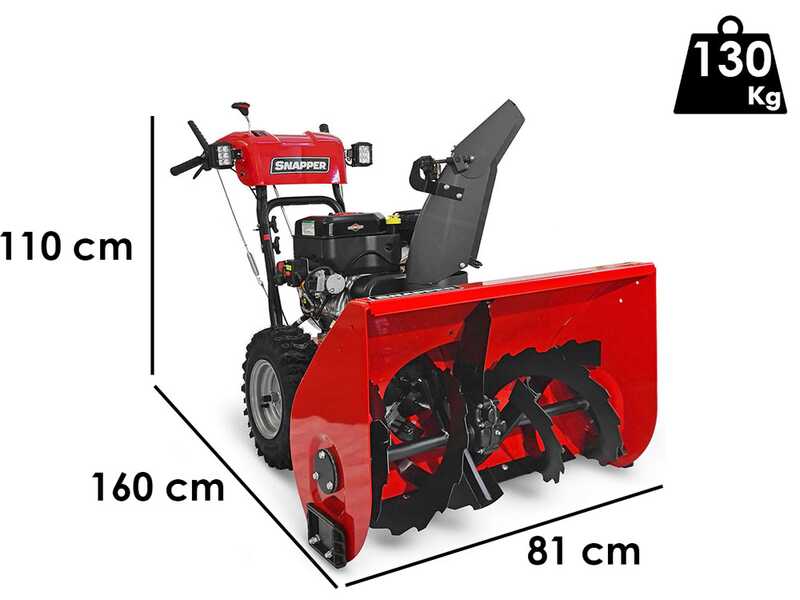

Product dimensions in cm (L x W x H):

160x81x110 cm

Net weight:

130 Kg

Packaging:

Original packaging on pallet

Original packaging/s dimensions in cm (L x W x H):

150x95x98 cm

Gross weight (packaging included) :

160 Kg

Unloading with hydraulic tail lift:

Yes

Assembly time:

30 minutes

Prompt Delivery

4 items in stock

Free Shipping

Estimated delivery: 27/09/2024 - 01/10/2024

Free returns (up to 30 days after receipt) *

€ 4.039,65

VAT Included

5% off from the second item in your cart

Are you a business? Check out prices tailored to you!

You're viewing:

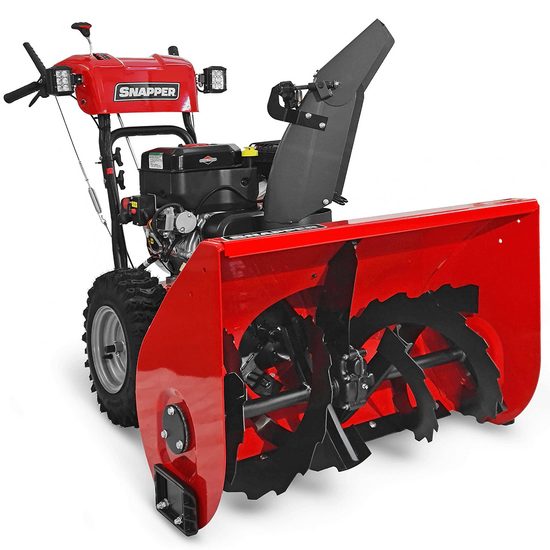

Snapper H1732ES petrol snow blower

The Snapper H1732ES is a two-stage petrol snow blower.

The 402 cc Briggs & Stratton 1650 Snow Series engine ensures high performance even up to -29°.

Compact and versatile, with 6 forward and 2 reverse gears.

Equipped with a milling cutter that allows a working width of up to 81 cm and a height of 58 cm, the toothed auger features a 35 cm diameter.

The tyres supplied are Snow Track type featuring a notching designed specifically for operating on the snow.

The Snapper H1732ES is also equipped with:

6+2 mechanical gearbox
Upper adjustable deflector
Tool for unclogging
Swivelling chute

The new transmission enhanced by Easy turn technology for automatic release of the differential lock makes it extremely manoeuvrable.

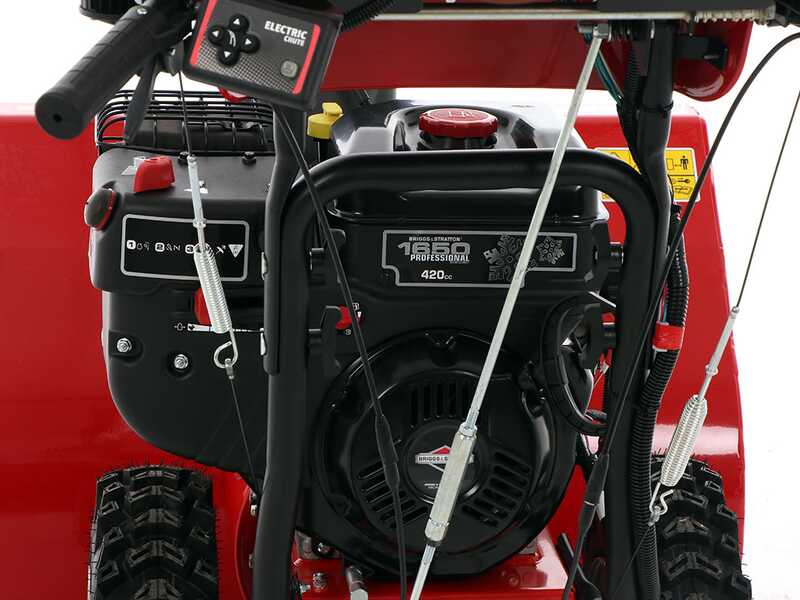

Briggs & Stratton 1650 Snow Series engine

The Snapper H1732ES snow blower is equipped with the Briggs & Stratton 1650 Snow Series 420 cc engine.

This is a “winterised” engine type, i.e. designed to perform even in low temperatures, ensuring ignition down to -29 degrees.

Features:

Engine type:

4-Stroke - OHV - single cylinder

Cylinder type: aluminium

Cooling system: air-cooled

Cubic capacity: 420 cc

Fuel: petrol

Power: 15 Hp

Starting: both electric and recoil starter

Tank capacity: 5.3 L

WARNING

Winterised engines such as this one are not provided with air filter because working at low temperatures and with snow could create moisture that would then freeze, ruining the filter and creating problems for the operation of the machine.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

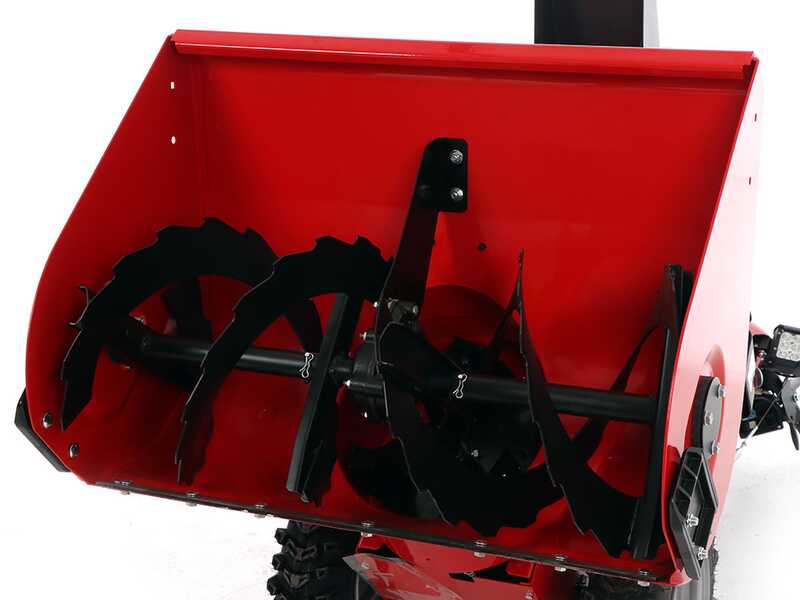

Auger housing: 81 x 58 cm

The milling cutter housing is 81 cm width and 58 cm height.

The side skids allow this snow thrower to work on all types of terrain, from smooth to uneven ones without scratching them.

The skids are height adjustable to avoid any scraping of the steel on the floors.

The material used to make these slides is high-density polyethylene and they are reversible to increase their service life.

The milling cutter is a heavy-duty type equipped with a steel spiral and toothed edge.
This makes the snow blower effective even on the hardest snow.

Two-stage system

The snow is efficiently conveyed into the machine by means the auger, and then thrown away through the discharging chute by means an internal high-speed centrifugal fan.

2 shear pins for protecting the equipment in case of shocks are placed on the horizontal shaft of the serrated milling cutter.

The movement and synchronisation of the 2 stages is ensured by a bevel gear made of cast iron, a material particularly resistant to shocks and wear. There is also a grease nipple for easy routine maintenance.

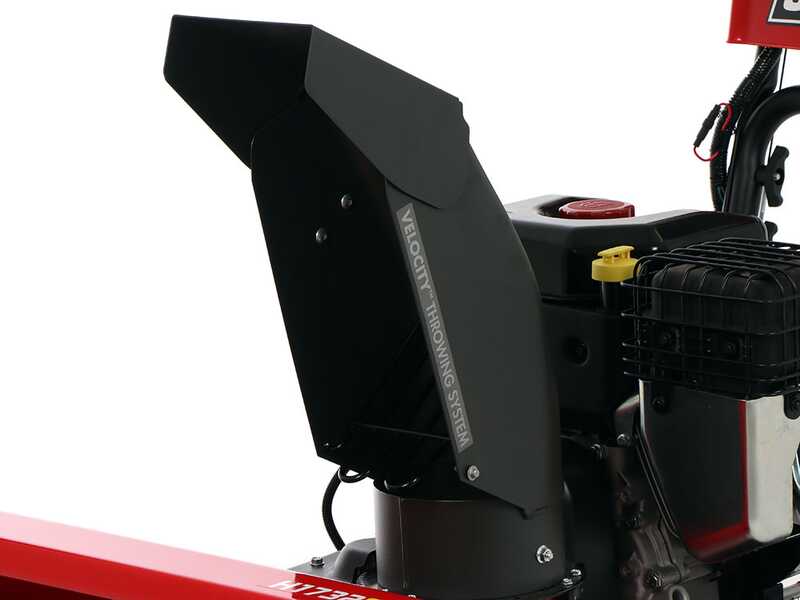

Adjustable discharge through the control on dashboard

The snow discharge chute can be swivelled via the controls on the dashboard without effort, as the chute is equipped with electric motors.

The chute is also equipped with a grid that prevents foreign objects to enter into it.

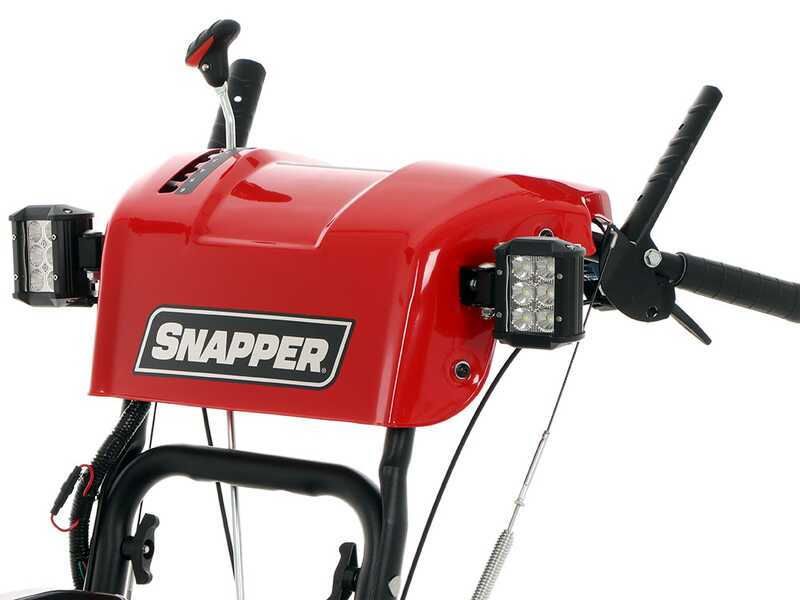

Controls and adjustments

All the controls for operating the snow thrower are placed on the dashboard.

The Free Hand system allows changing the forward speed on the move, while keeping the plough running.

The Easy Turn system allows you to turn left and right by pulling the relevant trigger located under the two handles.

Discharge chute deflector direction: it can be adjusted via the control on the dashboard.

The control panel is user-friendly, complete and intuitive.

Gear lever: 6 forward gears and a 2 reverse gears

Lever on top of the right handle: enables and disables the forward and reverse gears (whatever speed is selected on the gearbox). Releasing this lever stops the machine instantly, for safety reasons.

Lever on top of the left handle: enables and disables both the auger and the high-speed fan (enables and disables both stages simultaneously).

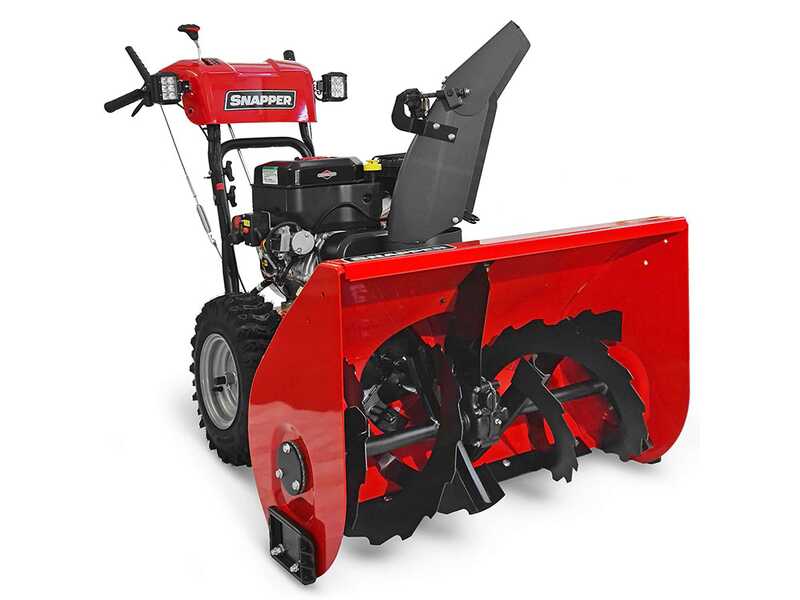

General features and wheels

Tool for unclogging.

If the discharging chute clogs it can be easily cleared with the proper tool.

Traktor wheels that provide great grip on the ground. Size: 4.8" x 8"

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

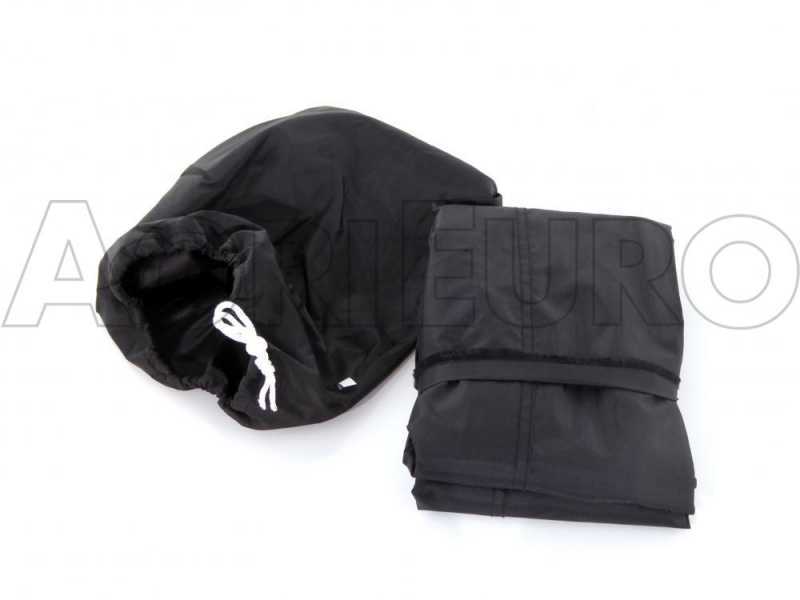

Tarpaulin cover for Snow Blower storage

Fundamental to protect your tractor when not in use.

This cover is fast and easy to place: only few seconds to protect your machinery from dust and humidity.

Easy to bend and put away in a little space!

Free items included

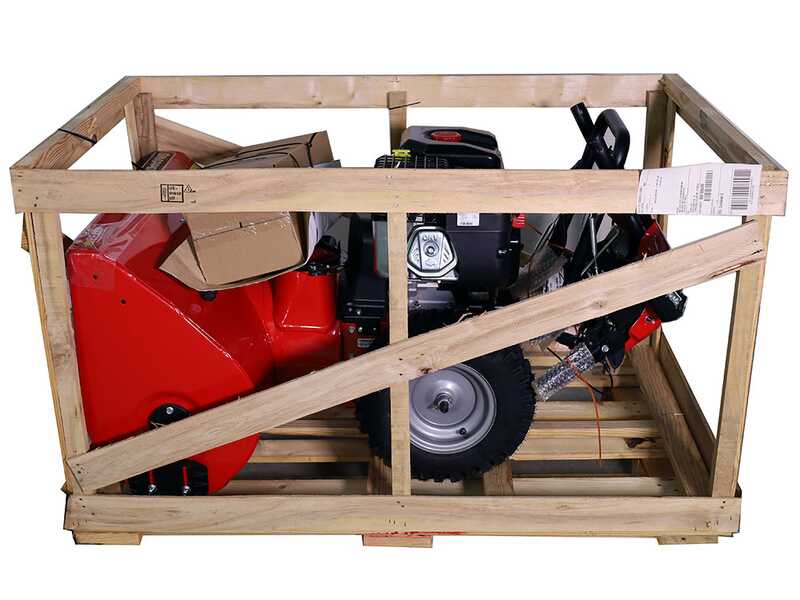

The snow thrower is shipped in its original packaging on pallet.

Included in the packaging:

Instructions manual
Engine instructions manual
Spare safety bolts
Cable ties
Tool for unclogging
