SIE LUX 10 tractor log splitter - Vertical - 10t

Questions & Answers (4)
ID: 105030

EAN: 8050246353936

9,1/10
After-sales assistance & Spare parts
SIE LUX 10 tractor log splitter - Vertical - 10t
Special offer
Technical data
Max. trunk diameter
40 cm
Piston stroke
100 cm
Ground splitting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Single-phase + tractor-driven PTO
Nominal power
3 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
10 t
Pump
Double
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model
SIE LUX 10
Type
Vertical
Double speed
Yes
Operating mode
Single-phase + tractor-driven PTO
Nominal splitting force
10 t
Piston stroke
100 cm
Adjustable piston stroke (for short logs)
Yes
Worktop log cutting
Yes
Ground splitting system
Yes
Manufacturing country
Italy
Motor data
Motor type
Electric single-phase
Engine
Induction
Nominal power
3 HP
Nominal power (W)
2200 W
Motor speed
2740 RPM
Power supply
Electric - tractor-driven PTO
Manufacturing country
Italy
Pump data
Pump type
Hydraulic
Oil tank
Yes
Hydraulic cylinder outer diameter
80 mm
Piston diameter
50 mm
Manufacturing country
Italy
Cutting data
Max. trunk length
126 cm
Max. trunk diameter
40 cm
Equipment
Frame
Standard
Pump
Double
Vertical log splitter safety lever
Yes
Trunk lifting system
No
Retractable piston for transport
Yes
Stump Support Shelf
Yes
Tractor three-point hitch
Yes
Replaceable wedge guides
No
Cartridge oil filter
Yes
Wheeled trolley for transport
Yes
Rear wheels size
25 cm
Pressure gauge on pump
Yes
Free gifts/extra features
Splitting wedge
No
Instructions manual
Yes
Dimensions and logistics

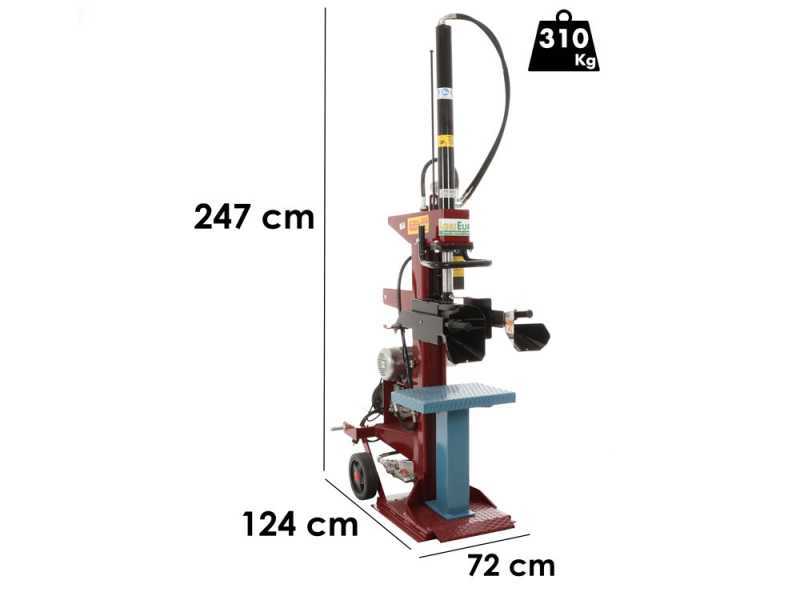

Product dimensions in cm (L x W x H)
124x72x247
Net weight
310 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
80x120x220
Weight including packaging
320 Kg
Unloading with hydraulic tail lift
Yes
Assembly time
15 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 10/09/2025 - 12/09/2025
Lowest price:
€ 2.268,13
-3 %
€ 2.196,50
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

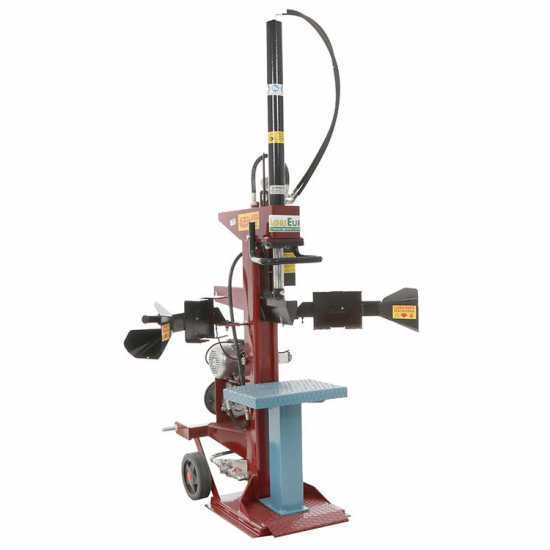

AgriEuro tractor-mounted vertical log splitter

The AgriEuro SIE 10T is an electric vertical log splitter designed for a domestic use. It is powered by a single-phase electric motor with 2.2 kW of power.

With its 10 tons splitting force, this log splitter can break knotty logs of different sizes, up to a max. of 126 cm height. It is equipped with a large-capacity pump which guarantees a powerful splitting force and a high working speed, and is also equipped with an adjustable piston limit switch control system. The two wheels allow transporting the machine everywhere you need.

The log splitter allows operating with two different speeds that can be selected by simply pressing down on the control handles with more or less pressure.

Operating this log splitter is easy and safe thanks to its special safety devices for protecting the Operator during use.

The log splitter is equipped with ground split system, and it is entirely made in Italy.

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

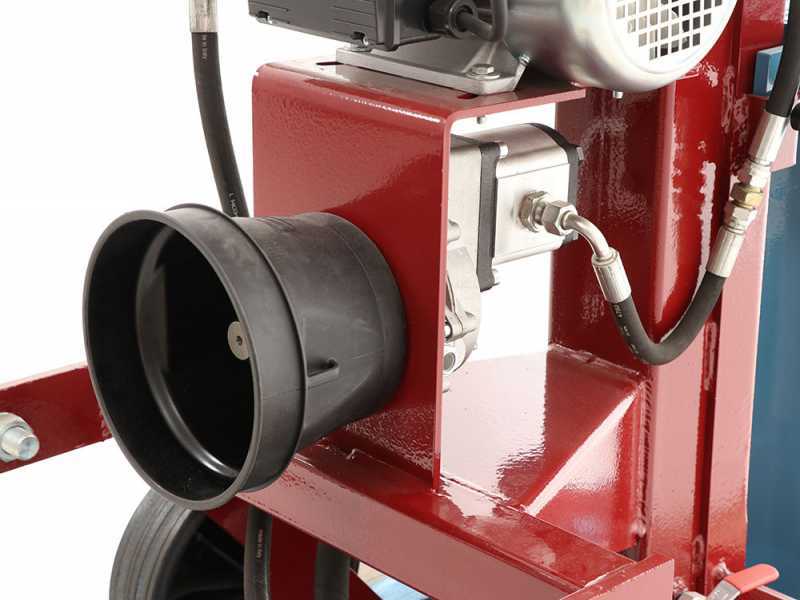

Tractor cardan shaft-powered log splitter

This log splitter is tractor-mounted and can be connected to the tractor via a cardan universal joint.

Equipped with a high-performance hydraulic pump that supplies oil to the hydraulic pushing cylinder. The hydraulic pump features a pressure gauge for checking the oil pressure.

The frame of the machine structure itself acts as the hydraulic oil tank.

The log splitter can be connected to the tractor by means the three-point linkage on the sturdy machine frame.

Focus on the oil-bath steel gear multiplier coated with cast aluminium.

The multiplier transfers torque from the tractor to the hydraulic pump by means of the cardan universal joint.

This log splitter can also be powered by connecting it to the standard domestic mains electricity supply by using the single-phase 230 V 3 Hp motor with a 2.2 kW of power. The electric motor exploits the action of a double high-performance hydraulic pump that supplies oil, (drawn from the tank) to the hydraulic pushing cylinder. The advantage of the two-stage pump is that it allows the piston to double, or more, its speed, compared to normal single phase 3 Hp log splitters equipped with a single pump.

Furthermore, the two-stage pump allows you to halve the operating time and increases the productivity of the log splitter.

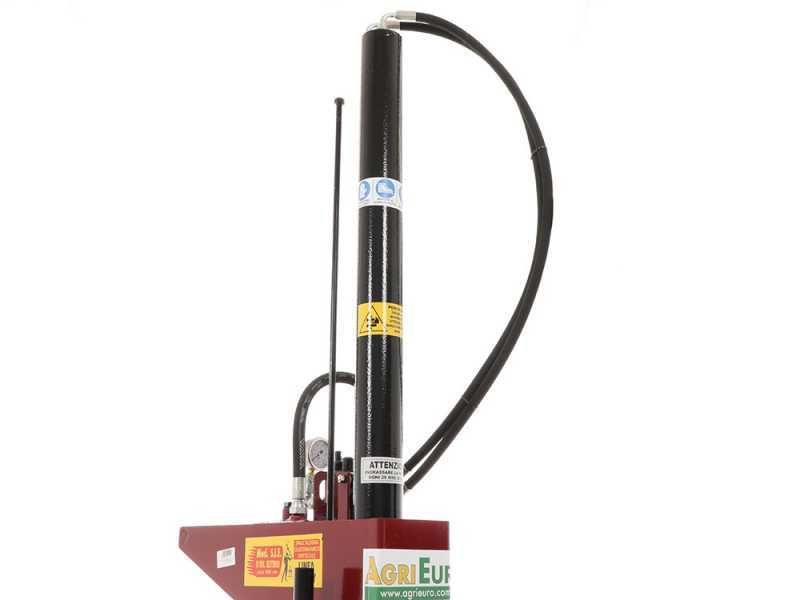

Wedge and 1000 piston stroke

With its 10 tons splitting force, this log splitter can break knotty logs of different sizes, up to a max. of 112 cm height, thanks to its exceptionally sturdy and large 1000 mm piston cylinder with an 80 mm outer diameter and 50 mm internal diameter.

Adjustable piston stroke: when splitting short logs, you can speed the operations as the piston stroke can be adjusted by means of a tightening screw.

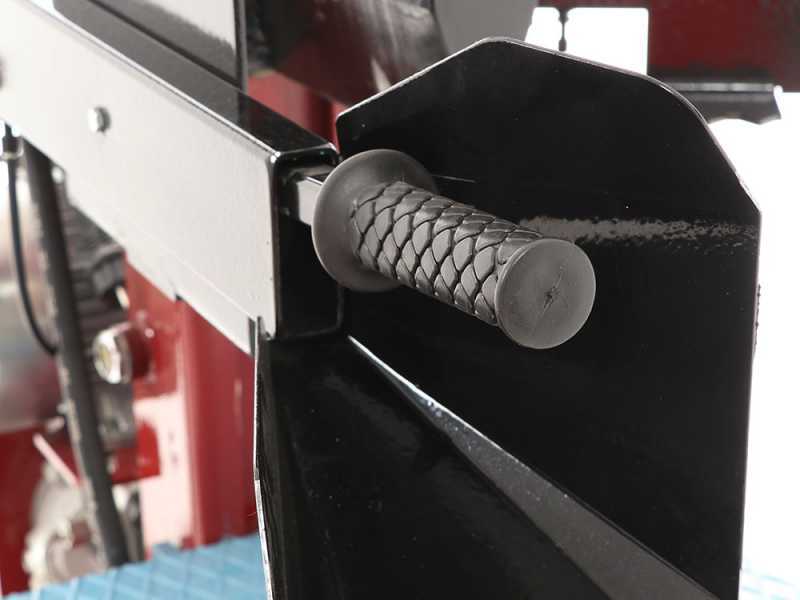

Operation

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 10 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Additional features

Wedge lift locking device. pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Focus on the hydraulic distributor

Focus on the removable plate that can be removed so the Operator can split the logs down to ground level.

Focus on the hydraulic oil level

Focus on the oil filter: replaceable heavy-duty large cartridge oil filter.

Focus on the support platform

Focus on the transport wheels

Focus on the lower three-point attachment

Focus on the upper three-point attachment

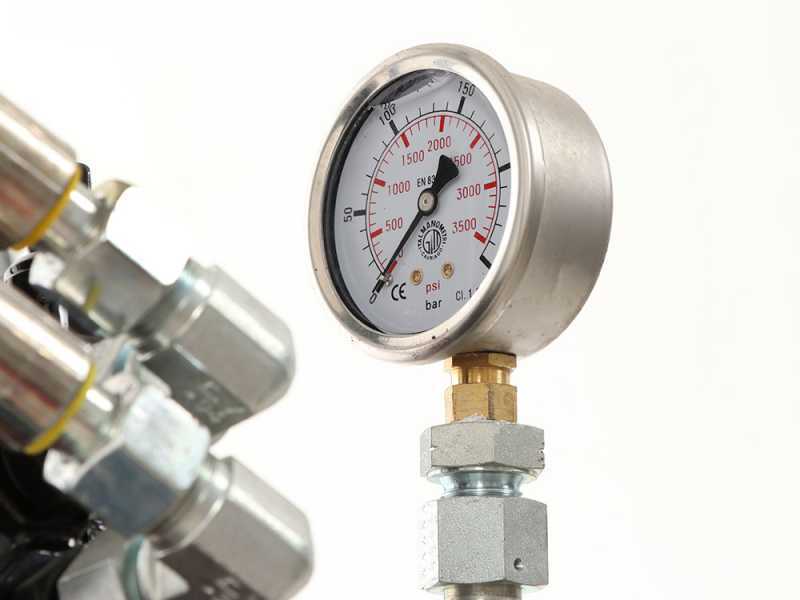

Pressure gauge that measures oil pressure inside the circuit

Free items & Standard equipment

Standard equipment

The log splitter is safely shipped in its original packaging on pallet.

The maintenance and operating instructions manual is included in the packaging.
