Description

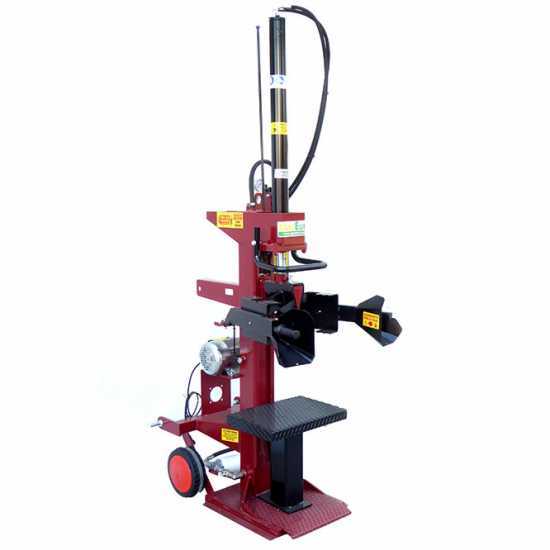

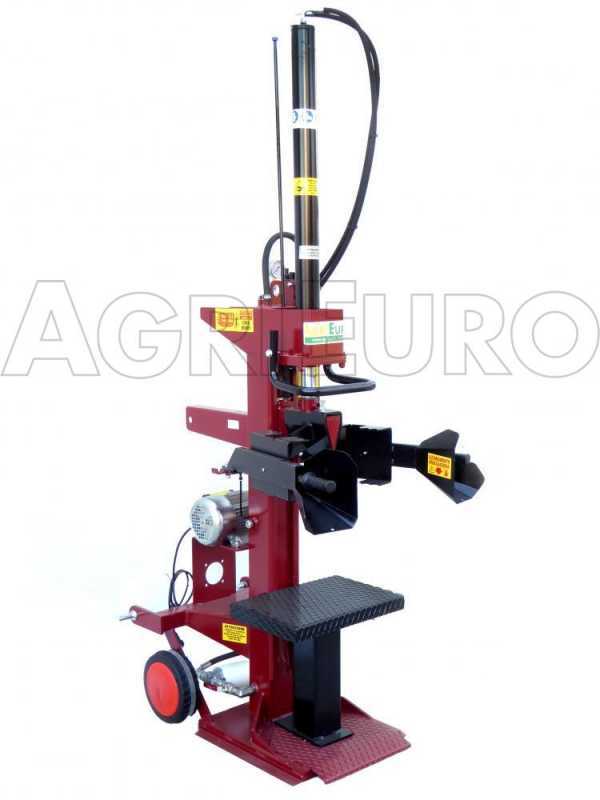

AgriEuro electric vertical log splitter

The AgriEuro SIE 10T is a vertical log splitter designed for domestic use.

Powered by a 3 HP single-phase electric motor which generates a 10 ton splitting force so it can break knotty logs of different sizes up to max. 112 cm in height.

This log splitter allows splitting the logs up to the ground level. Equipped with a safety arch and automatic adjustable piston limit switch control system and all the safety devices for protecting the Operator during use.

These AgriEuro log splitters are entirely manufactured in Italy.

ATTENTION:

The log splitters in this category are not suitable for working with wood with particularly twisted fibres, such as poplar or pine, with large diameters and, in any case, types of wood with frequent knots. In this case, it is advisable to opt for professional models. In addition, logs should only be split once they have been dried, and not when they are green; when wood is green, it is less likely to split and open up and is therefore less suitable for use with a log splitter. Once dried, however, it can be split and is ready for use in fireplaces, stoves, ovens, etc.

SIE 10 - Electric tractor log splitter - Vertical

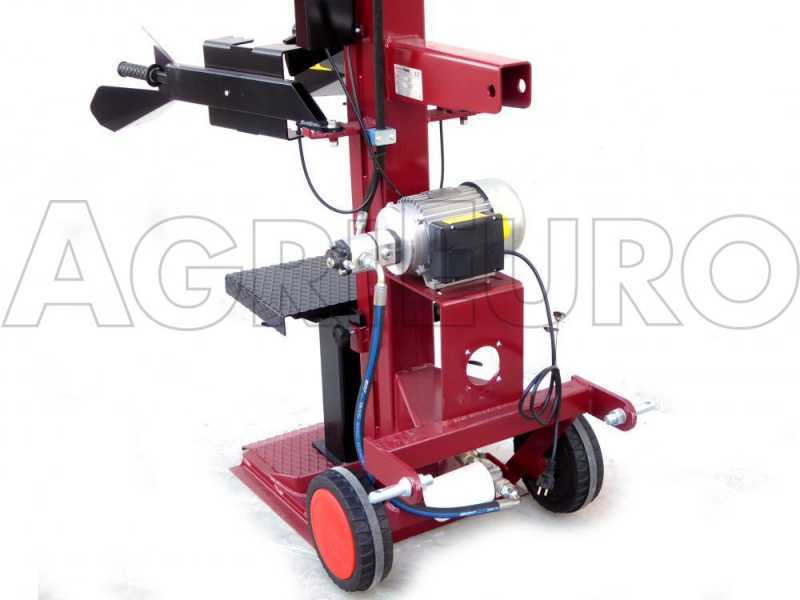

3 Hp 2200 W electric motor

This log plitter wis powered by a 230 V (3 HP, 2.2 kW) single-phase motor so it can be operated using the normal domestic mains electricity supply.

The machine is equipped with a high-performing double hydraulic pump that supplies oil (drawn from the tank) to the hydraulic pushing cylinder.

The frame of the machine structure itself acts as the hydraulic oil tank.

The advantage of the two-stage pump is that it allows the piston to double, or more, its speed, compared to normal single phase 3 Hp log splitters equipped with a single pump.

Furthermore, the two-stage pump allows you to halve the operating time and increases the productivity of the log splitter.

Two-stage pump entirely made in Italy

Focus on the start switch

Focus on the oil circuit pressure gauge.

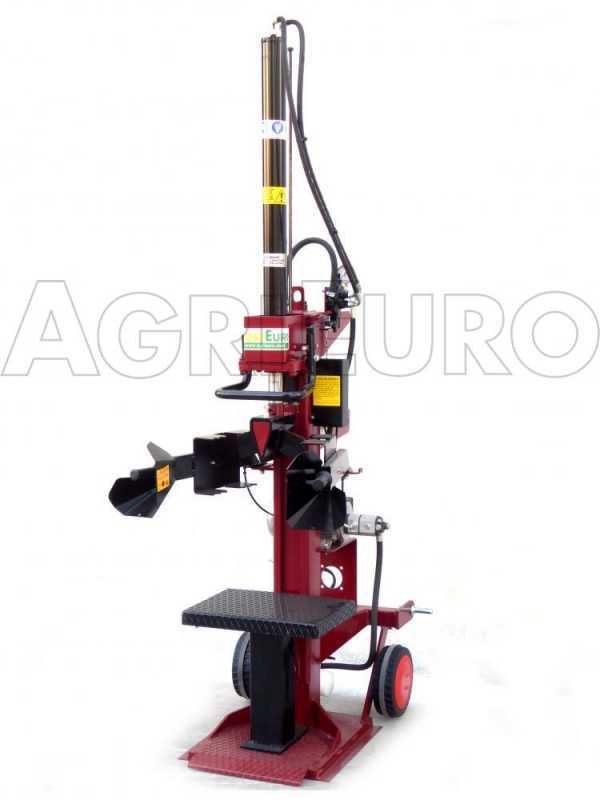

Wedge and 1100 mm piston stroke

With its 10 tons splitting force, this log splitter can break knotty logs of different sizes, up to a max. of 112 cm height, thanks to its exceptionally sturdy and large 1000 mm piston cylinder with an 80 mm outer diameter and 50 mm internal diameter.

Adjustable piston stroke: when splitting short logs, you can speed the operations as the piston stroke can be adjusted by means of a tightening screw.

Operation

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 10 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Other features

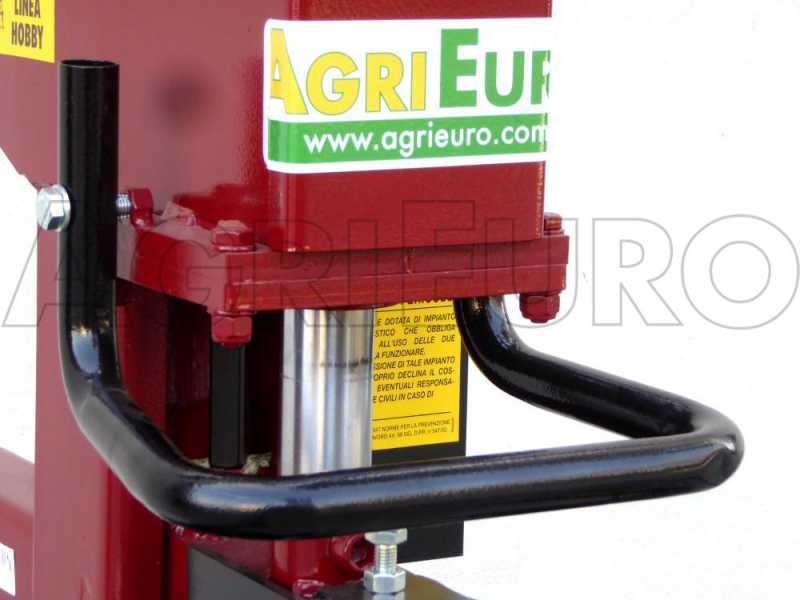

Wedge lift locking device: pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Focus on the hydraulic distributor

Focus on the cutting plate. The plate can be removed so the Operator can split the logs down to ground level.

Focus on the hydraulic oil tank cap

Focus on the hydraulic oil level

Focus on the oil filter: replaceable heavy-duty large cartridge oil filter.

Focus on the support platform

Focus on the transport wheels

Focus on the log lifting connection

Focus on the lower three-point linkage

Focus on the upper three-point linkage

Pressure gauge that measures oil pressure inside the circuit
