SevenItaly BIG 4-element Tractor-Mounted Ripper - 160cm Hydraulic Roller

Questions & Answers (1)
ID: 111322

EAN: 8053435095808

SevenItaly BIG 4-element Tractor-Mounted Ripper - 160cm Hydraulic Roller
Working width
160 cm
Working depth
37 cm
Tractor power
40-70 HP
Sturdiness/Series
Light
Roller
Hydraulic
Clod shattering fins
Yes
Manufacturing country
Italy
Product Features
Model:
BIG 4-element with 160cm mechanical roller
Tractor power:
40-70 HP
Sturdiness/Series:
Light
Manufacturing country:
Italy
Cutting data
Working depth:
37 cm
Hydraulic Roller:
Yes
Working width:
160 cm
Working depth:
37 cm
Equipment
Roller:
Hydraulic
Free gifts/extra features
Reversible and replaceable tine:
Yes
Clod shattering fins:
Yes
Dimensions and logistics

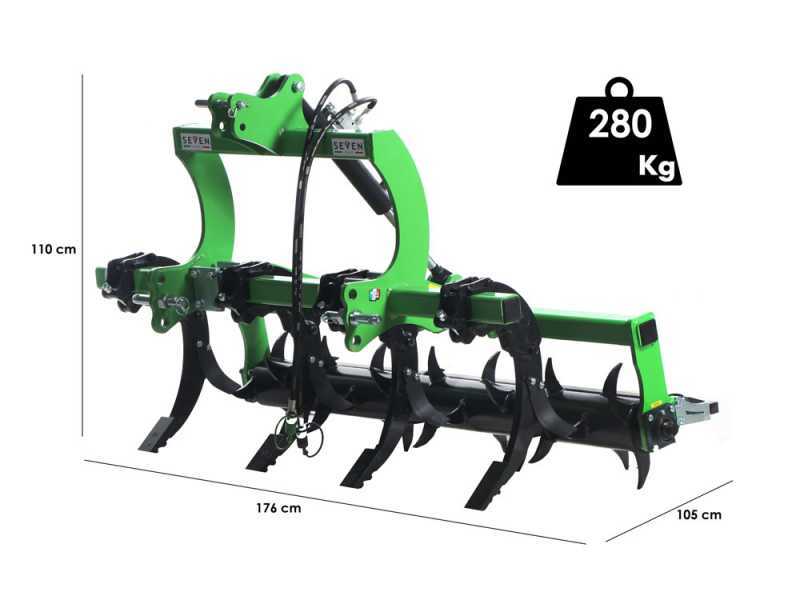

Product dimensions in cm (L x W x H):
176x110x105 cm
Net weight:
280 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
180x80x80
Gross weight (packaging included) :
310 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 29/05/2024 - 31/05/2024
€ 2.251,43
VAT Included
You're viewing:
Customers also viewed:
Description

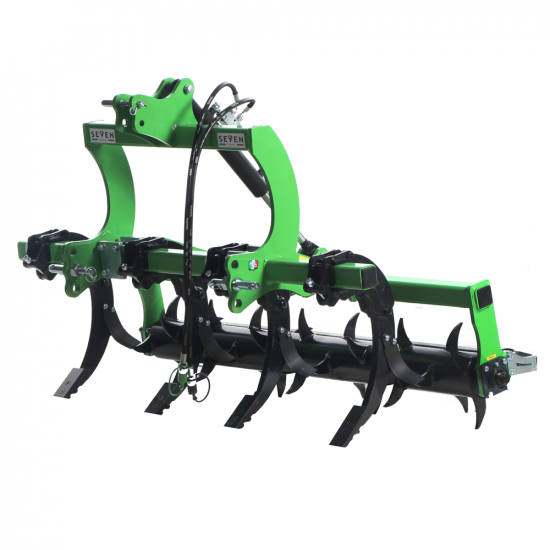

SevenItaly BIG 4-element Tractor-Mounted Ripper - 160cm Hydraulic Roller

The SevenItaly BIG 4-element tractor-mounted ripper with a 160 cm mechanical roller is an agricultural tool used to break up and aerate the soil, improving water and nutrient penetration and facilitating plant root growth.

The BIG ripper is suitable for tilling soils of various types, such as clay, sandy or mixed soils. The use of this device results in well-tilled soil ready for sowing or planting.

These are some of its main features:

Structure: The ripper frame consists of 4 elements that operate together in order to break up compacted soil. The number of elements is ideal for working on small and medium-sized surfaces.

Working width: With a 160 cm hydraulic roller, this ripper is able to cover a sufficient working width for the most frequent uses in agriculture.

Mechanical roller: The 160 cm mechanical roller makes it possible to adjust the working depth and compact the freshly tilled soil, favouring the even distribution of water and nutrients.

Compatibility This tool is compatible with tractors of various brands and models, thus making it suitable for a wide range of agricultural applications.

Maintenance: The SevenItaly BIG ripper requires very little maintenance due to its sturdy frame and the high quality materials employed in its manufacture.

Subsoiling

The BIG 4-elements ripper is an agricultural tool employed for soil tilling. Its total width is 160cm and it features 4 elements, i.e. 4 hoes able to work the soil in depth.

The main feature of this ripper is the automatic roller which levels the tilled soil in order to obtain a uniform and even surface.

The automatic roller is equipped with a mechanism that enables it to rotate autonomously when using the ripper. This feature allows to save time and effort, since there is no need to carry out the levelling operation manually.

The BIG 4-element tractor-mounted ripper with 160cm working width and automatic roller is particularly suitable for medium-sized soils, such as vegetable gardens. Thanks to its efficiency and practicality, this ripper represents a valuable help for those who desire a good yield from their agricultural activity.

The force required for a ripper is generally less than that required for a plough. This makes it possible to operate on an area almost twice as large as the one that can be tilled with a tiller.

The ripper function is particularly effective with compact, dry soil, allowing it to be broken up effectively. Indeed, thanks to its action, the soil will be loosened on the surface and marked by a series of small furrows.

The tillage from the bottom up creates a certain amount of macro-porosity and crumbling in the soil, thus causing little or no change in the profile of the layers. In not very compact soils, the operation is in any case effective in breaking up clamps and improving water drainage.

This multi tyne ripper consists of a sturdy support frame and 4 tynes, shaped and angled forward to facilitate effective soil penetration due to the tractor fast forward motion.

Working depth: 37 cm

Focus on the safety shear bolt

Main features

The BIG 4-element ripper with mechanical roller is an ideal agricultural machine for professional tillage. The combination of four anchors and a mechanical roller with shaped, helical teeth allows effective, high-quality soil tillage.

  • Weight of 280Kg and frame width of 160 cm.
  • The ripper is equipped with four anchors with pull bolt and reversible ploughshare.
  • Lateral clod shattering fins used for soil clearing or the removal of rocks and obstacles that impede cultivation.
  • There is a roller with shaped teeth positioned in a helical shape to facilitate sliding through the soil and ensure greater grip and crumbling of clods thanks to the several rows of teeth
  • The roller depth can be adjusted manually
  • The ripper is equipped with a 1st category 3-point hitch with Ø28 mm diameter at the bottom and Ø25 mm diameter at the top
  • The ripper is sandblasted and powder-coated to provide greater corrosion resistance

Pins size:

  • A (height from the lowest pin to the ground): 85 cm
  • B (distance between pins): 48 cm
  • C (height from the lowest pin to the ground) 44 cm
Free items & Standard equipment

Standard equipment

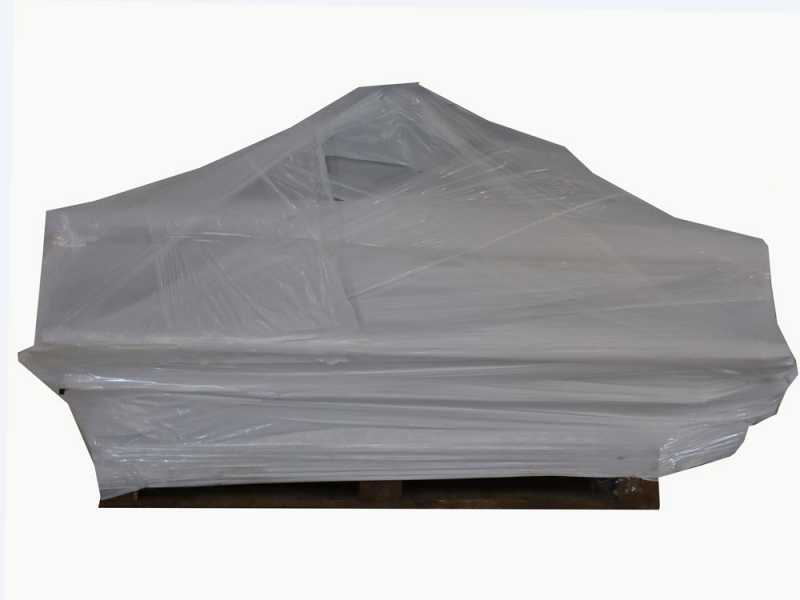

The tractor-mounted ripper is shipped on pallet.
