Seven Italy Vibropac Vibro Cultivator 120cm - 7 Tines - 120cm Working Width

Add a question
ID: 112080

EAN: 8053435095839

MPN: VIBROPAC-120

Seven Italy Vibropac Vibro Cultivator 120cm - 7 Tines - 120cm Working Width
Sturdiness/Series
Heavy
Weight
51 Kg
Tractor power
12 to 35 hp
Working width
120 cm
"S" Tines
Yes
Manufacturing country
Italy
Product Features
Model:
Seven Italy Vibropac 120 cm
Tractor power:
12 to 35 hp
Sturdiness/Series:
Heavy
Manufacturing country:
Italy
Cutting data
Teeth no.:
7
Working width:
120 cm
Teeth width:
40 mm
Teeth thickness:
6 mm
Equipment
"S" Tines:
Yes
Free gifts/extra features
Reversible and replaceable tine:
Yes
Dimensions and logistics

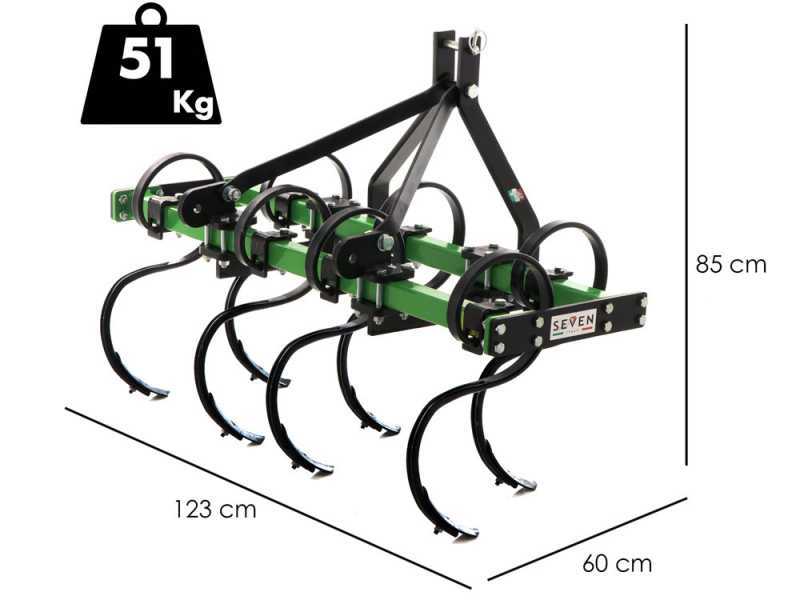

Product dimensions in cm (L x W x H):
123x85x60 cm
Net weight:
51 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
140x32x45 cm
Gross weight (packaging included) :
70 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
90 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
Suggested price:
€ 638,62
€ 587,53
VAT Included
You're viewing:
Customers also viewed:
Description

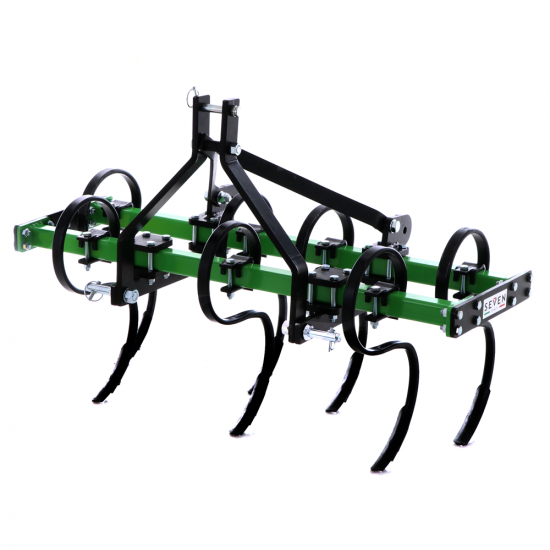

Seven Italy Vibropac Vibro Cultivator 120cm

Seven Italy Vibropac 120cm vibro cultivator - 7 tines, is designed to work the soil in depth and prepare it for sowing or direct seeding. The working width of 120 cm indicates the machine width, determining the area it can cover during a single operation.

Unlike subsoilers or spring loaded tillers, the spring loaded vibro cultivator features a smaller working depth and less distance between the tines. The vibrating spring system also allows preparing the soil for seeding or removing overgrown weeds.

The frame features 2 rows and the tines end with an easily replaceable coulter.

TECHNICAL DATA (brief overview):

  • Total width: 123 cm
  • Real operating width: 120 cm
  • Tractor power: 12 - 35 HP
  • Weight: 51 Kg

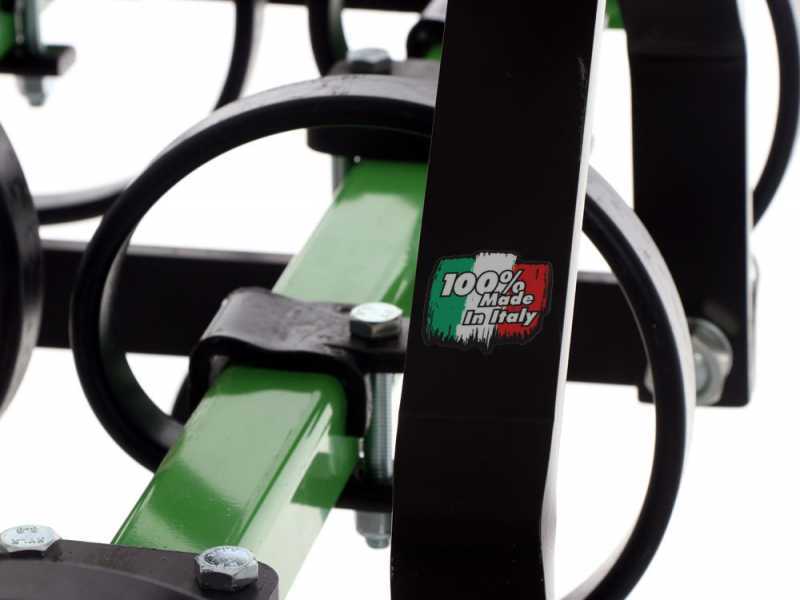

Preparing the soil for seeding

This cultivator features a great weight distribution, precision depth control and the ability to follow the ground contours of the machine so as to create the perfect seedbed on any type of soil.

With sturdy elastic springs, the cultivator ensure great performance on any type of soil. The vibro cultivator is equipped with a sturdy frame featuring three rows of springs.

The tillage from the bottom up creates a certain amount of macro-porosity and crumbling in the soil, thus causing little or no change in the profile of the layers. In not very compact soils, the operation is in any case effective in breaking up clamps and improving water drainage.

Main features

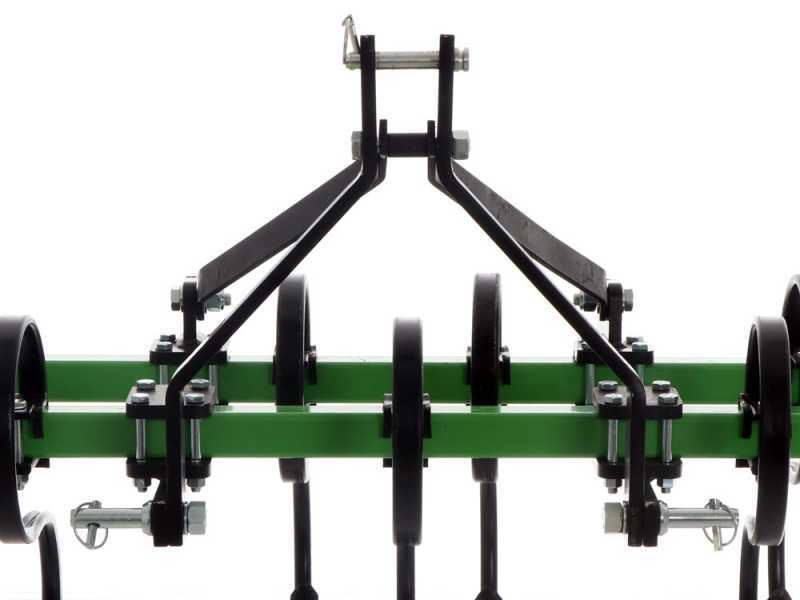

The tines feature a leaf spring reinforcement, which gives them a vibrating effect, and the spring reinforcement helps avoiding the recoil effect of the tine in case it gets stuck in the ground.

The vibro cultivator comes with the following items included on standard equipment:

  • Category 1 3-point hitch;
  • Safety bolts on each tine that protect the cultivator against damage in case of hitting a rock or a buried root. Indeed, the bolt is designed to break on impact, preventing further damage.
  • Reversible and replaceable tyne;

Pins size:

  • Height from the highest hole to the ground: 102 cm;
  • First hitch space width: 6 cm;
  • 1st category 3-point hitch size (Ø19 upper-Ø22 lower).
  • Height from the lowest hole to the ground: 35 cm;
  • Distance between pins: 47 cm
Free items & Standard equipment

Standard equipment

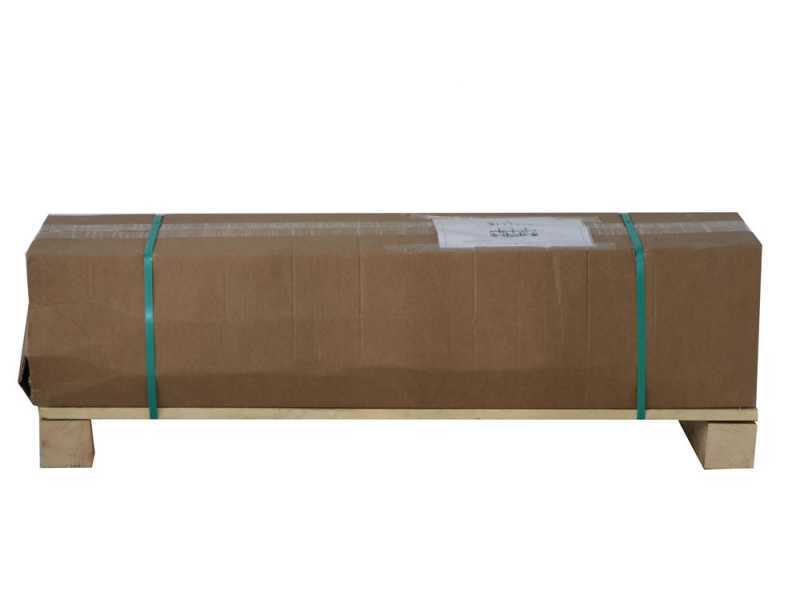

The tractor-mounted vibro cultivator is shipped on pallet.
