Seven Italy - Subsoiler RT5_Compak - 5 Elements 170 cm

Questions & Answers (2)
ID: 112084

EAN: 8053435095877

MPN: RT5_Compak

Seven Italy - Subsoiler RT5_Compak - 5 Elements 170 cm
Working width
170 cm
Working depth
37 cm
Tractor power
50-70 HP
Clod shattering fins
Manufacturing country
Product Features
Ripuntatore RT5_Compak 170 cm
Tractor power:
50-70 HP
Manufacturing country:
Cutting data
Working depth:
37 cm
Working width:
170 cm
Working depth:
37 cm
Free gifts/extra features
Safety bolts:
Reversible and replaceable tine:
Clod shattering fins:
Instructions manual:
Dimensions and logistics
Net weight:
240 Kg
On pallet
Original packaging/s dimensions in cm (L x W x H):
Gross weight (packaging included) :
280 Kg
Unloading with hydraulic tail lift:
Assembly time:
60 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
€ 2.109,98
VAT Included
You're viewing:
Customers also viewed:

Seven Italy 170 cm subsoiler

The Seven Italy RT5_Compak subsoiler has a monolithic frame with 5 anchors and a working width of 170cm. It is designed with the aim of providing maximum comfort and convenience to operators in the agricultural sector. It provides versatility and optimal coverage during tillage operations.

The RT5-Compak model is sandblasted and powder coated to provide greater resistance to corrosion.

Even in particularly difficult conditions, such as extremely compacted soils, the subs oiler provides deep tillage, ensuring perfect soil aeration. This results in improved agricultural productivity and reduced problems such as waterlogging or erosion.

The great power of the 5-element subs oiler lies in its ability to break up the soil evenly. This approach preserves the natural balance of the soil while keeping its original structure intact. As a result, the treated soil retains its sponginess, which is essential for supporting plant growth and optimal drainage.

Because of its technical specifications, it is an ideal choice for farmers who want to achieve perfectly spongy and well-drained soil, regardless of initial conditions.


The RT5_Compak Subsoiler - 5 Elements 170 cm is an agricultural implement used to work the soil. Its total length is 170 cm, and it has 5 elements, that is, 5 hoes with clamps and strap bolt, which work the soil deeply.

The 170 cm 5-anchor subsoiler is particularly suitable for tilling medium-sized soils, such as vegetable gardens and gardens. Because of its efficiency and practicality, it is a valuable aid for those who wish to obtain a good yield from their farming activities.

The driving force required for a subs oiler is generally less than that required for a plough. This allows almost twice as much area to be worked in the same amount of time as with hoes.

The function of the subs oiler is particularly effective with compact, dry soils by allowing effective crumbling. In fact, thanks to its action, the soil, will be dislodged on the surface and marked by a series of small furrows.

Tilling, from the bottom up, creates a certain degree of macro porosity and crumbling on the soil, thus resulting in little or no alteration of the profile of the layers. In soils that are not very compacted, the action is still effective in breaking up tillage soles and improving water drainage.

This agricultural ripper consists of a sturdy supporting frame and 5 anchors (or tines), shaped and angled forward to promote, due to the tractor's rapid forward motion, effective soil penetration

Useful working height: 37 cm

Main features

The RT5_Compak 5-element Subsoiler is an ideal agricultural implement for professional tillage.

The combination of 5 subsoiler anchors enables effective and high-quality tillage

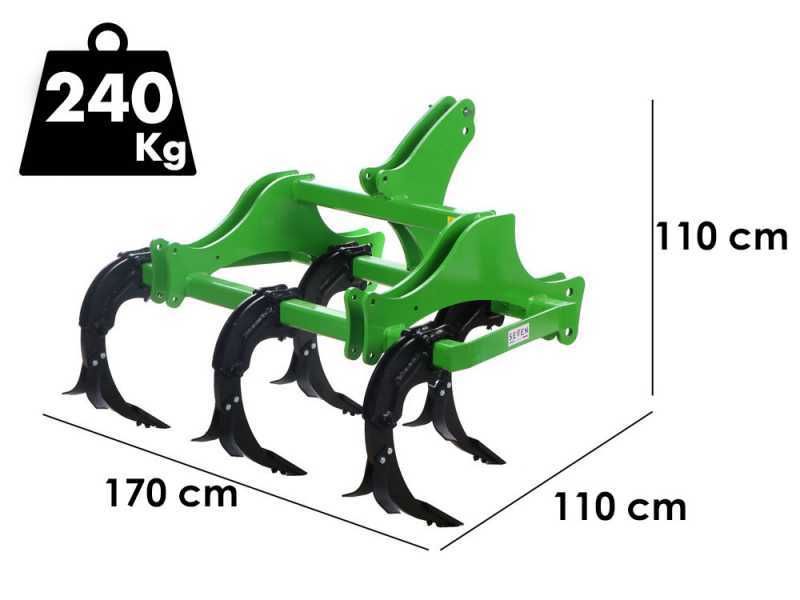

  • Weight of 240 kg and a frame width of 170 cm.
  • The equipment is provided with 5 subsoiler anchors with strap bolt and reversible ploughshare.
  • Lateral Explosives used for soil loosening or removal of rocks and obstacles that impede cultivation.

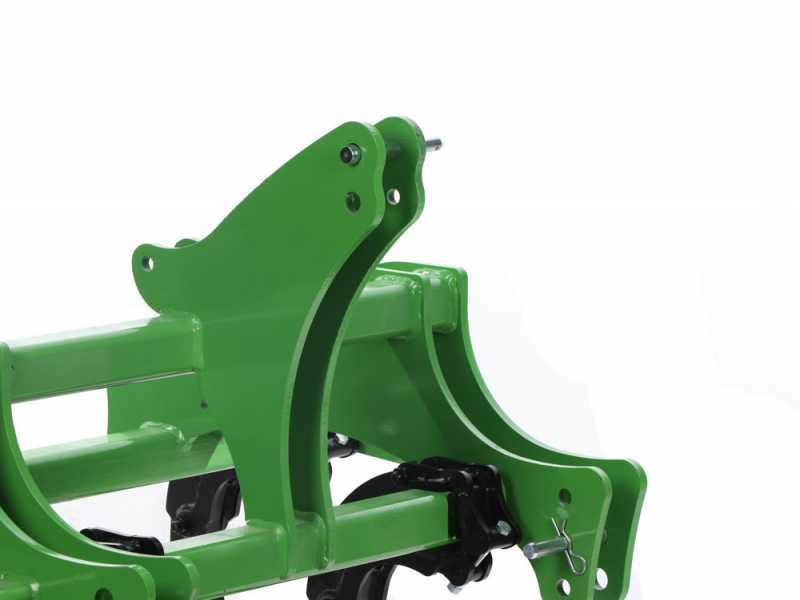

  • The implement is equipped with a 2nd category 3-point hitch with Ø22:28 mm diameter at the bottom and Ø19:22 mm diameter at the top
  • The subs oiler is powder-blasted to ensure greater resistance to corrosion

Pivot measurements:

  • A (height from high pivot to ground): 106 cm
  • B (width from pin to pin): 67 cm
  • C (height from low pivot to ground) 51 cm
Free items & Standard equipment


The machine is shipped inside its original boxing, complete with bolts for assembly
