Seven Italy Simply a 4 - Square Spring Tiller with Curl - 140cm

Add a question
ID: K609686

EAN: N/A

MPN: N/A

8,9/10
After-sales assistance & Spare parts
Seven Italy Simply a 4 - Square Spring Tiller with Curl - 140cm
Sturdiness/Series
Light
Weight
100 Kg
Working width
160 cm
Working depth
25 cm
Number of Ploughshares
4 Ploughshares
Manufacturing country
Italy
Product Features
Model:
Simply spring loaded tiller with 4 anchors
Tractor power:
30 to 40 HP
Sturdiness/Series:
Light
Operating mode:
Tractor-driven PTO
Fixed 3-point hitch:
Yes
Reinforced Frame:
No
Manufacturing country:
Italy
Cutting data
Working width:
160 cm
Working depth:
25 cm
Number of Ploughshares :
4 Ploughshares
Interchangeable anchors:
Yes
Tilting anchors:
No
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
140x60x107 cm
Net weight:
100 Kg
Packaging:
On pallet
Unloading with hydraulic tail lift:
Yes
Assembly time:
60 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 03/07/2025 - 07/07/2025
€ 799,75
Vat included
You're viewing:
Customers also viewed:
Description

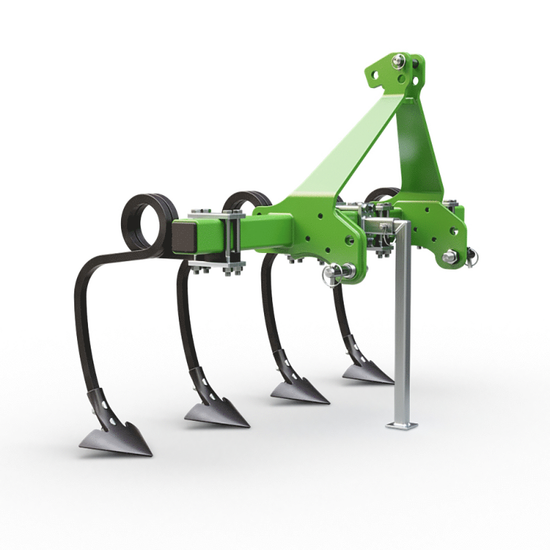

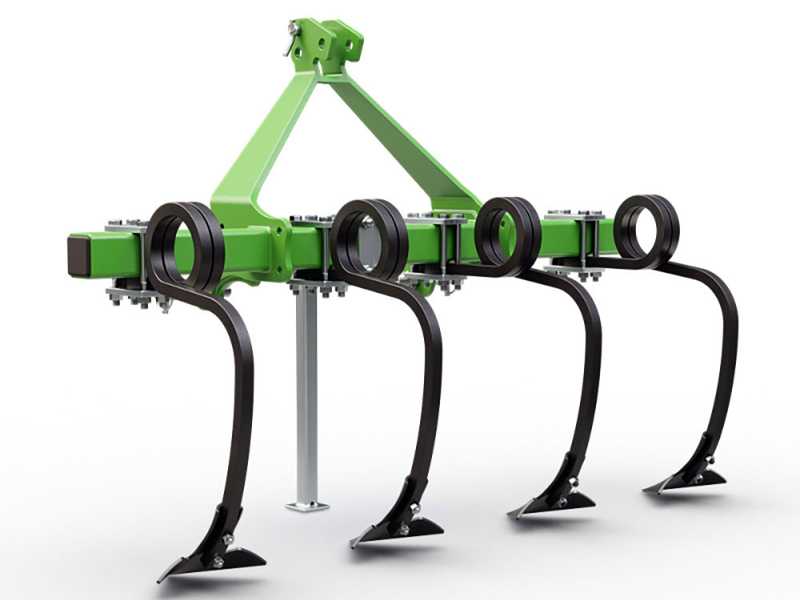

Seven Italy simply 4-anchor square-spring tiller with curl

Seven Italy Simply spring-loaded tiller with 4 squared torsion spring anchors has been designed with the aim to provide comfort and convenience to the user when performing soil tillage activities.

The innovative Multy frame features a number of unique advantages. This frame allows a flexible 1-, 2-, 3- or 4-element configuration and enables the operator to adapt the tiller to the specific soil requirements and intended use.

Thanks to its interchangeable element configuration, the Seven Italy tiller features unprecedented versatility. The operator can easily change the frame elements according to the type of work to be performed. For example, if you want to superficially break up the previously worked soil and make it uniform, you can use a 2-element configuration. Instead, if you need more intense and deeper action, you can use a 4-element configuration.

The vertical extraction process performed by the Simply model of the tiller contributes to improve soil quality. By reworking the previously tilled soil vertically, surface clods are broken, and soil homogeneity is promoted. Furthermore, this operation significantly reduces the number of unwanted clods, thus making the soil more uniform and ready for the following tillage stages.

Another important advantage provided by the Simply tiller is its ability to eliminate surface-grown weeds. By cutting and tilling the soil, the tiller considerably reduces the appearance of unwanted plants, helping to keep the soil clean and ready for subsequent use.

In conclusion, the Seven Italy Simply spring-loaded tiller with a Multy frame is an excellent solution for tilling. Thanks to its flexible configuration, vertical cutting capacity and weed elimination, this tiller provides a high level of comfort and convenience to the operator, allowing optimal results when preparing the soil for future crops.

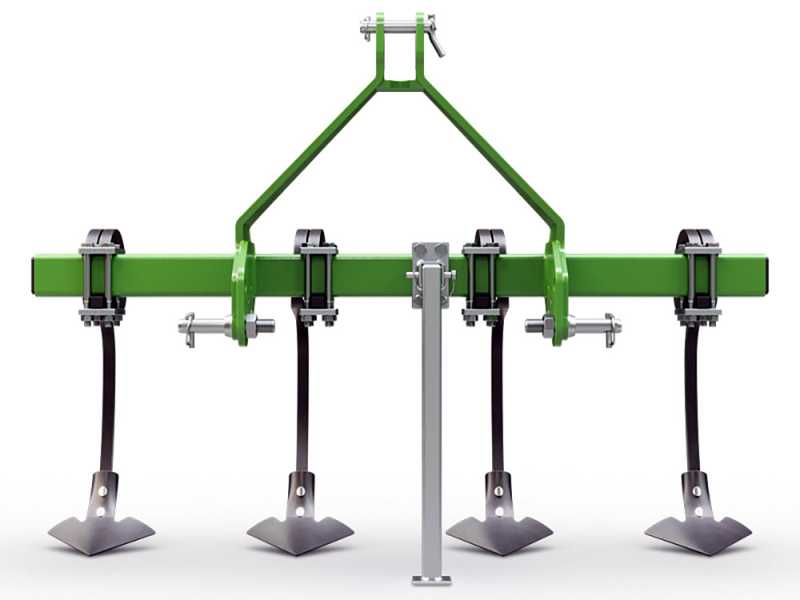

The working of the Tiller

A tiller usually works on previously tilled soil in order to reduce clods, holes and imperfections such as weed rhizomes.

The 4 arrow tines ensure even work over a 140 cm soil width.

The lance is excellent for spreading and breaking up clods on even hard and stony seedbeds.

The arrow-shaped anchors with torsion spring ensure guarantee more accurate and uniform work than those with fixed anchors; furthermore, they are more user-friendly than a spring tiller.

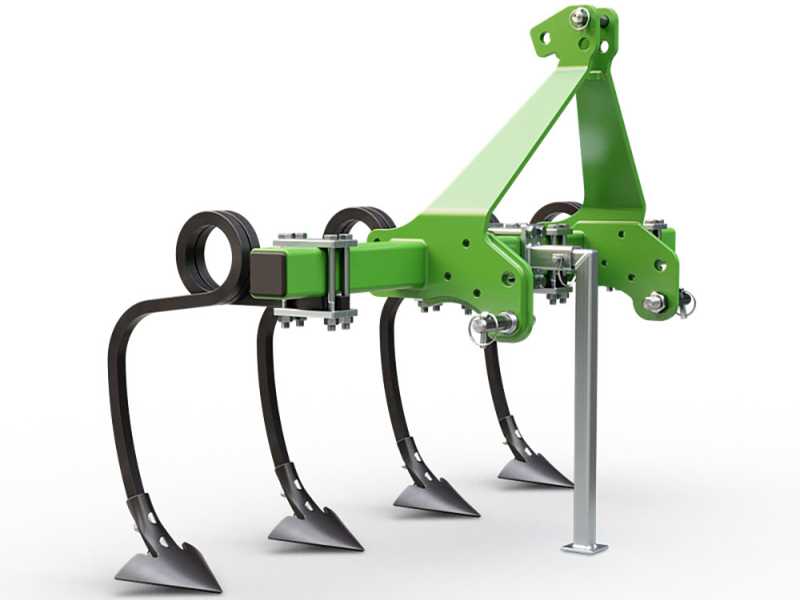

Main features

The simply tiller with 4 square spring anchors (20x20mm) with curl is a Made in Italy, light series product.

Focus on the torsion spring of every anchor

Focus on the lance ploughshare

Focus on the 4 curved tines

Reinforced, 3-point hitch for 1st category tractor with quick-release couplings

Height under frame - ground: 430 mm

Modularity

The strong point of this frame is its versatility, which allows you to easily change accessories according to your needs.

By visiting the Accessories section, you can buy the accessory you want and apply it quickly and easily to the chassis.

It is recommended to strictly adhere to the configurations shown in the pictures.

It should also be noted that the photos in this form are for illustrative purposes only:

Visible accessories are NOT included in the purchase of the product.

Free items & Standard equipment

Free items included

The machine is shipped in its original packaging together with the assembly bolts.
