Seven Italy - RT5_Compak - Seven Italy - 5 Element Subsoiler 150 Cm

Add a question
ID: 112083

EAN: 8053435095860

MPN: RT5_Compak

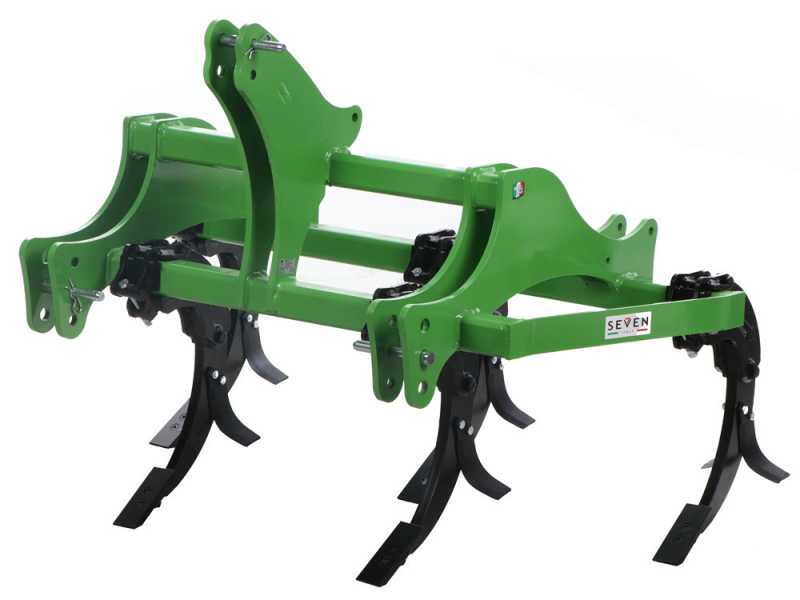

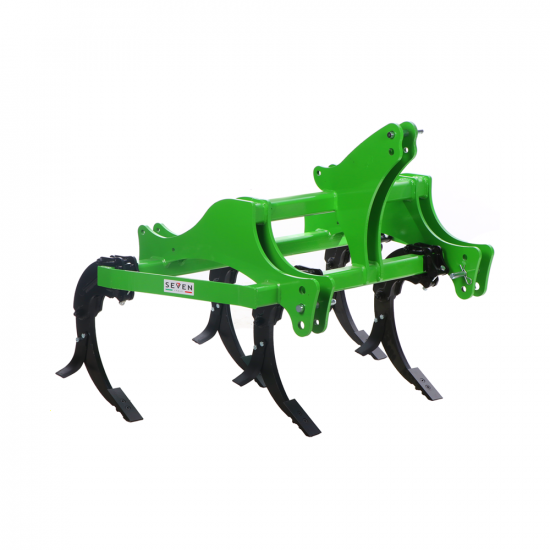

Seven Italy - RT5_Compak - Seven Italy - 5 Element Subsoiler 150 Cm
Working width
150 cm
Working depth
37 cm
Tractor power
50-70 HP
Clod shattering fins
Manufacturing country
Product Features
Ripuntatore RT5_Compak 150 cm
Tractor power:
50-70 HP
Manufacturing country:
Cutting data
Working depth:
37 cm
Working width:
150 cm
Working depth:
37 cm
Free gifts/extra features
Safety bolts:
Reversible and replaceable tine:
Clod shattering fins:
Instructions manual:

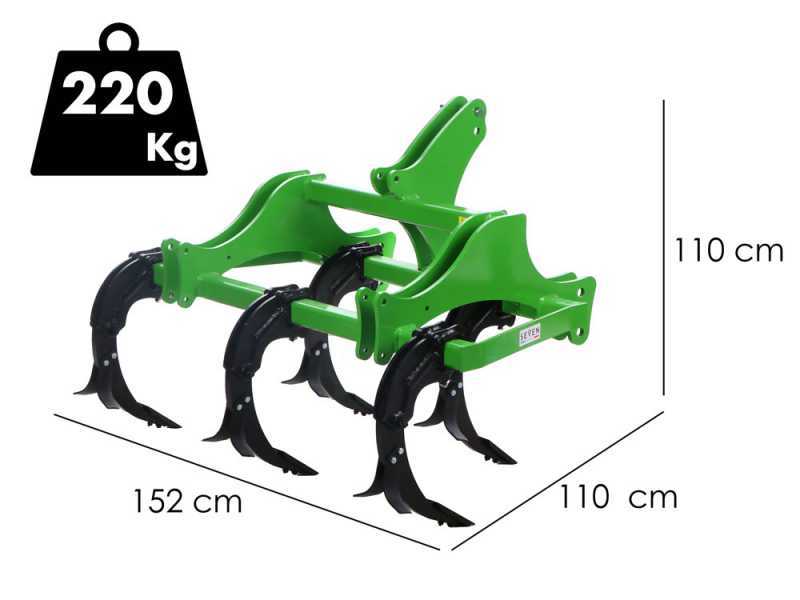

Dimensions and logistics
Net weight:
220 Kg
On pallet
Original packaging/s dimensions in cm (L x W x H):
Gross weight (packaging included) :
240 Kg
Unloading with hydraulic tail lift:
Assembly time:
60 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
€ 2.042,36
VAT Included
You're viewing:
Customers also viewed:

Seven Italy 5-anchor subsoiler

The Seven Italy RT5_Compak subs oiler is designed to provide maximum comfort and convenience to the operator in the agricultural field. Its main feature is the 150-cm frame with a 5-anchor configuration, ensuring versatility and maximum coverage in tillage operations.

The subs oiler's frame makes it easy to adapt to the specific needs of the user, allowing it to tackle both large plots of land and more specific, detailed areas.

The great strength of the 5-element RT5_Compak subs oiler lies in its ability to break up soil evenly. This approach preserves the organic balance of the soil, keeping its natural structure intact. As a result, the treated soil retains its sponginess, which is essential for supporting plant growth and optimal drainage.

Even in particularly arduous conditions, such as especially compacted soils, the subs oiler provides deep tillage, ensuring perfect soil aeration. This results in improved agricultural productivity and reduced incidence of problems such as waterlogging or erosion.

In conclusion, the subs oiler with its 5 anchors stands as an irreplaceable tool for tillage. Because of its technical specifications, it is an ideal choice for farmers who aspire to achieve perfectly spongy and drained soil, regardless of initial conditions.


The RT5_Compak Subs oiler - 5 Elements 150 Cm is an agricultural implement used to work the soil. Its total length is 150 cm, and it has 5 elements, that is, 5 hoes with clamps and strap bolt, which work the earth deeply.

The 150 cm 5-anchor subs oiler is particularly suitable for tilling medium-sized soils, such as vegetable gardens and gardens. Because of its efficiency and practicality, it is a valuable aid for those who wish to obtain a good yield from their farming activities.

The driving force required for a subs oiler is generally less than that required for a plough. This allows almost twice as much area to be worked in the same amount of time as with hoes.

The function of the subs oiler is particularly effective with compact, dry soils by allowing effective crumbling. In fact, thanks to its action, the soil, will be dislodged on the surface and marked by a series of small furrows.

Tilling, from the bottom up, creates a certain degree of macro porosity and crumbling on the soil, thus resulting in little or no alteration of the profile of the layers. In soils that are not very compacted, the action is still effective in breaking up tillage soles and improving water drainage.

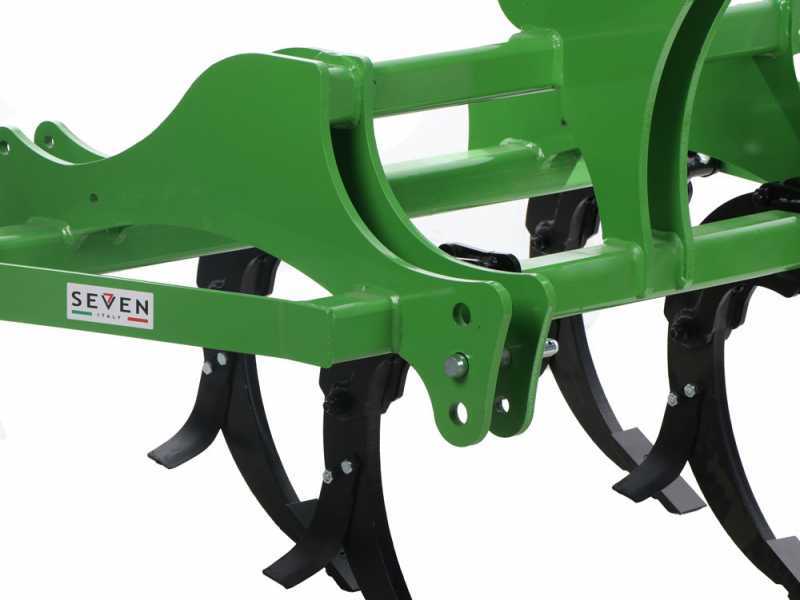

This agricultural ripper consists of a sturdy supporting frame and 5 anchors (or tines), shaped and angled forward to promote, due to the tractor's rapid forward motion, effective soil penetration

Useful working height: 37 cm

Main features

The RT5_Compak 5-element Subs oiler is an ideal agricultural tool for professional tillage.

The combination of 5 subs oiler anchors enables effective and high-quality tillage

  • Weight of 220 kg and a frame width of 150 cm.
  • The equipment is equipped with 5 subs oiler anchors with strap bolt and reversible ploughshare.
  • Lateral Explosives used for soil loosening or removal of rocks and obstacles that impede cultivation.

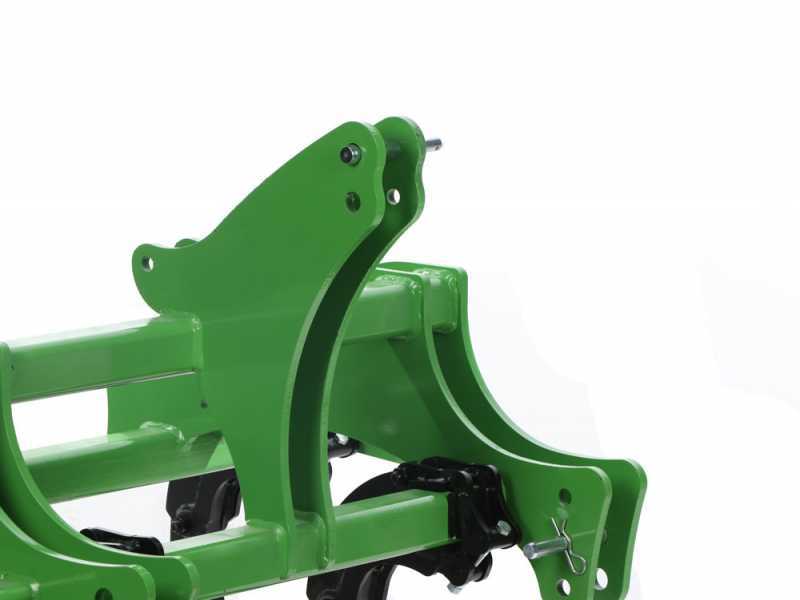

  • The tool has a 1st and 2nd category 3-point hitch with Ø22 mm diameter at the bottom and Ø19 mm diameter at the top
  • The subs oiler is powder-blasted to ensure greater corrosion resistance

Pivot measurements:

  • A (height from high pivot to ground): 106 cm
  • B (width from pin to pin): 80 cm
  • C (height from low pivot to ground) 51 cm
Free items & Standard equipment


The machine is shipped inside its original packaging, complete with bolts for assembly
