Ryobi ZTR480ex ZTR Battery-powered Riding-on Mower - Battery-powered Electric Motor 48 V/100Ah - 107 cm Cutting Width - 2 in 1

With the ZTR (Zero Turning Radius) the Operator can steer at 180° without the need of special manoeuvres.

Heavy-duty, sturdy and comfortable machine; the ZTR480ex zero turn riding-on mower is perfect for professional grass cutting in all conditions: whether for large lawns, gardens or fields or even for parks to be maintained and wherever you need to mow grass around trees and flowerbeds with little effort and in total comfort.

The Zero Radius Technology (ZTR) allows the machine to move with extreme agility. The manoeuvrability drastically reduces the driving manoeuvres around obstacles and guarantees an exceptional lawn mowing, even in the most hard-to-reach areas. This reduces manual trimming operations ensuring the highest productivity in the shortest time.

The two-lever steering system allows a precise control of the machine while quickly changing its position. Its cutting efficiency, together with the easy-to-use front pivoting wheels, allows you to easily turn the machine without the risk of damaging the lawn or creating furrows.

The centralised cutting height is adjustable in 12 positions: from 35 mm to 115 mm.

Max. forward speed: 11.2 Km/h

It is equipped with a powerful brushless electric motor with 4x 12 V lead-acid batteries, for a total of 48 V and 100Ah.

Up to 2 hours autonomy with a single charge, enough to mow up to 6000 s.q. m.

• USB charging port
• LED headlights
• Cruise control

This riding-on mower is equipped with a powerful 48 V/100Ah brushless electric motor (4x 12 V lead-acid batteries).

Powered by 4 brushless motors for great mowing performance.

Smart motor, a great combination of technology and mechanical engineering.

Zero emissions

Low maintenance

2 h continuous use with a single charge.

Max. forward speed: 11.2 km/h

The ZTR480ex riding-on mower is a Zero Turn Radius machinery (ZRT). This system uses two independent hydrostatic transmissions on the rear drive wheels allowing them to rotate with a zero turning radius.

The front wheels, on the other hand, are 360 degrees pivoting wheels.

This steering system, consisting of rear drive wheels and front pivoting wheels, makes the ZTX480ex riding-on mower an extremely manoeuvrable machine.

This riding-on mower is renowned for the ease of use and great comfort for the Operator as it can easily work around trees, flowerbeds, bushes, small-sized lawns and narrow spaces.
However, its efficiency is fully expressed to mow large lawns in the shortest possible time.

The two-lever steering system allows a precise control of the machine while quickly changing its position.

The high manoeuvrability of a zero turn radius riding-on mower is one of its strengths compared to traditional riding-on mowers.

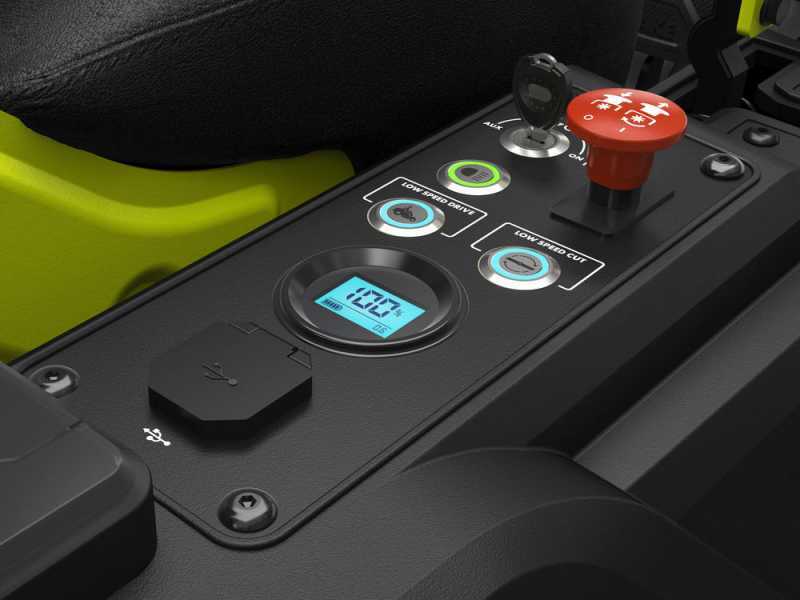

DRIVING CONTROLS:

The user-friendly control levers make this riding-on mower very easy to drive. This machine is equipped with a two-lever selector which allows setting all the functions of the machine depending on the levers position:

• Straight ahead forward
• Right side forward
• Left side forward
• Reverse speed
• Right curve reverse speed
• Left curve reverse speed
• Low speed drive: it allows you to drive at a reduced speed
• Low speed cut: it allows to cut at reduced rotation speed.
• LED headlights control button (under the key)
• Parking brake (opened levers outside)
• Electric Cruise Control
• Neutral speed
• Brake pedal

1- SIDE DISCHARGE: this is the most traditional cutting system which allows cutting the grass without collecting it into the grass collector. For those who have to mow large-sized areas without needing to collect grass, for who doesn’t cut grass too often and has to cut over-grown grass for which the mulching or the grass collection system are no longer efficient.

2- MULCHING: this grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated and the grass needs cutting at least once a week.

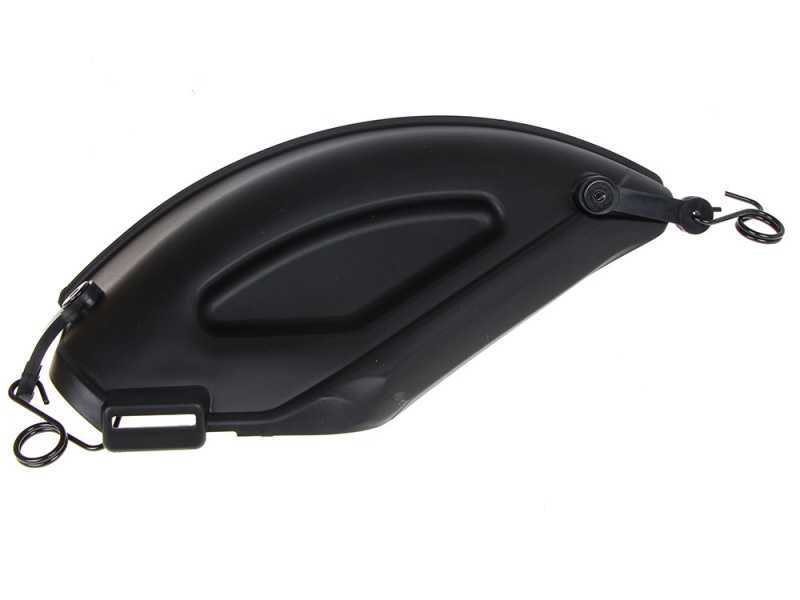

Simply close the side discharge with the proper plug to convert the machine from a cutting system to another one.

Sturdy 2-blade cutting deck: it is a sturdy, high profile cutting deck thought to mow high and thick grass. 107 cm real cutting width.

The centralised cutting height is adjustable in 12 positions, from 35 mm to 115 mm.

The cutting deck is equipped with 2 anti-scalp wheels.

The mowing blades of the riding-on mower can be set through the controls on the dashboard (red button): then the machine is equipped with an electromagnetic cutting blades engagement.

Ryobi ZTR480ex zero turn riding-on mower additional features:

• Can holder compartment
• Large-sized tyres: they ensure higher care of the lawn and great adherence to the ground and traction on a riding-on mower.
• Pivoting front tires: they can rotate up to 360 degrees.
• Large-sized highly-comfortable seat with armrests. It can be adjusted according to the Operator’s needs and lies on large springs to absorb eventual bumps due to an uneven terrain.
• Ergonomic rubber control levers

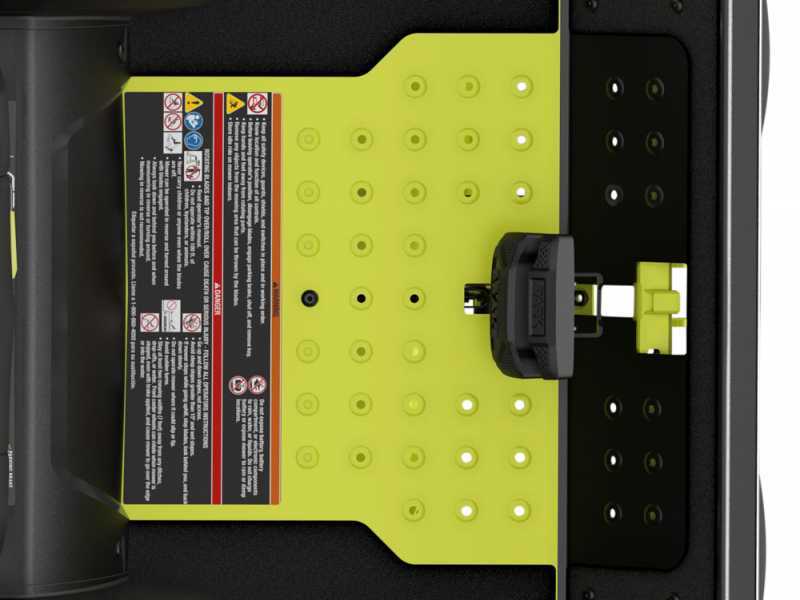

• Large front platform
• LED headlights
• USB charging port
• Glove box

*The riding-on mower is shipped already assembled; you’ll only have to assemble the seat and the control levers with 2 screws.
