Rover Colombo 6 - Plate and Sheet Filter for Wine - Wine Filtering Pump

Questions & Answers (13)
ID: 0323

EAN: 8032706070546

MPN: 490000

Rover Colombo 6 - Plate and Sheet Filter for Wine - Wine Filtering Pump
+1000 sold
FREE
Colombo FiltersColombo Filters
Body material
Enamelled steel
Type of filter sheets
20x20 cm
No. of filter sheets
6
Portable
Motor type
Induction
Nominal power
0.5 HP
Material
Bronze
Fittings diameter
20 mm
Max. suction height
4 m
Manufacturing country
Italy
Product Features
Model:
Colombo 6
Type:
Filter plates and sheets
Body material:
Enamelled steel
Portable:
Operating mode:
Electric 230 V
Type of filter sheets:
20x20 cm
No. of filter sheets :
6
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.5 HP
Motor speed:
2850 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
Rover
Material:
Bronze
Fittings diameter:
20 mm
Flow rate:
240-1680 L/h
Max. suction height:
4 m
Manufacturing country:
Italy
Equipment
Lifting handle:
Yes
Drain liquid recovery tray:
Yes
Free gifts/extra features
Filter sheets for free:
12
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Net weight:
15 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
43 x 28 x 27 cm
Assembly time:
Assembled
Prompt Delivery
38 items in stock
Free Shipping
Estimated delivery: 05/04/2024 - 09/04/2024
€ 239,63
VAT Included

You're viewing:
Customers also viewed:
Description

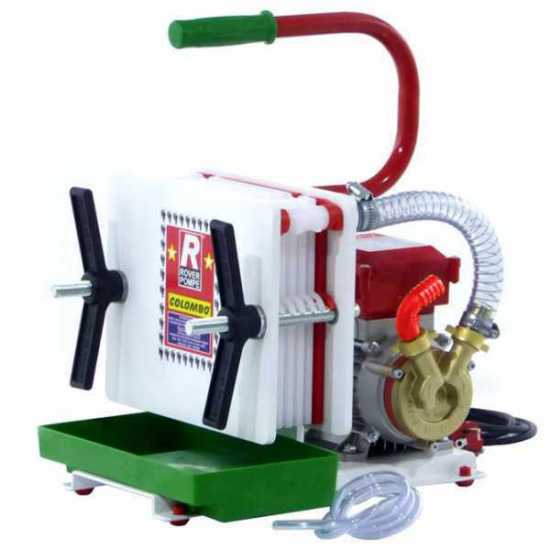

Rover Colombo 6 Plate and Sheet Filter for Wine

The greatest innovation of this wine filtering pump is the reversed impeller.

This heavy-duty wine filter model features 7 top-quality filter plates made of PVC.

The assembly is fast and easy, the replacement of the filter sheets is immediate; most importantly, liquid leakage that can occur during filtering operations has been drastically reduced.

Suitable for filtering any food liquid, mainly wine.

When detached from the filter, the filtering pump can also be used as a common transfer pump.

It can house up to 6 filter sheets. It is also possible to mount various types of sheet filters to obtain different types of productions.

The pump can also work with less than 6 filter sheets. For example, only 4 can be mounted on the machine: simply slide the chosen plates off. The filtering quality remains the same, only the amount filtered per hour will decrease.

For example, if only 5 plates (i.e. 4 filter sheets) are used, the hourly production of filtered litres will be equal to about 30% less. But in some cases this can allow to save money in the use of filter sheets.

WARNING:

STOCK PHOTOS
WARNING: the new version fo this machine features an updated red PVC fitting, for better versatility to the various hoses on the market.

Bronze pump with reversed impeller

ADVANTAGES OF THE NEW PUMP WITH REVERSED IMPELLER SYSTEM

  • working pressure up to 2.5 bar (instead of 2.0 bar of the previous model)
  • higher head lift (increased by 1.5 meters)
  • pump service life definitely increased. This is a fundamental aspect since these pumps are subjected to a continuous working effort due to the plates filtering system applied to them
  • greater constructive simplicity
  • less mixing of wine or filtered liquid
  • patented system

Pump body

The pump is "self-priming", designed specifically for the operation of this wine filter.

0.5 Hp electric motor

The Colombo 6 wine pump mounts an electric induction motor which guarantees a long service life.

This motor is capable of delivering a power of 0.5 Hp

Additional technical features:

  • power supply: 230 V - 50 Hz
  • motor rpm: 2850 rpm

Filtering system with 7 filter plates

No. 7 filter plates.

It can mount up to 6 20x20 cm filter sheets

Hourly filtering capacity: max 300 L/h


The COLOMBO® FILTER consists of a special electric pump and a filtering system called liquid system with pressed layers.

This particular type of filters allows to obtain excellent levels of drinks purification without altering the fundamental characteristics of the filtered liquid. For this reason, it is mainly used for domestic filtering operations, but also for professional applications, such as in wine cellars, pharmaceutical factories, laboratories, breweries, and wherever it is necessary to filter a drink in order to serve or bottle it perfectly clear, without any trace of residue.

IMPORTANT NOTE FOR THE CUSTOMER: The COLOMBO® FILTER has been designed specifically for filtering beverages, for which all the materials used are perfectly compatible with liquid foods. Particularly suitable for filtering wine, water, infusions, beers, pharmaceutical solutions, perfumes.

It does not require any special maintenance other than normal cleaning.

Other features

Sturdy frame realized in thick enamelled steel

Focus on the power switch to turn the electric motor on

Focus on the filters clamping knobs

Drain liquid recovery tray with hose to immediately reintroduce the liquid to the main container.

Focus on the connection coiled hose between the filtering stage and the pumping stage

Focus on the lifting handle

Lifting foldable handle

Focus on the filter outlet

Focus on the suction filter supplied

Free items & Standard equipment

Free items included

The plate filter for wine is shipped in its original packaging. Included in the packaging are:

Instructions manual and catalogue

Drain liquid recovery tray

Suction filter

Gaskets

COMPLIMENTARY: 12 FILTER SHEETS

Also included in the packaging are:

- 6 20x20 type "4” filter sheets

- 6 20x20 type "16” filter sheets

Additional purchases of filter sheets can be carried out combined with the purchase of the wine pump, since they are on sale in specific listings from our website.

These filters for wine are universal, so they can easily be found on sale in any store across Italy.
