Rover Colombo 18 OIL INOX Plate and Sheet Filter for Oil - Oil Filtering Pump

Body material
Stainless steel
Type of filter sheets
20x20 cm
No. of filter sheets
18
Manufacturing country
Italy
Motor type
Induction
Nominal power
0.9 HP
Material
NOVAX: a corrosion-resistant alloy
Pipe fittings (joints) diameter
20 mm / 25 mm
Maximum suction depth
5 m
FREE:
Colombo Filters
FREE:
Colombo Filters
€ 432,99
VAT Included
Prompt Delivery
31 items in stock
|
Free Shipping
You should receive it by 04/07/2022
ID: 1103

EAN: 8032706073523

MPN: 985000

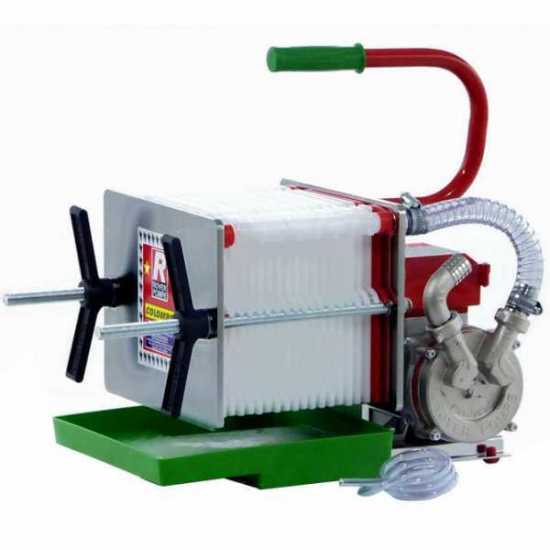

Rover Colombo 18 OIL INOX Plate and Sheet Filter for Oil

This plate and sheet filter for oil is a state-of-the-art machine which differs from the standard model both in its specificity in filtering extra virgin olive oil and in being made with a 100% stainless steel frame.

The specific characteristics of this oil filter make it suitable for professional applications.

The COLOMBO® FILTER consists of a special electric pump and a filtering system called liquid system with pressed layers.

This particular type of filters allows to obtain excellent levels of drinks purification without altering the fundamental characteristics of the filtered liquid. For this reason, it is mainly used for domestic filtering operations, but also for professional applications, such as in wine cellars, pharmaceutical factories, laboratories, breweries, and wherever it is necessary to filter a drink in order to serve or bottle it perfectly clear, without any trace of residue.

IMPORTANT NOTE FOR THE CUSTOMER: the COLOMBO® FILTER has been designed to filter mainly beverages, therefore all the materials used are perfectly compatible with food liquids.

It does not require any special maintenance other than normal cleaning.

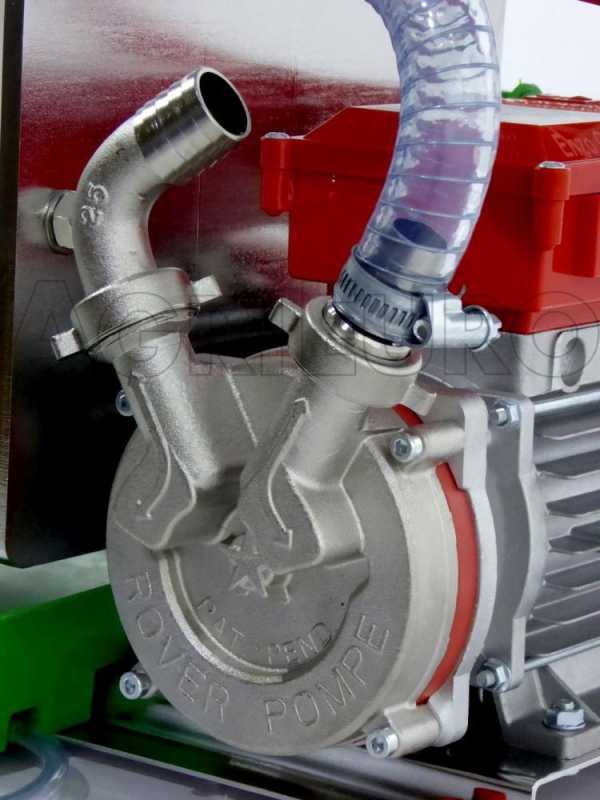

Pump with reversed impeller and NOVAX technology

ADVANTAGES OF THE NEW PUMP WITH REVERSED IMPELLER SYSTEM

  • working pressure up to 2.5 bar (instead of 2.0 bar of the previous model)
  • higher head lift (increased by 1.5 meters)
  • pump service life definitely increased. This is a fundamental aspect since these pumps are subjected to a continuous working effort due to the plates filtering system applied to them
  • greater constructive simplicity
  • less mixing of filtered liquid
  • patented system

Pump body made in corrosion-resistant alloy with NOVAX technology: this is a state-of-the-art pump made of alloy and treated trough a chemical process that makes it antioxidant; this technology called Novax is an exclusive patent of the manufacturer, Rover Pompe.

The pump is self-priming, designed specifically for the operation of this filter.

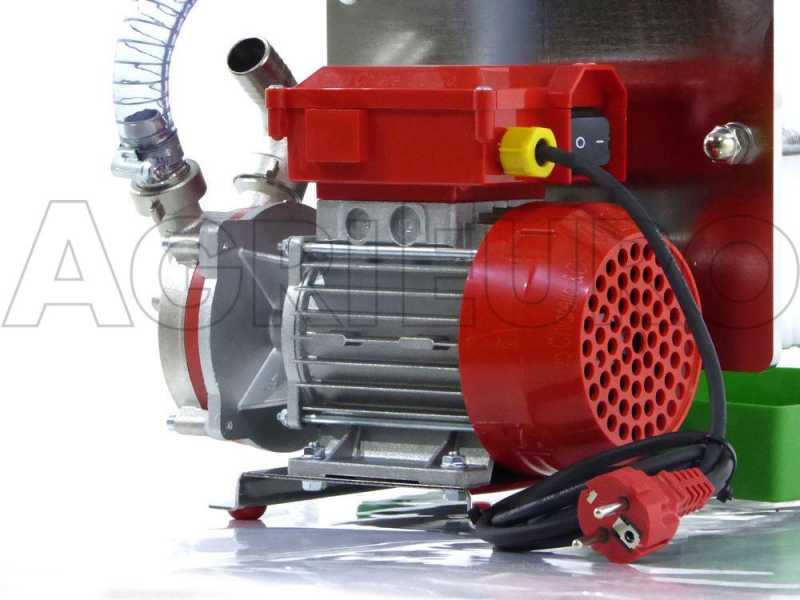

0,9 Hp electric motor

The Colombo 18-OIL INOX oil filtering pump mounts an electric induction motor which guarantees a long service life.

This motor is capable of delivering a power of 0.9 Hp

Additional technical features:

  • power supply: 230 V - 50 Hz
  • motor rpm: 1450 rpm

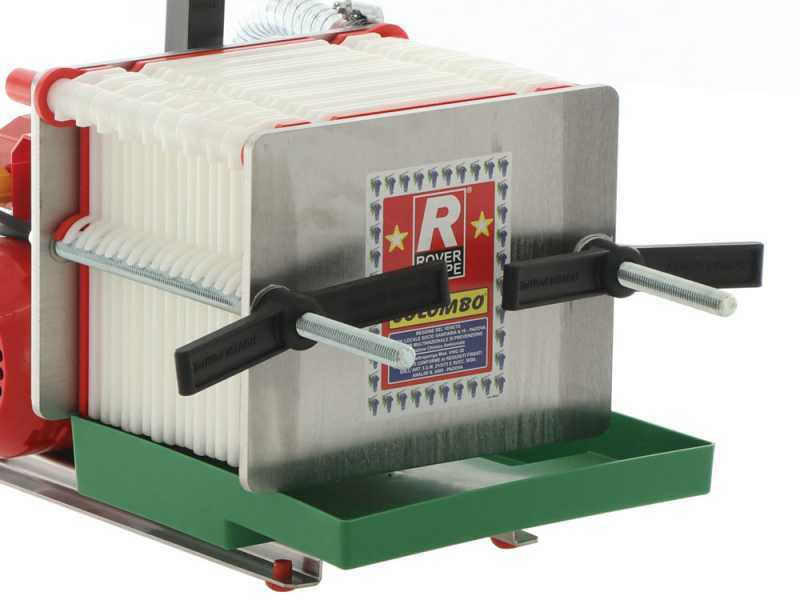

Filtering system with 19 filter plates

No. 19 filter plates. It can house up to 18 20x20 cm filter sheets

Hourly filtering capacity: max 300 L/h

Larger pump body and impeller, chosen because of the particular viscosity of the oil, thus allowing a higher hourly output than the STANDARD model Colombo 18 inox.

Higher power of the electric motor fitted (0.9 Hp against 0.5 Hp of the standard model), given the greater resistance of the oil when pumping compared to more fluid liquids such as wine.

When detached from the filter, the filtering pump can also be used as a common transfer pump.

The pump can also operate with fewer than the 18 filter sheets for which it is designed. For example, 10, 8 or 6 can be mounted: simply slide the chosen plates off. The filtering quality remains the same, only the amount filtered per hour will decrease.

For example, if only 10 plates (i.e. 9 filter sheets) are used, the hourly production of filtered litres will be equal to half. But in some cases this can allow to save money in the use of filter sheets.

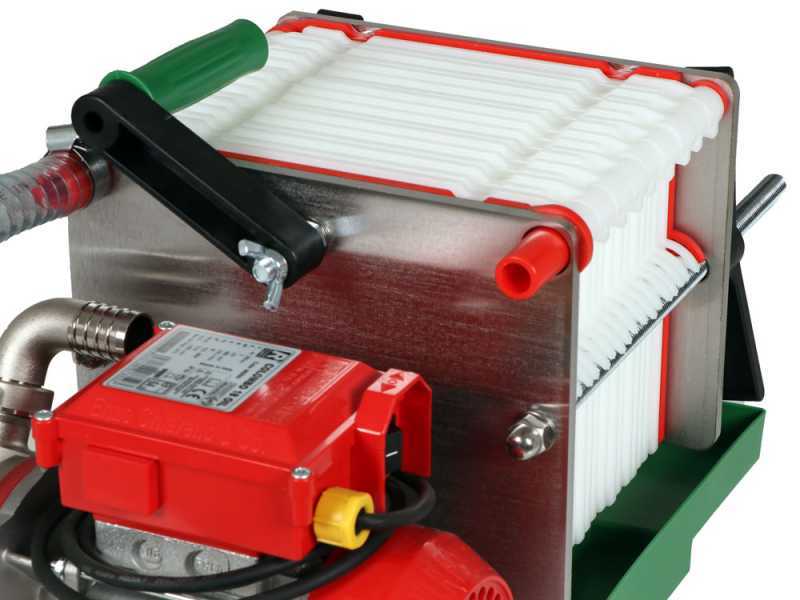

Other features

Particularly sturdy frame made of thick stainless steel

Focus on the stainless steel base

Focus on the thick front plate made of stainless steel

Focus on the power switch to turn the electric motor on

Focus on the filters clamping knobs

Drain liquid recovery tray with hose to immediately reintroduce the liquid to the main container.

Focus on the connection coiled hose between the filtering stage and the pumping stage

Focus on the lifting handle

Lifting foldable handle

Focus on the suction filter supplied

Product Features
Model:
Colombo 18 OIL INOX
Type:
Filter plates and sheets
Body material:
Stainless steel
Body material:
Stainless Steel
Operating mode:
Electric - 230 V
Type of filter sheets:
20x20 cm
No. of filter sheets :
18
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.9 HP
Motor Speed (RPM):
1450 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
Rover
Material:
NOVAX: a corrosion-resistant alloy
Pipe fittings (joints) diameter:
20 mm / 25 mm
Flow Rate:
300 l/h
Maximum suction depth:
5 m
Manufacturing country:
Italy
Equipment
Lifting handle:
Yes
Drip tray:
Yes
Free gifts/extra features
Filter sheets For Free:
18
Suction filter:
Yes
Garolla fitting:
No
Instructions manual:
Yes
Dimensions and logistics

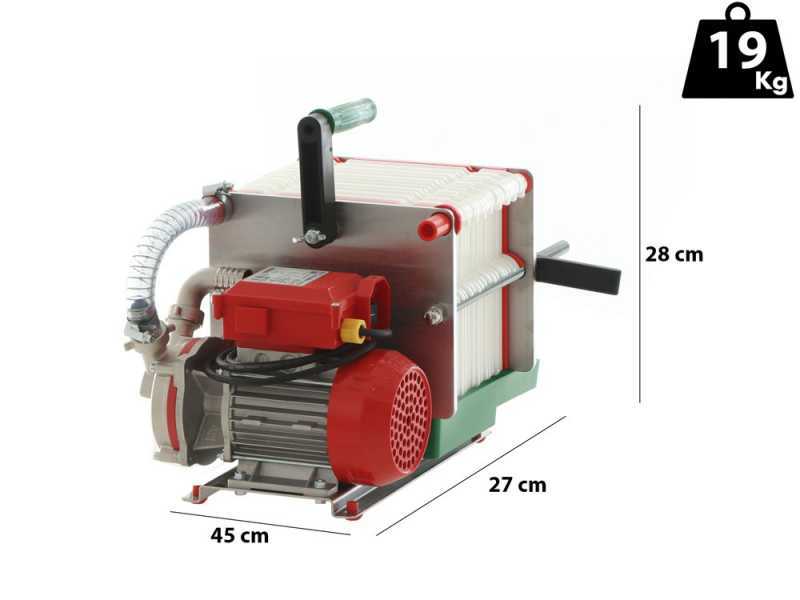

Product dimensions in cm (L x W x H):
(La x Lu x Alt) 450x270x280 cm
Net weight:
19 Kg
Packaging:
Original packaging
Assembly time:
Assembled

Free items included

The plate filter for wine is shipped in its original packaging. Included in the packaging are:

Instructions manual and catalogue

Drain liquid recovery tray

Suction filter

Gaskets

COMPLIMENTARY: 18 FILTER SHEETS

Also included in the packaging are:

- 18 20x20 "00” type filter sheets

Additional purchases of filter sheets can be carried out combined with the purchase of the wine pump, since they are on sale in specific listings from our website.

These filters for wine are universal, so they can easily be found on sale in any store across Italy.

Warning: The suction and delivery fittings are not included with the machine.
