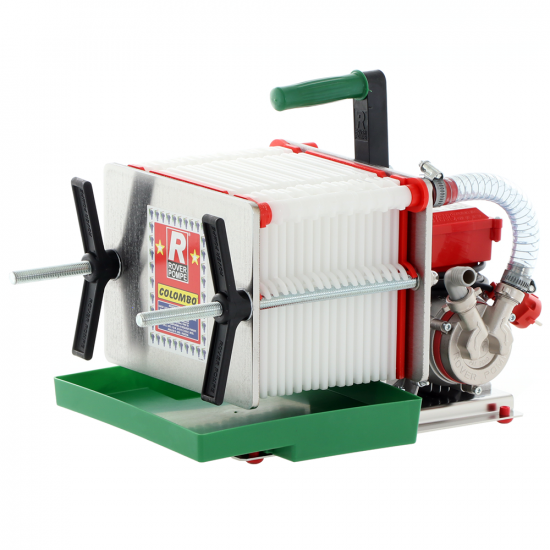

Rover Colombo 18 Inox - Plate and Sheet Filters - Stainless Steel Frame - Wine Pump

This plate and sheet filter for wine comes with a 100% stainless steel structure, which guarantees a long service life and high levels of hygiene, especially suitable for intensive use.

This machine is intended for PROFESSIONAL APPLICATIONS.

The greatest innovation of this wine filtering pump is the reversed impeller. This is a heavy-duty filter that features 19 filter plates made of top-quality PVC.

The assembly is fast and easy, the replacement of the filter sheets is immediate; most importantly, liquid leakage that can occur during filtering operations has been drastically reduced.

Suitable for filtering any food liquid, mainly wine. When detached from the filter, the filtering pump can also be used as a common transfer pump.

It can house up to 18 filter sheets. It is also possible to mount various types of filter sheets to obtain different types of productions.

The pump can also operate with fewer than the 18 filter sheets for which it is designed For example, 16, 14, 12, 10, 8 or only 6 can be mounted. Simply slide off the chosen plates. The filtering quality remains the same, only the amount filtered per hour will decrease.

For example, if only 10 plates (i.e. 9 filter sheets) are used, the hourly production of filtered litres will be equal to half. But in some cases this can allow to save money in the use of filter sheets.

PLEASE NOTE THAT THE FITTINGS ARE NOW MADE OF HARD PLASTIC AND NOT STEEL.

ADVANTAGES OF THE NEW PUMP WITH REVERSED IMPELLER SYSTEM

• working pressure up to 2.5 bar (instead of 2.0 bar of the previous model)
• higher head lift (increased by 1.5 meters)
• pump service life definitely increased. This is a fundamental aspect since these pumps are subjected to a continuous working effort due to the plates filtering system applied to them
• greater constructive simplicity
• less mixing of wine or filtered liquid
• patented system

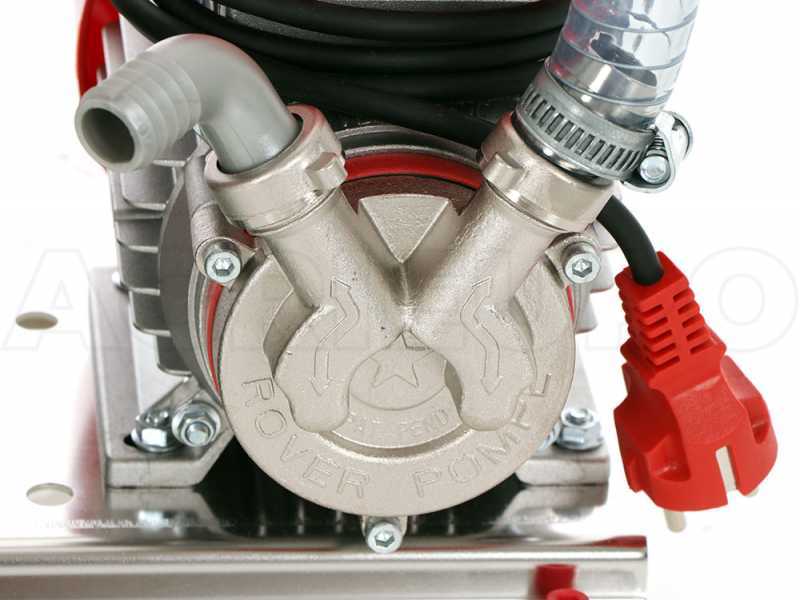

Pump body made in corrosion-resistant alloy with NOVAX technology: this is a state-of-the-art pump made of alloy and treated trough a chemical process that makes it antioxidant; this technology called Novax is an exclusive patent of the manufacturer, Rover Pompe.

The pump is "self-priming", designed specifically for the operation of this wine filter.

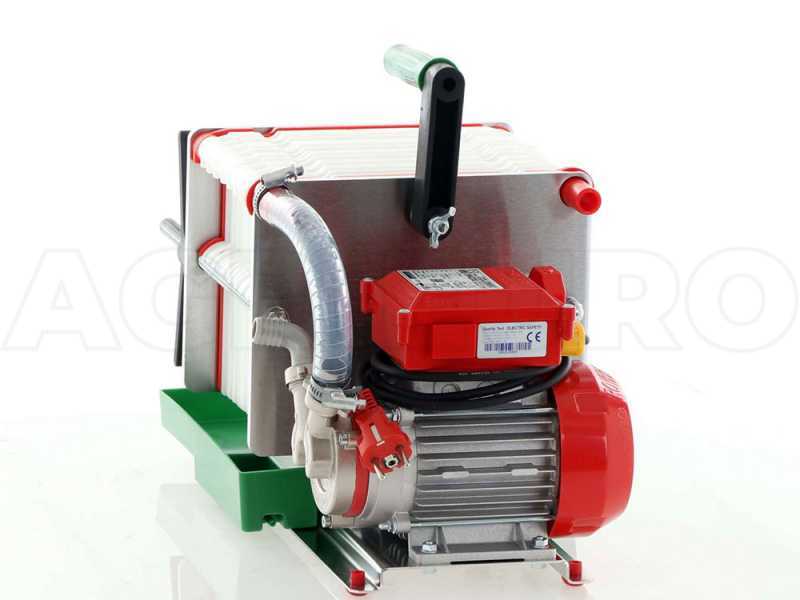

The Colombo 18 INOX wine filtering pump mounts an electric induction motor which guarantees a long service life.

This motor is capable of delivering a power of 0.5 Hp

Additional technical features:

• power supply: 230 V - 50 Hz
• motor rpm: 2850 rpm

No. 19 filter plates.

It can mount up to 18 20x20 cm filter sheets

Hourly filtering capacity: max 800 L/h

The COLOMBO® FILTER consists of a special electric pump and a filtering system called liquid system with pressed layers.

This particular type of filters allows to obtain excellent levels of drinks purification without altering the fundamental characteristics of the filtered liquid. For this reason, it is mainly used for domestic filtering operations, but also for professional applications, such as in wine cellars, pharmaceutical factories, laboratories, breweries, and wherever it is necessary to filter a drink in order to serve or bottle it perfectly clear, without any trace of residue.

IMPORTANT NOTE FOR THE CUSTOMER: The COLOMBO® FILTER has been designed specifically for filtering beverages, for which all the materials used are perfectly compatible with liquid foods. Particularly suitable for filtering wine, water, infusions, beers, pharmaceutical solutions, perfumes.

It does not require any special maintenance other than normal cleaning.

Particularly sturdy frame made of thick stainless steel

Focus on the stainless steel base

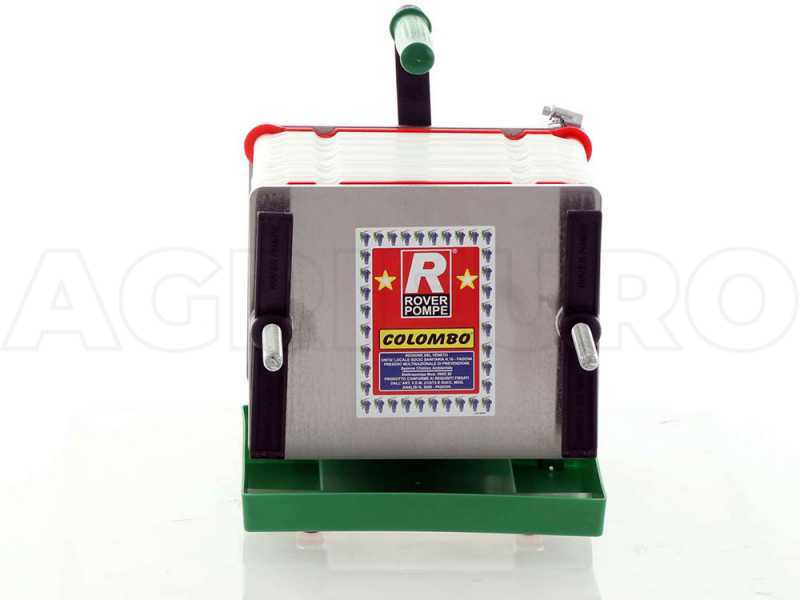

Focus on the thick front plate made of stainless steel

Focus on the power switch to turn the electric motor on

Focus on the filters clamping knobs

Drain liquid recovery tray with tube to immediately reintroduce the liquid to the main container.

Focus on the connection coiled hose between the filtering stage and the pumping stage

Focus on the lifting handle

Lifting foldable handle

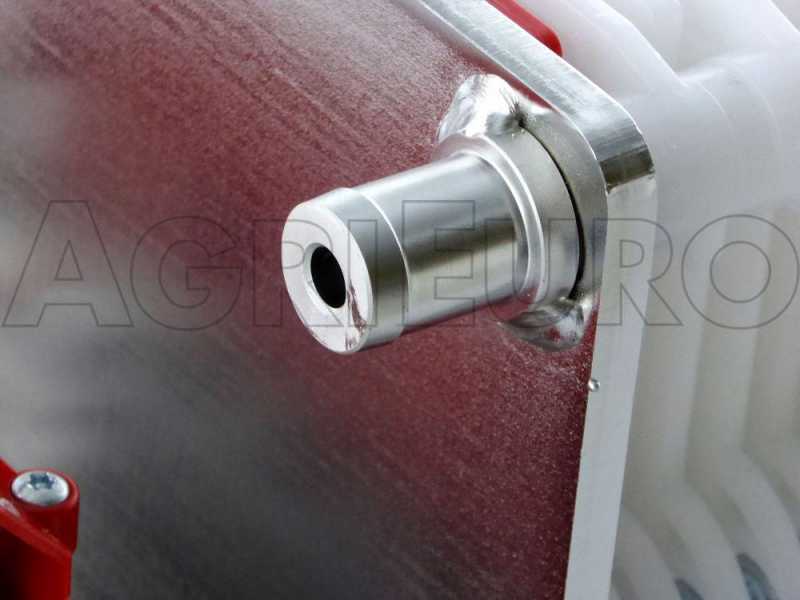

Focus on the filter outlet

Focus on the suction filter supplied
