Rover Colombo 12 INOX wine pump with filter sheets and plates - frame made of Stainless Steel

Body material
Stainless steel
Type of filter sheets
20x20 cm
No. of filter sheets
12
Manufacturing Country
Italy
Motor type
Induction
Rated output
0.5 HP
Material
NOVAX: a corrosion-resistant alloy
Pipe fittings (joints) diameter
20 mm
Maximum suction depth
4 m
FREE:
FREE:
€ 287,86
VAT Included
Prompt Delivery
3 items in stock
|
Free Shipping
You should receive it by 05/11/2020
ID: 0325
EAN: 8032706070577
MPN: 620000

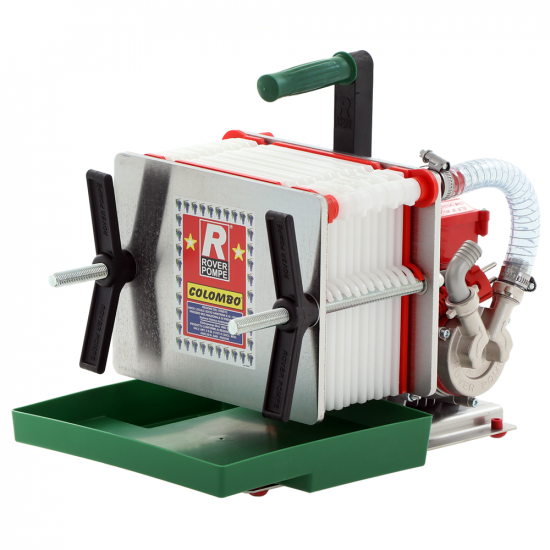

Rover Colombo 12 INOX pump with filter plates and sheets

The structure is 100% made of Stainless Steel. It is the best for durability and hygiene. It is intended for intensive uses.

It is a HIGH PERFORMANCES PRODUCT.

The impeller of this new pump is reversed and this is a big innovation compared with the previous model.

The professional filter has 13 plates made of high quality PVC.

Quick assembly. Quick filter sheets replacing and significant reduction of liquids spillage during filtering process.

It is suitable for filtering any food liquid, especially the wine.

Disconnect the pump from the filter in order to use it as a normal transfer pump.

Is possible to insert a maximum of 12 filter sheets. Moreover, is possible to use different grades of filter sheets in order to obtain different types of filtration.

The pump can be also used with less than 12 filter sheets. For example, could be used 10,8 or 6 filter sheets. Is only necessary to remove the plates. Filtration quality will be the same, but will decrease the filtration rate per hour.

For example, using 7 plates (and, therefore, 6 sheets), the filtration rate per hour will decrease of the 50 %. In certain cases, it can be useful in order to save filter sheets.

NOVAX pump made of corrosion-resistant alloy

NEW PUMP WITH REVERSED IMPELLER ADVANTAGES

  • maximum operating pressure: 2,5 bar (against the 2,0 bar of the previous model).
  • higher hydraulic head (increased by 1,5 meters).
  • longer durability of the machine. As they are subject to a continuous operation, due to the filter plates and sheets system, this is an essential aspect.
  • easier manufacturing
  • less shaking of the wine or of the filtered liquid.
  • patented system.



Body pump made of corrosion-resistant alloy with NOVAX technology: it is a latest pump made with a corrosion-resistant alloy treated with a specific chemical process. This technology is known as Novax, which is patented by Rover Pumps.

The pump is “self-priming” and has been specifically designed for this type of wine filter operation.

0,5 HP electric motor

Colombo 12 INOX pump is powered by an induction motor as guarantee of extra durability.

The motor achieves 0,5 Hp.

Other technical features:

  • power supply: 230 V, 50 Hz.
  • revolutions per minute: 2850 rpm.




Filtering system with 13 plates

No. 13 plates.

It can mount a maximum of 12 filter sheets (20x20 cm).

Max output: 500 liters/hour.


COLOMBO FILTER ® consists of the special electric pump and a filtration system also known as liquid system with pressed filter sheets.

This special filtration system allows high levels of purification of the liquids, keeping their main characteristics unchanged; for this reason, it is intended for hobby but also for professional uses, such as wine cellars, pharmaceutical companies, laboratories, breweries, and any other activity in which is involved beverage filtration in order to serve or bottle the beverage perfectly clear and free of any residuals.

IMPORTANT NOTE FOR CUSTOMER: as COLOMBO FILTER ® has been especially designed for filtering beverages, all building materials are perfectly suitable for food liquids. It is intended for filtering wine, water, infusions, beers, pharmaceutical solutions and fragrances.

Is not necessary to attempt a special maintenance. Please, clean the machine periodically.

Other features

Sturdy and thick frame made of stainless steel.

Focus on the stainless steel base.

Focus on the thick front plate made of stainless steel.

Focus on the On/Off switch for the motor activation.

Focus on the wing nuts for filters.

Drip tray with hose to immediately deliver the liquid into the main tank.

Focus on the wire hose to link the filtering process to the pump process.

Focus on the folding handle for lifting the machine.

Focus on the outlet for the liquid.

Focus on the draft filter provided on standard kit.



Product Features
Model:
Colombo 12 INOX
Typology:
Filter plates and sheets
Body material:
Stainless steel
Deck Material:
Stainless steel
Activation:
Electric - 230 V
Type of filter sheets:
20x20 cm
No. of filter sheets :
12
Manufacturing Country:
Italy
Motor data
Motor type:
Induction
Rated output:
0.5 HP
Motor Speed (RPM):
2850 RPM
Power supply:
220V power supply
Manufacturing Country:
Italy
Pump data
Pump brand:
Rover
Material:
NOVAX: a corrosion-resistant alloy
Pipe fittings (joints) diameter:
20 mm
Flow Rate:
240-1680 L/h
Maximum suction depth:
4 m
Manufacturing Country:
Italy
Equipment
Handle for lifting the machine:
Yes
Drip tray:
Yes
Free gifts/extra features
Filter sheets For Free:
24
Suction filter:
Yes
Garolla fitting:
No
Instructions manual:
yes
Dimensions and logistics
Product dimensions cm (LxWxH):
(L x W x H) 430 x 280 x 270 mm
Net weight:
16 Kg
Packaging:
Original packaging
Assembly time:
Assembled

Free gifts and extra features

The pump with plates filter is shipped in its original packaging. What's on kit:

Instructions manual and catalogue.

Drip tray.

Draft filter.

Gaskets.

24 FILTER SHEETS FOR FREE!

On standard kit are included:

- No. 12 filter sheets, 20x20 cm , type "4".

- No. 12 filter sheets, 20x20 cm , type "16".

You can purchase more filter sheets. You just need to add them to your cart, as they are available in specific subcategories in our web site.

As they are standard filter sheets, is very easy to find them on sale in many other shops in the same field.
