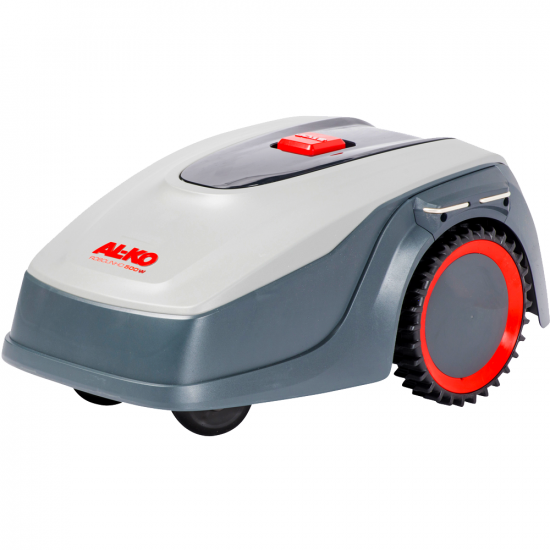

Robolinho AL-KO 500 W Robot Lawn Mower - robotic lawn mower with boundary wire

Robolinho AL-KO 500 W Robot Lawn Mower - robotic lawn mower with boundary wire
Safe shipment: double box + air cushions
Surface recommended
500 m²
Maximum inclination
45 %
Wi-Fi remote control
yes
Managing using App
Yes
Managed by Alexa
Yes
Motor type
Brush motor
Voltage
18 V
Amperes
2.5 Ah
Battery type
Li-Ion
Liquid crystals display
Yes
Mulching system
Standard equipment
Manufacturing Country
Austria
FREE:
Free electric edger for boundary wire
FREE:
Free electric edger for boundary wire
€ 899,00
VAT Included
Prompt Delivery
1 item in stock
|
Free Shipping
You should receive it by 03/11/2021
ID: K602306

EAN: 4003718355758

MPN: 119925

obolinho AL-KO 500 W robotic Lawn Mower

Thanks to the Robolinho AL-KO 500 W robotic lawn mower you will never worry about mowing your green area. Indeed, this product is designed to manage the mowing autonomously in maximum surfaces of 500 m².

Robolinho 500 W is designed in Germany and manufactured in Austria to ensure the highest quality to the Customers. Long-lasting components and sophisticated technology make this robot a reliable friend to help you taking care of your garden and for the everyday maintenance.

Thanks to the wire and pegs supplied, the installation of the product doesn’t require any special assistance. Indeed, once the Operator has proceeded delimiting the working perimeter of the defined lawn area, he will just need to start the Robot lawn mower. Moreover, it does not need to be recharged manually as it returns back to its charging station autonomously as soon as its charging is almost over.

The cutting tool is already pre-programmed in order to obtain the best results. Possibility to modify the scheduling according to the user’s needs and requirements through Wi-Fi or even ALEXAthanks to the AL-KO inTOUCH Smart Garden App. Whether there is no network connection, you can also start the robotic device from the simplified display.

The DCS system (Double-Cut-System) developed by AL-KO finely mows the grass and return it to the lawn as organic fertilizer. The blade disc that runs alternately clockwise and counterclockwise and the blades with double sharpening, which ensure a higher durability, ensure an even more precise and perfect cut.

The motor is powered by a 18V 2.5 Ah battery, which ensures a running time of 55 minutes. Maximum safety for humans and pets resulting from the use of the Robolinho 500 W robotic cutting device: reliable sensors will be immediately operated in case of emergency.

The Robolinho cutting height can be easily adjusted by means of a knob. The gradual cutting height indicator and touch-sensitive keys with illuminated display allow an extremely comfortable starting. Finally, the robotic mower is also able to mow effortlessly on slopes up to 45%.

Main specifications and strengths of the Robolinho robotic mower:

  • INTUITIVE: Installation, setting and operation. Immediate start and ready for use
  • SUPER-COMPACT: Small-sized and lightweight. Easy to carry and transport even thanks to the handle that is located on top of the robotic mower.
  • INDEPENDENT: It cuts and charges by itself.
  • SENSIBLE: With sensors for detecting obstacles/contact. When the robot detects an obstacle it stops, comes back and changes direction.

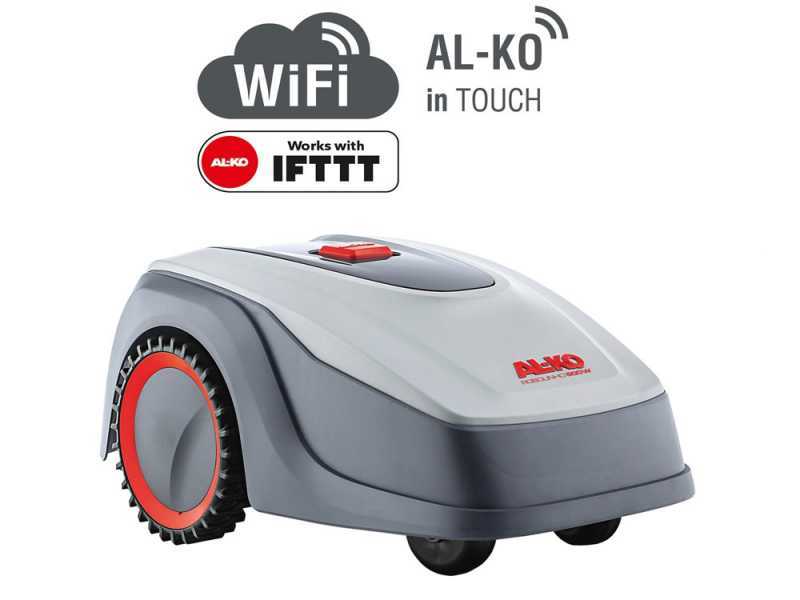

Drive and control your robot lower from your smartphone!

Smart Garden Connection: with the new Robolinho® "W" models, the dream to ensure a perfect and intelligent care of your garden comes true. Control and manage your robot through AL-KO inTouch App using the WLAN home network or via voice imputs through Amazon Alexa.

AL-KO Smart Garden: the robot can be controlled and managed from your smartphone or tablet.

The available operations with the new APP:

  • Check the charging status;
  • View the robot history: operation, charging time and error list.
  • Enable or disable the sensors or the robotic lawn mower
  • Setting: it is possible to import data and timing of operation;

If you do not have WiFi network, you can access to the direct mode on the robot control panel.

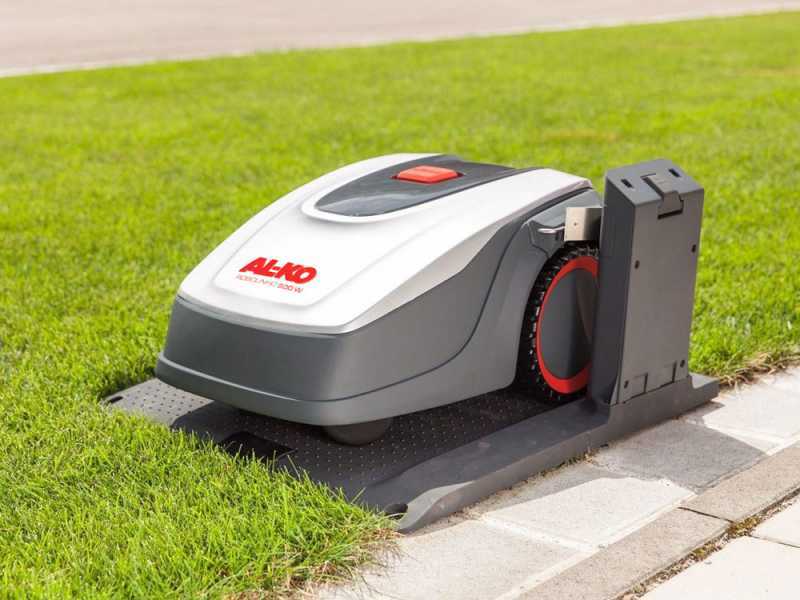

Operation and installation

As soon as the product is delivered, you can start it autonomously: even the less expert user, who has never had experience with cutting device, will be immediately able to start the Robolinho Robot lawn mower according to the instructions detailed described in the manual or in the turorial video shown in the product description.

Robolinho can be easily installed with very few easy steps:

  1. Assemble and tighten the charging station;
  2. Fix the boundary wire with the proper fixing pegs around the working area;
  3. Schedule the cutting calendar;

The user needs to install the perimeter wire at the first installation. This installation will delimit the boundaries of the cutting area permanently. The perimeter wire will be no longer visible within a couple of weeks.

The perimeter wire (100 m) along with the (90 pcs) pegs are already included in the package.

This robot lawn mower is ideal for every user. From now on:

  • You will be fully aware of the product you've purchased, having a thorough knowledge of its specifications and features.
  • You will be able to use your robot lawn mower independently, without the need of constant support from a technician, and ask for assistance even in case of small issues.
  • You will save time and money compared to other robot lawn mowers.

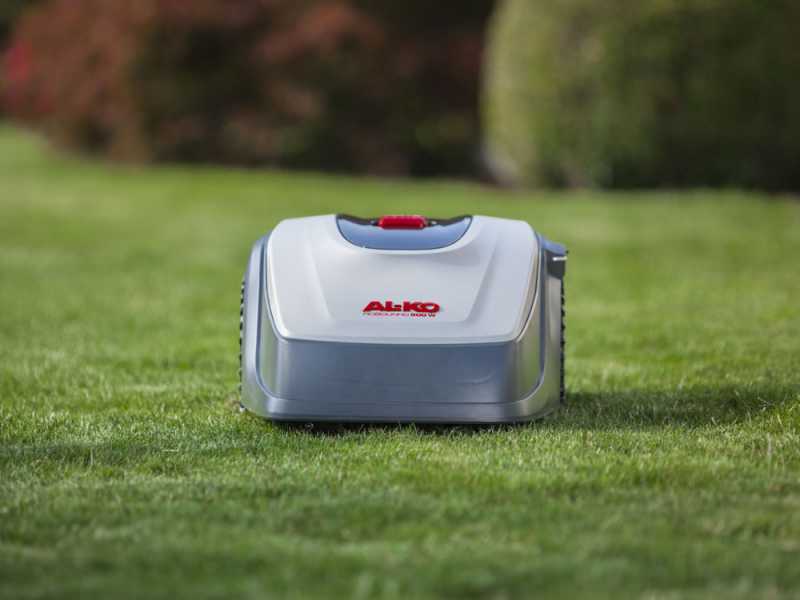

Details and Technical Specifications

Main technical features:

  • Cutting motor: Brushless
  • Traction Motor: Brushless
  • Battery voltage: 18 V
  • Battery capacity: 2.5 Ah
  • Running time: 55 minutes
  • Charging Time: 50 minutes
  • Cutting speed: 3400 L/min
  • Noise level: 60 dB
  • Anti-theft system: Settable PIN
  • Protection rating: IPX1
  • Weight: 9,5 Kg

Moreover, the robot lawn mower is equipped with two high-traction wheels which allow to keep the robot lawn mower perfectly balanced even in case of higher slopes. The two front pivoting wheels that are provided on standard kit allow further balancing the equipment.

The robot lawn mower controls are located in the user-friendly keyboard with display, which is placed on top of the cutting device.

Other important features:

  • Quick stop control: If you press the red STOP button at any time during operation, the robot lawn mower and the blade rotation will stop immediately.
  • Anti-tilting sensor in the forward / side direction: Whether the equipment bumps into an uphill or a slope with over 24° (45%) inclination while running, it will change the working direction.
  • Shockproof sensors for detecting obstacles: The robot lawn mower is equipped with sensors which, in case of contact with obstacles, make it change the driving direction. In case of impacts against obstacles, the upper section of the housing slightly moves in order to operate the shock-proof sensor.
  • Lifting sensor: If the robot is lifted during operation, the starting system is switched off and the blades stop immediately.

Mowing

CUTTING SPECIFICATIONS:

  • Mulching: 4 steel blades for mulching cutting. This system cuts grass finely and it does not require to collect grass clippings. Grass decomposes naturally, water and nutritional substances returns to soil for a wonderful, healthy lawn! The mulching system allows distributing grass clippings evenly for a fertilized, healthy lawn.
  • Max. cutting area: 500 m²
  • Cutting width: 20 cm
  • Maximum slopes: 45%

The cutting steps are always interchanged as it happens with the charging phases. If during the mowing operations the battery charge is reduced up to a certain value (display: 0%), the unit returns to the charging station along the perimeter wire.

The mowing programs are preset and can be adjusted on the device. Every time that the robot motor is started, it is changed the direction of rotation, which doubles the durability of the cutting blades.

Possibility to adjust the cutting height thanks to the handy knob which enables to move the cutting deck from 25 mm to 55 mm.



Product Features
Model:
500 W
Body material:
ABS
Activation:
battery-powered
Mulching system:
Standard equipment
Surface recommended:
500 m²
After-sales service:
No
Maximum inclination:
45 %
Rain sensor:
no
Number of programmable areas:
3
Managing using App:
Yes
Managed by Alexa:
Yes
Wi-Fi remote control:
yes
Bluetooth control:
no
GSM module:
no
Manufacturing Country:
Austria
Motor data
No. of motors:
3
Motor type:
Brush motor
Power supply:
Battery powered
Battery type:
Li-Ion
Voltage:
18 V
Amperes:
2.5 Ah
Running time:
55 min
Recharge time:
50 min
Noise level:
60 dB(A)/7m
Motor/blade transmission:
direct
Cutting data
Housing material:
ABS
N° of blades:
4
Blade movement:
dual blade in opposite directions
Cutting adjustment :
Manual
Maximum cutting height:
55 mm
Minimum cutting height:
25 mm
Nr. of Cutting positions:
7
Cutting width:
20 cm
Robot mowing mode:
With boundary
Equipment
Lithium battery:
yes
Wheels type:
ABS pattern
Liquid crystals display:
Yes
Free gifts/extra features
Battery charger:
Yes
Instructions manual:
yes
Dimensions and logistics
Product dimensions cm (LxWxH):
58x40x28 cm
Net weight:
9.5 Kg
Packaging:
Double packaging
Packaging dimensions cm (LxWxH):
79x59.5x35.5 cm
Gross weight (packaging incuded) :
18.4 Kg
Assembly time:
assembled

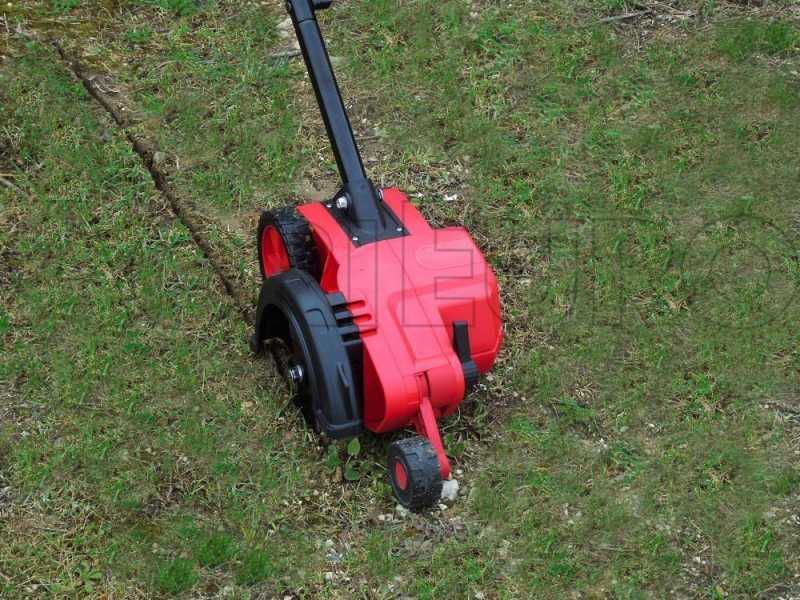

GeoTech Electric wire laying machine

GeoTech wire laying machine

This GeoTech electric wire laying machine is the ideal machine for delimiting the working perimeter of your robot lawn mower.

This machine is electric powered, so all you need is an extension cord to operate it.

The wire laying machine requires a 230 V power supply and it is very easy to use.

With this machine it will be possible to easily dig the groove in which burying the perimeter wire.



Warning:

In case of compact and dry ground, moist it and wait for the next day to use the machine, when the ground will be softer.



Free items / Extra features

The robot will be shipped in its original packaging along with the manual of instructions.

The package also includes:

  • Charging station with electric cable and transformer.
  • 90 pegs
  • 100 m perimeter wire reel
