Profi 3-point Linkage 20 Tons Horizontal Log Splitter

Semi-Pro
Questions & Answers (18)
ID: 0371

EAN: 9900000001933

MPN: 0371

AgriEuro Premium
Catalog AgriEuro Premium
9,1/10
After-sales assistance & Spare parts
37Pictures
7Videos
20Customer pics
Profi 3-point Linkage 20 Tons Horizontal Log Splitter
Profi 3-point Linkage 20 Tons Horizontal Log Splitter
Profi 3-point Linkage 20 Tons Horizontal Log Splitter
Profi 3-point Linkage 20 Tons Horizontal Log Splitter
Profi 3-point Linkage 20 Tons Horizontal Log Splitter
Profi 3-point Linkage 20 Tons Horizontal Log Splitter
+300 sold
Max. trunk diameter
70 cm
Piston stroke
66 cm
Max. pressure
250 bar
Retractable piston for transport
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
20 t
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
Profi 20 T
Type:
Horizontal
Double speed:
No
Operating mode:
Tractor-driven PTO
Nominal splitting force:
20 t
Piston stroke:
66 cm
Adjustable piston stroke (for short logs):
No
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
Italy
Motor data
Manufacturing country:
Italy
Pump data
Pump type:
Hydraulic
Flow rate:
25 L/min
Max. pressure:
250 bar
Oil tank:
Yes
Hydraulic cylinder outer diameter:
105 mm
Piston diameter:
50 mm
Manufacturing country:
Italy
Cutting data
Max. trunk length:
68 cm
Max. trunk diameter:
70 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Tractor three-point hitch:
Yes
Replaceable wedge guides:
Yes
Cartridge oil filter :
No
Free gifts/extra features
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
177x125x90 cm
Net weight:
300 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
138x128x90 cm
Gross weight (packaging included) :
310 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
Free returns (up to 30 days after receipt) *
€ 1.949,80
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

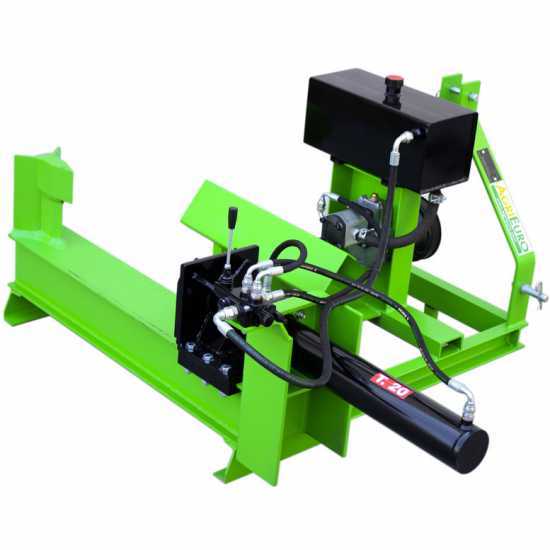

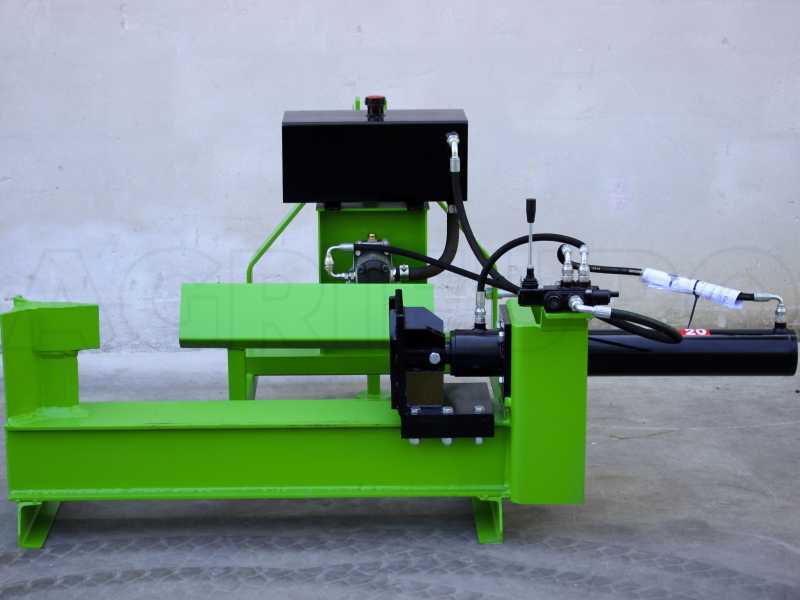

Profi 3-point linkage 20 tons horizontal log splitter

This log splitter is a SEMI PROFESSIONAL machine in terms of power, performance, sturdiness and weight. Please read the data below.

HORIZONTAL - PROFI 20 T log splitter

Designed for all those looking for a very powerful but user-friendly machine.

HIGHLY-POWERFUL, thanks to its 20 tons (making it one the most powerful on the market)

HORIZONTAL STRUCTURE: it allows splitting even large-sized logs without having to lift them up (you can place them on the machine without any effort, given the low height of the support leg)

LINEAR DESIGN: unbeatable in terms of reliability and durability;

Product 100% Made in Italy.

Profi 3-point Linkage 20 Tons Horizontal Log Splitter
Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter

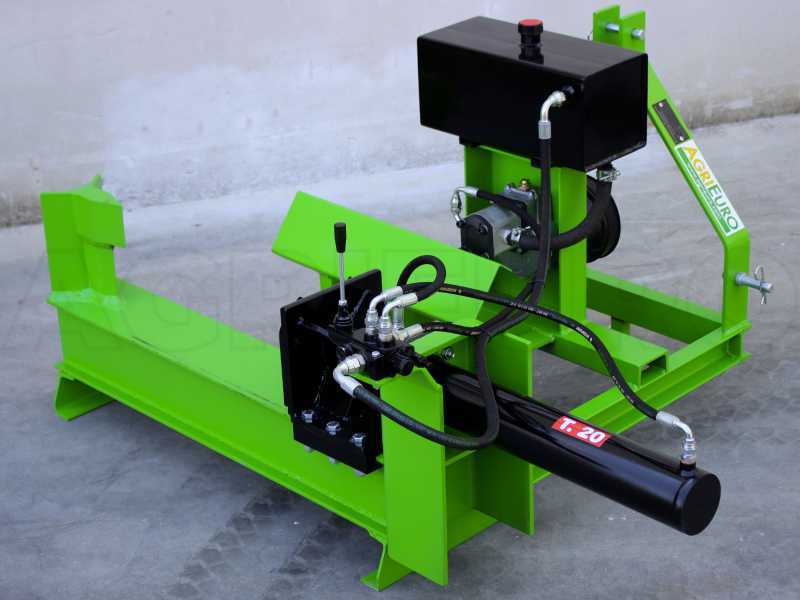

Main features

LARGE-SIZED PISTON: 105 mm outer piston diameter (90 mm bore). This is another feature that proves the great sturdiness and high splitting power of this log splitter (20 tons).

Sturdy sliding push plate made of highly-thick steel, mounted on sturdy steel guides.

LARGE HYDRAULIC PUMP:

ADVANTAGES:
- It enables the machine to reach its high splitting power (20 T)
- It gives the piston high speed

Profi 3-point Linkage 20 Tons Horizontal Log Splitter
Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter

Other features

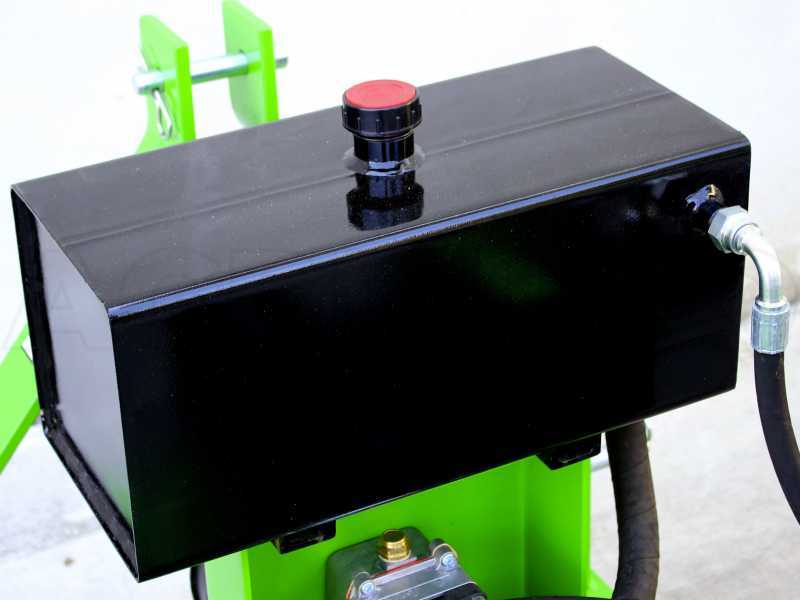

Large hydraulic oil tank above the pump.

DOUBLE-BLADE WEDGE: the upper one more protruding, the lower one more rearward. It allows you to split even the hardest, most twisted and gnarled logs, thanks to a first penetration of the smallest and more protruding upper blade;

STURDY FRAME: entirely made of heavy-duty steel. Large support leg;

Equipped with three-point linkage and PTO unit for universal joint connection to the tractor (universal joint not included);

Single-lever hydraulic distributor for piston operation;

Equipped with side support for logs with extremely large diameters;

Real splitting length: 66 cm

Dimensions:
Width: 177 cm
Depth: 125 cm
Height: 90 cm

WEIGHT: 300 kg

Possibility to retract the piston inside the machine, unscrewing the 4 proper bolts to reduce its size during storage.

The log splitter is shipped already assembled and ready for use. You'll only have to screw the 4 piston bolts.

Profi 3-point Linkage 20 Tons Horizontal Log Splitter
Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter Profi 3-point Linkage 20 Tons Horizontal Log Splitter
