Profi 3-point Linkage 16 Tons Horizontal Log Splitter

Questions & Answers (7)
ID: 1604

EAN: 9900000001957

MPN: 1604

9,1/10
After-sales assistance & Spare parts
Profi 3-point Linkage 16 Tons Horizontal Log Splitter
+200 sold
Max. trunk diameter
40 cm
Piston stroke
66 cm
Max. pressure
250 bar
Retractable piston for transport
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
16 t
Tractor three-point hitch
Yes
Manufacturing country
Italy
Product Features
Model:
Profi 16 T
Type:
Horizontal
Double speed:
No
Operating mode:
Tractor-driven PTO
Nominal splitting force:
16 t
Piston stroke:
66 cm
Adjustable piston stroke (for short logs):
No
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
Italy
Motor data
Manufacturing country:
Italy
Pump data
Pump type:
Hydraulic
Flow rate:
20 L/min
Max. pressure:
250 bar
Oil tank:
Yes
Hydraulic cylinder outer diameter:
90 mm
Piston diameter:
45 mm
Manufacturing country:
Italy
Cutting data
Max. trunk length:
68 cm
Max. trunk diameter:
40 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
Yes
Tractor three-point hitch:
Yes
Replaceable wedge guides:
Yes
Cartridge oil filter :
No
Free gifts/extra features
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
177x105x90 cm
Net weight:
250 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
135x117x90 cm
Gross weight (packaging included) :
260 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 25/07/2024 - 29/07/2024
€ 1.590,64
VAT Included
You're viewing:
Customers also viewed:
Description

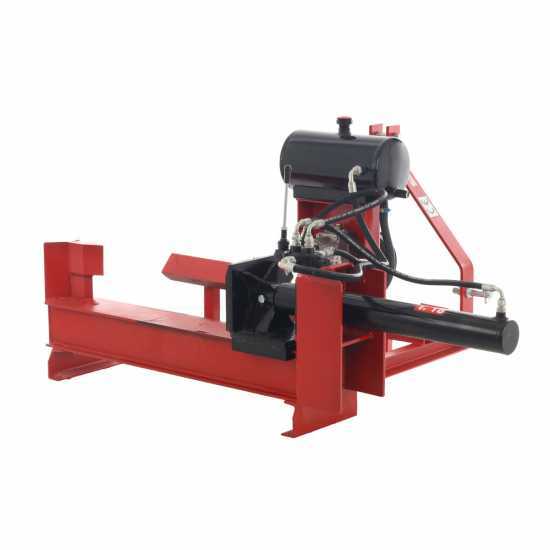

Profi 3-point linkage 16 tons horizontal log splitter

The Agrieuro Profi 16 ton log splitter is a SEMI PROFESSIONAL product thanks to its excellent features such as power, performance, strength and weight.

The HORIZONTAL - 16 T log splitter meets the needs of small and medium producers of firewood for domestic use, designed for those looking for a very powerful yet user friendly machine.

This product is HIGLY POWERFUL thanks to its 16 tons splitting force (making it one the most powerful of its category on the market) and large piston: 90 mm outer diameter (75 mm bore). The piston is therefore very sturdy and contributes to the overall quality of the log splitter, which is unbeatable in terms of reliability and durability.

Its HORIZONTAL structure allows you to split even large-sized logs without having to lift them up (you can place them on the machine without any effort, given the low height of the support leg)

Very sturdy sliding push plate, made of highly-thick steel, mounted on sturdy steel guides.

The large hydraulic pump allows the machine to reach its high splitting power (16 T) and gives the piston high speed.

Furthermore, this product is equipped with a DOUBLE WEDGE: the upper one is more protruding, the lower one is further back. It allows you to split even the hardest, most twisted and knotty logs, thanks firstly to the smaller and more advanced upper blade and a very sturdy frame entirely made of high-strength steel.

This log splitter is Made in Italy.

Main features

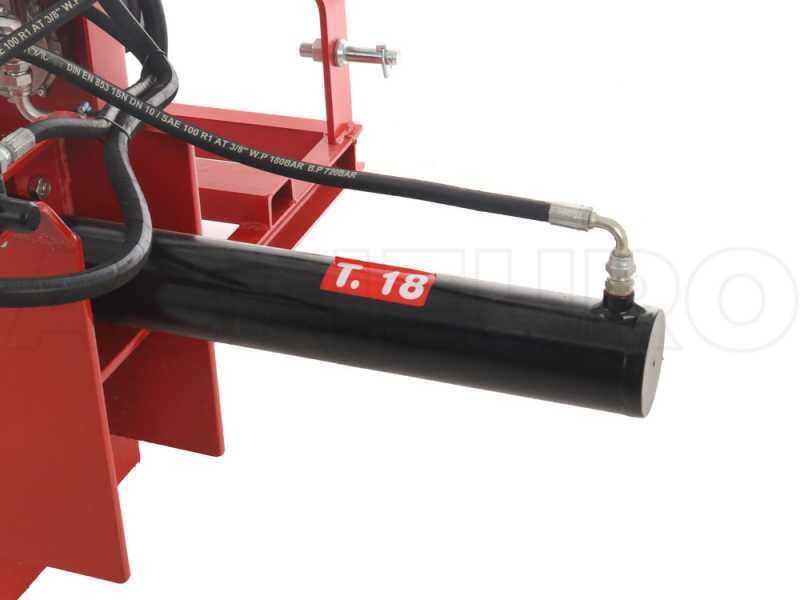

Large-sized piston: 90 mm outer diameter (75 mm bore). This is another feature that proves the great sturdiness and high power of this log splitter (16 tons).

Focus on the sliding push plate, really sturdy and made of highly-thick steel.

Large hydraulic pump: allows the machine to reach the high splitting power of 16 tons and gives high speed to the piston.

Split length: 66 cm.

Sturdy steel guides.

Single-lever hydraulic distributor for piston operation.

Other features

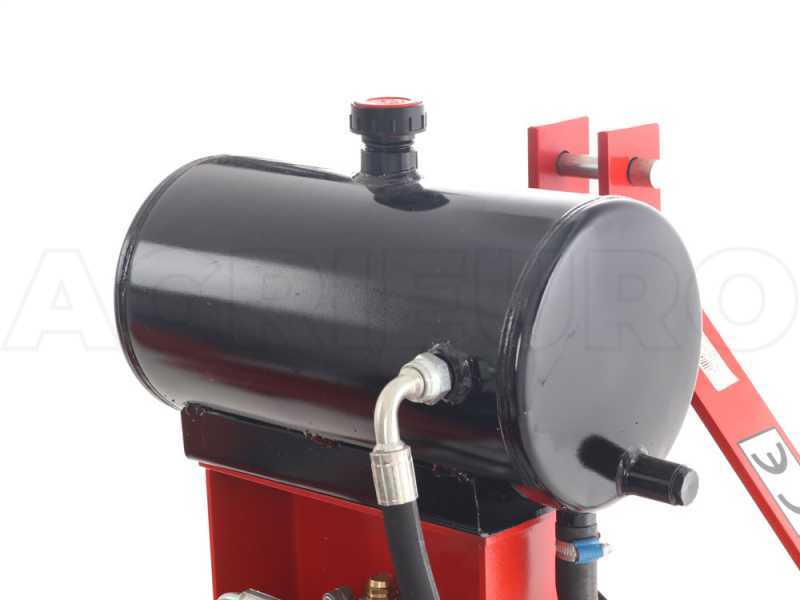

Large hydraulic oil tank mounted above the pump.

Blade wedge: it allows you to split even the hardest, most twisted and knobby logs;

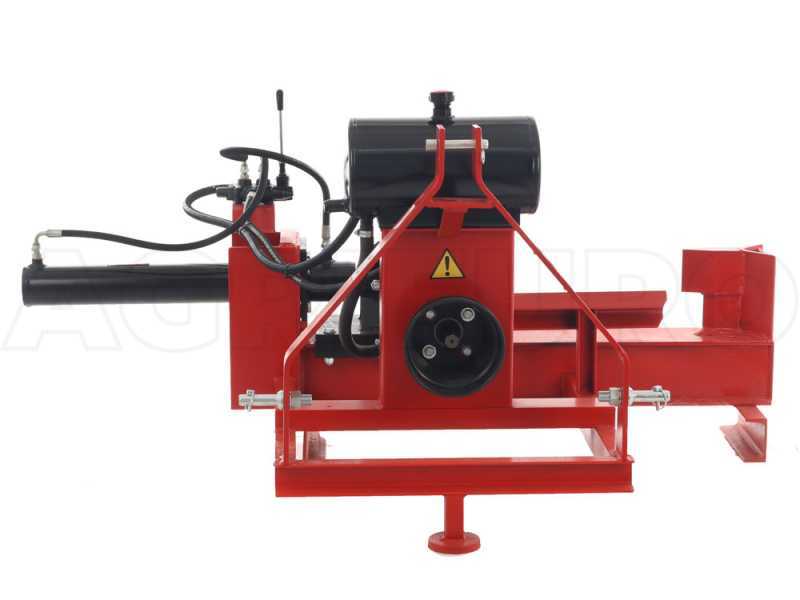

Three-point linkage and PTO unit for universal joint connection to the tractor (universal joint not included);

Very sturdy frame: entirely made of high-strength steel. Large support leg.

Dimensions:
Length: 177 cm
Depth: 105 cm
Height: 90 cm

WEIGHT: 250 kg
