Description

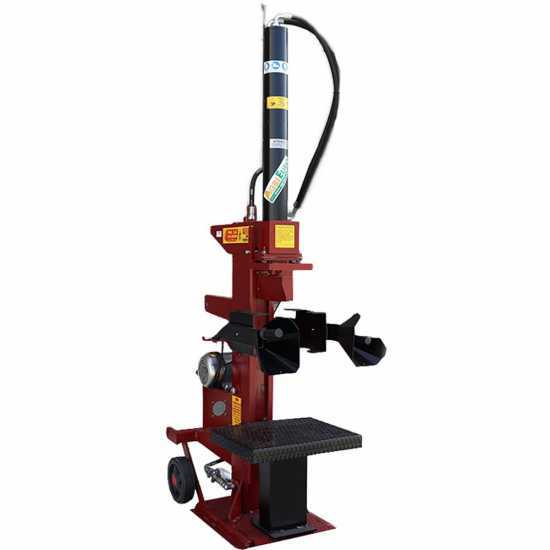

AgriEuro electric vertical log splitter

The AgriEuro SIE 20T is a20 tons vertical log splitter featuring a 1000 mm piston stroke, suitable for all medium and large producers of domestic wood, for professionals, small forestry companies and small warehouses.

The machine is provided with a removable cutting platform to cut the logs from 600 mm to 1000 mm size. The log splitter is also equipped with the adjustable piston limit switch control system to stop the cylinder from rising in case of splitting short-sized wood, for quick operations.

The log splitter is equipped with a double speed: the approach speed allows the machine to reach the maximum speed guaranteed by the standards, and the splitting speed, slower, but that allows the machine to reach the actual splitting power of 20T through the use of the electric 3 HP single-phase motor.

This AgriEuro log splitter is entirely Made in Italy.

Premium Line SIE 20 - Electric Log Splitter - Vertical

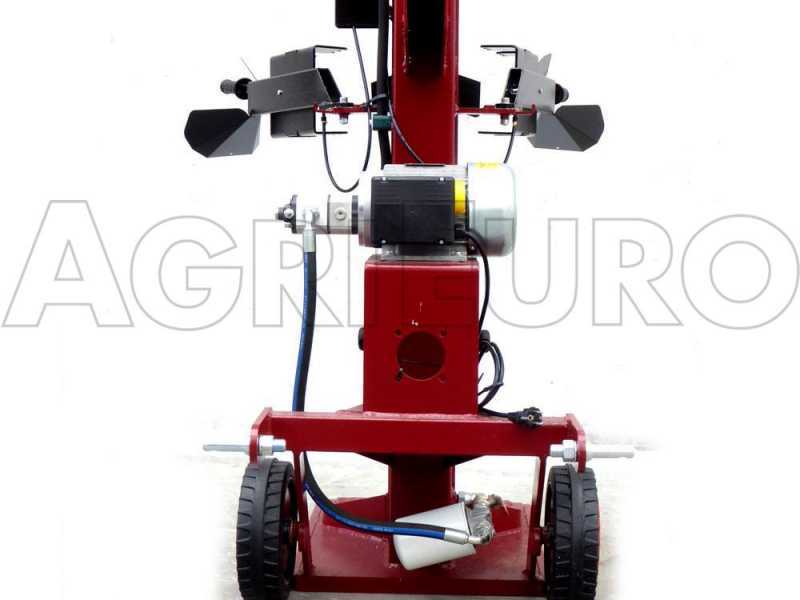

3 Hp 2200 W electric motor

This log plitter wis powered by a 230 V (3 HP, 2.2 kW) single-phase motor so it can be operated using the normal domestic mains electricity supply.

The machine is equipped with a high-performing double hydraulic pump that supplies oil (drawn from the tank) to the hydraulic pushing cylinder.

The frame of the machine structure itself acts as the hydraulic oil tank.

The advantage of the double pump is that it allows you to halve operating times and increase the productivity of the log splitter.

Double pump entirely made in Italy

Focus on the start switch

Focus on the oil circuit pressure gauge.

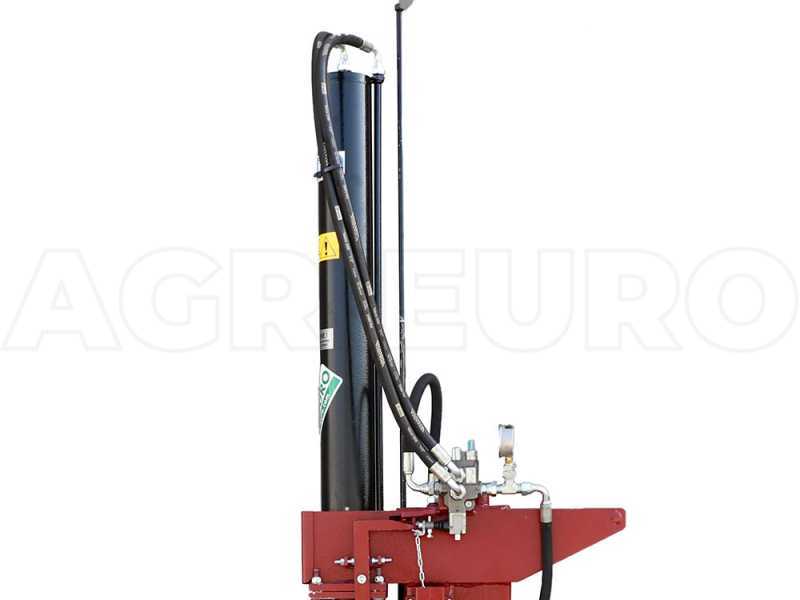

Wedge and 1000 mm piston stroke

With its 20 tons splitting force, this log splitter can break knotty logs of different sizes, up to a max. of 112 cm height, thanks to its exceptionally sturdy and large 1000 mm piston cylinder with an 90 mm outer diameter and 50 mm internal diameter.

Adjustable piston stroke: when splitting short logs, you can speed the operations as the piston stroke can be adjusted by means of a tightening screw.

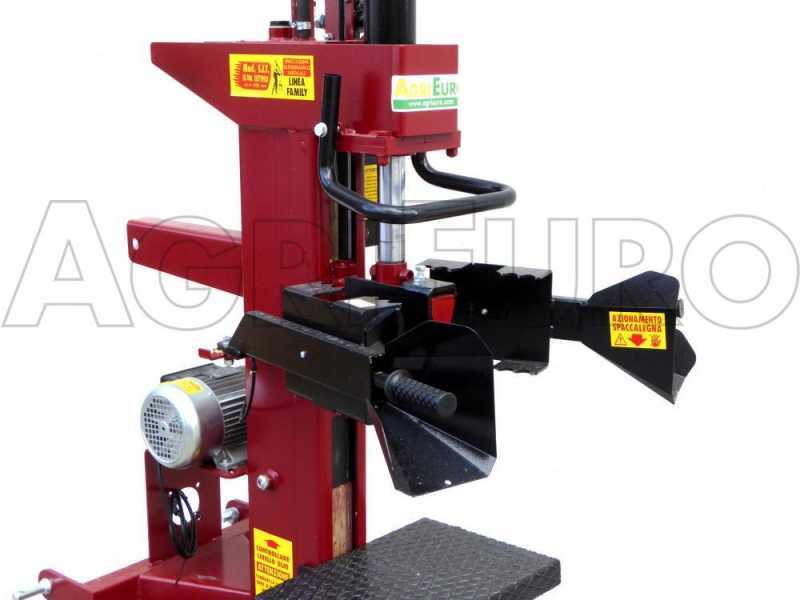

Operation

The log splitter is equipped with a built-in variable speed cylinder drive circuit.

The control levers for operating the machine must necessarily be operated by the Operator using both hands, for avoiding any kind of injury.

When light pressure is applied, the log splitter makes the pushing cylinder move quickly until it comes into contact with the log.

By applying more pressure on the control handles, the piston considerably slows down its speed and increases the wedge splitting force of up to 10 tons.

Single or double speed can be selected by simply pressing down on the control handles with more or less pressure. Once the wedge will contact the log, the Operator will automatically know how much pressure to apply on the handles so that the wedge concentrates all the power of the log splitter for splitting the log.

Additional features

Wedge lift locking device: pressing this upper support automatically stops the piston from rising. This allows you to safely use the log splitter, avoiding the risk of injury to hands and wrists.

Focus on the removable platform for splitting logs up to the ground level

Focus on the hydraulic oil tank plug

Focus on the hydraulic oil level

Focus on the oil filter: replaceable heavy-duty large cartridge oil filter.

Focus on the support platform

Focus on the transport wheels

Focus on the log lifting connection

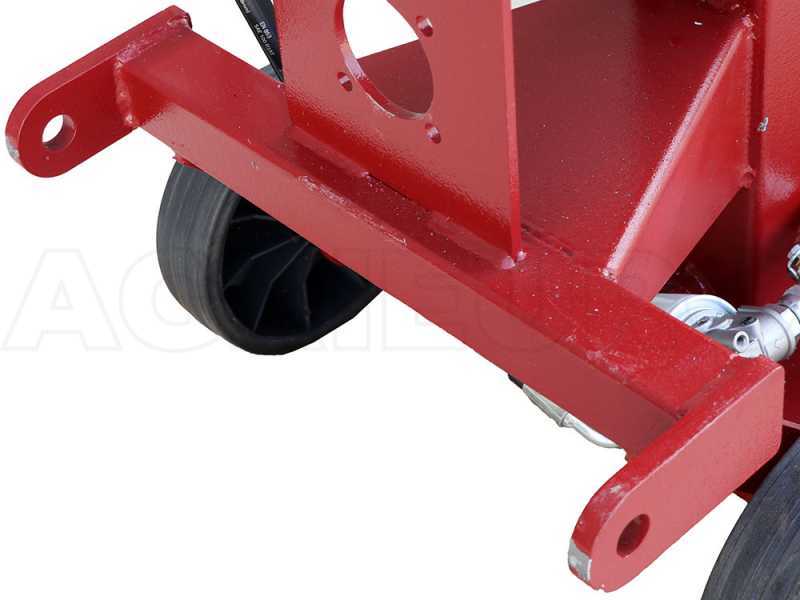

Focus on the lower three-point attachment

Focus on the upper three-point attachment

Pressure gauge that measures oil pressure inside the circuit
