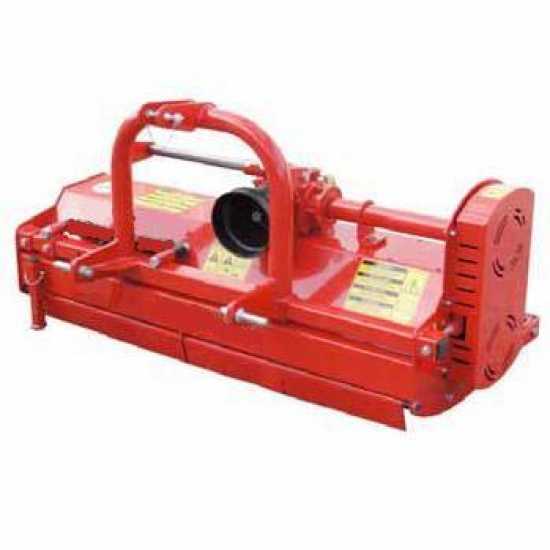

The AGRIEURO CE series tractor-mounted flail mower features a medium/light body that can be used for grinding twigs, grass and small shrubs.
Standard features:
- Flail mower with hammer rotor (hammer flails);
- Mechanical side shift (manual);
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy gearbox in oil bath with built-in freewheel;
- Reverse gearbox (for connection to tractors with old left-hand PTOs)
- 2-belt drive with turnbuckle;
- Adjustable rear roller;
- CE-compliant safety guards

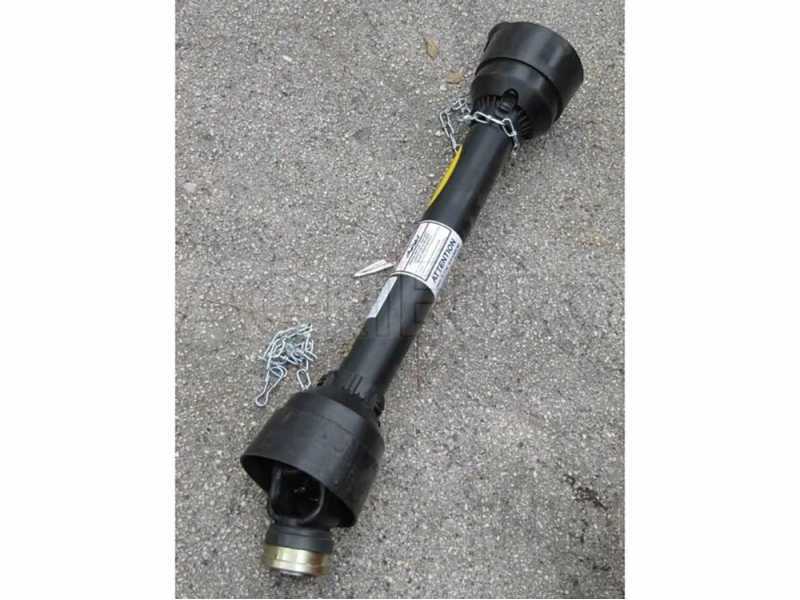

- Standard PTO shaft included.
Total width: 150 cm
Operating width: 138 cm
Weight: 255 Kg
Working height: 2/9 cm
Manual mechanical shift supplied as standard.

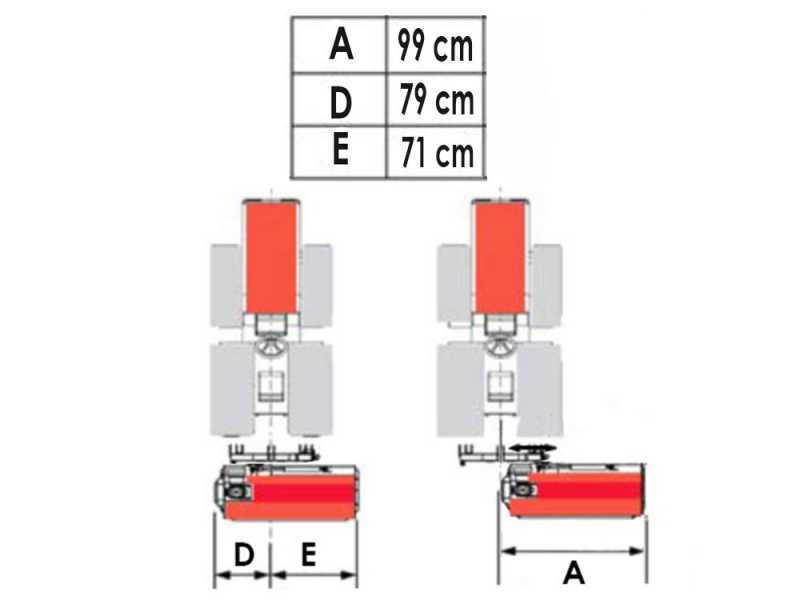

3 positions: the draw bar is equipped with 3 holes that allow the flail mower to be moved in 3 different positions:
- Centred on the tractor track
- Partially shifted to the side
- Completely shifted to the side
To move the flail mower, simply remove and then replace the fixing bolt as shown in the pic. aside.

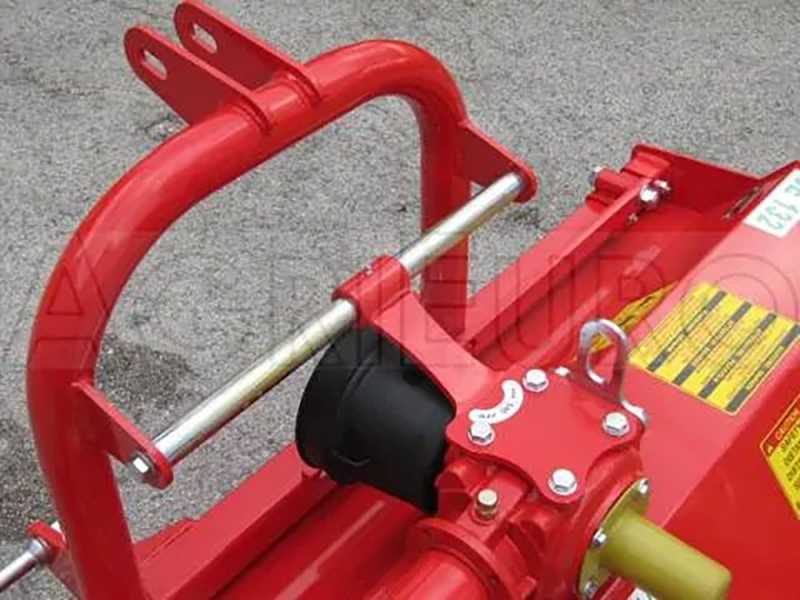

Focus on the additional reinforcement sliding device at the back of the 3-point hitch.
Hammers (hammer flails): no. 20

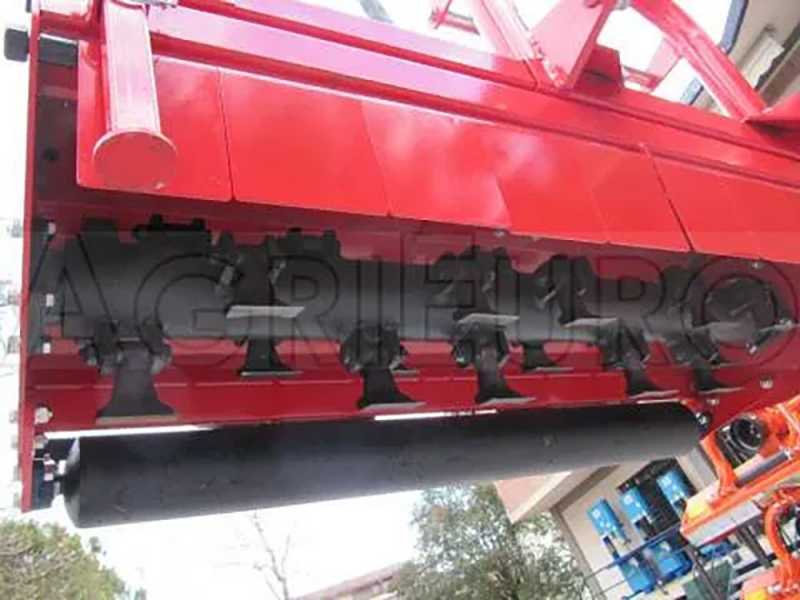

Focus on one of the hammers (hammer flails) mounted on extremely sturdy supports welded to the rotor.
Focus on the side support with inner hammer rotor retaining bearing.
Focus on the outer rotor anchor plate, with central opening provided with greaser.
