Premium Line CE 112 - Tractor-Mounted Flail Mower - Medium-Light Size - Manual Shift

Questions & Answers (6)
ID: 2343

EAN: 9993081518131

MPN: 2343

Premium Line CE 112 - Tractor-Mounted Flail Mower - Medium-Light Size - Manual Shift
Special offer
+100 sold
Tractor power
From 25 to 30 HP
Sturdiness/Series
Medium-light
Weight
210 Kg
Cutting width
106 cm
Sliding motion
Shift
Manual
Standard cutting tools
Hammer flails
Hammer flail weight
0.8 Kg
Cardan shaft
Yes
Cardan shaft rotation
Bi-directional
Manufacturing country
Italy
Product Features
Model:
CE 112
Tractor power:
From 25 to 30 HP
Sturdiness/Series:
Medium-light
Shift:
Manual
Manual shift:
Yes
Manual shift:
Hydraulic shift:
No
Sliding motion:
Fixed 3-point hitch:
No
Cardan shaft rotation:
Bi-directional
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
106 cm
Wood diameter:
Up to 35 mm
No. of blades:
16
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Hammer flails:
Blades bolt diameter:
14 mm
Hammer width:
8.5 cm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
112 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
2
Rear support roller:
Yes
Free gifts/extra features
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
Width: 124 cm
Net weight:
210 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
85x125x85 cm
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
Suggested price:
€ 2.180,85
-3 %
€ 2.115,42
VAT Included
Available versions
You're viewing:
Customers also viewed:
Description

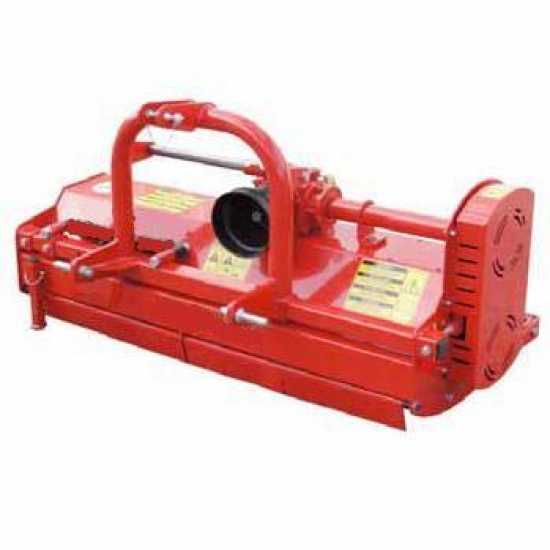

AgriEuro CE 112 tractor-mounted flail mower

The AGRIEURO CE series tractor-mounted flail mower features a medium/light body that can be used for grinding twigs, grass and small shrubs.

Standard features:
- Flail mower with hammer rotor (hammer flails);
- Side mechanical shift (manual);
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy gearbox in oil bath with built-in freewheel;
- Reverse gearbox (for connection to tractors with old left-hand PTOs)
- 2-belt drive with turnbuckle;
- Adjustable rear roller;
- CE-compliant safety guards;
- Standard PTO shaft included.

Total width: 124 cm

Real operating width: 106 cm

Weight: 210 Kg

Working height: 2 / 9 cm

Manual mechanical shift supplied as standard.

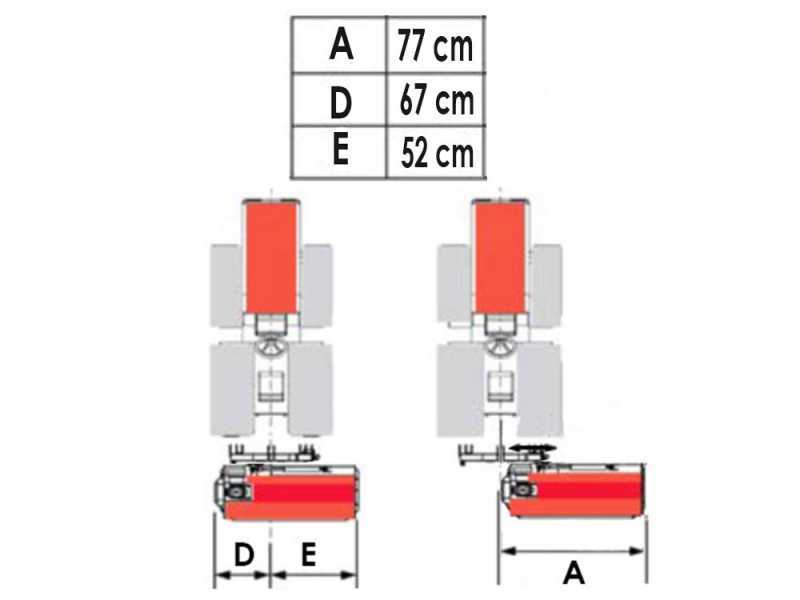

3 positions: the draw bar is equipped with 3 holes that allow the flail mower to be set in 3 different positions:

- Centred on the tractor track
- Partially shifted to the side
- Completely shifted to the side

To move the flail mower, simply remove and then replace the fixing bolt shown in the picture aside.

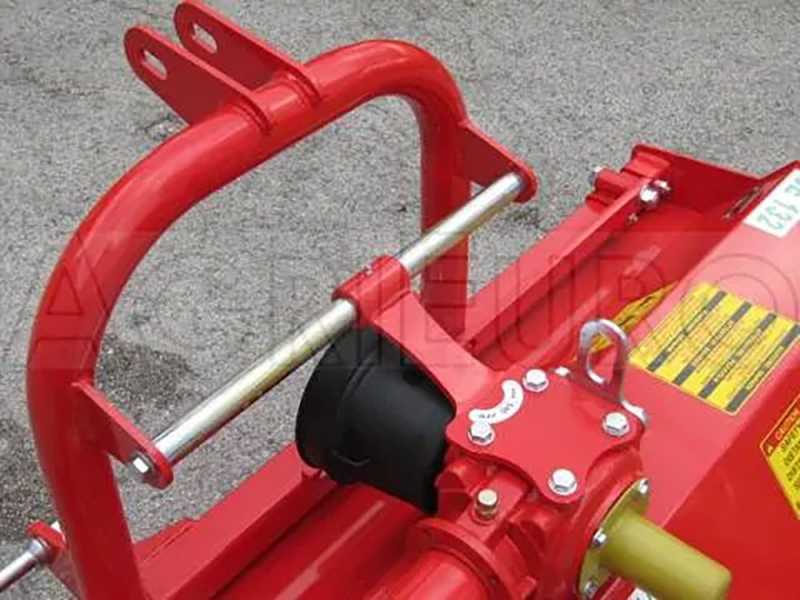

Focus on the additional reinforcement sliding device at the back of the 3-point hitch.

Hammers (hammer flails): no. 16

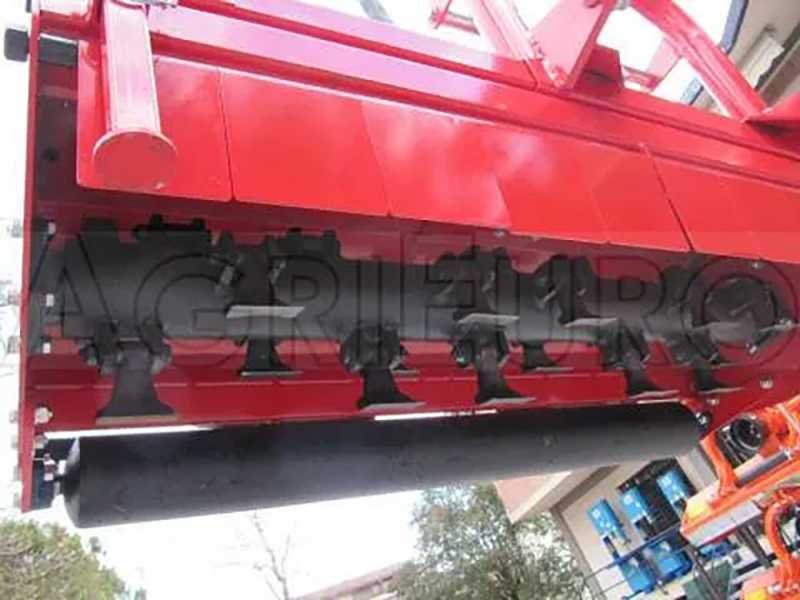

Focus on the hammers (hammer flails) mounted on extremely sturdy supports welded on the rotor.

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor anchor plate, with central opening provided with greaser.

Flail mower features

The rear support roller is mounted on bearing supports and equipped with a scraper bar.

It is height adjustable.

Equipped with sturdy front flaps made of thick steel.

Side belt protective cover, equipped with several ventilation openings (for regular cooling)

2-Belt side drive.

Easy tensioning system for the side drive belts by means of a special screw: simply tighten the screw a few turns to tension the belts.

The flail mower is equipped with a sturdy gearbox with gears in oil bath.

Also equipped with an additional rear PTO with reverse rotation.

*useful for those very old tractors equipped with a left PTO (which rotates in reverse).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO

Cutting tools - hammer flails

No. of hammer flails fitted on standard equipment: 16

The hammers (hammer flails) are mounted on extremely sturdy supports welded to the rotor.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Free items & Standard equipment

Free items included

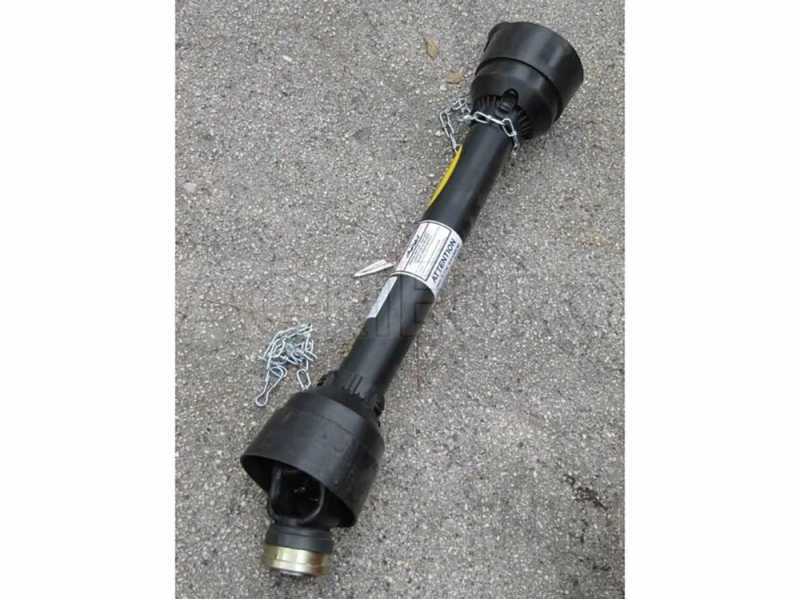

Standard PTO for connecting the machine to the tractor included with the tractor-mounted flail mower.
