Description

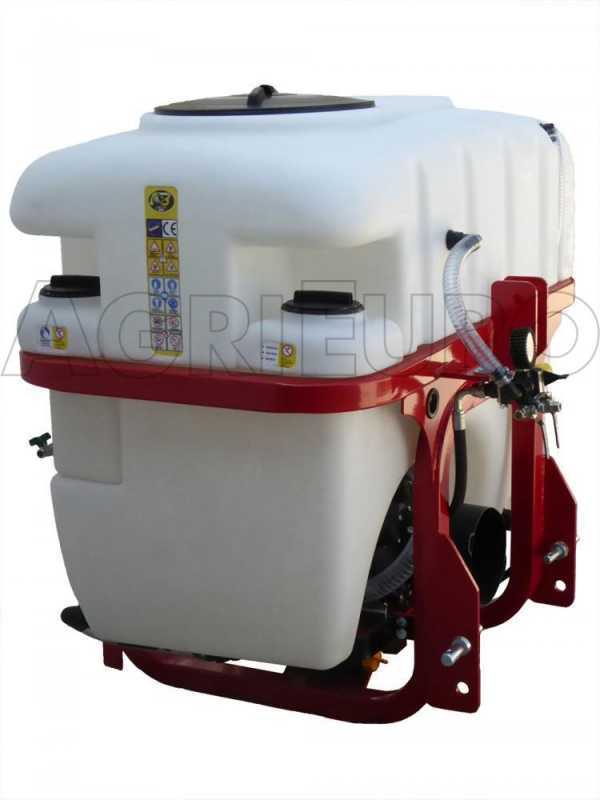

Oma 600 L Mounted Sprayer for Irrigation

Oma 600 L mounted sprayer for irrigation with Comet APS 96 pump is a spraying unit suitable for medium and large crops.

Equipped with main polyethylene tank with total emptying, hand-washing tank and circuit-washing tank, also made of polyethylene.

It connects to the tractor via the 3-point linkage on the enamelled steel frame.

The tank is equipped with COMET high-pressure pump, APS 96 model, a new generation 4 membrane pump configuration provided with 3-way Comet pressure regulator.

Attention: universal joint for connection to tractor PTO not included

WARNING: Depending on the supply, the colour of the machine and some components may differ from the images. The difference is purely aesthetic and does not affect any technical parameters.

Oma 600 L Mounted Sprayer for Irrigation - Comet APS 96 Pump

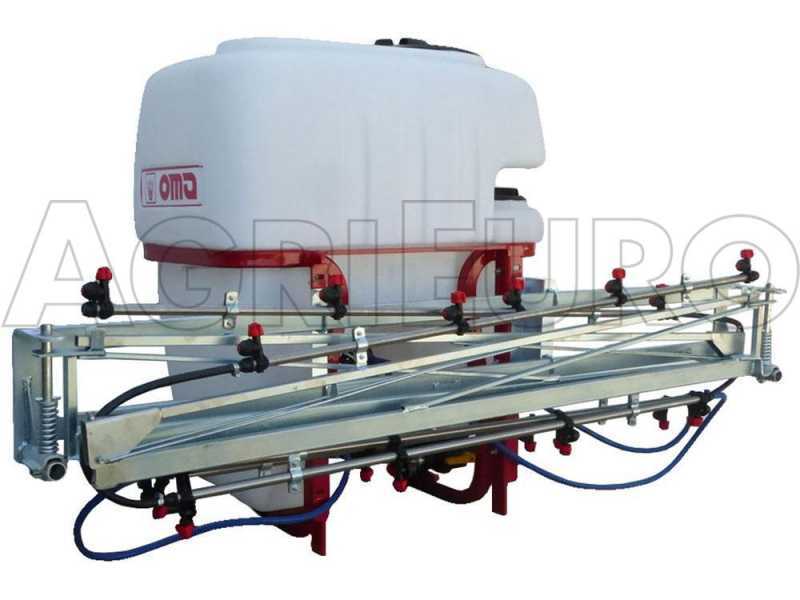

Sprayer Accessories Sold Separately

These are some of the accessories that can be mounted on the OMA mounted sprayers for irrigation.

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and brass lever lance

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and mitra lance

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and spraying guns

Stainless steel hose reel with 100 m blue netted high-pressure hose (25 bar) without accessories, standard frame

All the accessories are available in the RELATED PRODUCTS section.

Comet APS 96 Pump

Comet APS 96 high-pressure pump has a new four membrane configuration.

The parts directly touching the liquid are made of anodized aluminium, resistant to corrosion.

The suction-discharge valves are all easy to check and they are all placed on the discharge side. The valve is made with stainless steel site and plate.

Equipped with discharge and safety valves

Performance

N. membranes/pistons

Flow rate

88.0L/min

Pressure

50.0 bar

Power

11.7 HP

RPM

550

Weight

22.5 Kg

It allows to operate:

up to 7 to manual lever lances (or knobs) simultaneously
4 MITRA lances simultaneously
2 lateral spray booms with 5 butterfly nozzles each
Pair of spray guns up to 4 nozzles each
1 weeding boom up to 12 m

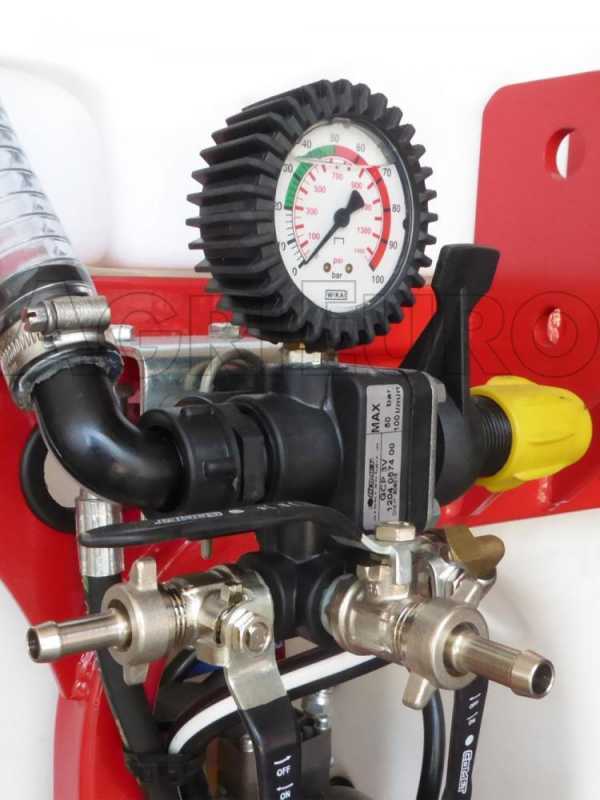

3-way Pressure Regulation Unit

Original Comet production, GCP standard series, 3-way. It consists of 3 outlets, all available, all equipped with a valve, suitable for many uses.

Usually, the two horizontal outlets are used to connect, for example, a pair of spray guns for orchards/olive groves, or stainless steel booms for vineyards and so on... Instead, the central upward valve is most often used to connect a hose reel or simply a hose with a lance, or guns for spraying directly by hand.

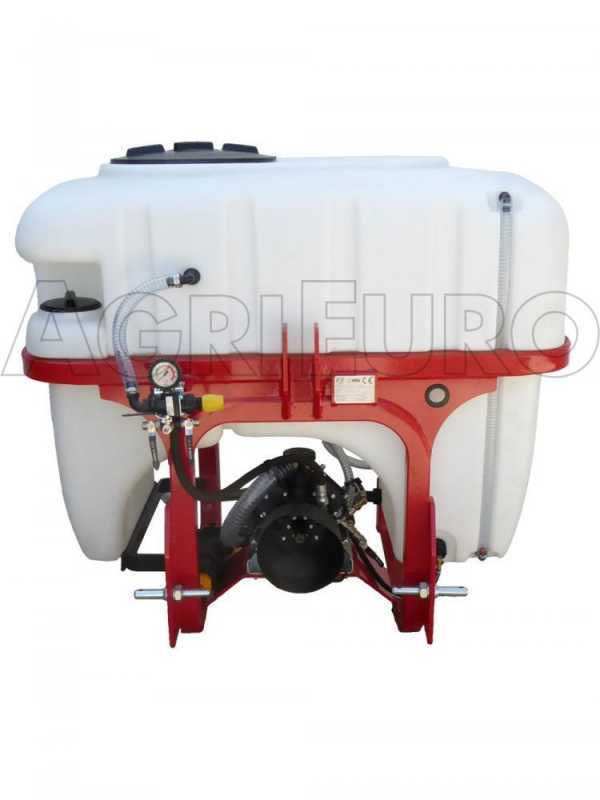

Heavy Enamelled Steel Frame

Heavy enamelled steel frame, complete with 3-point linkage for tractor mounting.

The attaching points to the lifter are complete with pins.

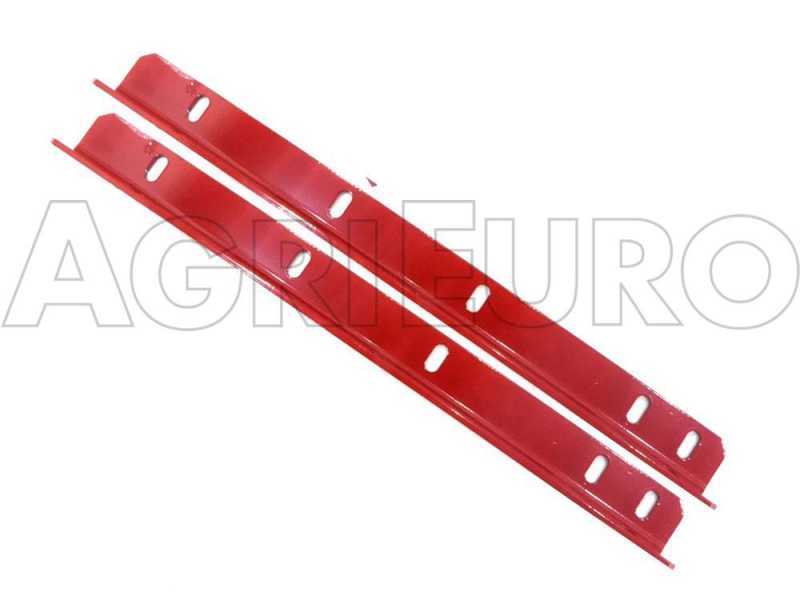

This tank is equipped with two special vertical bars to which the supplied bracket kit is attached.

These brackets can be applied in many positions, making them suitable for accommodating any type of accessory on the market.

Sample configuration 1

Sample configuration 2

General Features

Polyethylene tank with total emptying

Additional tank for hand washing

Circuit-washing tank (to wash the inside of the tank, hoses and all the equipment at the end of the treatment, before storage). To activate it, simply open the tap in the cartridge filter.

Focus on the external level with graduated scale, equipped with small ball to check the liquid level in the tank.

Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.

External suction filter equipped with self-filling system (the hose to fill the tank must be purchased separately, you can find it in the related accessories section).

Internal filter which cleans the liquid from any possible residue or dirt during the tank filling phase.

Hand washing valve, delivering clean water

Tank emptying valve
