Oma 400 l - Tractor-mounted sprayer tank unit - Comet APS 51 pump

Questions & Answers (2)
ID: K4327

EAN: 9993089178801

MPN: NGI0400002

Oma 400 l - Tractor-mounted sprayer tank unit - Comet APS 51 pump
+50 sold
Tank capacity
400 l
Pressure regulator
Yes
Pump brand
Comet
Flow rate
50.7 L/min
Max. operating pressure
40 bar
Circuit washing tank
Yes
Hand washing tank
Yes
Manufacturing country
Italy
Product Features
Model:
OMA 400 lt APS 51
Type:
For spraying treatments
Operating mode:
tractor
Flow rate:
50.7 L/min
Max. operating pressure:
40 bar
Tank capacity:
400 l
Tank capacity:
400 L
Fixed 3-point hitch:
Yes
Manufacturing country:
Italy
Pump data
Pump brand:
Comet
Pump brand:
Comet
Model:
APS 51
Pump type:
three membranes
Flow rate:
50.7 lt/min
Operating pressure:
40 bar
Pressure regulator:
Yes
Manufacturing country:
Italy
Equipment
Equipment:
Optional accessories
Tool boom:
No
Internal hydraulic shaker:
Yes
Distributor:
Standard
Circuit washing tank:
Yes
Hand washing tank:
Yes
Free gifts/extra features
Kit for bracket assembly:
Yes
Self-filling joint:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
(L x W x H) 70x100x145 cm
Net weight:
133 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
(L x W x H) 70x100x160 cm
Gross weight (packaging included) :
137 Kg
Assembly time:
20 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 24/04/2024 - 26/04/2024
Suggested price:
€ 2.792,53
€ 2.373,57
VAT Included
You're viewing:
Customers also viewed:
Description

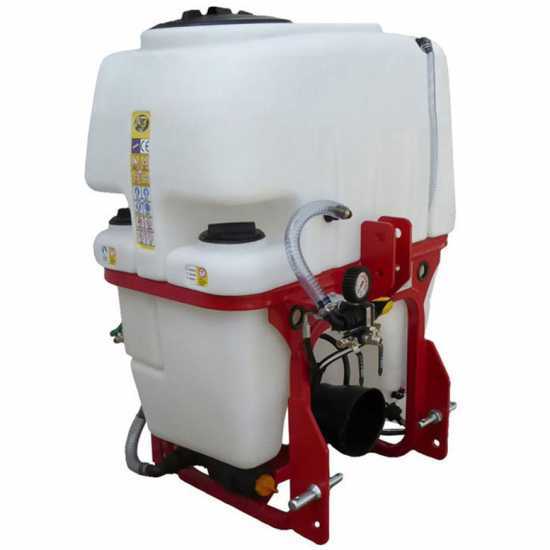

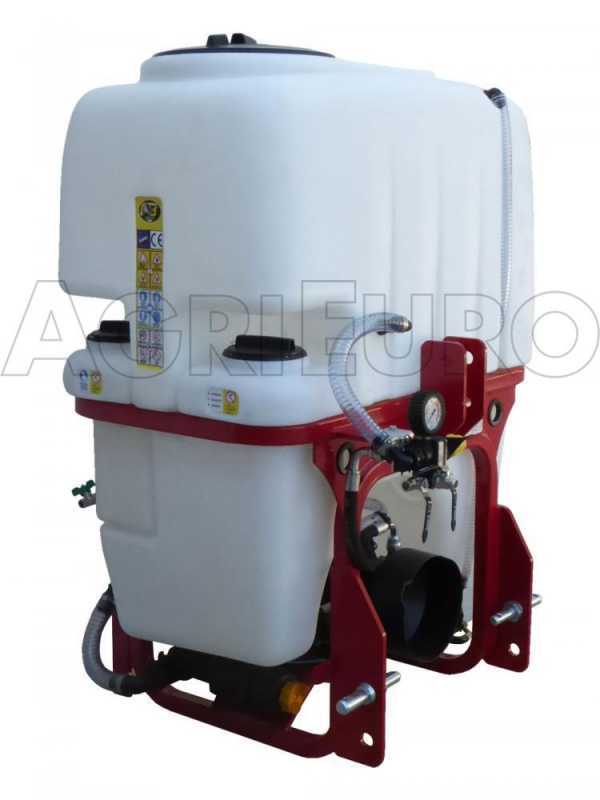

Oma 400 L Mounted Sprayer for Irrigation

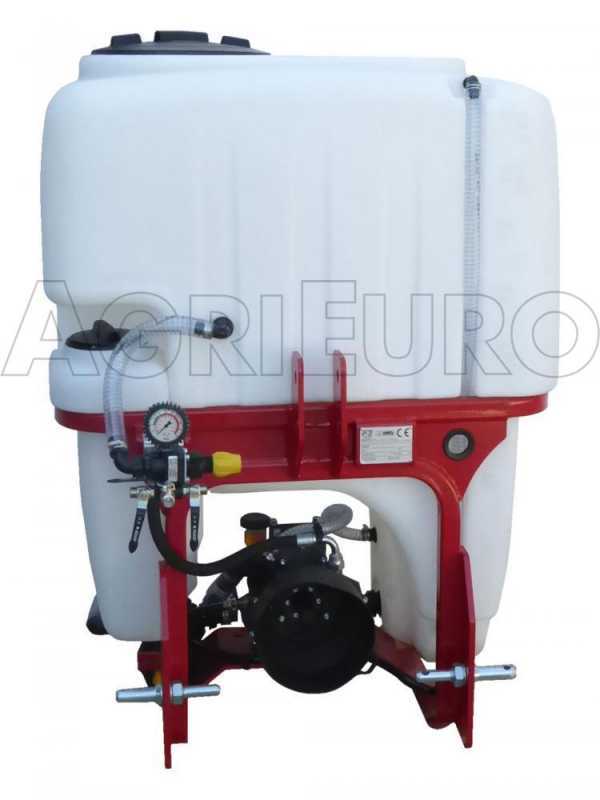

Oma 400 L mounted sprayer for irrigation with Comet APS 51 pump is a spraying unit suitable for medium and large crops.

Equipped with main polyethylene tank with total emptying, hand-washing tank and circuit-washing tank, also made of polyethylene.

It connects to the tractor via the 3-point linkage on the enamelled steel frame.

The tank is equipped with COMET high-pressure pump, APS 51 model, a new generation 3 membrane pump configuration provided with 3-way Comet pressure regulator.


Attention: universal joint for connection to tractor PTO not included

WARNING: depending on the supply, the colour of the hand-washing and circuit-washing tanks may differ from the images. The difference is purely aesthetic and does not affect any technical parameter.

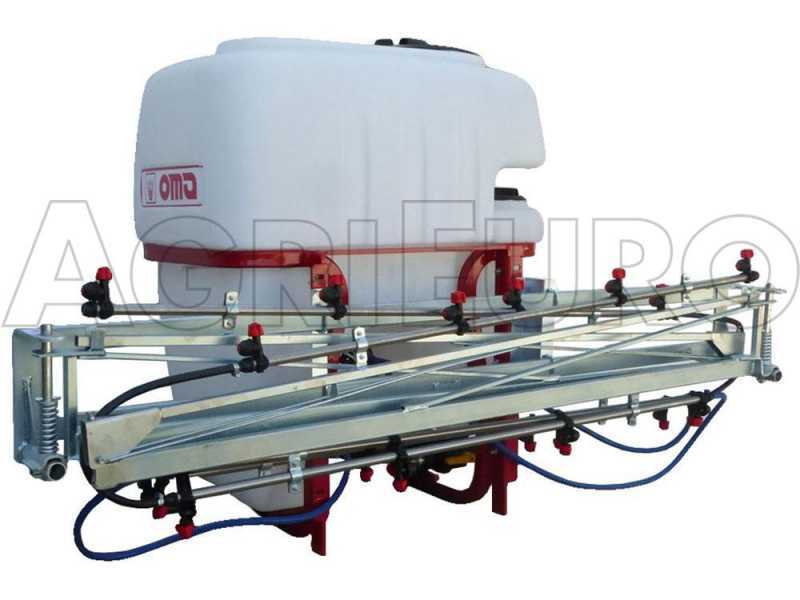

Sprayer Accessories Sold Separately

These are some of the accessories that can be mounted on the OMA mounted sprayers for irrigation.

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and brass lever lance

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and mitra lance

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and spraying guns

Stainless steel hose reel with 100 m blue netted high-pressure hose (25 bar) without accessories, standard frame

All the accessories are available in the RELATED PRODUCTS section.

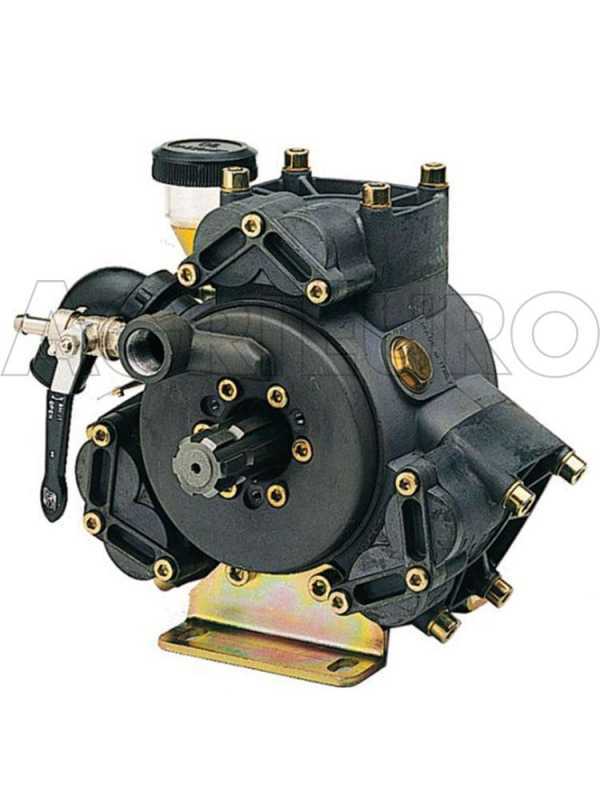

Comet APS 51 Pump

Comet APS 51 high-pressure pump features a new three-membrane configuration. Equipped with internal manifolds. The suction-discharge valves are all easy to check and they are all placed on the discharge side. The valve is made with stainless steel site and plate.

Performance

N. membranes/pistons
3
Flow rate
50.7 L/min
Pressure
40.0 bar
Power
5.2 HP
RPM
550
Weight
16.4 Kg

It allows to operate:

  • up to 5 to manual lever lances (or knobs) simultaneously
  • 2 MITRA lances simultaneously
  • 2 lateral spray booms with 4 butterfly nozzles each
  • 1 weeding bar up to 10 m

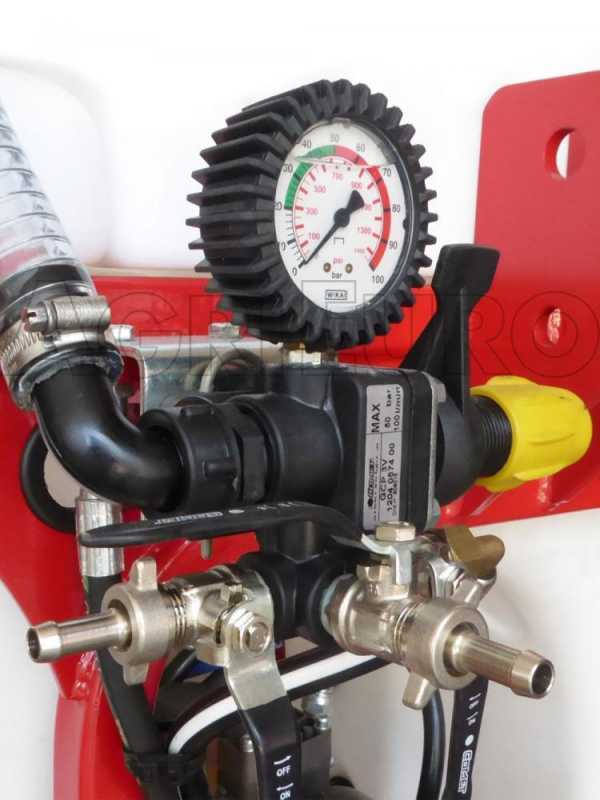

3-ways Pressure Regulation Unit

Original Comet production, GCP standard series, 3-way. It consists of 3 outlets, all available, all equipped with a valve, suitable for many uses.

Usually, the two horizontal outlets are used to connect, for example, a pair of spray guns for orchards/olive groves, or stainless steel booms for vineyards and so on... Instead, the central upward valve is most often used to connect a hose reel or simply a hose with a lance, or guns for spraying directly by hand.

It is also possible to move the entire pressure regulation unit directly into the tractor cabin by purchasing the special kit (which extends the length of the the hoses)

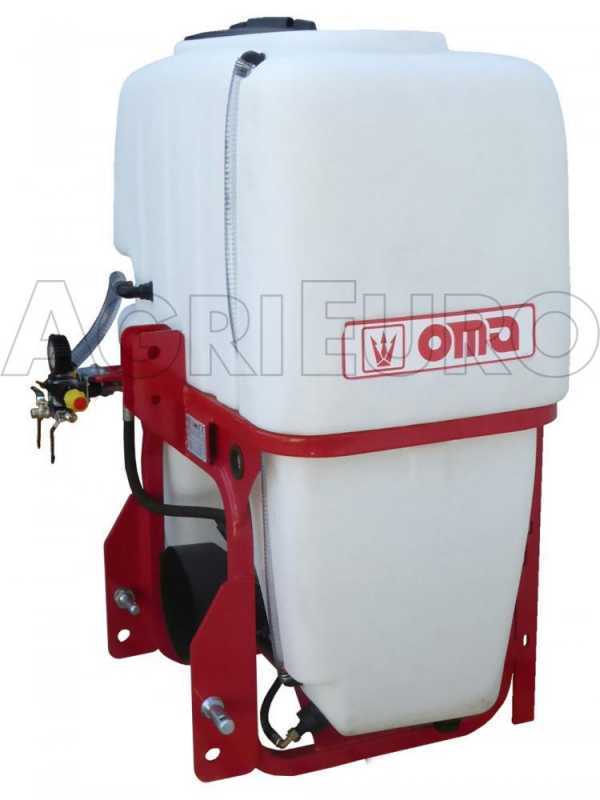

Heavy Enamelled Steel Frame

Heavy enamelled steel frame, complete with 3-point linkage for tractor mounting.

The attaching points to the lifter are complete with pins.

This tank is equipped with two special vertical bars to which the supplied bracket kit is attached.

These brackets can be applied in many positions, making them suitable for accommodating any type of accessory on the market.

Sample configuration 1

Sample configuration 2

General Features

Polyethylene tank with total emptying

Additional tank for hand washing

Circuit-washing tank (to wash the inside of the tank, hoses and all the equipment at the end of the treatment, before storage). To activate it, simply open the tap in the cartridge filter.

Focus on the external level with graduated scale, equipped with small ball to check the liquid level in the tank.

Hydraulic agitator, to constantly mix the solution within the tank. It has a high-pressure jet in the centre of the tank.

External suction filter equipped with self-filling system (the hose to fill the tank must be purchased separately, you can find it in the related accessories section).

Internal filter which cleans the liquid from any possible residue or dirt during the tank filling phase.

Hand washing valve, delivering clean water

Tank emptying valve

Free items & Standard equipment

Complimentary

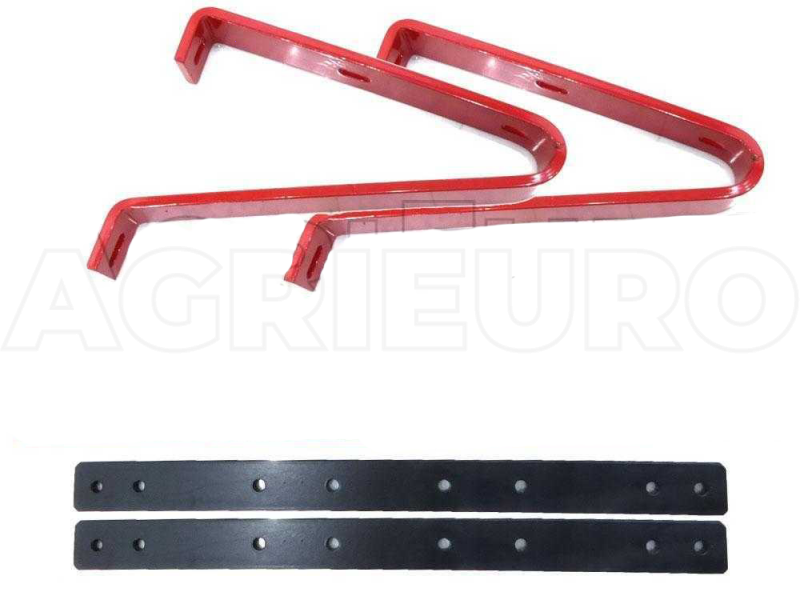

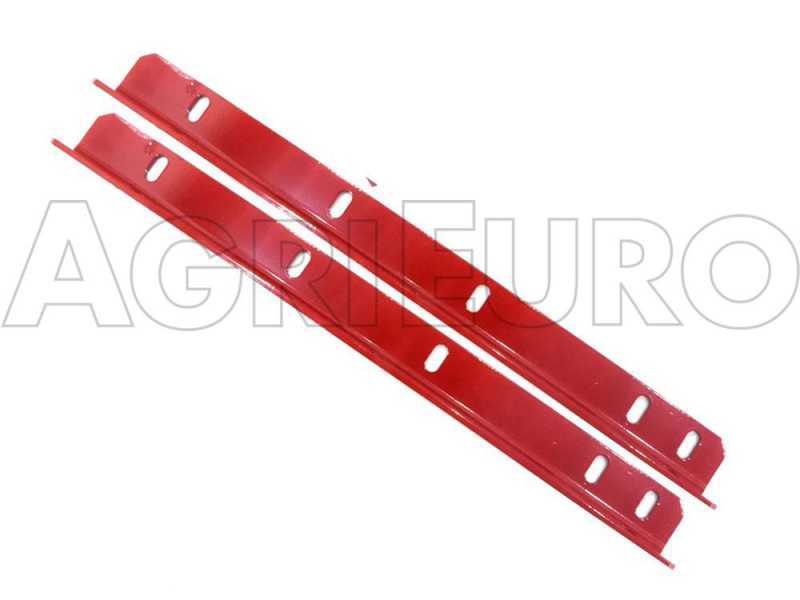

Bracket kit for fixing accessories to the frame: suitable for connecting most of the weed control accessories on the market

Complimentary

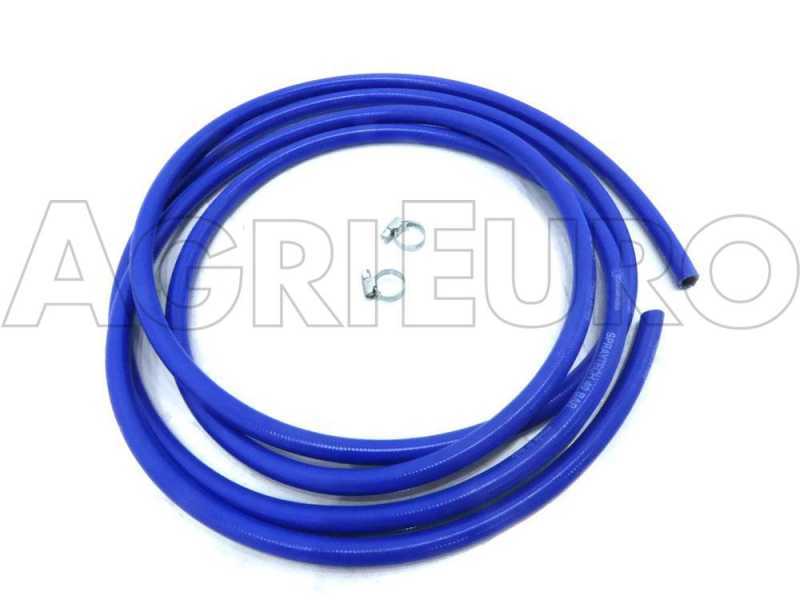

4 m 10 mm high-pressure hose, suitable for connecting all accessories with the pressure regulator unit and 2 clamps.

Free Items Included

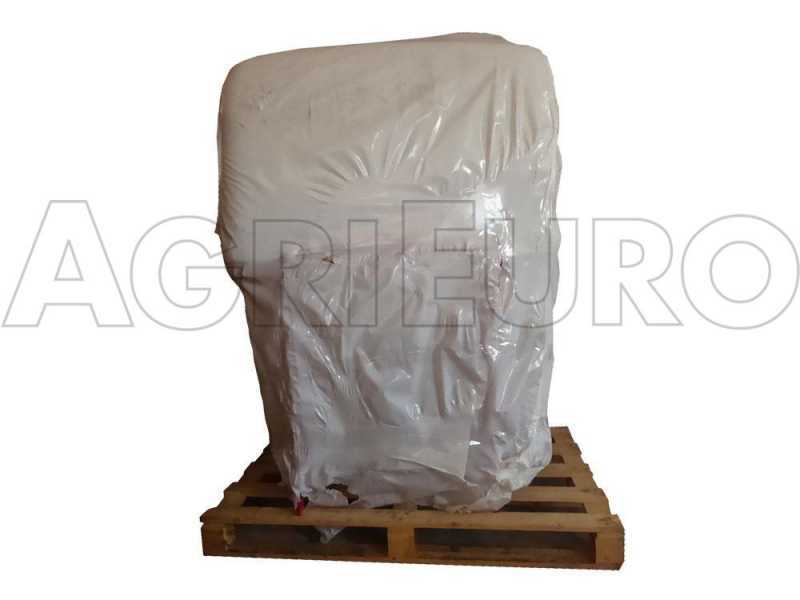

The sprayer is shipped on pallet, carefully packed, with instruction manual and tightening screws included

Elbow for self-filling, to take water from water courses or other water supplies. It must be applied before the suction filter

Fittings for the pressure regulator
