Oma 100 l - Tractor-mounted sprayer tank unit - A&R pump 252

Questions & Answers (3)
ID: K4322

EAN: 9993089182631

MPN: NEG0100001AR

Oma 100 l - Tractor-mounted sprayer tank unit - A&R pump 252
+100 sold
Tank capacity
100 l
Pressure regulator
Yes
Pump brand
Annovi&Reverberi
Flow rate
25 L/min
Max. operating pressure
25 bar
Tool boom
In steel
Manufacturing country
Italy
Product Features
Model:
OMA 100 lt
Type:
For spraying treatments
Operating mode:
tractor mounted
Frame type:
Enamelled steel
Flow rate:
25 L/min
Max. operating pressure:
25 bar
Tank capacity:
100 l
Tank capacity:
100 L
Fixed 3-point hitch:
Yes
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi & Reverberi
Pump brand:
Annovi&Reverberi
Model:
AR 252
Pump type:
two membranes
Flow rate:
25 lt/min
Operating pressure:
25 bar
Pressure regulator:
Yes
Manufacturing country:
Italy
Equipment
Equipment:
Optional accessories
Tool boom:
In steel
Distributor:
Standard
Free gifts/extra features
Kit for bracket assembly:
Yes
Self-filling joint:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
(L x W x H) 65x75x85 cm
Net weight:
77 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
(L x W x H) 65x75x100 cm
Gross weight (packaging included) :
80 Kg
Assembly time:
20 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 03/05/2024 - 07/05/2024
€ 1.446,99
VAT Included
You're viewing:
Customers also viewed:
Description

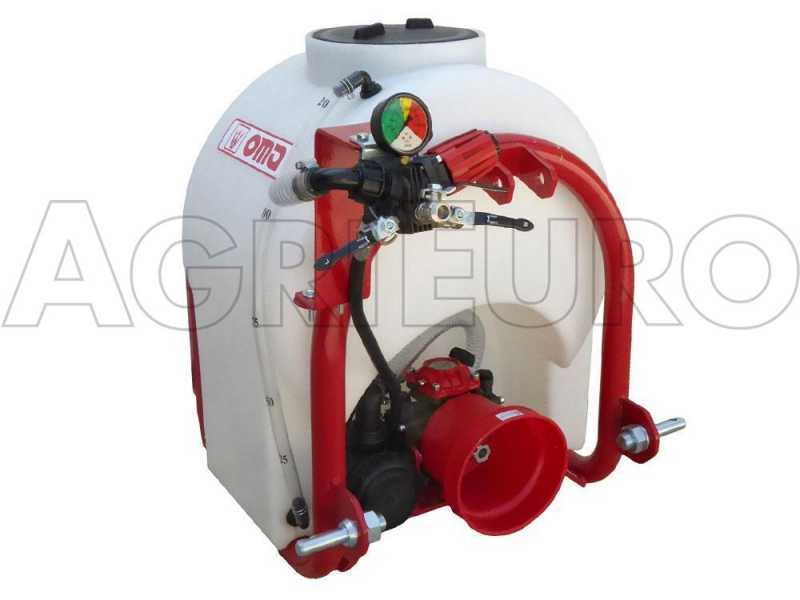

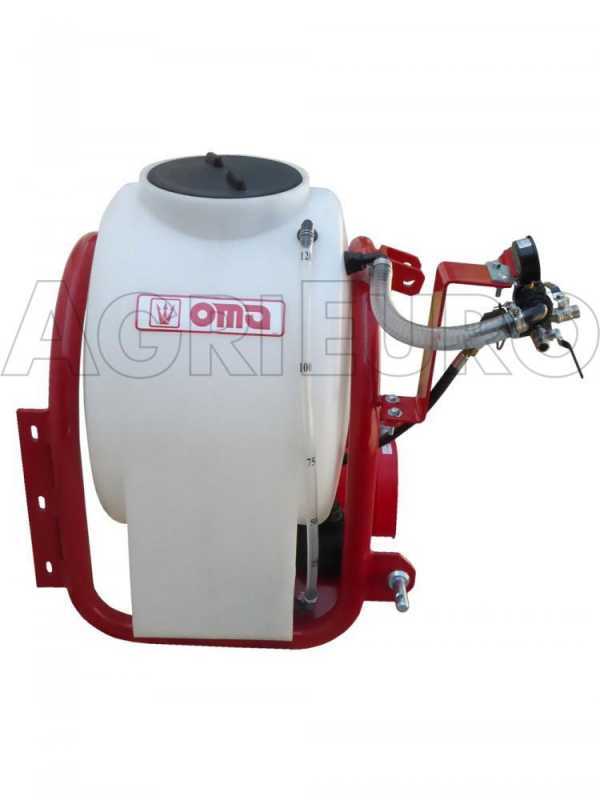

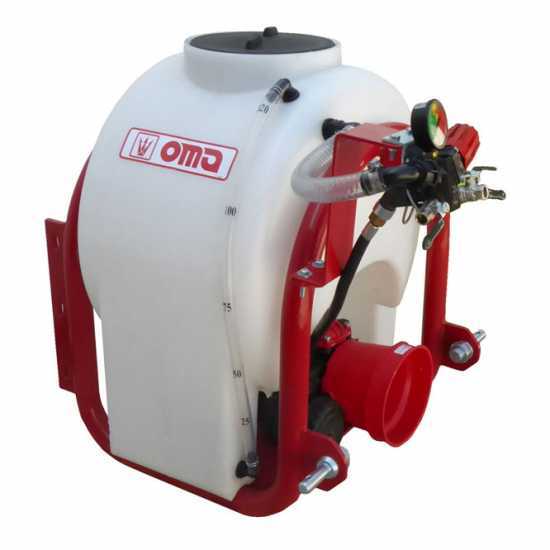

Oma 100 L Mounted Sprayer for Irrigation

Oma 100 L mounted sprayer for irrigation with A&R 252 - Annovi Reverberi pump is a spraying unit suitable for small and medium crops.

Equipped with main polyethylene tank with total emptying, it connects to the tractor via the 3-point linkage on the enamelled steel frame.

The tank is equipped with A&R - Annovi Reverberi medium-pressure pump, A&R 252 model, with two membranes, equipped with three-way pressure regulator.

Attention: universal joint for connection to tractor PTO not included

Sprayer Accessories Sold Separately

These are some of the accessories that can be mounted on the OMA mounted sprayers for irrigation.

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) without accessories

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and brass lever lance

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and mitra lance

Steel hose reel with 100 m blue netted high-pressure hose (25 bar) and spray gun

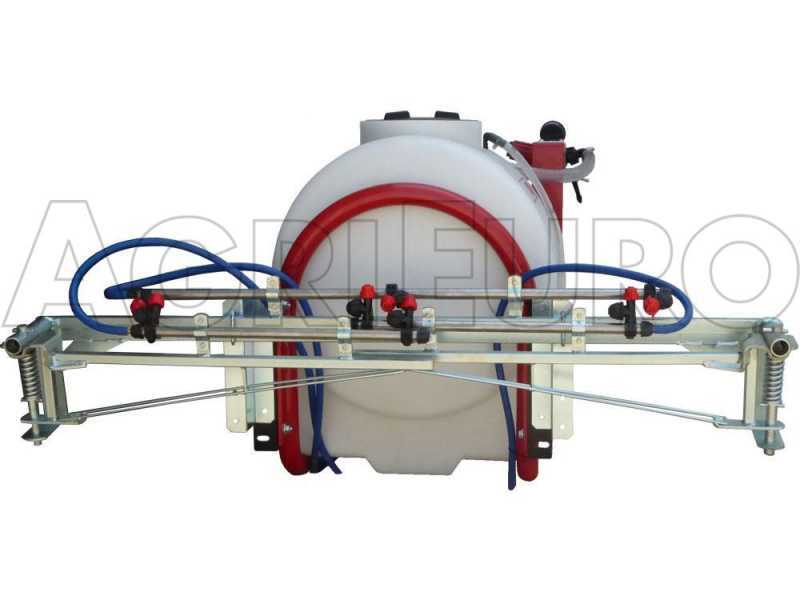

Mechanical inter-row 2-nozzle weeding boom with medium cover

All the accessories are available in the RELATED PRODUCTS section.

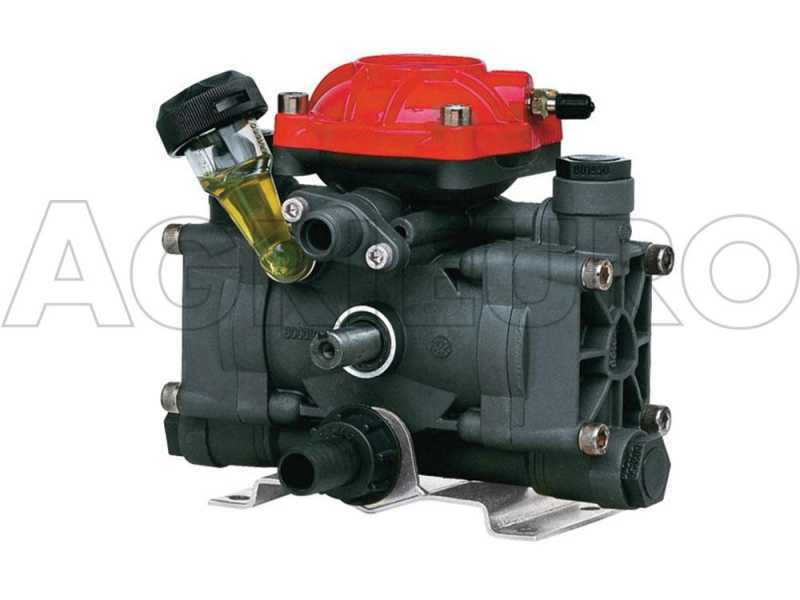

A&R 252 - Annovi Reverberi Pump

Pump type: medium/high pressure, suitable for both spraying and weeding jobs

Alternative volumetric pump with two semi-hydraulic membranes. The parts touching the liquids are made of plastic-coated aluminium and stainless steel. Rubber membranes. Rubber seals. Die-cast carter with mechanical parts in an oil bath, tank made of transparent plastic material to check the level.

It allows operating:

- up to 2 to manual lever (or knob) lances simultaneously
- 1 heavy-duty gun lance

Category Medium pressure
Type AR 252
Number of membranes 2
Flow rate (l/min) 24.6
Pressure (bar) 25
Pressure (psi) 362
Power (HP) 1.42
RPM 650
Weight (Kg) 4
Suction (mm) Ø 20
Discharge (mm) Ø 13
Max. temperature 60 °C

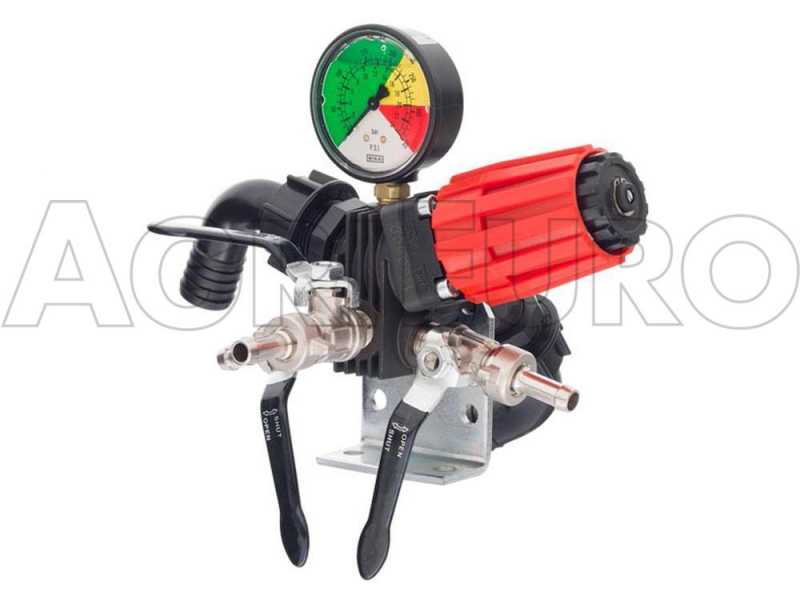

3-way Pressure Regulation Unit

Annovi Reverberi original production, MR series, for medium and high pressure, 3-way. It consists of 3 outlets, all available, all equipped with a valve, suitable for many uses.

Usually, the two horizontal outlets are used to connect, for example, a pair of spray guns for orchards/olive groves, or stainless steel booms for vineyards and so on... Instead, the central upward valve is most often used to connect a hose reel or simply a hose with a lance, or guns for spraying directly by hand.

Focus on the frame to raise the position of the controls

It is also possible to move the entire pressure regulation unit directly into the tractor cabin by purchasing the special kit (which extends the length of the the hoses)

Maximum flow rate: 80 l/min

Maximum pressure: 40 bar

Heavy Enamelled Steel Frame

Heavy enamelled steel frame, complete with 3-point linkage for tractor mounting.

The attaching points to the lifter are complete with pins.

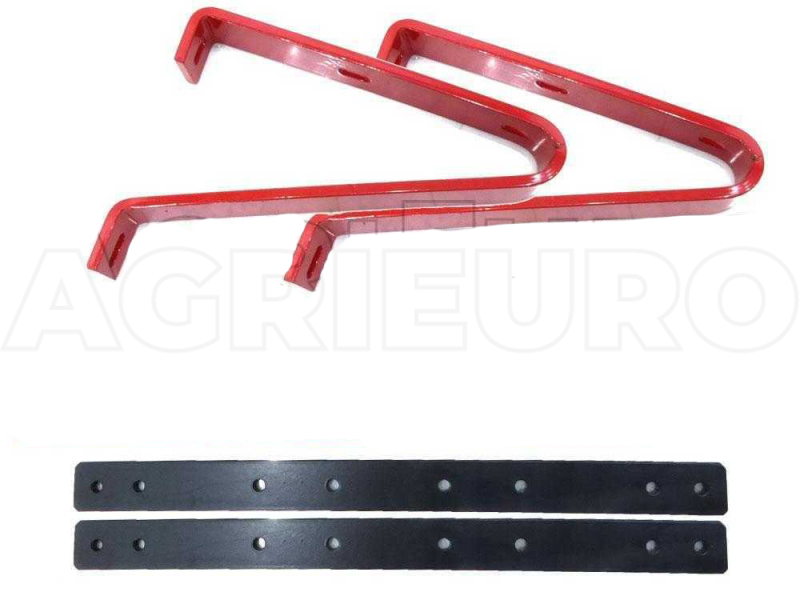

This tank is equipped with two special vertical bars to which the supplied bracket kit is attached.

These brackets can be applied in many positions, making them suitable for accommodating any type of accessory on the market.

Example of bracket application with hose reel accessory

Focus on the frame to raise the position of the controls

General Features

Polyethylene tank with total emptying

Focus on the external level with graduated scale.

External suction filter

Focus on the external suction filter

Internal filter to clean the liquid from any possible residue or dirt during the tank filling phase.

Tank emptying valve. Accessible from behind the pump or after lifting the spraying unit

Free items & Standard equipment

Complimentary

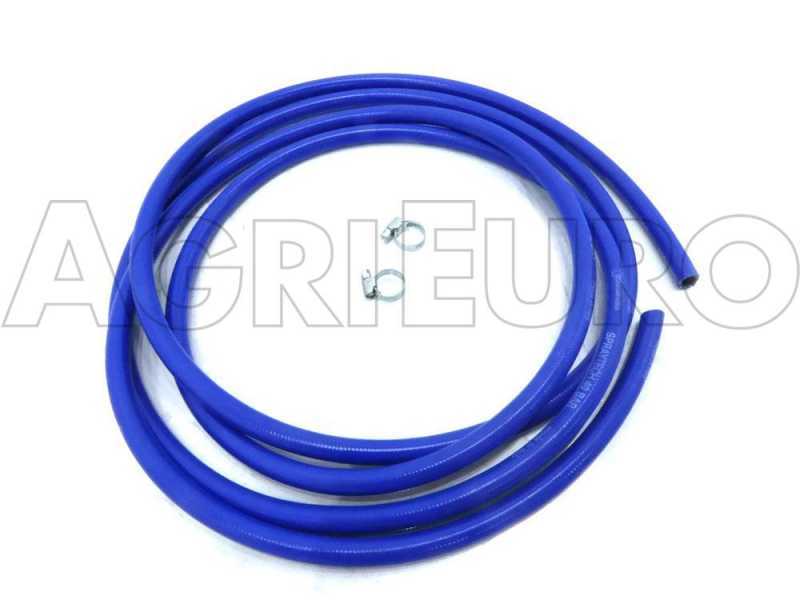

4 m 10 mm high-pressure hose, suitable for connecting all accessories with the pressure regulator unit and 2 clamps.

Free Items Included

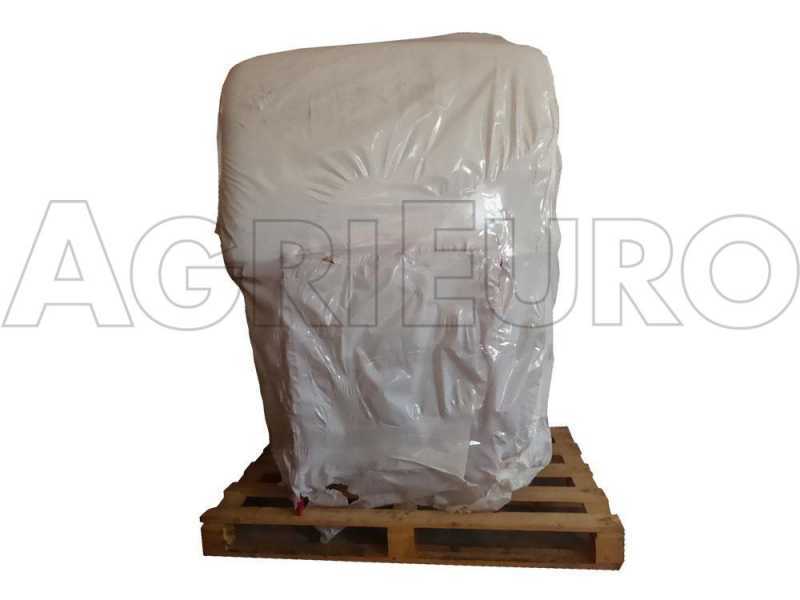

The sprayer is shipped on pallet, carefully packed, with instructions manual and tightening screws included

Fittings for the pressure regulator
