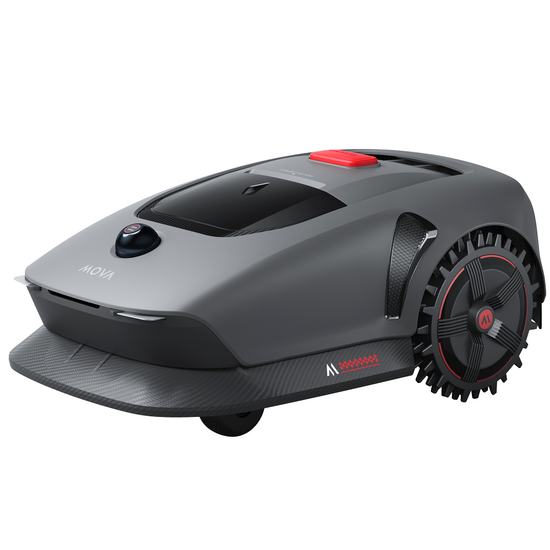

MOVA 1000 - Lawn Mower Robot - Without Installation

The MOVA 1000 lawn mower robot represents a technologically advanced solution for automating grass cutting in residential settings.
This next-generation device operates completely autonomously, without the need for perimeter wires or RTK stations.
The proprietary UltraView™ technology allows for detailed garden mapping in a short time, offering a simplified and immediate user experience.
The automatic mower activates quickly and starts mowing without complex configurations.

This robotic mower integrates a three-dimensional LiDAR sensor, capable of precisely detecting objects in its path, such as trees, outdoor furniture, or pets.
The detection system allows the robot to dynamically alter its path, ensuring even mowing on slopes up to 45%, equivalent to a 24° incline.

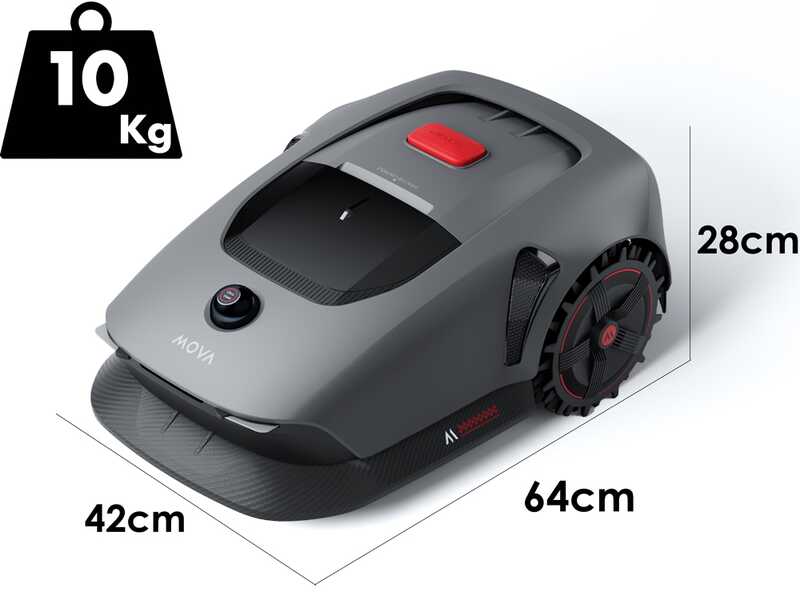

The compact design and optimized chassis facilitate movement even in narrow or complex-shaped areas.
An additional strength is represented by the all-terrain treaded wheels, designed to offer maximum grip and stability even on uneven or sloped surfaces.
The U-shaped rotary blade cutting system, adjustable as needed, ensures a uniform result and reduces redundant passes.
The selectable cutting modes include: Entire area, Specific zones, Perimeters only, Manual, Checkerboard, Custom, and Rotation.

The automatic mower MOVA 1000 has two operating modes:

• Standard: suitable for areas up to 800 m² within 24 hours.

• Efficient: designed to cover gardens up to 1200 m² daily.

The device is managed via a mobile application, allowing remote control and configuration of work areas.
The low noise level of 60 dB makes it suitable for use even during sensitive hours.

Main features:

• UltraView™ technology and 3D LiDAR detection: intelligent mapping without wires and real-time obstacle recognition.

• Independent multi-zone management: programmable on multiple separate and non-communicating cutting areas.

• Adjustable U-cut blade: uniform lawn coverage with reduced double passes.

• Intelligent obstacle avoidance system: automatic deviation or stop to prevent collisions.

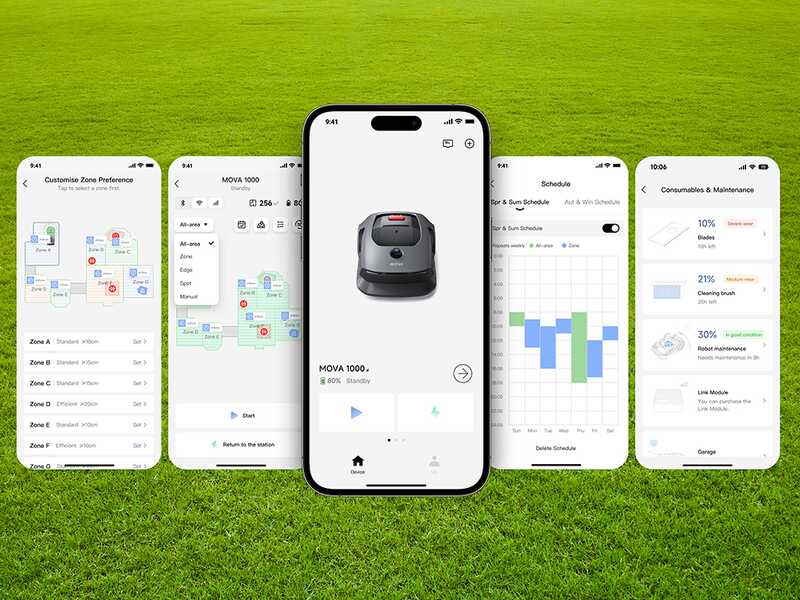

The MOVA 1000 Lawn Mower Robot App is one of the distinctive aspects of this product, offering users complete and personalized control directly from their smartphone.
The application is compatible with iOS and Android devices, allowing easy and intuitive management of all the robotic mower's functionalities.
Thanks to the wireless connection, the MOVA 1000 is fully manageable remotely, with the ability to schedule and monitor work in real-time.

• Garden mapping: Through the App, it is possible to view and modify the garden map, configuring cutting areas and prohibited zones. The intelligence of UltraView™ allows for simple and precise management, without the need for perimeter wires.

• Multi-zone and dual map management: If the garden is divided into different areas, the App allows independent management and customization of cutting paths for each zone. The zones are unlimited, and it is possible to manage up to 2 separate lawns with another base and a second mapping on the App.

• Customization of cutting programs: The App allows the creation of customized cutting programs, based on the seasonal needs of the lawn and the growth rate of the grass. It is also possible to set specific work times, optimizing resource management and improving the robot's energy efficiency.

• Control of cutting modes: Thanks to the "U" shape cutting function, the user can choose between different cutting modes (e.g., manual, custom, edges only), making the MOVA 1000 extremely versatile for every type of garden.

• Ease of use: Simple and intuitive interface, suitable for all types of users, even without experience.

The App for the MOVA 1000 is a true-advanced control tool, which not only simplifies the use of the robotic mower but also offers a high level of customization, adapting to the needs of every garden and improving the overall lawn management experience.

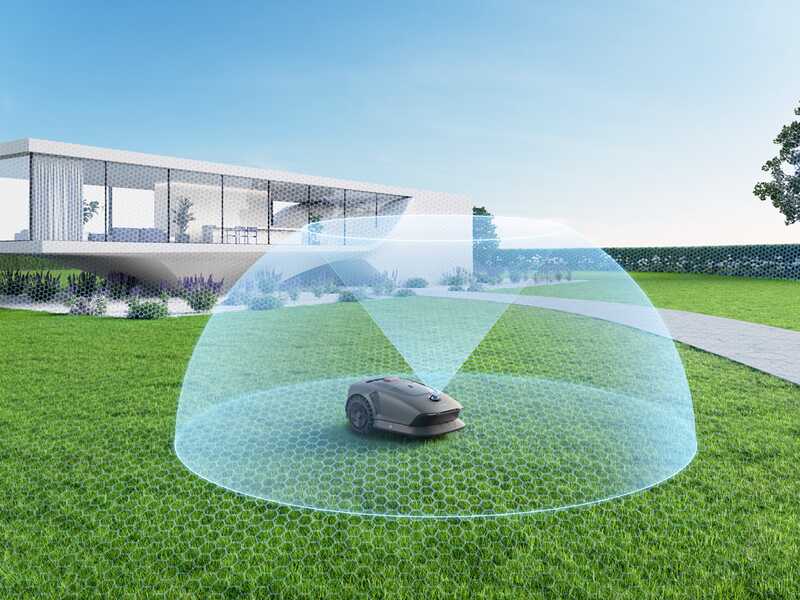

The Lawn Mower Robot MOVA utilizes UltraView™ technology, an advanced solution that enhances the precision of the robot's detection and navigation.
This technology is based on an environmental detection system, allowing the robot to map the garden in great detail and avoid obstacles in real-time.

• 3D Detection: Thanks to 3D LiDAR technology, the robot can detect and map the surrounding environment, creating detailed maps of the garden.
  The scanning occurs with a 360° horizontal and 59° vertical field of view, offering a wide and precise view for obstacle detection.

• Detection range: UltraView™ has a range of up to 30 meters, allowing the robot to operate in large gardens without issues.

• Centimetre precision: The system can detect obstacles and unevenness with centimetre precision, ensuring precise cutting even in complex or obstacle-filled areas.

• Stable operation even in difficult conditions: UltraView™ ensures that the robot operates stably, even in low light or bright light conditions, overcoming the limitations of other technologies like GPS or weak signals.

Main advantages:

• Precise and safe navigation: The robot can adapt to environmental changes in real-time, avoiding obstacles and optimizing the cutting path.

• Continuous and adaptive mapping: UltraView™ allows the robot to automatically remap the garden if conditions change, avoiding the need for manual remapping or complex installations.

The MOVA 1000 Lawn Mower Robot arrives ready to use and can be started quickly without requiring technical skills.
Even beginners, by following the user manual, can easily start it. Just place it on the lawn and turn it on, setting the cutting area directly from the application.

No perimeter wires are needed thanks to UltraView™ and 3D LiDAR technology, which allow the robot to autonomously map the area. The MOVA 1000 is ideal for those who want a simple, efficient, and fully autonomous cutting solution.

Advantages:

• Easy to use: Just follow the manual for quick start-up.

• No technician required: Autonomous operation without external interventions.

• Time and money saving: No additional equipment required.

The MOVA 1000 offers perfect and hassle-free cutting, making lawn care simpler and more economical.

The lawn management robots support unlimited zones, with only a constraint on the total area to be covered. They also work at night.

The transition between zones is automatic and suitable for any type of surface, with a maximum step of 3 cm and a minimum passage width of 50 cm. There are no limits on the corridor length.

The charging bases must be covered by Wi-Fi, while it is not essential for the lawn. It is possible to adjust the height of obstacles and the approach distance.

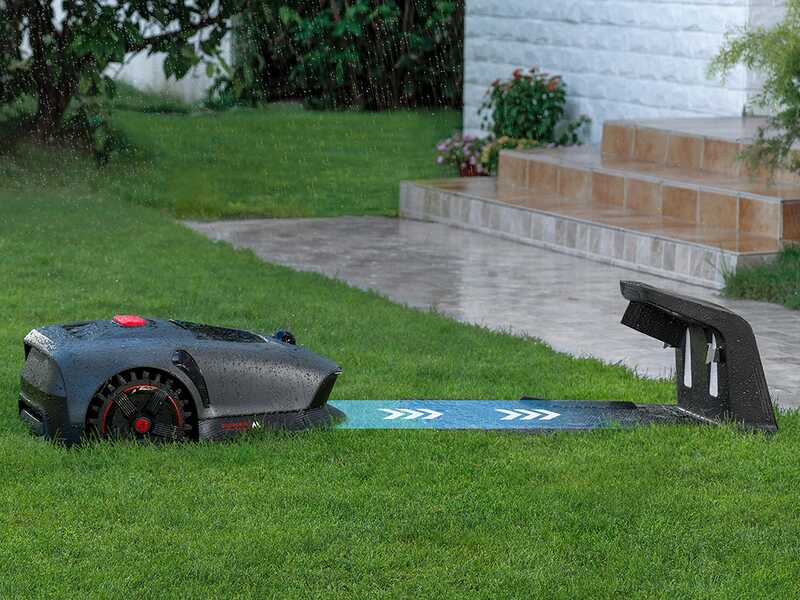

Upon exit, the robot performs a 360-degree turn to orient itself, so the base must comply with the manoeuvring measurements in the manual. At the end of charging, the robot resumes work from where it left off, with partial charging available (minimum 80%).

The MOVA 1000 offers two cutting modes: Efficient and Standard.
In Efficient mode, the robot covers up to 1200 m² in 24 hours, optimizing paths to reduce work time, while in Standard mode, the MOVA 1000 can cover 800 m² in 24 hours, still ensuring a good result but with less optimized time management.

• Cutting motor: Brushless

• Traction motor: Brushless

• Battery capacity: 2.5 Ah

• Edge-to-edge cutting

• Speed: 18 meters per minute

• Anti-theft: PIN to be set

• Off-road wheels

Sensors:

• 3D LiDAR Technology: The MOVA 1000 uses high-precision LiDAR to map the garden, with a horizontal field of view of 360° and vertical of 59°, and a detection range of up to 30 meters. This system allows for centimeter-precision obstacle avoidance.

• Obstacle and unevenness detection: The robot can detect obstacles (such as garden furniture, animals, or people) and sudden unevenness (such as steps or pools), automatically adjusting its trajectory to avoid damage.

• Lift sensor: If the robot is lifted or if both wheels end up in holes, the system automatically shuts it down to prevent damage.

The MOVA 1000 is equipped with a brushless rotary blade cutting system that ensures high power and durability.
The robot is designed to offer uniform and precise cutting thanks to the "U" cutting mode, which optimizes efficiency and reduces blind spots. The system allows for more accurate cutting with reduced energy consumption.

• Adjustable cutting height: 20–60 mm (manual)

• Cutting width: 20 cm

• Cutting modes: Entire area, By zones, Edges only, Custom, Manual, Checkerboard, Rotation

The MOVA 1000 is designed to handle terrains with slopes up to 45% (24°), making it suitable for hilly gardens or irregular surfaces.

The Lawn Mower Robot uses 3D LiDAR technology to map the garden and detect obstacles. This technology allows the robot to avoid obstacles (garden furniture, animals, people) and handle unevenness, such as steps and pools, preventing damage to the device.

• 3D LiDAR Technology: Precise garden mapping with 360° x 59° detection.

• Detection range: Up to 30 m.

• Centimetric precision: For precise and error-free cutting.
