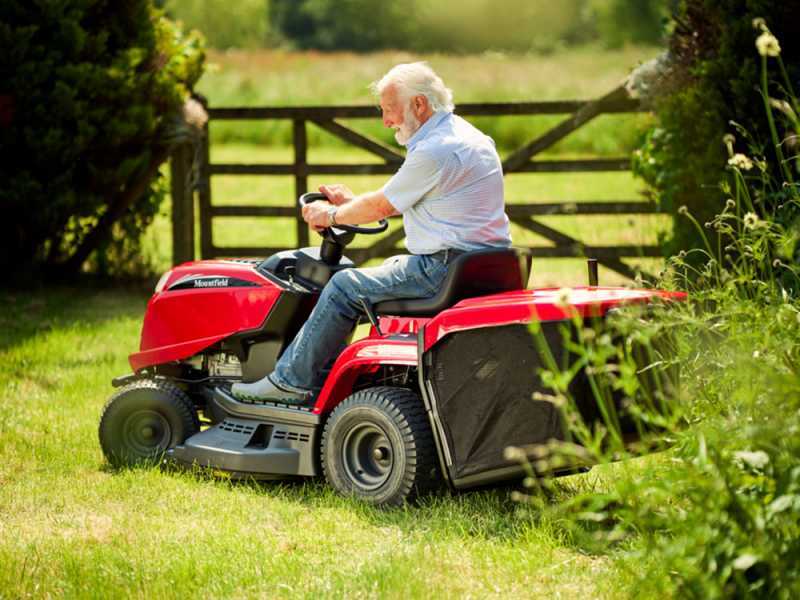

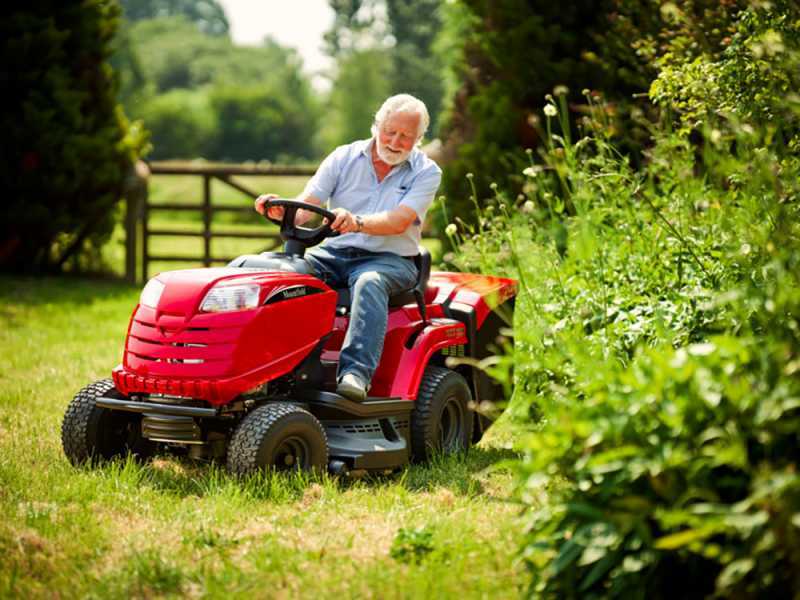

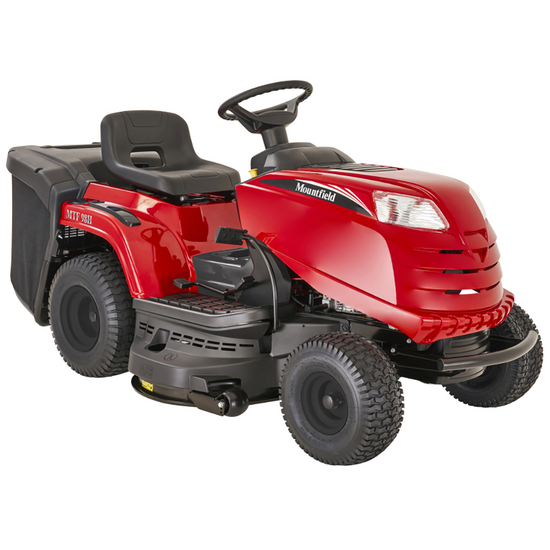

Mountfield MTF 98H - Lawn tractor with hydrostatic transmission and 240 L collection box

The Mountfield MTF 98H tractor combines reliability and handling, making it perfect for covering large areas in less time. It's ideal for even the most inexperienced user, thanks to its features.

Powerful performance: powered by a 432 cc Stiga ST450 engine with an output of 7.2 kW, this lawn tractor can tackle areas up to 4500 m² without effort.

Advanced hydrostatic transmission: the pedal-operated system allows smooth speed and pace adjustment, eliminating the need to change gears manually.

Equipped with two cutting modes :

• Grass collection system
• Mulching (optional to be purchased separately):

Efficiency and practicality:

• Powerful headlights ensure visibility even in low light conditions.
• The electromagnetic engagement of the blades allows them to be activated or stopped with a simple button.
• The cutting height is adjustable in 7 positions, from 25 to 80 mm, and is easily controlled using a hand lever.

In addition to its manoeuvrability and practicality, the tractor also features a control panel with LED display, an ergonomic steering wheel and an adjustable seat for extended comfort during use.

Non-marking wheels, which ensure that the corners of the cutting deck do not leave furrows on delicate surfaces when working on sloping terrain.

Ideal for users who are looking for products that are functional and close to the professional level.

(Mountfield is a proprietary brand of Stiga)

The hydrostatic gearbox is a modern and functional type of gearbox, which is increasingly popular in the way of garden tractors.

Its operation is very simple: all you have to do to move forward is push the pedal with your toe. The riding-on mower will move forward according to the pressure on the pedal. Simply push the other end of the pedal with your heel for moving in reverse.

Release your foot from the pedal and the tractor will stop.

This gearbox is increasingly used and sought after by users due to its practicality compared to the manual gearbox. The latter in fact obliges the operator to stop every time he wants to change speed, to engage the gear, release the clutch and start again.

The hydrostatic gearbox allows for immediate speed changes without stopping, making it perfect for wide terrain where you have to work around obstacles or trees.

Detail of the hydrostatic platform

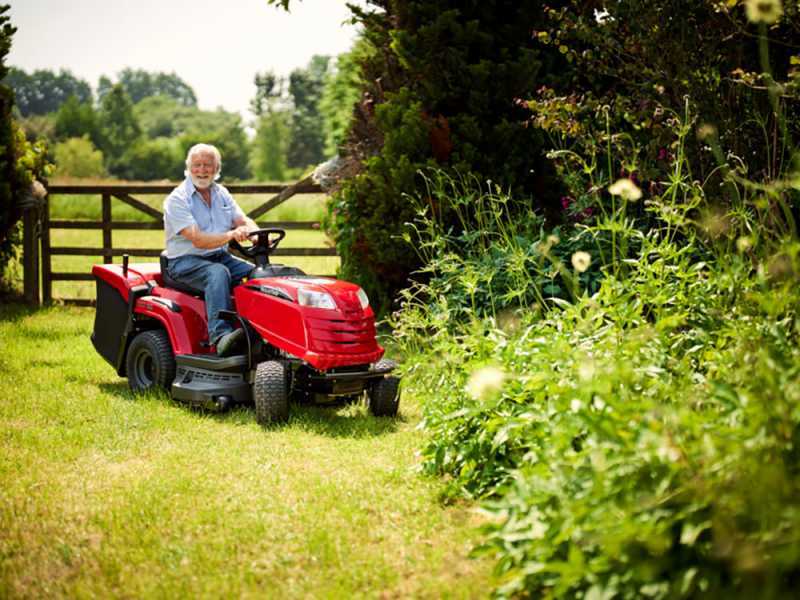

The engine mounted on the tractor is a Stiga ST 450, ideal for high performance and versatile.

It develops a power of 7.2 kW, and allows the machine to cover large spaces in a very short time, as well as powering the large rear wheels and cutting blades.

It has a petrol tank with a capacity of up to 6 litres.

At maximum power it reaches 2600 rpm and is air-cooled.

Nominal Power: 16 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 9.65 Hp (at 2600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

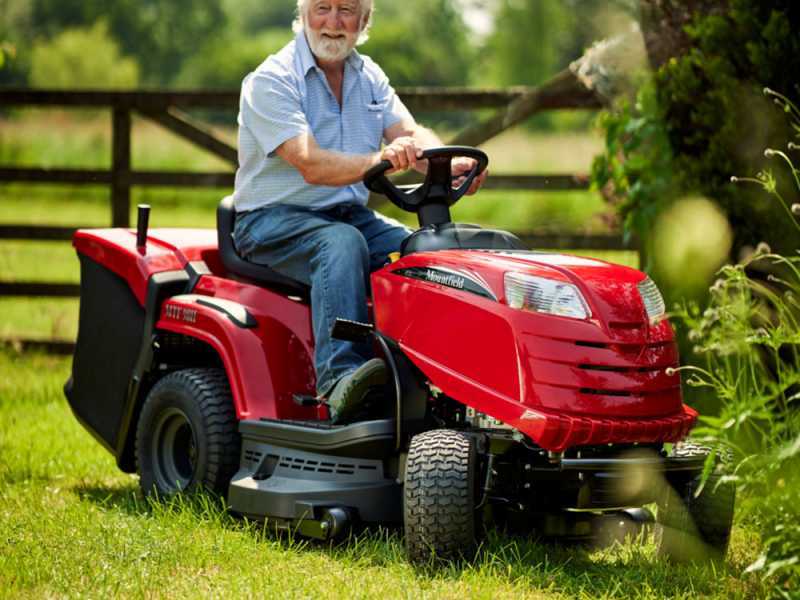

1- GRASS COLLECTION WITH 240L BASKET (on standard equipment)

The grass is harvested inside the collection basket, one of the most common methods. The bag emptying system is very simple: This is done by grasping the handle. Thus, it will be possible to empty the grass collector at any time while working, without any effort.

Equipped with an acoustic signal that alerts the operator when the bag is full.

2- MULCHING (optional, available from the accessories section):

The grass is finely chopped inside the cutting deck and then released directly onto the lawn. With this method, the grass will be so fine that it will look as if it has been harvested, giving a very satisfying aesthetic appearance. Furthermore, with this method the grass will decompose and become a nutrient for the lawn itself.

It is useful to remember that, in order to ensure the absolute efficiency of the system, the lawn must still be watered, and the grass cut very often.

Conversion: remove the grass collector and enter the mulching plug in the central tunnel.

- Particular central tunnel

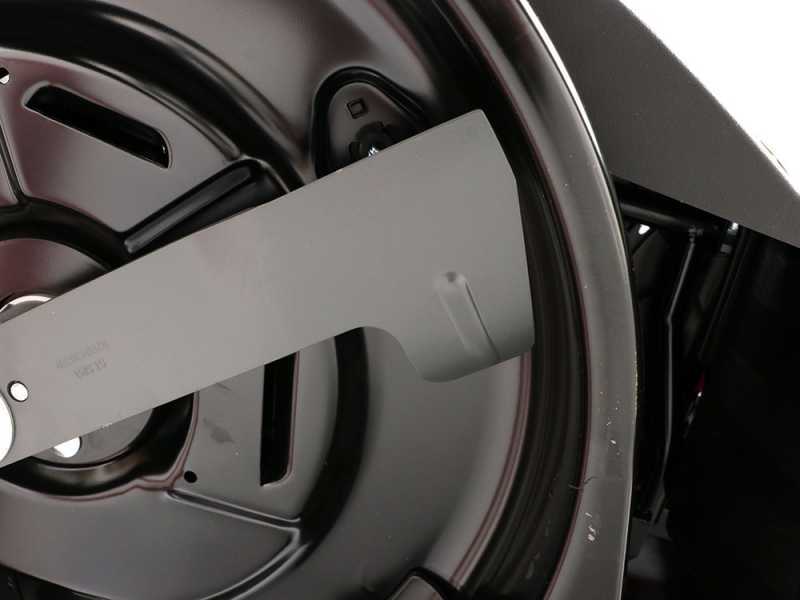

The cutting deck of the lawn tractor has two steel blades with a width of 98 cm.

The plate is tilting, i.e. it adapts to imperfections in the ground, as long as they are not excessive, for a flawless cut whatever the occasion.

The engagement of the blades is electromagnetic, and is activated via the button on the control block. This system enables faster and more immediate engagement of the blades.

Seven different cutting positions are available, ranging from 25 to 80 mm. The adjustment is made by means of a side lever, located near the tractor seat.

The cutting plate also has a washing connection: a small hole where the water hose can be attached, for quick cleaning of the blades and cutting plate. In addition, two small anti-skid wheels are applied for better grip on the ground.

- Detail of the washing connection

- Detail of the ignition lock

- Detail of the anti-scalp wheels

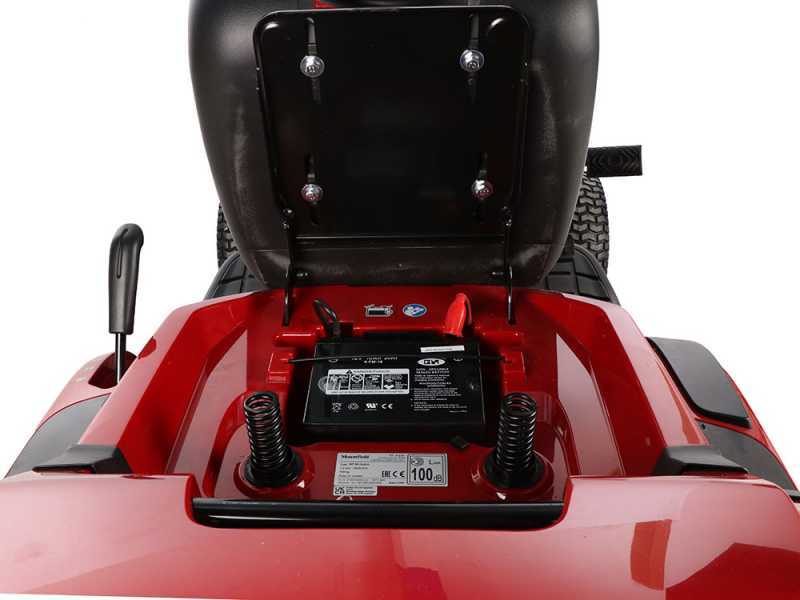

The controls and adjustments of the Mountfield MTF 98H lawn tractor are:

• Engine speed regulator
• Reverse gear activation button
• Parking brake
• Ignition lock with key
• Braking pedal
• Electromagnetic blade engagement by means the yellow button on the right side of the steering wheel.
• Cutting height adjustment lever

Other features of the Mountfield MTF 98H lawn tractor:

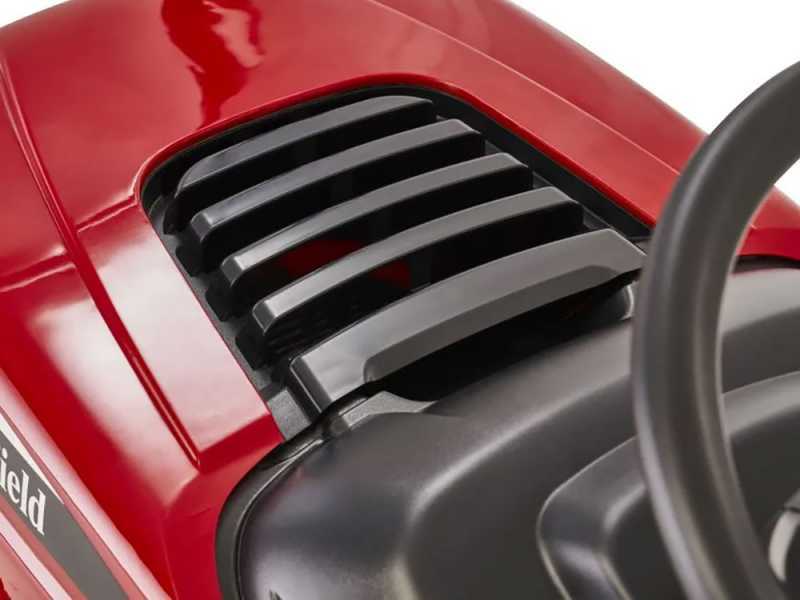

• Openable engine cover for cleaning and maintenance operations.
• Ergonomic steering wheel and comfort seat
• Sturdy front bull bar: it prevents from frontal impacts and protects the machine.
• Rear wheels size 18 x 8.5-8
• Front wheels: wheel dimensions are 15 x 6.00-6
• Pivoting front axle: ensures excellent balance, stability and driving comfort even on uneven terrain.
• Anti-scalp wheels.
• Connection for washing the cutting plate
• Lights

The ride-on lawn mower is designed and intended exclusively for cutting grass in gardens and parks (and not on other types of terrain). The working surface must be level, free of irregularities, stones, or other solid objects, and covered with maintained lawn grass (not uncultivated or spontaneous vegetation). Grass should be cut regularly and must not be allowed to grow beyond 25–30 cm, as most ride-on mowers are no longer capable of cutting at this height. Slopes exceeding 15% (equivalent to 9°) must be avoided, except when using 4x4 models.

For heavier-duty tasks, involving spontaneous vegetation, grass taller than the above-mentioned limits, or rougher surfaces than a garden, please consider alternative product categories such as Petrol Flail Mowers or Ride-On Flail Lawn, which are suitable for tall and uncultivated grass.

Grass must only be cut when both the lawn and the underlying soil are completely dry. Mowing operations should be carried out exclusively in dry weather, well away from periods of rain or irrigation, and preferably in the afternoon, when the grass is no longer affected by morning humidity. Wet grass tends to bend under the blades, reducing cutting efficiency, increasing the risk of clogging inside the deck, and subjecting both the engine and the transmission belt to excessive strain, which may result in damage.
