Marina Systems GRINDER 4X4 SKW - Trailed Petrol Lawn Mower - Kawasaki FJ180V Engine - 52 cm Cut

Questions & Answers (1)
ID: K608836

EAN: 8032727750458

MPN: G52WK2GX1

7,6/10
After-sales assistance & Spare parts
Marina Systems GRINDER 4X4 SKW - Trailed Petrol Lawn Mower - Kawasaki FJ180V Engine - 52 cm Cut
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement spark plug kitReplacement spark plug kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Blade sharpenerBlade sharpener
Body material
Enamelled steel
Motor brand
Kawasaki
Motor Model
FJ180V
Cubic capacity
179 cm³
Nominal power
6 HP
Max. recommended area
2900 m²
Cutting width
52 cm
Cutting adjustment
1 lever
4-wheel drive
Wheel Type
Galvanised metal
Manufacturing country
Italy
Product Features
Model:
GRINDER 4X4 SKW
Body material:
Enamelled steel
Body thickness:
2 mm
Operating mode:
Spark ignition
Self-propelling:
Trailed 4x4
Housing width:
52 cm
Mulching cutting system:
Standard equipment
Cutting system:
Mulching
Max. recommended area :
2900 m²
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Kawasaki
Motor Model:
FJ180V
Motor type:
4-stroke
Cubic capacity:
179 cm³
No. of cylinders:
1
Nominal power:
6 HP
Rated power (HP):
4.83 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
1.7 L
Noise level:
98 dB(A)
Manufacturing country:
China
Transmission data
Gear shifting system:
Single speed
Throttle lever:
Yes
Gearbox:
Belt-driven
Wheel drive:
4WD / 2WD
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Enamelled steel
Cutting width:
52 cm
Blade type:
Mulching
Safety blade brake:
Yes
Cutting adjustment :
1 lever
Max. cutting height:
70 mm
Min. cutting height:
20 mm
No. of cutting positions:
5
Washing joint:
Yes
Cutting width:
52 cm
Equipment
Primer pump :
Yes
Front Bull Bar:
On Standard equipment
Recoil start system (with rope):
Yes
Rear wheels size:
235
Front wheels size:
235
Wheels mounted on ball bearings:
Yes
Wheel Type:
Galvanised metal
Folding/removable handle/s:
Yes
Free gifts/extra features
Mulching kit:
On standard equipment
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
150x55x105 cm
Net weight:
53 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
104x62x48 cm
Gross weight (packaging included) :
53 Kg
Assembly time:
15 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 27/02/2025 - 03/03/2025
€ 1.376,55
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

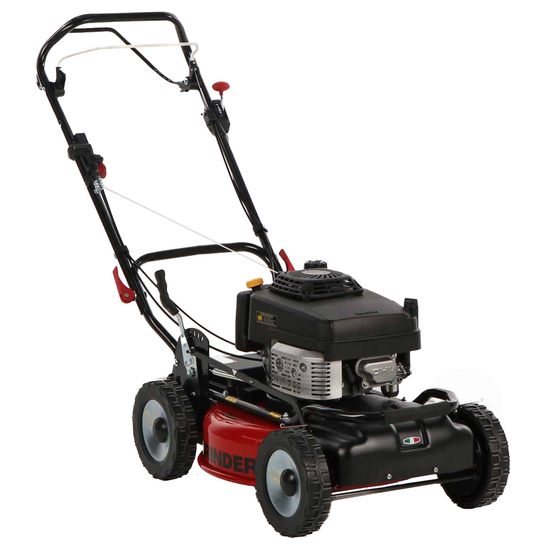

Marina Systems GRINDER 4X4 SKW Mulching Lawn Mower

The Marina Systems GRINDER 4X4 SKW mulching lawn mower is an advanced lawn care solution, ideal for those wishing to achieve a perfect garden without the use of chemical fertilizers. Thanks to its mowing technology, this mower is able to pulverize the leaves, eliminating the need for raking.

The body and Mulching blade are designed to leave a fine residue that serves as a natural fertilizer, nourishing and keeping the lawn in perfect condition. This model is especially suitable for those who need to care for large areas and deal with difficult ground, including steep slopes.

The four 235 mm large galvanised metal wheels, equipped with double sealed bearings, guarantee moisture resistance and professional mowing on uneven surfaces. The ball bearings facilitate the handling of the mower as much as possible, making it manoeuvrable even in the most demanding situations.

Designed to meet the needs of the most demanding professional, the GRINDER 4X4 SKW is a high performance and powerful lawn mower. Equipped with a 4.5 Hp, 179 cc Kawasaki FJ180V Engine, it offers power and reliability, as well as a professional aluminium housing drive.

The central cutting height adjustment system allows the mower to be easily adapted to the lawn's needs via a lever with five different settings, ranging from 20 to 70 mm.

All-wheel drive (2WD / 4WD) allows the GRINDER 4x4 SKWto easily tackle uneven surfaces and steep sloping areas, making it extremely versatile.

Main features:

  • Double grinder blade: It generates an air swirl that raises grass fragments onto the blade cutting edge, chopping them finely and ensuring optimal mulching effect.
  • Crankshaft protective cone: Protects the engine from damage.
  • Raised and covered transmission: The plastic housing protects the transmission, improving durability and strength.
  • Folded lower housing: It adds further strength to the structure, making it nearly unbreakable.
  • Standard front bull bar protects the mower during use.

With a 52 cm cutting width and an all-wheel drive that reduces effort and working time, the GRINDER 4X4 SKW is the ideal choice for surfaces up to 2900 s.q.m., ensuring flawless results and an evergreen, healthy lawn.

Kawasaki FJ 180 V Engine

The high performing Kawasaki FJ 180 V engine is suitable for works where high power is required, and the operating conditions are particularly hard.


Features:

Engine Type
Single cylinder 4-stroke OHV
Cylinder type:
Cast iron:
Crankshaft type
Vertical
Cooling system
Air
Displacement
179 cm³
Power:
3.4 kW (4.5 Hp) @ 3600 rpm
Max. rpm:
3600 rpm
Torque value:
10.0 Nm @ 2400 rpm
Fuel tank capacity:
1.7 L
Dry weight
16.9 Kg

Latest generation 4-stroke engine with vertical overhead valve shaft OHV.
Easy recoil starter thanks to the automatic fuel priming system.


The engine is PROVIDED WITHOUT OIL.
Please read carefully the instructions manual before starting the unit.

Nominal Power: 6 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.83 Hp (at 2900 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

Double Mulching Blade and Steel Housing

The extremely sturdy shell is reinforced with a 2 mm layer, ensuring high durability and structural strength. The lower part of the shell is folded, making it practically unbreakable and able to withstand even the harshest circumstances.

The machine is fitted with a front bull bar as standard, offering additional protection against collisions or obstacles, preserving the mower's integrity.

The cutting system includes a 52 cm professional double grinder blade, specifically designed for mulching. This 'finned' blade features extended wings at both ends, generating a much more powerful airflow than conventional blades, further improving cutting quality and grinding capacity.

The fitted blades are made of hardened steel, and are suitable for performing high-quality mulching. The special 'fins' with which they are equipped, create an air swirl that helps to shred the freshly cut grass more finely. This design optimizes performance even in tall and damp grass, ensuring a smooth and precise cut.

To protect the engine from damage, the mower is equipped with a protective cone on the crankshaft, which isolates and prevents any damage.

Drive System

The GRINDER 4x4 SKW lawn mower is equipped with an advanced 4x4 drive system, which allows the user to select between front, rear or all-wheel drive via a single lever, thus offering unprecedented flexibility and adaptability to different ground conditions.

Simply move the selector on the handlebar upwards to switch from 2 to 4-wheel drive.

The blade rotation speed can be increased via the knob.

Single speed at 3.2 km/h.

The 235 mm wheels on sealed ball bearings are made of galvanised steel.

The transmission is belt-driven

Centralised Cutting Height Adjustment

The Marina Systems lawn mower features 5 cutting height settings.

They vary from a minimum of 20 mm to a maximum of 70 mm.

It is equipped with galvanised wheels, certainly much more resistant than standard wheels.

The centralised adjustment is incredibly fast and intuitive.

Simply operate the proper lever to lift the machine.

Specific wheel “scraper” feature for automatically cleaning the wheels.

Controls and Adjustments

The 25 mm diameter handlebar is coated for maximum comfort.

Simple and intuitive handlebar controls.

Blade engagement lever (white lever in front of the handlebar)

Self-propulsion trigger lever (black lever behind the handlebar)

Rotation speed adjustment: the knob allows adjusting the blade rotation speed.

Cutting height adjustment lever

Drive selector switch

Free items & Standard equipment

Black&Decker GKC 1825L20-QW Electric Chainsaw

The Black & Decker 18V lithium battery is an ergonomically designed chainsaw with excellent balance and dual handle for maximum comfort during use.

It's low weight of only 3.1 kg makes this machine extremely manoeuvrable and easy to use, it has an effective cutting capacity of up to 25 cm and can cut up to 220 branches of 3.5 cm diameter per single charge.

Equipped with a 18V Li-Ion battery with a capacity of 2.0 Ah, so it is always ready for use and has a longer runtime.

Automatic tensioning system to apply and adjust the chain more precisely and safely, lubrication via the pump on the oil cap is quick and easy, with no oil spillage. Chain type with anti-kickback.

1° GIFT: spare parts and maintenance kit for petrol engines

Spare parts and accessories set for petrol engine maintenance

WARNING: this set is not suitable for other product brands and models on the market. We do not supply sets other than those already posted on this website.

The maintenance kit includes:

  • Professional engine spark plug
  • Multifunction jointed spanner. Specific for lawn mowers - flail mowers - scythe mowers - etc.
  • Specific syringe for engine oil suction.
  • Waste oil collection bottle for easy disposal.
  • Funnel for changing engine oil

2° GIFT: protection kit

SAFETY KIT

Protective earmuffs to work with maximum comfort
Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator from the noise coming from the mower.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

3° GIFT: engine oil

FOR FREE: 2x 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersing.

4° GIFT: sharpener for lawn mower blades

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver/drill, and it is ready for use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Standard Equipment

The lawn mower is shipped in its original packaging

Instructions manual included in the package
