Marina Systems GRINDER 4X4 SH - Trailed Petrol Lawn Mower - Honda GCVx 200 Engine - 52 cm Cut

Questions & Answers (2)
ID: K608821

EAN: 8032727750441

MPN: G52WO7GX1

7,6/10
After-sales assistance & Spare parts
Marina Systems GRINDER 4X4 SH - Trailed Petrol Lawn Mower - Honda GCVx 200 Engine - 52 cm Cut
FREE
GeoTech Petrol Brush CutterGeoTech Petrol Brush Cutter
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Engine first maintenance kitEngine first maintenance kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Blade sharpenerBlade sharpener
Body material
Enamelled steel
Motor brand
Honda
Motor Model
GCVx 200
Cubic capacity
201 cm³
Nominal power
6.5 HP
Max. recommended area
2600 m²
Cutting width
52 cm
Cutting adjustment
1 lever
4-wheel drive
Wheel Type
Galvanised metal
Manufacturing country
Italy
Product Features
Model:
GRINDER 4x4 SH
Body material:
Enamelled steel
Body thickness:
2 mm
Operating mode:
Spark ignition
Self-propelling:
Trailed 4x4
Housing width:
52 cm
Mulching cutting system:
Standard equipment
Cutting system:
Mulching
Max. recommended area :
2600 m²
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GCVx 200
Motor type:
4-stroke
Cubic capacity:
201 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Rated power (HP):
5.6 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
0.9 L
Oil tank capacity:
0.4 L
Noise level:
98 dB(A)
Manufacturing country:
China
Transmission data
Gear shifting system:
Single speed
Throttle lever:
Yes
Gearbox:
Belt-driven
Wheel drive:
4WD / 2WD
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Enamelled steel
Cutting width:
52 cm
Blade type:
Mulching
Safety blade brake:
Yes
Cutting adjustment :
1 lever
Max. cutting height:
70 mm
Min. cutting height:
20 mm
No. of cutting positions:
5
Washing joint:
Yes
Cutting width:
52 cm
Equipment
Primer pump :
Yes
Front Bull Bar:
On Standard equipment
Recoil start system (with rope):
Yes
Rear wheels size:
235
Front wheels size:
235
Wheels mounted on ball bearings:
Yes
Wheel Type:
Galvanised metal
Folding/removable handle/s:
Yes
Free gifts/extra features
Mulching kit:
On standard equipment
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
155x55x50 cm
Net weight:
46 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
104x62x48 cm
Gross weight (packaging included) :
53 Kg
Assembly time:
15 minutes
Out of stock
Free Shipping
€ 1.392,87
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

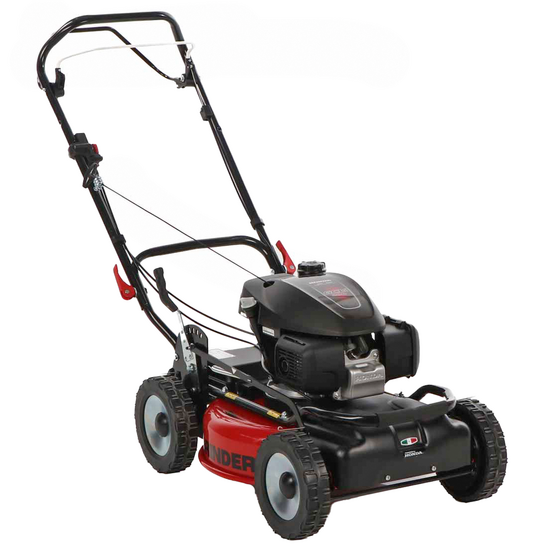

Marina Systems GRINDER 4x4 SH Lawn Mower

The Marina Systems GRINDER 4x4 SH is a lawn mower designed to tackle even the toughest of grounds with ease, thanks to all-wheel drive. This machine is ideal for the most demanding professionals, combining outstanding performance with extraordinary power, optimized specifically for mulching, thus ensuring flawless lawn care.

Distinctive features:

  • Double Grinder blade: By creating an air swirl, grass fragments are repeatedly drawn back to the cutting edge of the blade to be finely crushed, resulting in a spin cycle-like effect.
  • Crankshaft protective cone: Effectively protects the engine from damage.
  • Raised and protected transmission: The transmission is enclosed in a strong plastic housing, which increases durability and reliability.
  • Folded lower housing: It gives outstanding strength, making the housing almost unbreakable.
  • 4WD (4-Wheel Drive): It provides superior performance and excellent manoeuvrability in all sorts of surfaces.

The GRINDER 4x4 SH is powered by a 5.6 HP, 200 cc HONDA GCVx 200 engine, known for its power and reliability. This low profile engine with professional transmission encased in a sturdy aluminium housing ensures top performance in all conditions.

The four 235 mm large galvanised metal wheels, equipped with double sealed bearings, guarantee moisture resistance and professional mowing on uneven surfaces. Ball bearings make the mower even easier to handle.

The front bull bar, which is standard supplied, provides additional protection for the machine, making it even more resistant and durable.

All-wheel drive (2WD / 4WD) allows the GRINDER 4x4 SH to easily tackle uneven surfaces and steep sloping areas, making it extremely versatile.

It is also an excellent environmentally friendly solution, avoiding the need for chemical fertilisation and turning leaves into dust without the need for raking.

With a cutting width of 52 cm, adjustable via a central lever with five settings ranging from 20 to 70 mm, this mower is perfect for areas up to 2600 square meters, ensuring a healthy and green lawn.

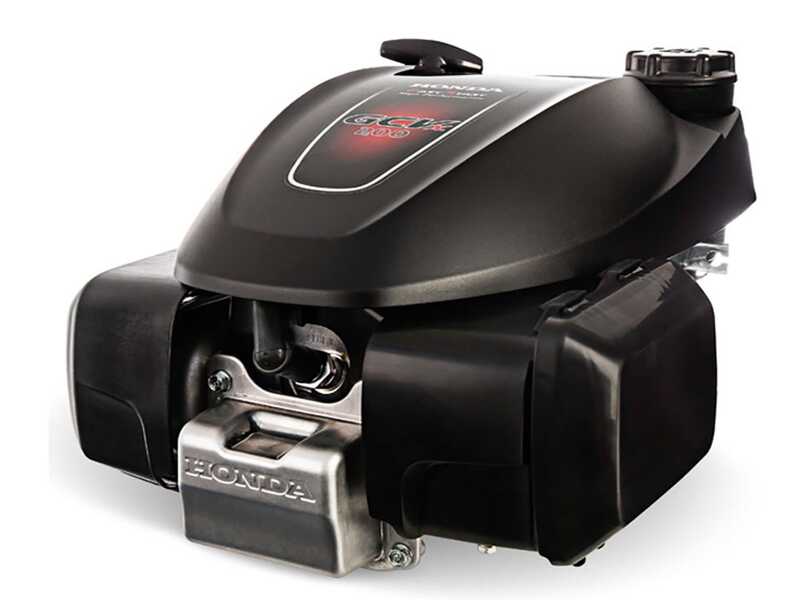

Honda GCVx200 Engine

The Honda GCVx200 engine guarantees high performances, and it is suitable for works that require high reliability and durability, thanks to its remarkable 201 cc.

Fuel tank capacity: 0.91 L

Engine oil tank capacity: 0.4 L


Features Values
Engine type: Single-cylinder 4-stroke
Cylinder type: Aluminium
Cubic capacity: 201 cm³
Power supply: Petrol
Starting: Recoil start
Max rpm 3600 rpm

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 5.6 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This figure may vary for the same engine model, depending on the speed the manufacturer decided to have the engine applied.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please read carefully the instructions manual before starting the unit.

Focus on air filter

Focus on the spark plug

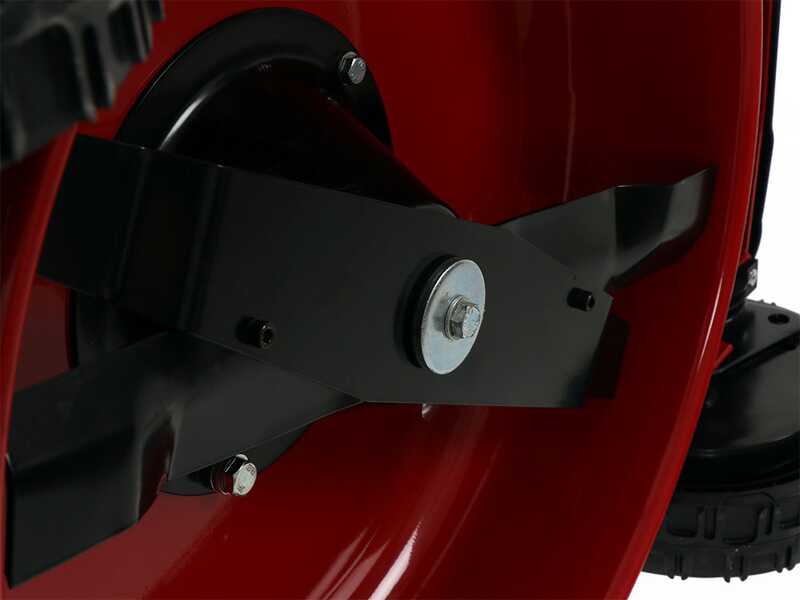

Double Mulching Blade and Steel Housing

The extremely robust housing is reinforced with a 2 mm layer, ensuring high durability and structural strength. The lower part of the housing is folded, making it nearly unbreakable and able to withstand even the harshest conditions.

The machine is fitted as standard with a front bull bar, offering additional protection against collisions or obstacles, preserving the mower's integrity.

The cutting system includes a 52 cm professional double grinder blade, specifically designed for mulching. This 'finned' blade features extended wings at both ends, generating a much more powerful airflow than conventional blades, further improving cutting quality and grinding capacity.

The fitted blades are made of hardened steel, and are suitable for performing high-quality mulching. The special 'fins' with which they are equipped, create an air swirl that helps to shred the freshly cut grass more finely. This design optimizes performance even in tall and damp grass, ensuring a smooth and precise cut.

To protect the engine from damage, the mower is equipped with a protective cone on the crankshaft, which isolates and prevents any damage.

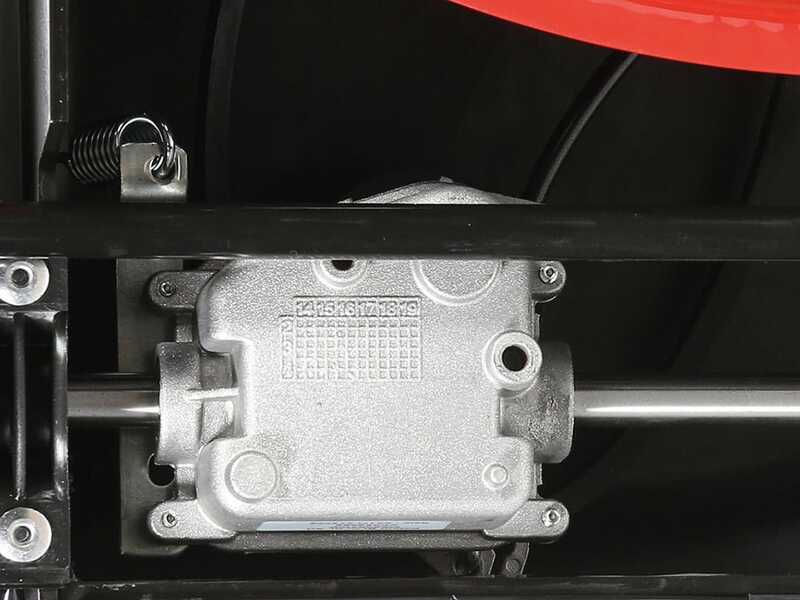

Drive System

The GRINDER 4x4 SH lawn mower is equipped with an advanced 4x4 drive system, which allows the user to select between front, rear or all-wheel drive via a single lever, thus offering unprecedented flexibility and adaptability to different ground conditions.

Simply move the selector on the handlebar upwards to switch from 2 to 4-wheel drive.

The blade rotation speed can be increased via the knob.

Single speed at 3.2 km/h.

The 235 mm wheels on sealed ball bearings are made of galvanised steel.

The transmission is belt-driven

Centralised Cutting Height Adjustment

The Marina Systems lawn mower features 5 cutting height settings.

They vary from a minimum of 20 mm to a maximum of 70 mm.

It is equipped with galvanised wheels, certainly much more resistant than standard wheels.

The centralised adjustment is incredibly fast and intuitive.

Simply operate the proper lever to lift the machine.

Specific wheel “scraper” feature for automatically cleaning the wheels.

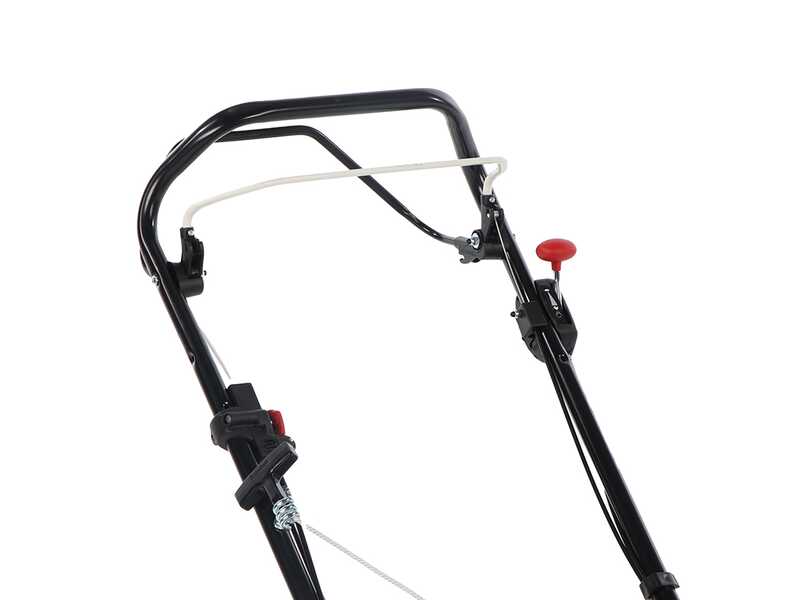

Controls and Adjustments

The 25 mm diameter handlebar is coated for maximum comfort.

Simple and intuitive handlebar controls.

Blade engagement lever (white lever in front of the handlebar)

Self-propulsion trigger lever (black lever behind the handlebar)

Rotation speed adjustment: the knob allows adjusting the blade rotation speed.

Cutting height adjustment lever

Drive selector switch

Free items & Standard equipment

1° GIFT: MAINTENANCE KIT

The maintenance kit includes:

  • Professional spark plug for engines.
  • Multi-tool joint wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Engine air filter.
  • Specific syringe for oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel oil draining and refilling.

2° GIFT: Safety kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort.
Hearing protection must be the right one for any working situation. In this case, the earmuffs supplied are specifically designed to protect the operator from the noise of the machine.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: 600 ml oil bottles

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

4° GIFT: Blade sharpener

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver/drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

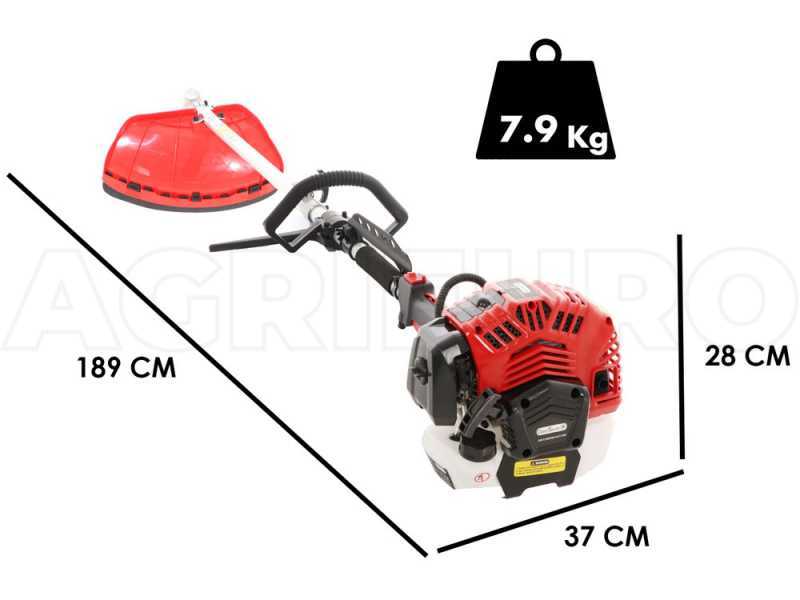

FOR FREE: GeoTech GT-2 43 L 2-stroke Brush Cutter

The GeoTech GT-2 43 L brush cutter is a product with professional design, ideal for those who are looking for a product easy to use and assemble which guarantees optimum performance for taking care of their garden.

This product is very comfortable and easy to use, only 7.9 Kg weight.

The 28 mm shaft and the heavy-duty bevel gear with quick release make this brush cutter a sturdy and efficient cutting tool.

Thanks to the quick-release shaft, the GT-2 43 L can perform many functions thanks to its interchangeable engine unit.

This model is powered by a 43 cc 2-stroke engine, which can develop 1.25 kW (1.67 HP) of power, ensuring low fuel consumption.

It is equipped with single handle and heavy-duty shoulder strap with thigh guard.

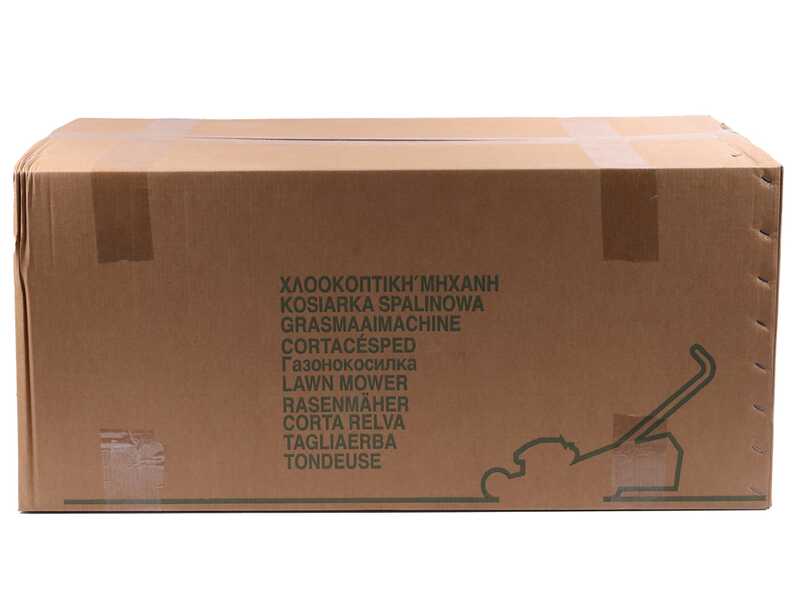

Standard Equipment

The lawn mower is shipped in its original packaging

Instructions manual included in the package
