Marina Systems GRINDER 4x4 SH PRO - Trailed Petrol Lawn Mower - Honda GXV 160 Engine

Add a question
ID: K608817

EAN: 8032727750540

MPN: G52WH3GX1

7,6/10
After-sales assistance & Spare parts
Marina Systems GRINDER 4x4 SH PRO - Trailed Petrol Lawn Mower - Honda GXV 160 Engine
FREE
Free item: Black&Decker BCBL200L-QW Battery-operated Leaf BlowerFree item: Black&Decker BCBL200L-QW Battery-operated Leaf Blower
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement spark plug kitReplacement spark plug kit
Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!Protection kit: gloves, googles, ear defenders, Agrieuro headscarf for free!
Oil engine replacement kitOil engine replacement kit
Blade sharpenerBlade sharpener
Body material
Enamelled steel
Motor brand
Honda
Motor Model
GXV 160
Cubic capacity
163 cm³
Nominal power
6 HP
Max. recommended area
2900 m²
Cutting width
52 cm
Cutting adjustment
1 lever
4-wheel drive
Wheel Type
Galvanised metal
Manufacturing country
Italy
Product Features
Model:
GRINDER 4x4 SH PRO
Body material:
Enamelled steel
Body thickness:
2 mm
Operating mode:
Spark ignition
Self-propelling:
Trailed 4x4
Housing width:
52 cm
Mulching cutting system:
Standard equipment
Cutting system:
Mulching
Max. recommended area :
2900 m²
Foldable:
Yes
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor Model:
GXV 160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
6 HP
Rated power (HP):
4.3 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Noise level:
94 dB(A)
Manufacturing country:
Japan
Transmission data
Gear shifting system:
Single speed
Throttle lever:
Yes
Gearbox:
Belt-driven
Wheel drive:
4WD / 2WD
Operating mode:
Lever on the handlebar
Cutting data
Body material:
Enamelled steel
Cutting width:
52 cm
Blade type:
Mulching
Safety blade brake:
Yes
Cutting adjustment :
1 lever
Max. cutting height:
70 mm
Min. cutting height:
20 mm
No. of cutting positions:
5
Washing joint:
Yes
Cutting width:
52 cm
Equipment
Primer pump :
Yes
Front Bull Bar:
On Standard equipment
Recoil start system (with rope):
Yes
Rear wheels size:
235
Front wheels size:
235
Wheels mounted on ball bearings:
Yes
Wheel Type:
Galvanised metal
Folding/removable handle/s:
Yes
Free gifts/extra features
Mulching kit:
On standard equipment
Engine oil bottle for free:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
145x55x100 cm
Net weight:
51 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
104x62x48 cm
Gross weight (packaging included) :
53 Kg
Assembly time:
15 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 24/02/2025 - 26/02/2025
€ 1.627,60
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

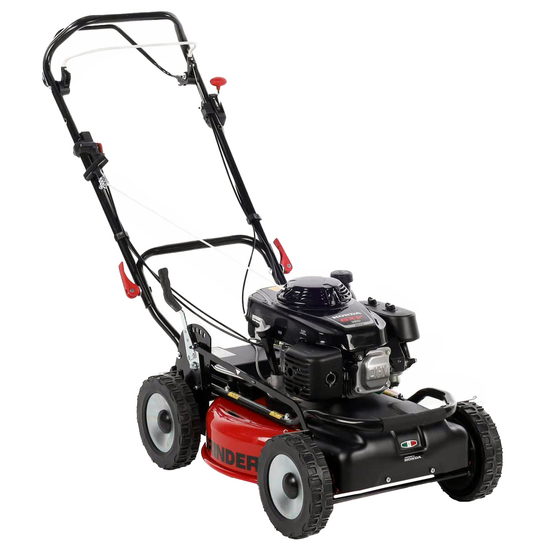

Marina Systems GRINDER 4x4 SH PRO Lawn Mower

The Marina Systems GRINDER 4x4 SH PRO petrol lawn mower is a high quality product, ideal for the most demanding professional consumers. This mower is equipped with a Honda GXV 160 low emission 163cc engine with throttle, ensuring powerful and reliable performance. All-wheel drive (2WD / 4WD) allows the GRINDER 4x4 SH PRO to easily tackle uneven surfaces and steep sloping areas, making it extremely versatile.

The 2 mm thick steel body gives the mower strength and durability, while the 52 cm cutting width and the height adjustable via a central lever in 5 settings, from 20 to 70 mm, ensure a precise and personalized cut.

The dual grinder blade system creates an air swirl that finely shreds the grass, facilitating professional mulching which allows tall grass to be cut as often as with a conventional collection mower, reducing the need for chemical fertilization and raking.

The design includes a raised transmission covered by a durable plastic housing, protecting internal components and increasing the product's service life. The four large 235 mm galvanized metal wheels with double sealed bearings guarantee excellent mobility on different types of surfaces. Additionally, the standard-supplied front bull bar provides additional protection and stability during use.

These features make the Marina Systems GRINDER 4x4 SH PRO petrol mower an excellent choice for those looking for a powerful, reliable and versatile lawn mower.

Honda GXV 160 Engine

Honda GXV 160 is a super-professional, SUPER-POWERFUL and cutting-edge engine, which belongs to the latest overhead valve technology (OHV).


Features:

Engine type
Single cylinder 4-stroke - OHV
Cylinder type:
Cast iron:
Displacement
163 cm³
Compression ratio
9.0: 1
Max. rpm:
3600 rpm
Torque value
9.6 Nm / 0.98 kgfm / 2500 rpm

The Honda “GXV” series is designed for highly-professional use in building and agricultural field for generators, welders and many others, standing out for the high reliability and durability over time.


Nominal Power: 6 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 4.3 HP
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver



The engine is PROVIDED WITHOUT OIL.
Read the instruction manual carefully before start-up.

Double Mulching Blade and Steel Housing

The extremely strong housing is reinforced with a 2 mm layer, ensuring high durability and structural strength. The lower part of the housing is folded, making it nearly unbreakable and able to withstand even the toughest conditions.

The machine is fitted with a standard-supplied front bull bar, offering additional protection against impacts or obstacles, preserving the mower's integrity.

The cutting system includes a 52 cm professional double grinder blade, specifically designed for mulching. This 'finned' blade features extended wings at both ends, generating a much more powerful airflow than conventional blades, further improving cutting quality and grinding capacity.

The fitted blades are made of hardened steel, perfectly suited for high-quality mulching The special 'fins' with which they are equipped, create an air swirl that helps to shred the freshly cut grass more finely. This design optimizes performance even in tall and damp grass, ensuring a smooth and precise cut.

To protect the engine from damage, the mower is equipped with a protective cone on the crankshaft, which isolates and prevents any damage.

Drive System

The GRINDER 4x4 SH PRO lawn mower is equipped with an advanced 4x4 drive system, which allows the user to select between front, rear or all-wheel drive via a single lever, thus offering unprecedented flexibility and adaptability to different ground conditions.

Simply move the selector on the handlebar upwards to switch from 2 to 4-wheel drive.

The blade rotation speed can be increased via the knob.

Single speed at 3.2 km/h.

The 235 mm wheels on sealed ball bearings are made of galvanised steel.

The transmission is belt-driven

Centralised Cutting Height Adjustment

The Marina Systems lawn mower features 5 cutting height settings.

They vary from a minimum of 20 mm to a maximum of 70 mm.

It is equipped with galvanised wheels, more resistant than conventional wheels.

The centralised adjustment is incredibly fast and intuitive.

Simply operate the proper lever to lift the machine.

Specific wheel “scraper” feature for automatically cleaning the wheels.

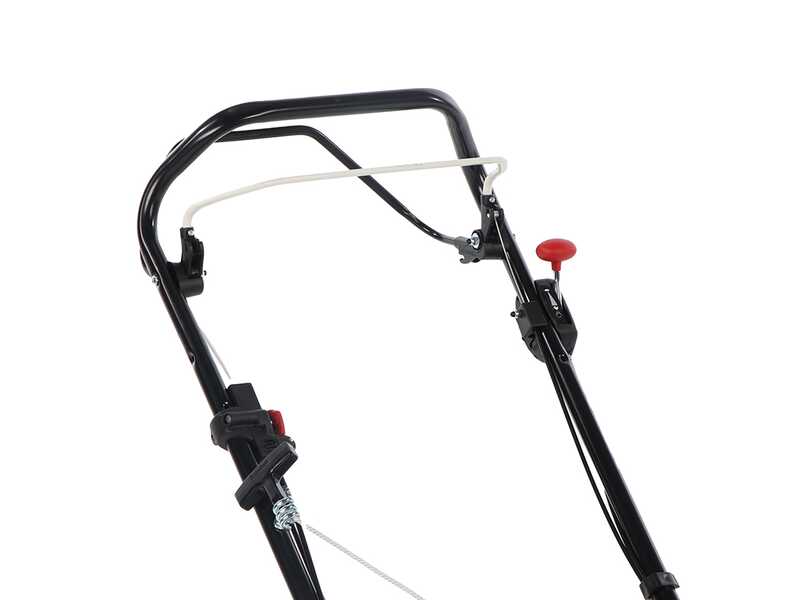

Controls and Adjustments

The 25 mm diameter handlebar is coated for maximum comfort.

Simple and intuitive handlebar controls.

Blade engagement lever (white lever in front of the handlebar)

Self-propulsion trigger lever (black lever behind the handlebar)

Rotation speed adjustment: the knob allows adjusting the blade rotation speed.

Cutting height adjustment lever

Drive selector switch

Free items & Standard equipment

FOR FREE - GWC1820PC-QW Power Command Leaf Blower

The Black&Decker GWC1820PC-QW battery-powered leaf blower is an ideal solution for all needs: for cross-cutting, garage, pavement, alley and leaf cleaning, public places and residential areas.

The most enjoyable way to clean up your garden while achieving maximum performance with a tool that is very comfortable to use. The axial concept allows the leaf blower to work with the speed of a jet turbine, thanks to the air passing directly through the motor fan.

The PowerCommand system guarantees powerful, wide-range blowing for fast and effective cleaning! Lightweight and compact, it is comfortable to handle and offers wireless convenience.

It allows you to work without cables and with a weight of only 1.7 kg. The battery guarantees a working autonomy of 60 minutes, more than enough for these operations.

Thanks to the Power Boost button and Power Command technology, the blower can reach an extra blowing speed of up to 209 km/h.

The innovative lithium-ion battery offers truly remarkable performance, putting an end to the memory effect, classic batteries.

In fact, it can be recharged at any time, without losing the ability to recharge or yield in time.

Thus, the advantages offered are:

  • no more power cables
  • no exhaust fumes
  • exceptionally silent
  • manoeuvrability and user comfort

The standard-supplied battery is interchangeable with other models of Black&Decker products.
This allows you not only to have another battery charged at the same time, but to recharge it while using the other one, optimising working time.

1° GIFT: spare parts and maintenance kit for petrol engines

Spare parts and accessories set for petrol engine maintenance

WARNING: this set is not suitable for other product brands and models on the market. We do not supply sets other than those already posted on this website.

The maintenance kit includes:

  • Professional engine spark plug
  • Multifunction jointed spanner. Specific for lawn mowers - flail mowers - scythe mowers - etc.
  • Specific syringe for engine oil suction.
  • Waste oil collection bottle for easy disposal.
  • Funnel for changing engine oil

2° GIFT: protection kit

SAFETY KIT

Protective earmuffs to work with maximum comfort
Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator from the noise coming from the mower.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

3° GIFT: engine oil

FOR FREE: 2x 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersing.

4° GIFT: sharpener for lawn mower blades

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver/drill, and it is ready for use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

Standard equipment

The lawn mower is shipped in its original packaging

Instructions manual included in the package
