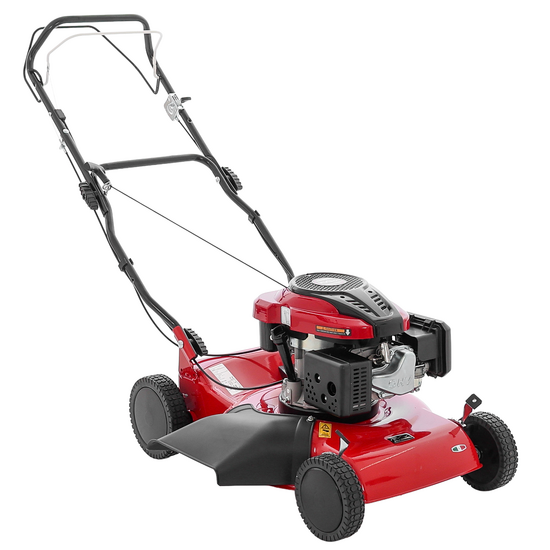

Marina Systems Biomulch 51 SL Loncin - Mulching Lawn Mower - Loncin Engine 65FC

The Marina Systems Biomulch 51 SL petrol lawn mower is a specialised solution for maintaining grassed surfaces using the mulching technique.

This model is ideal when rapid mowing is required on surfaces of up to 1500 m² without grass collection. The system finely shreds the grass clippings, which are deposited directly onto the ground.

Alternatively, the side deflector can be installed to switch to a different cutting system.

The product is aimed at hobby users and maintenance professionals who require a 52 cm blade mounted on a 1.8 mm thick steel housing.

The machine operates via a mechanical action powered by a 159 cc Loncin 1P65FE engine that develops a rated power of approximately 5.5 HP.

The body features a metallic grey finish with black and red details, characterised by a functional and compact design to facilitate storage.

• 159 cc Loncin engine: this overhead valve (OHV) engine provides the torque needed to maintain a constant blade speed even when cutting thick grass;
• Dedicated mulching cutting system: the deep-domed steel housing optimises air circulation to reduce clippings into very fine particles;
• 52 cm heavy-duty blade: the blade’s specific design creates a constant air vortex; the shape of the edges increases the precision of the shredding;
• Rear-wheel drive: the single-speed self-propulsion system facilitates the machine’s forward movement on gentle slopes without requiring manual pushing;
• Centralised cutting height adjustment: an ergonomic lever allows the height to be set to 5 positions ranging from 20 mm to 70 mm to suit the turf;
• Wheels on ball bearings: the assembly of wheels with different diameters on double bearings ensures smooth running and a long mechanical life for the structure.

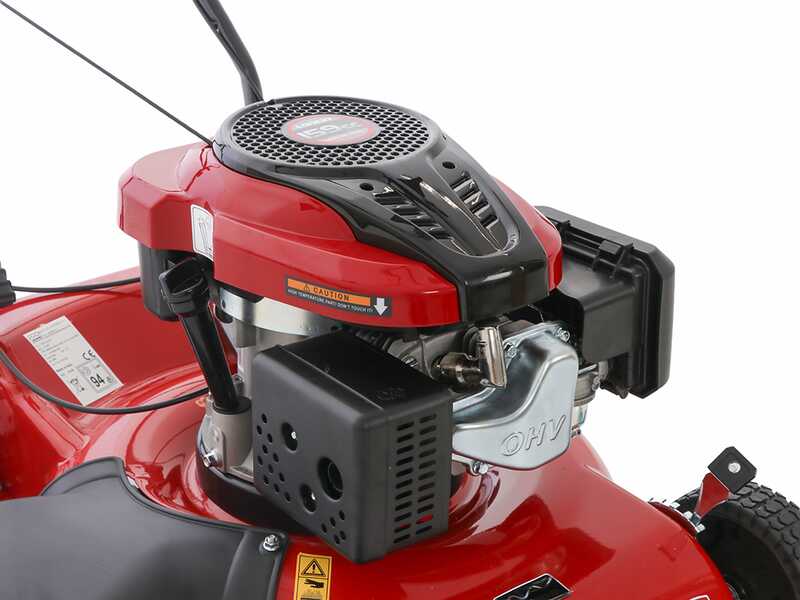

The Loncin 65FC engine is a high-performance model, ideal for tasks requiring high reliability and durability thanks to its impressive 159cc displacement.

Rated power: 5.5 HP
The more accurate term would be ‘Commercial Power’, referring to the classic standard for defining motor power officially used until a few years ago by all the leading engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual Power: 4.5 HP (at 3600 rpm)
This corresponds to the real power delivered at the crankshaft. It is the figure officially stated in the manual or in the engine manufacturer’s technical data.

* This figure may vary for the same engine model depending on the rotational speed that the equipment manufacturer has decided to set for the engine in question.

WARNING!

The engine is SUPPLIED WITHOUT ENGINE OIL.
Before starting it, read the instruction manual carefully.

This lawn mower offers five cutting height adjustments, ranging from a minimum of 25 mm to a maximum of 70 mm.

Adjustment is carried out using three levers: one for each of the front wheels and one for the rear wheels.

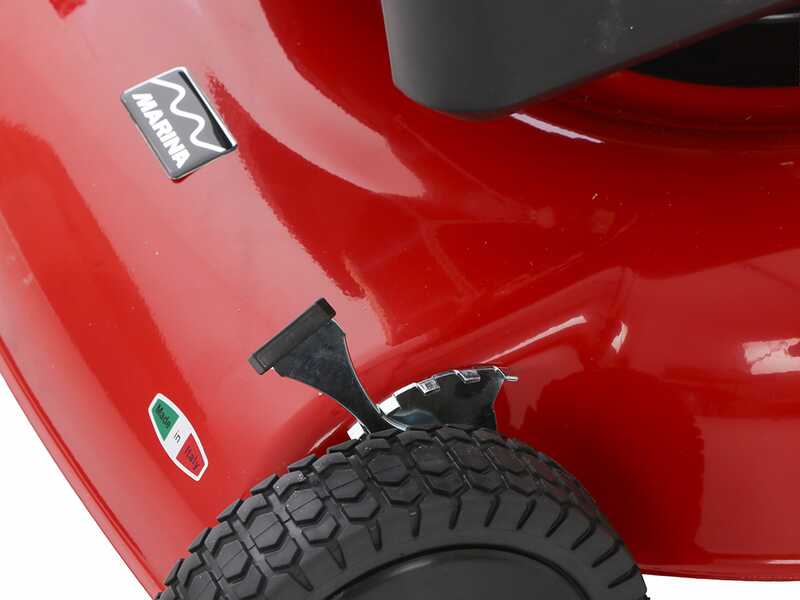

Detail of the front wheel adjustment

Detail of the adjustment mechanism for the rear wheels

The wheels are rubber-tyred.

Rear wheel diameter: 210 mm

Front wheel diameter: 185 mm

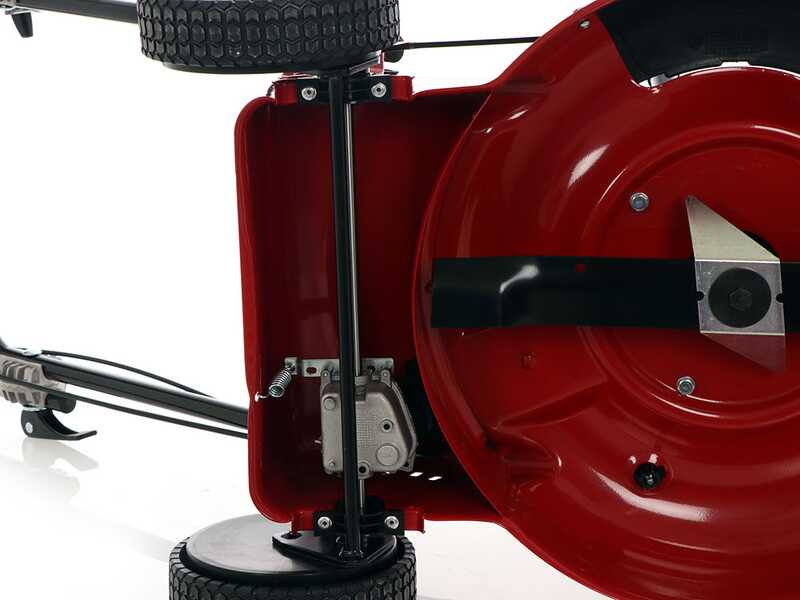

The machine is equipped with a sturdy, professional cast aluminium gearbox with hardened steel gears running in an oil bath.

The reliability and durability of this component are guaranteed over time.

The rear-wheel drive makes it easy to tackle even the longest working sessions.

INTEGRATED MULCHING CUTTING SYSTEM:
for cutting grass without collecting it, finely shredding it before depositing it on the ground

With its dedicated mulching cutting system, this lawn mower delivers a significantly higher quality result compared to multi-purpose mowers.

WHAT IS MULCHING: a cutting system that allows the grass clippings to be shredded and then released onto the lawn, pulverised so small that they appear almost as if they have been collected. This eliminates the problem of disposing of the clippings, reducing effort and drastically cutting down the time taken for mowing. The grass decomposes and turns into nutrients for the lawn itself and into water (grass is 80% water), thus ensuring a perfectly balanced biological cycle. However, it is important to remember that, to ensure the system’s absolute efficiency, the lawn should still be watered, and the grass should be mowed at least once a week.

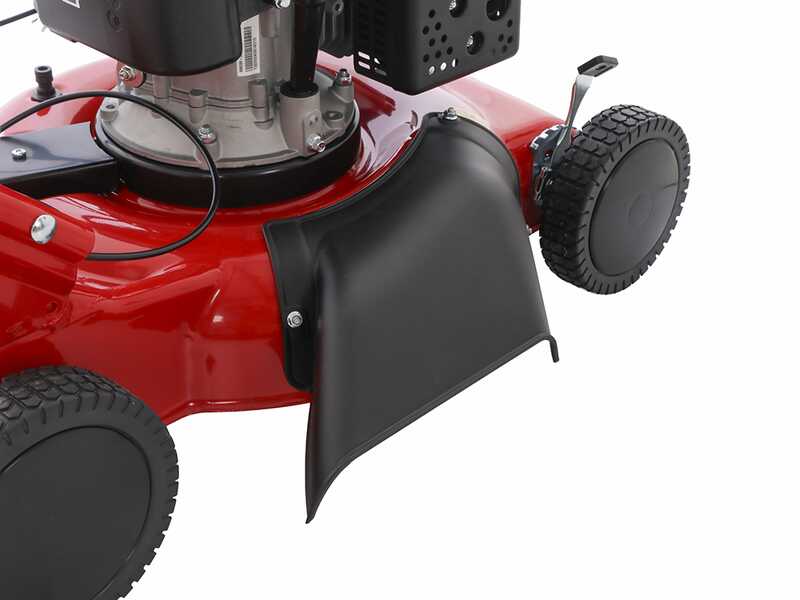

CONVERSION FOR SIDE DISCHARGE:
Simply unscrew the side cap and insert the side deflector to activate the side discharge system.

Effective cutting width of blade: 52 cm

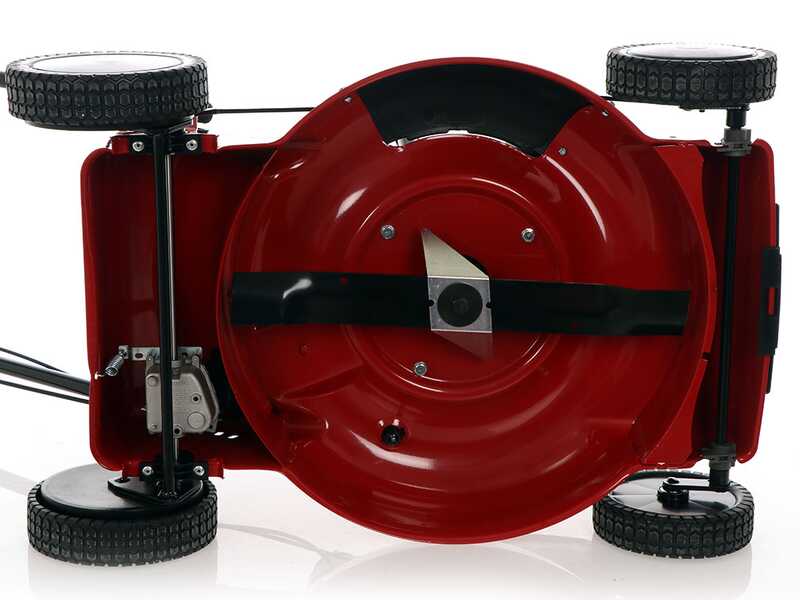

The blade is made of universal hardened steel, suitable for high-quality mulching. Its special fins create airflow circulation, which helps to shred the freshly cut grass clippings even more finely. It also performs excellently on tall, damp grass.

Double cutting power
Thanks to its unique profile featuring two fins in the centre, it enables:

- excellent mulching, creating an airflow circulation that pushes the grass fragments back onto the blade’s cutting edge before flinging them upwards, resulting in very fine shredding (similar to a centrifugal effect)

- a high-quality cut, thanks to the hardness of the steel used and the special, truly superior sharpening.

The housing is made entirely of steel to ensure high strength and long-lasting durability.

Detail of the quick-release washing joint

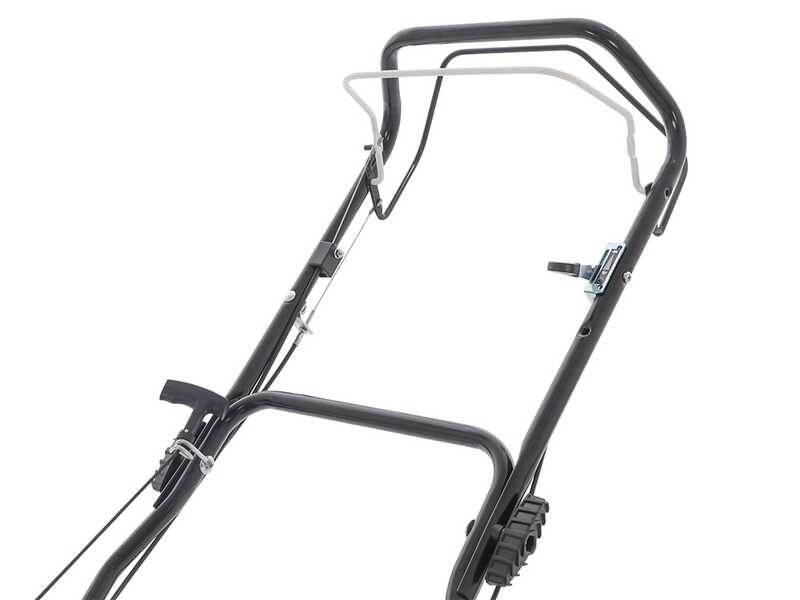

Adjustment of the lawn mower handle’s height and angle: this is achieved via an extremely precise and sturdy system.

All the controls are located on the lawn mower’s dashboard, where you’ll find the cutting blade engagement switch, the drive control and the forward speed adjustment.

Detail of the drive lever: black lever behind the handlebar.

Detail of the blade rotation activation lever: white lever in front of the handlebar.

Throttle lever

The LAWN MOWER is designed and intended exclusively for mowing grass in gardens (and not on other types of terrain), characterised by smooth level surfaces, without stones or other solid objects, and grass maintained as a “lawn” (i.e. no wild or unmaintained grass), which should be cut regularly, ensuring it does not grow beyond 25–30 cm (as most lawn mowers are unable to cut grass taller than this). Also avoid slopes steeper than 15% (≈9°), except for 4x4 models.

For more demanding jobs, involving wild grass or grass taller than specified, or surfaces rougher than a garden, consider the alternative product categories “Petrol rough cut mower” or “Brush cutter”.

Please also note that grass should only be cut when both the lawn and the ground beneath are completely dry. Mow the grass only in dry weather, well away from periods of rain or watering, and preferably in the afternoon when it is not saturated with morning moisture. Wet grass tends to bend under the weight of the cutting blades, reducing cutting efficiency, increasing the risk of clogging in the cutting deck and placing excessive strain on the engine.
