Lampacrescia MGM TTR886HD - Hammer rough Cut Mower - Honda GX390 High Slopes

The Lampacrescia MGM TTR886HD rough cut mower is equipped with a powerful Honda GX390 engine 389cc, which is capable of delivering a maximum power of 13 HP. This product is therefore suitable for cutting operations on overgrown weeds in orchards, vineyards, olive tree groves (especially for the grassing process) or for plant nurseries, green area maintenance operators and managing authorities who can use this machine to clear uncultivated areas.

The large rotor is composed by 48 Y-shaped blades and the working width is 87cm. It is capable of destroying huge quantities of any wild plants, featuring any diameter, height and size (even 1.5 m height!), thinly crushing them.

It is Made in Italy, a guarantee of reliability, quality of construction and materials.

This product is provided with two large hammers that allow to operate on any kind of soil. The handlebars can also be adjusted in height and laterally.

Beside grass, it can crush weeds and brambles (up to 2.5 cm) in any condition, even on uneven terrains and slight slopes.

It ensures without any effort an hourly output of on average 10 times that of a standard flail mower, leaving a much cleaner and more homogeneous result and the grass is shredded more finely.

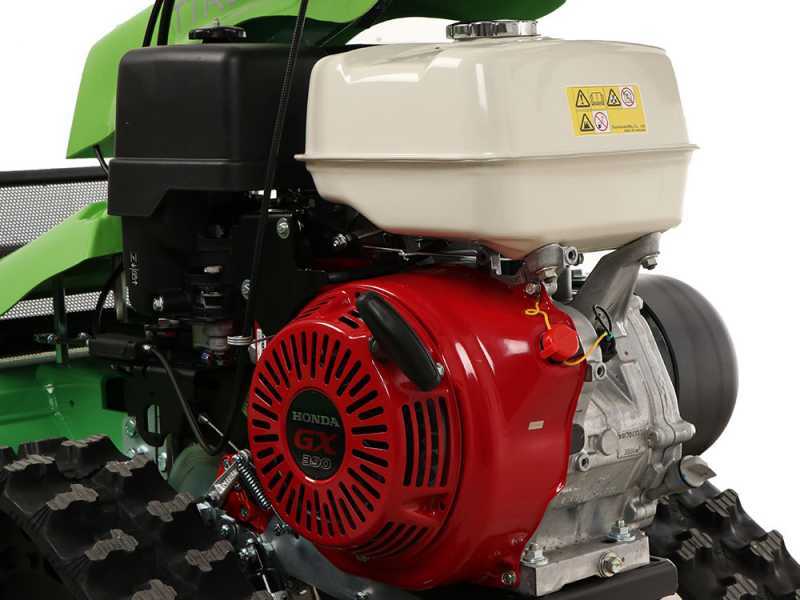

The Honda GX390 engine is heavy-duty, powerful and state-of-the-art engine, with a overhead valve technology (OHV).

Features:

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

The HONDA engines belonging to the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

WARNING!

The engine is PROVIDED WITH OIL. Double-check the level with the machine on a flat surface.
Before starting, please read the instruction manual.

Nominal power: 13.0 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 11.7 HP

* It refers to the real power delivered to the cutting unit during machine operation. This is the power indicated as official in the engine instructions manual.

Track structure: sturdy and over sized. Better than the average rough cut mower available on the market of the same size The perfect balance ensures the distribution of loads and a perfect adherence to the ground.

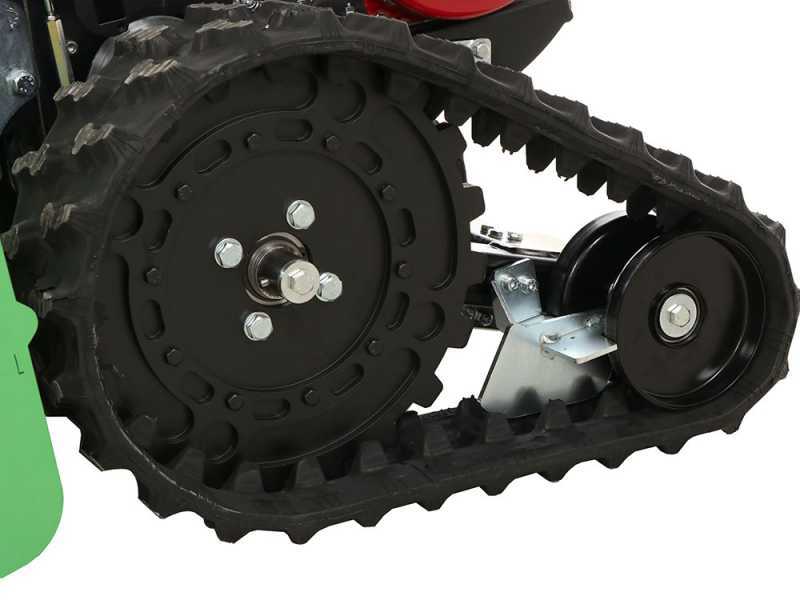

Trucks: these machines are equipped with high-quality trucks. The width and profile of the tread guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they can tackle any type of surface or step.

TRUCK DRIVE

With independent release devices and built-in brake

Roller scraper that prevents clogging of the track

Tilting trolley with compensating gas spring

The head of the rough cut mower is made of enamelled F510 high-strength steel.

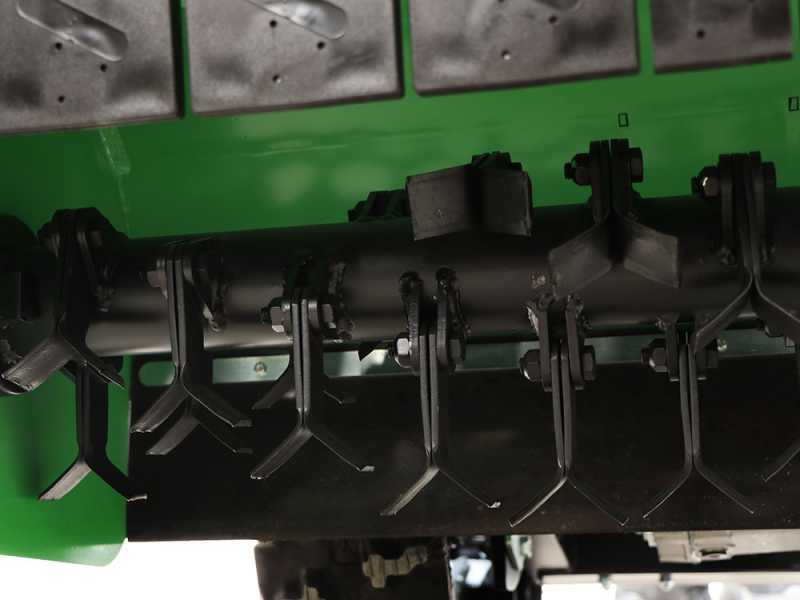

Sturdy rotor in hardened steel composed by 48 Y-shaped blades. They give this machine unrivalled effectiveness on any type of material (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

Working width: 87 cm

Focus on the blades and their particularly sturdy supports

Cutting height adjustment from 20 to 80 mm through central crank handle (1-2­-3-4)

Focus on the front protection flaps, mounted on an 87 cm swinging flap.

The head of the rough cut mower is equipped with a further user protection, installed on the top of the head. This accident-prevention protective grating ensures maximum safety during use.

Focus on the toothed counter-shear for greater cutting effect.

6-Speed gearbox in oil bath: 4 forward and 2 reverse gears with reducer.

The gearbox is really sturdy and reliable.

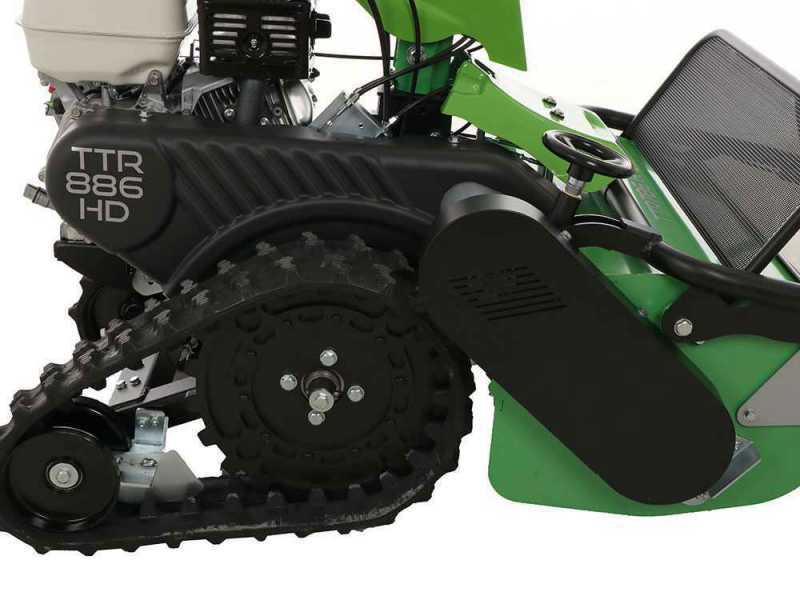

Final drive to the rough cut mower rotor through a drive belt protected by a sturdy casing.

All machine components are made in Italy.

Focus on the lever with gear selector.

Focus on the gear selector switch

This machine is equipped with a special automatic safety brake. This disc ensures greater safety when using the machine, blocking it if the clutch lever is released.

Gear left lever:

• The upper yellow lever is the feed clutch, it engages and disengages the drive, whatever speed is selected on the gearbox (both forwards and backwards). Releasing this lever stops the machine instantly, for safety reasons.
• The lower lever allows you to put the corresponding truck in neutral or brake to facilitate changing direction.

Right lever:

• The upper yellow lever turns the knife rotor on and off (i.e. the milling function) and is connected to the safety brake, which quickly stops the rotation of the rotor if it is released.
• The lower lever allows you to put the corresponding truck in neutral or brake to facilitate changing direction.

Gear selector (black knob). Front wheel lock (red knob), useful to facilitate straight driving operations

Throttle control (lever with red knob) and gear shift selector (black lever)

Adjustment of control handlebars through the lever: variable height settings.

Cutting height adjustment from 20 to 80 mm: turn the lever to raise or lower the cutting deck.

- Example of deck height adjustment
-Example of deck height adjustment
-Example of deck height adjustment

Swinging steel front fairing. It tends to rise automatically if the machine is facing large masses of particularly tall and thick grass, to facilitate its entry under the cutter deck for efficient and instantaneous crushing.

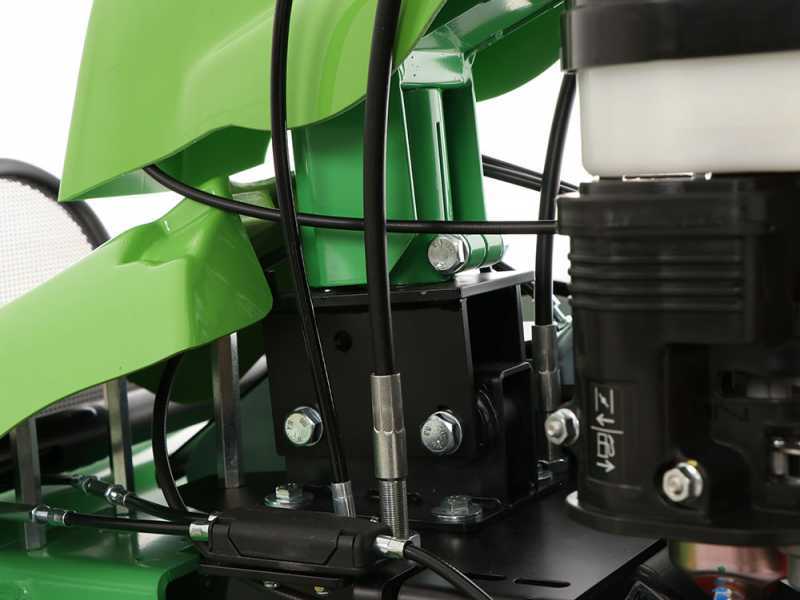

The handlebar adjustment unit is strengthened and more sturdy than the majority of rough cut mower on the market, and is assembled directly on solid anti-vibration holders.

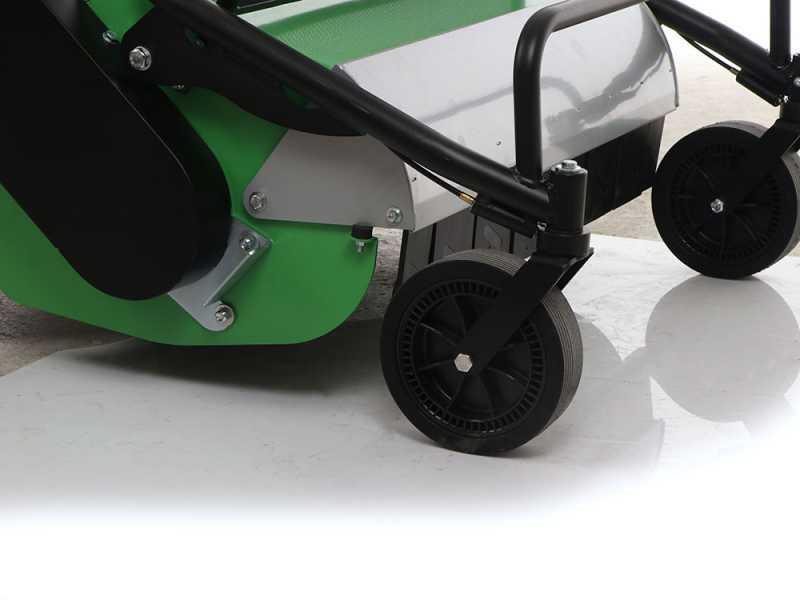

Rotating front wheels, which can be locked by a control on the dashboard.

Stone guard above the rough mower blade deck.

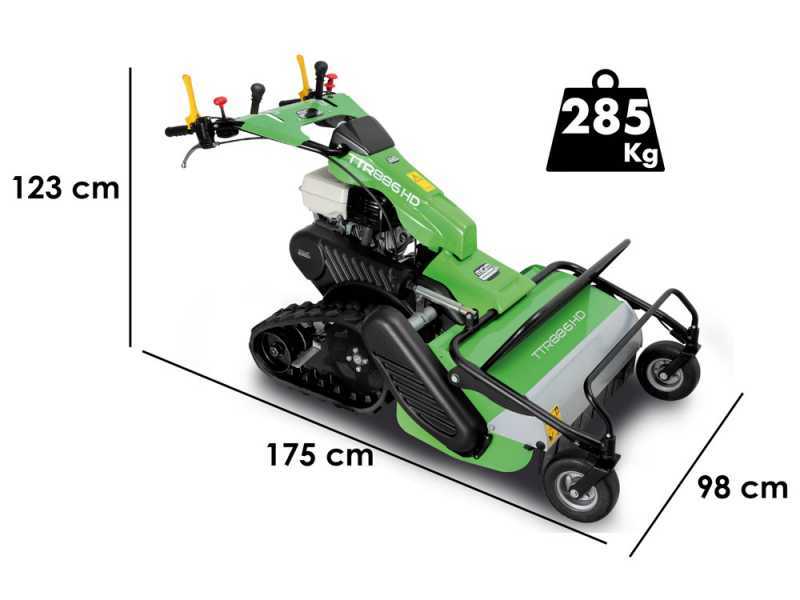

SIZE AND WEIGHT:

• Length: 175 cm (handlebars included)
• Width: 98 cm
• Height: 123 cm
• Weight: 285 kg
