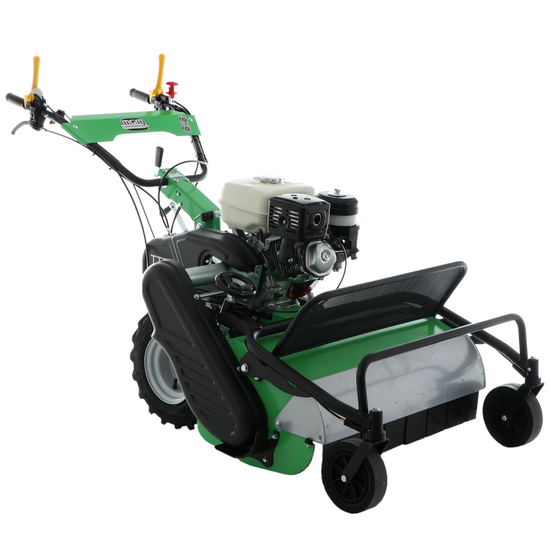

Lampacrescia MGM TTR790 - Hammer Cut Mower - Honda GX270 Engine

Lampacrescia MGM TTR790 petrol rough cut mower is equipped with a cutting rotor made up of 40 Y-shaped blades and a cutting width of about 75 cm. Provided with a Honda GX270 engine, it is able to deliver a nominal power of 9HP.

Instead, the rotor can be adjusted in height through a hand crank, according to the type of cut to be made. It ranges from a minimum of 20 mm to a maximum of 80 mm.

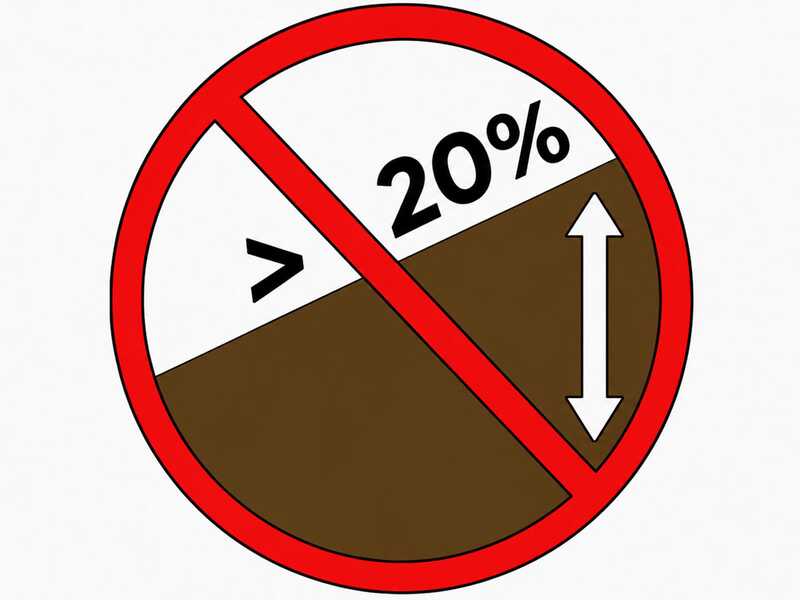

The Lampacrescia MGM TTR790 petrol rough cut mower features a wheel axle with independent release and is therefore recommended for flat or otherwise not too sloping terrain.

It can be easily used for working on large areas, parks and lawns even with very tall grass. Thanks to its great power, it is capable of removing huge masses of any kind of weed, of any diameter, height and size. Beside grass, it can crush scrubs and brambles (up to 2.5 cm) in any condition, also on uneven terrains and slight slopes.

Handlebars can be adjusted both in height and laterally, making it suitable for any user and any type of work.

This product is therefore suitable for cutting operations on overgrown weeds in orchards, vineyards, olive tree groves (especially for the grassing process) or for plant nurseries, green area maintenance operators and managing authorities who can use this machine to clear uncultivated areas.

The machine provides an average work output of 10 times greater than that of a normal brush cutter, which also greatly reduces fatigue. Furthermore, it is able to operate even for longer period of time,since it doesn’t require any recharging or emptying.

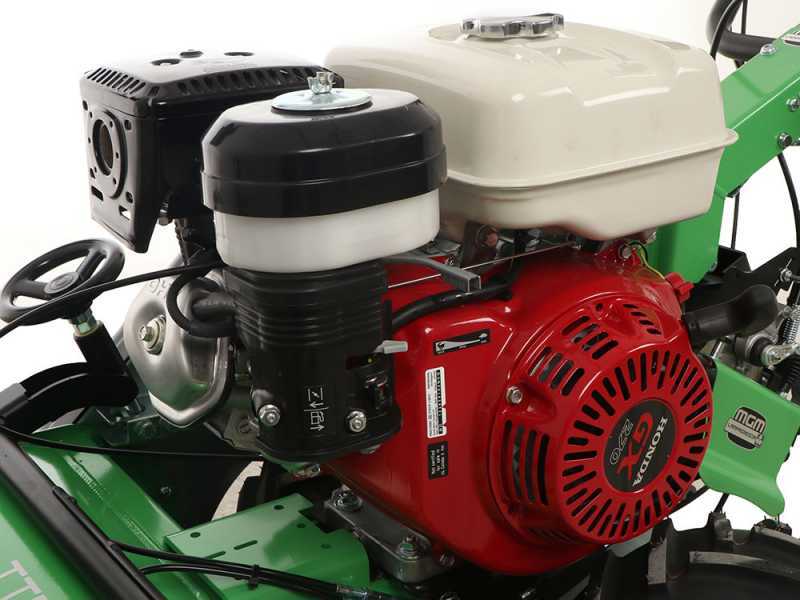

Honda GX 270 is a
super-professional, SUPER-POWERFUL and cutting-edge engine, which belongs to the latest overhead valve technology (OHV).

Features:

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

The HONDA engines belonging to the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

WARNING!

These machines are tested by the producer before being shipped. Gearbox oil already at level
Please carefully read the instructions manual before starting the unit.

Nominal Power: 9.0 HP

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 6.2 HP

* It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

3-Speed gearbox in oil bath: 2 forward gears and a reverse gear

The gearbox is really sturdy and reliable.

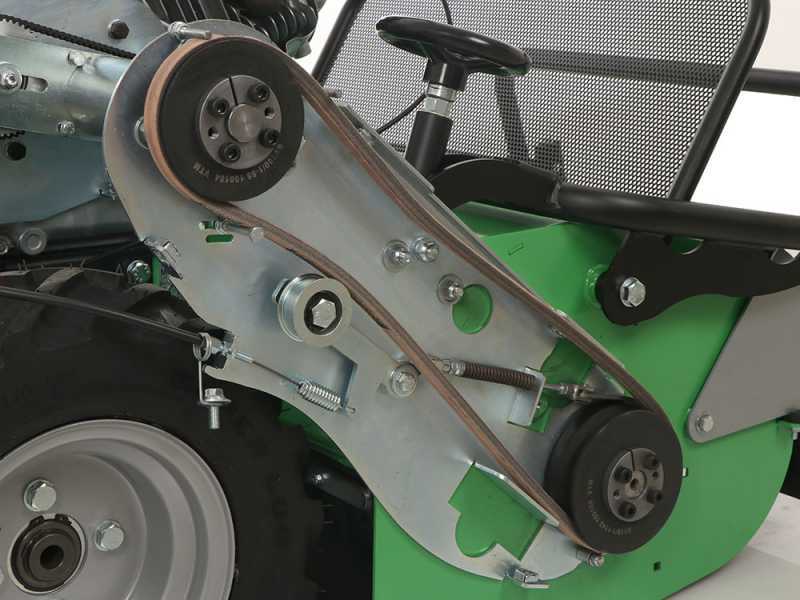

Final drive to the rough cut mower rotor through a drive belt protected by a sturdy casing.

All machine components are made in Italy.

Focus on the lever with gear selector.

This machine is equipped with a special automatic safety brake. This disc ensures greater safety when using the machine, blocking it immediately if the clutch lever is released.

The head of the rough cut mower is made of enamelled F510 high-strength steel.

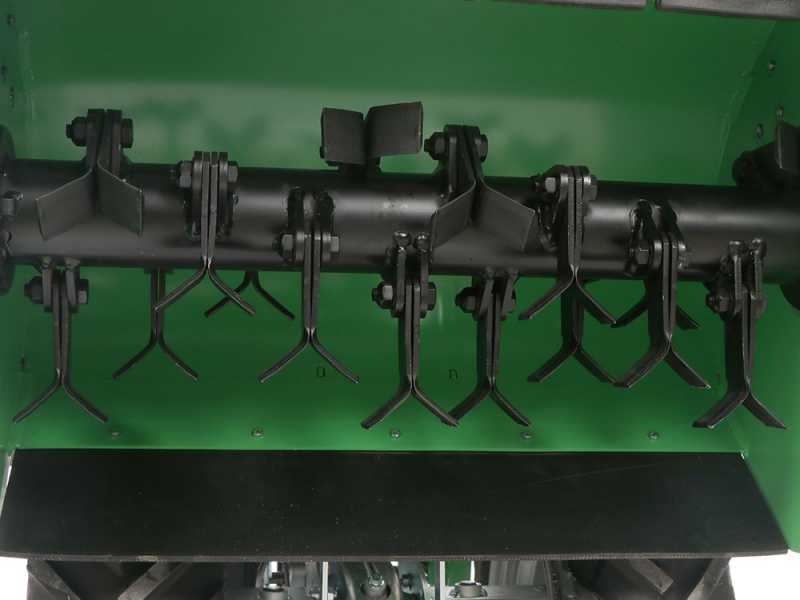

Sturdy rotor in hardened steel composed by 40 Y-shaped blades. They give this machine unrivalled effectiveness on any type of material (grass but also brushwood, brambles, pruning, up to 2.5 cm in diameter)

Working width: 75 cm

Focus on the blades and their particularly sturdy supports

Cutting height adjustment from 20 to 80 mm through central crank handle (1-2-3-4)

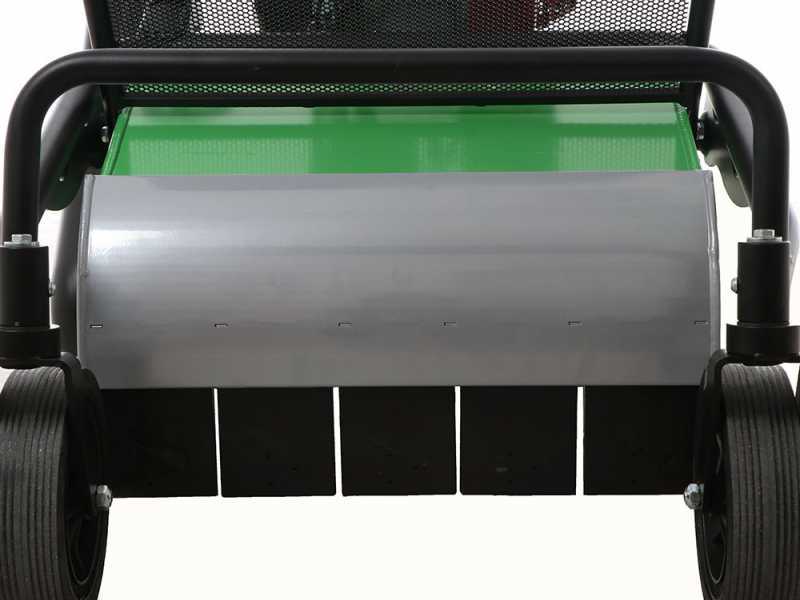

Focus on the front protection flaps, mounted on an 75 cm swinging flap.

The head of the rough cut mower is equipped with a further user protection, installed on the top of the head. This accident-prevention protective grating ensures maximum safety during use.

Focus on the toothed counter-shear for greater cutting effect.

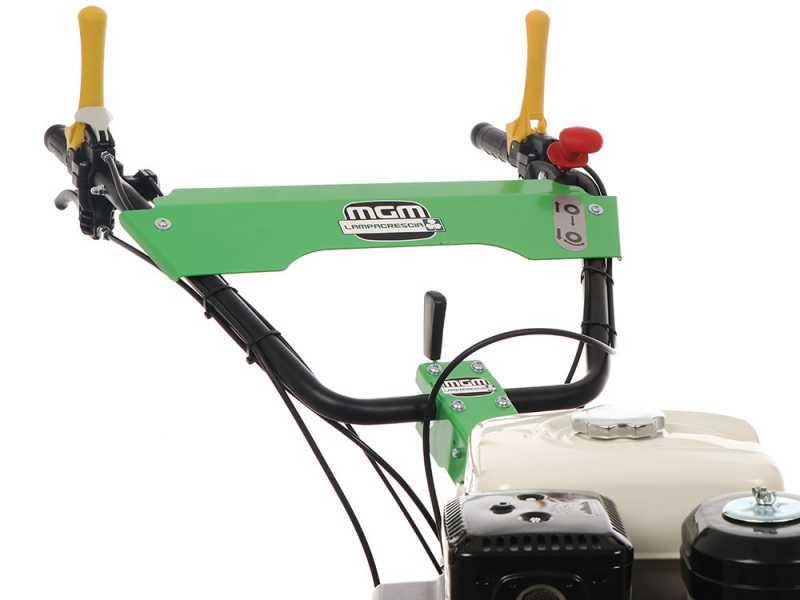

Upper left lever: is the feed clutch, it engages and disengages the drive, whatever speed is selected on the gearbox (both forwards and backwards). Releasing this lever stops the machine instantly, for safety reasons.

Right lever: turns the knife rotor on and off (i.e. the milling function) and is connected to the safety brake, which quickly stops the rotation of the rotor if it is released.

Black lower levers to facilitate steering.

Lever for locking/unlocking the front pivoting wheels.

Gear selector switch

Throttle control

Adjustment of control handlebars by lever. The handlebars can be adjusted in 3 directions.

Handles height adjustment. Adjustable in 7 different heights.

Swinging steel front fairing. It tends to rise automatically if the machine is facing large masses of particularly tall and thick grass, to facilitate its entry under the cutter deck for efficient and instantaneous crushing.

TRACTOR pneumatic wheels for large-scale farming: 16x6.50-8

Handles: adjustable in height and direction through levers.

Upper stone guard

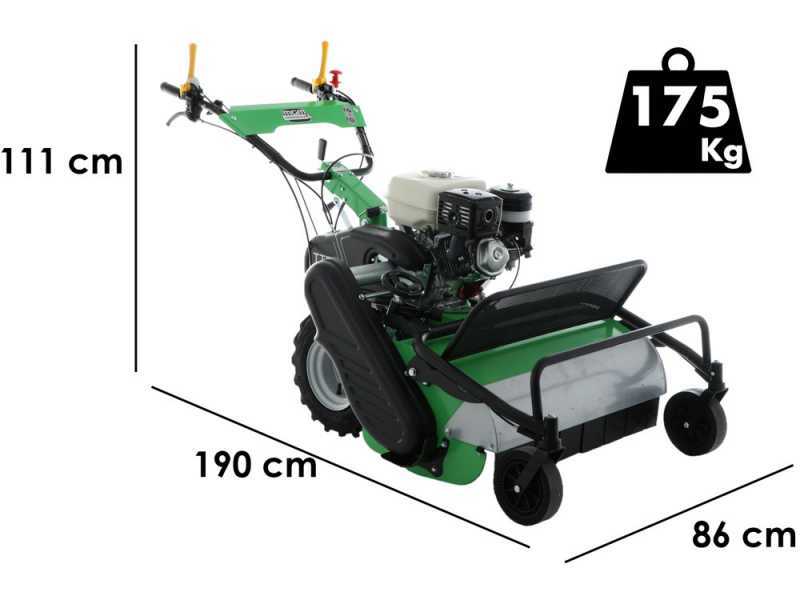

SIZE AND WEIGHT:

• Length: 190 cm (handlebars included)
• Width: 86 cm
• Height: 111 cm
• Weight: 175 kg
