Karcher PRO HD 8/23 G Classic - Petrol Pressure Washer - Loncin G300FA Engine - Petrol

Add a question
ID: K610121

EAN: 4054278731827

MPN: 1.187-012.0

7,8/10
After-sales assistance & Spare parts
Karcher PRO HD 8/23 G Classic - Petrol Pressure Washer - Loncin G300FA Engine - Petrol
Free gifts from AgriEuro
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Replacement sprak plugReplacement sprak plug
Foam air filterFoam air filter
Foam air filterFoam air filter
Free water supply connection kitFree water supply connection kit
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
800 L/h
Max. pressure
280 bar
Cubic capacity
302 cm³
Nominal power
9.1 HP
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G300FA
Wheeled
Type
Trolley
Weight
50.9 Kg
Product Features
Model:
HD 8/23 G Classic
Wheeled:
Type:
Trolley
Operating mode:
Spark ignition
Operation mode:
Petrol
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G300FA
Motor type:
4-stroke
Cubic capacity:
302 cm³
No. of cylinders:
1
Nominal power:
9.1 HP
Motor speed:
3500 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
5.5 L
Manufacturing country:
China
Pump data
Pump brand:
Karcher
Model:
Q45-3500
Pump type:
Inline-three cylinders
Heavy-duty linear pump:
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Max flow rate per minute:
13.3 L/min
Max. flow rate per hour:
800 L/h
Operating pressure:
230 bar
Max. pressure:
280 bar
Safety valve:
Yes
Manufacturing country:
China
Equipment
Type of attachment:
M22 - Screw
On wheeled frame (with wheels and handles):
Yes
Hose holder:
Yes
Free gifts/extra features
Maintenance tool kit:
Yes
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Heavy-duty lance:
Yes
Hose length:
10 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
87,8 x 53,8 x 70,2 cm
Net weight:
50.9 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
76 x 59 x 58 cm
Weight including packaging:
59 Kg
Assembly time:
15 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 26/06/2025 - 30/06/2025
€ 1.490,01
Vat included
You're viewing:
Customers also viewed:
Description

Karcher HD 8/23 G Classic Petrol Pressure Washer

The Karcher HD 8/23 G Classic petrol pressure washer represents a powerful and versatile solution for demanding cleaning tasks in agricultural, construction, and outdoor maintenance environments.

This model, characterised by a functional and robust design, stands out for its grey steel tubular frame that provides high protection against accidental impacts and ensures durability over time. The compact structure and puncture-proof pneumatic wheels ensure excellent mobility even on uneven terrain, allowing you to transport the unit with ease even in confined spaces.

The internal combustion engine, compliant with the EU STAGE V emission standards, offers full autonomy without the need for electrical power, ideal for use in locations without an electrical grid. The manual pull-start, simple and reliable, completes the picture of a product designed to last and deliver high performance.

The crankshaft pump with ceramic pistons, highly resistant to wear, allows reaching a maximum pressure of 280 bar with a water flow rate of up to 800 litres/hour. This combination ensures effective washing power to remove stubborn dirt from surfaces and agricultural or construction equipment.

The pressure washer is equipped with thermal and safety valves to protect critical components from overloads and overheating.

The ergonomic handle with accessory compartment and high-pressure hose hook contributes to ease of use and facilitates organisation during work.

Distinctive features:

  • EU STAGE V combustion engine: ensures total autonomy and compliance with current environmental standards.
  • Crankshaft pump with ceramic pistons: ensures high washing efficiency and long life.
  • Steel tubular frame: protects the machine from impacts and external stresses.
  • Puncture-proof pneumatic wheels: allow easy transport on rough terrain.
  • Ergonomic handle with accessory compartment: facilitates the management of the hose and accessories during work.

The Karcher HD 8/23 G Classic pressure washer confirms itself as a reliable reference point for activities requiring power, mobility, and durability in the petrol pressure washer sector.

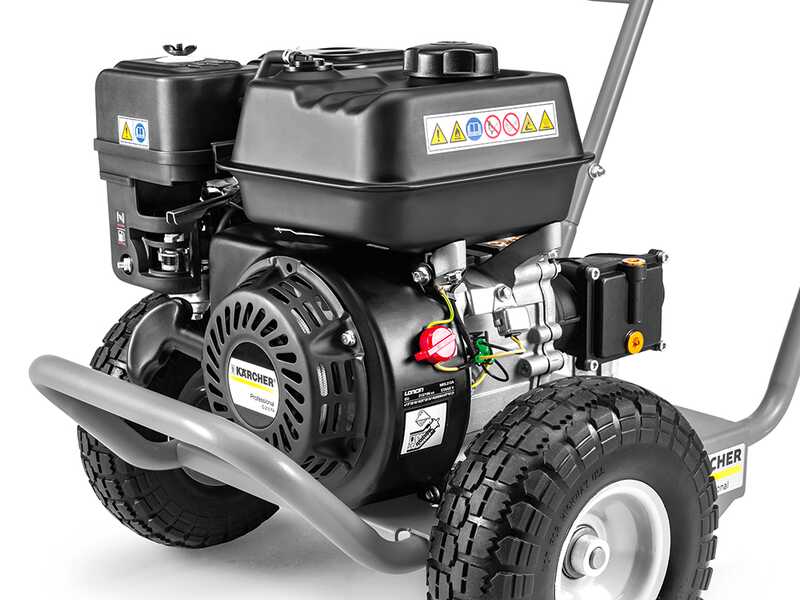

Loncin G300FA Engine

The Loncin G300FA engine is professional and powerful, of the latest generation and with overhead valve technology.

Engine type
Single-cylinder 4-stroke - OHV
Cylinder type
Aluminium
Displacement
302 cm³
Compression ratio
8.3 : 1
Max RPM
3500 rpm
Torque value
20.3 Nm / 2500 rpm
Fuel tank capacity
5.5 Litres
Oil tank capacity
0.95 Litres
Dry weight
26 kg

The engine is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

Nominal Power: 10 HP
The more correct term would be "Commercial" Power, meaning the classic standard of power definition officially used until a few years ago by all the most well-known engine manufacturers.

* This data is still more widespread and advertised in the main commercial sales channels, although it is an increased data compared to the actual power.

Effective Power: 9.1 HP (at a rotation speed of 3500 rpm)
Corresponds to the actual power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.

* This is data that can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to make the applied engine deliver.

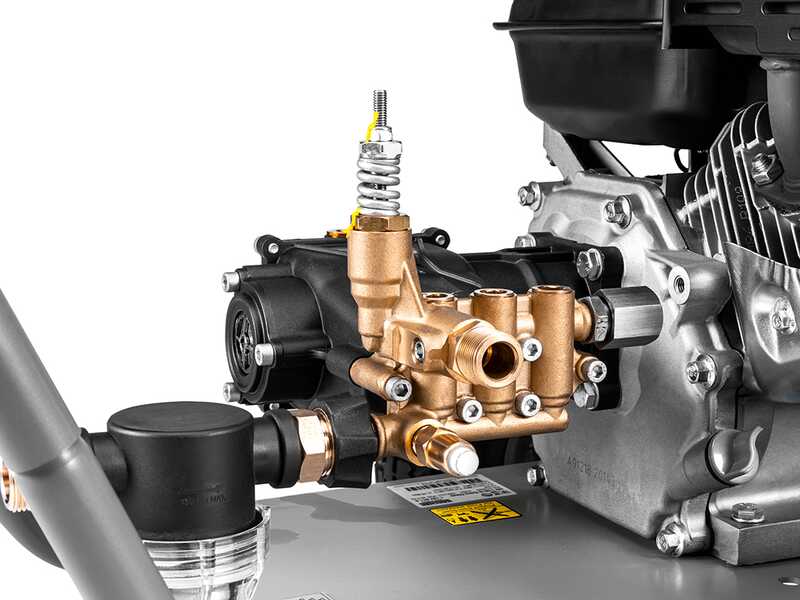

Karcher High-Pressure Pump and Head

Proven safety technology such as thermal and safety valve and water filter.

Crankshaft pump with ceramic pistons, brass head.

Most important features:

  • Max pressure: 280 bar
  • Operating pressure: 230 bar
  • Flow rate: 13.3 lt/min / 800 lt/hour
  • Max inlet temperature: 60 C°

The pressure of a pressure washer is very important. Even more so is the flow rate: very often low-cost products have high pressure, but very little flow rate making these items ineffective. An acceptable minimum flow rate must be at least 350 lt/hour.

Other Features

Durable and robust: a robust steel tubular frame reliably protects the machine from damage.

This model of pressure washer features two puncture-proof wheels to allow the operator to easily move the machine in any work environment.

Additionally, there is a large upper handle on which the 10-metre hose and the gun can be stored, but above all, it will make moving simple and fast.

Support rubbers.

Front handle for lifting the machine, also protects the engine.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Free items included

The pressure washer is shipped in its original packaging along with the instruction manual.

The package will also include:

  • Standard Professional Gun
  • High-pressure hose, 10 m
  • Professional lance
  • Power Nozzle + screw connector
  • Rotary joint
  • Water filter
