Description

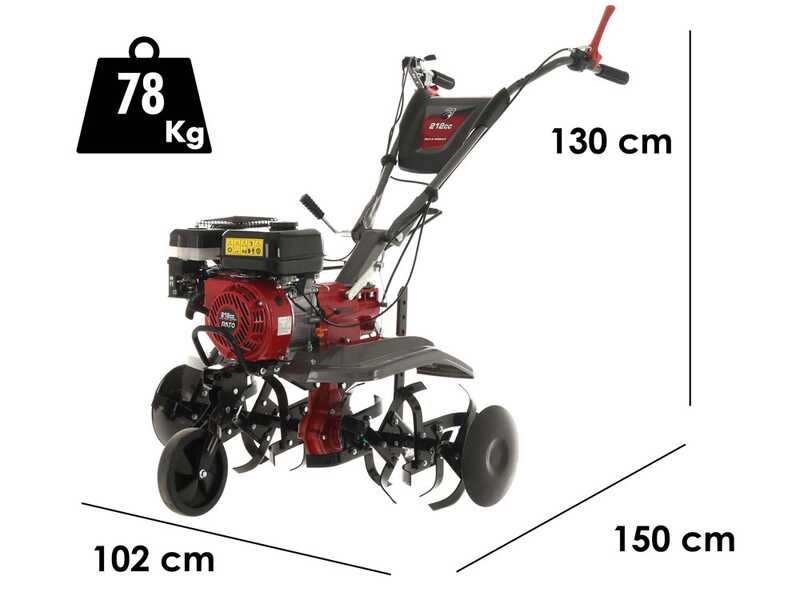

Italian Power RG3.6-100 rotary tiller

The Italian Power RG3.6-100 2+1 rotary tiller is a sturdy yet manoeuvrable product designed for semi-professional use. We recommend purchasing this product if you need to till hard, difficult-to-work medium to large areas of land.

The tiller is equipped with a 6-star cutter with a diameter of 33 cm for a working width of 97 cm and a depth of 30 cm. It is easy to manoeuvre thanks to the height-adjustable ergonomic handle and controls on the handlebar.

It is equipped with 2 forward gears and 1 reverse gear, giving the operator greater control over the power. The transmission is driven by gears in an oil bath.

The reliable and powerful Rato RATO R210 4-stroke 212 cc engine with 4.4 kW (7 HP) of power guarantees durability, quietness, reduced emissions and low fuel consumption.

The rotary tiller is equipped with a wheel kit complete with hub for easy movement and storage, engine oil and transmission oil.

ATTENTION:

The engine and transmission are without engine oil; add engine oil before first use.

TRANSMISSION OIL SAE 80W - 10W30

Italian Power RG3.6-100 - 7 HP petrol rotary tiller - Rato R210

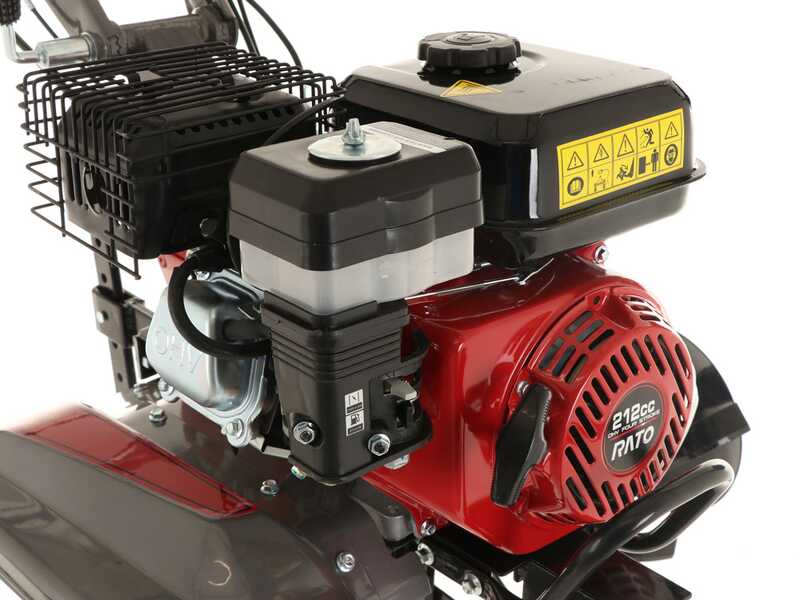

Rato R210 engine

Main features:

Model: RATO R210
Engine type: Single cylinder 4-stroke - OHV
Cylinder type: Aluminium
Displacement: 212 cm³
Power: 7 HP
Max. rpm: 3600 rpm
Tank capacity: 3.6 litres
Engine oil capacity: 0.55 litres

Detail of the filter.

3.6-litre tank.

Nominal power: 7 HP

The most correct term would be "Commercial Power", meaning the classic standard definition of power officially used until a few years ago by all the best-known engine manufacturers.

* This figure is still the most widely used and advertised in the main commercial sales channels, even though it is higher than the actual power.

Actual Power: 6 HP

This corresponds to the real power expressed at the crankshaft. It is the figure indicated as official in the manual or in the technical data provided by the engine manufacturer.

* This figure may vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to apply to the engine.

WARNING!

The engine is SUPPLIED WITHOUT ENGINE OIL. Read the instruction manual carefully before starting it.

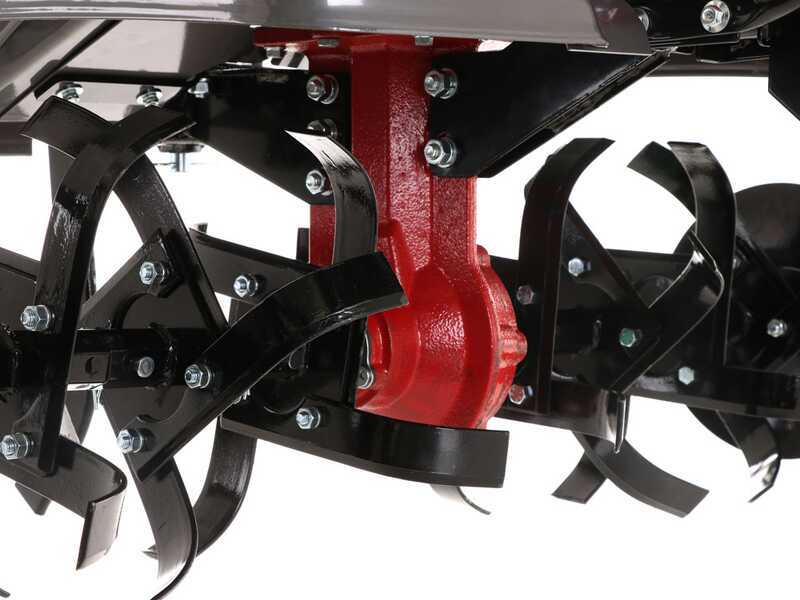

Gear transmission in oil bath

The direct gear transmission (oil bath) on the motor shaft requires very low maintenance and provides maximum resistance to stress when working on hard ground.

A gear transmission is much more solid and reliable than a belt drive because the components are already in contact with each other and as soon as one moves, all the others move too, and the motion from the engine to the cutter is immediate.

TRANSMISSION OIL SAE 80W - 10W30

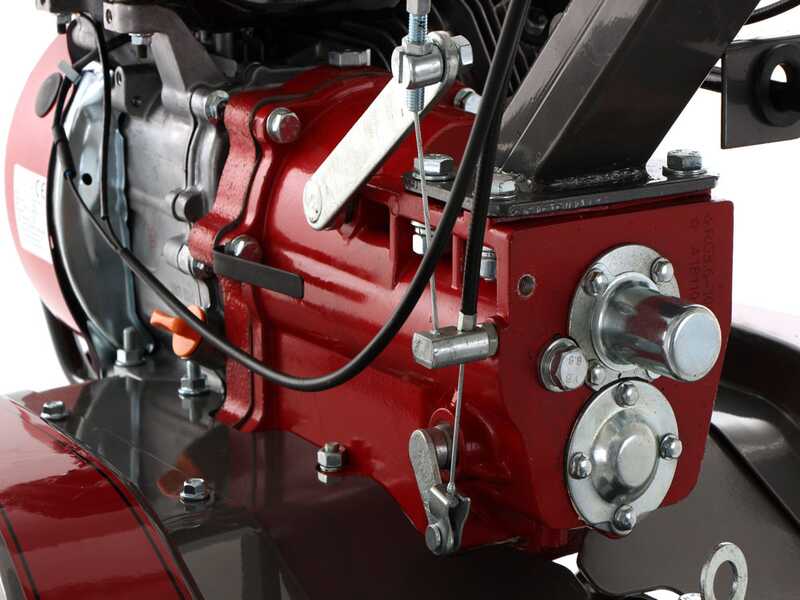

2+1 gear in oil bath

The gearbox supplied with this rotary tiller is an excellent 2+1 gearbox

Its main features are:

Size and sturdiness, which are also visible;
Higher gear temperature;
Precision gear shifting;
Precision in the manufacture of the gears;

The presence of 2 forward gears allows the operator to mill more efficiently. In fact, this will facilitate penetration into the hardest soils, increasing control over the vehicle.

The presence of one reverse gear facilitates movement and manoeuvring.

The long gear lever allows you to select gears comfortably from just below the handlebars.

Detail of the power take-off.

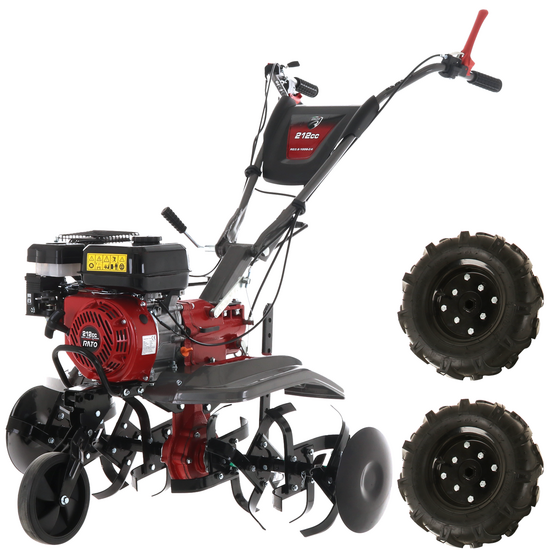

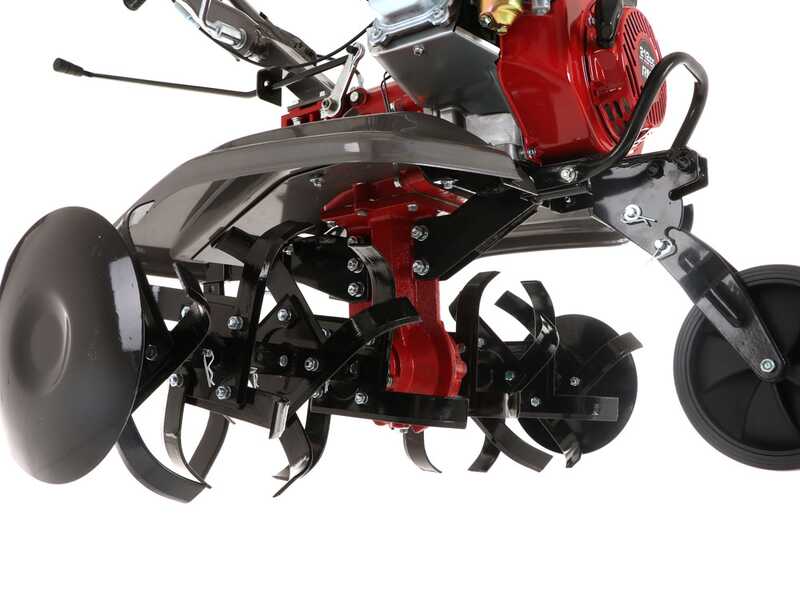

97 cm cutter and pneumatic wheel kit

The Italian Power snow blower is equipped with an 8-star cutter with a diameter of 33 cm for a working width of 97 cm and a depth of 30 cm; it is easy to manoeuvre thanks to the height-adjustable ergonomic handle and controls on the handlebar.

It is also possible to adjust the width to 75 cm by removing one row of ties on each side.

Thanks to its two sturdy pneumatic wheels and cutter holder, moving the rotary tiller on different types of terrain is extremely easy. Simply remove the wheels and install the cutters in one easy step (no tools required), and you can start working the soil.

ATTENTION!

The transmission is SUPPLIED WITHOUT OIL.
Before starting it, carefully read the instruction manual.

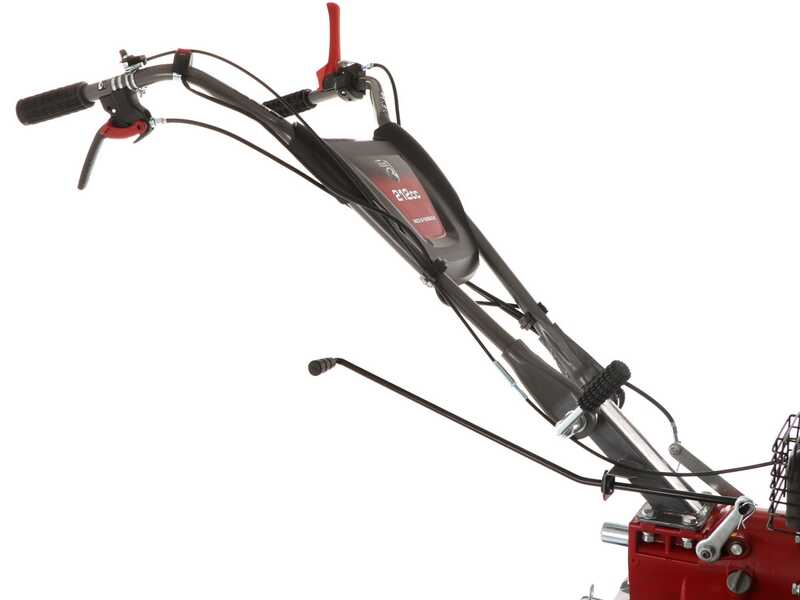

Other features

The handles, which control all the main functions of the motor hoe, are adjustable to 3 positions:

High position;
Low position;

The handlebars feature simple controls:

Clutch lever: activates the movement of the cutters and the forward motion.
Accelerator lever.

Detail of the adjustable rear spur.

Detail of the steel side guards.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

COMPLIMENTARY: 80w90 Oil for Transmission

2 1 L bottles of 80W90 transmission oil.

Suitable for the majority of machines on the market.

Free items included

The rotary tiller is supplied in its original packaging together with the instruction manual.

The package also includes the following free gifts:

Double set of hoes with protective discs;
Adjustable rear spur;
Tractor wheels;
