Italian Power RG 3.6-75Q-Z - Petrol-driven rotary tiller 7 HP - Rato R210 engine

The Italian Power RG 3.6-75Q-Z rotary tiller is a robust piece of equipment, designed to cope with demanding work on difficult and untilled soils.

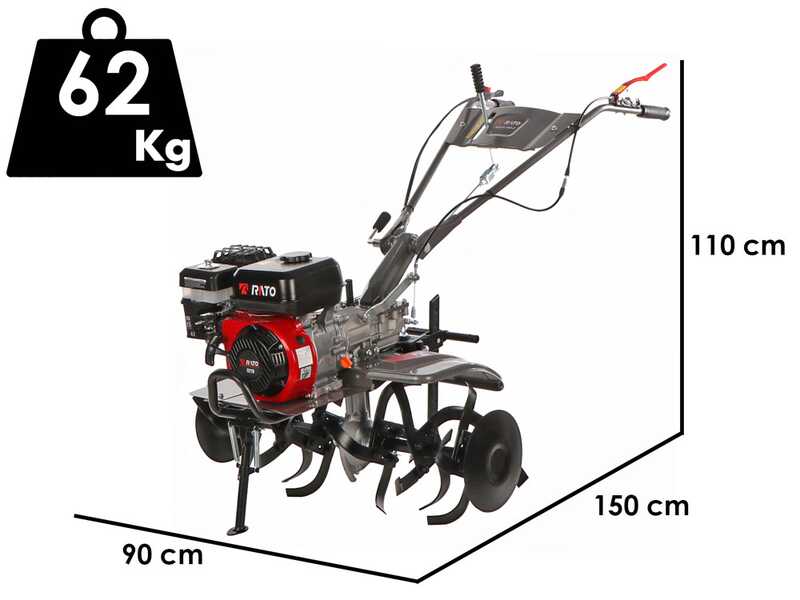

The 62 kg weight contributes to effective soil penetration, facilitating operations even on particularly hard surfaces.

The milling machine is equipped with a 6-star cutter with a working width of 75 cm and a depth of 11 cm.

The ergonomic, height-adjustable handle and the controls on the handle ensure easy and precise manoeuvrability.

The model has two forward gears and one reverse gear, offering more control over power and optimum versatility.

The oil-bath gear drive ensures reliability, durability and low maintenance.

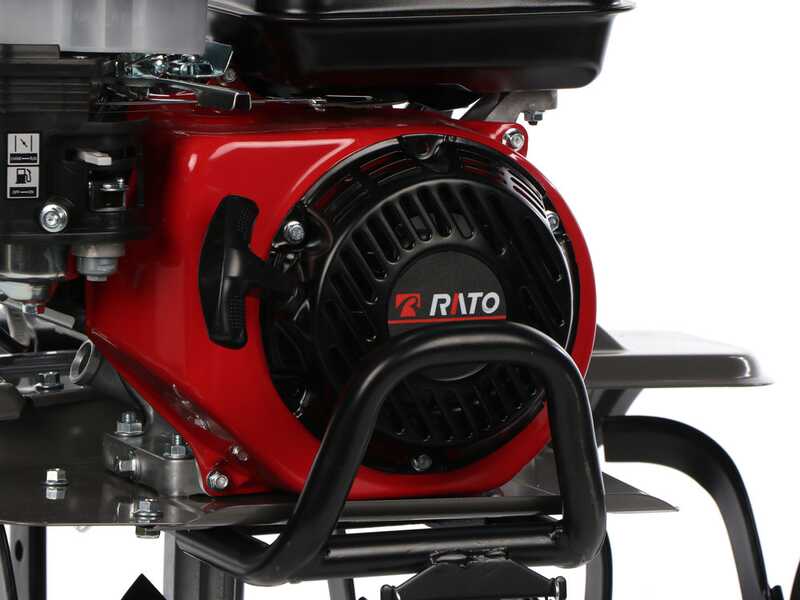

The 212 cc 4-stroke Rato R210 engine, with a power output of 4.1 kW, is synonymous with efficiency and high performance. This engine guarantees low fuel consumption, low emissions and low noise, making it an ideal choice for intensive, long-term work.

Functional accessories such as the adjustable spur, the front machine support crutch, the plant protection discs and the engine protection cover complete the equipment, improving safety and use.

Finally, the wheel kit with hub simplifies transport and storage of the tiller, ensuring optimal ease of use both during and after work.

WARNING!

Engine and transmission are provided without oil. Make sure to add oil before the first use.

Main features:

• Model: RATO R210
• Engine type: Single cylinder 4-stroke - OHV
• Cylinder type: Aluminium
• Cylinder capacity: 212 cm³
• Power: 7 Hp
• Max. rpm: 3600 rpm
• Tank capacity: 3.6 L
• Engine oil capacity: 0.55 L

Filter detail.

3.6 L tank

Nominal Power: 7 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 6 HP

It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

WARNING!

The engine is PROVIDED WITHOUT OIL. Read the instruction manual carefully before starting it up.

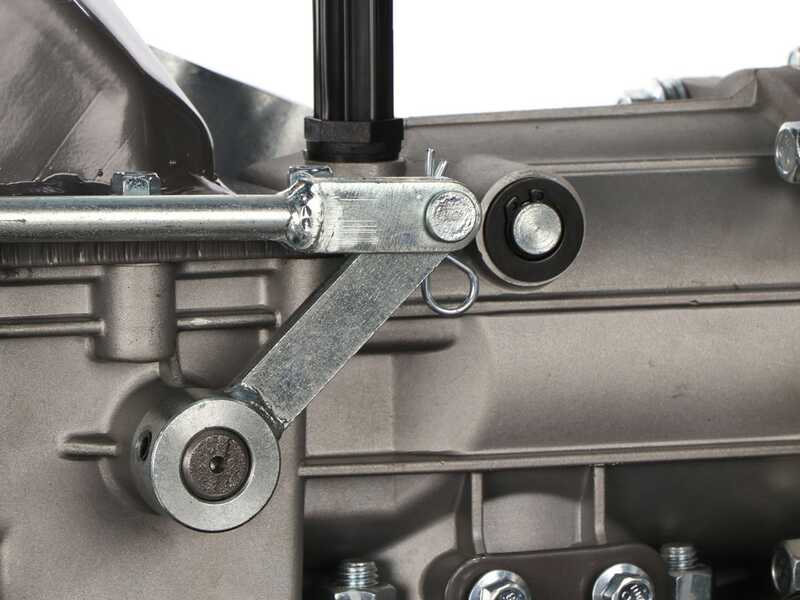

The direct gear drive (in oil bath) on the drive shaft requires very little maintenance and provides maximum resistance to stress when working in hard terrain.

A gear-driven transmission is much more solid and reliable than a belt-driven one, because the components are already all in contact with each other and as soon as one moves, all the others move too and the motion from motor to cutter is immediate.

WARNING!

The transmission is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

The standard-supplied gearbox that comes together with this garden tiller stands out to be an excellent 2+1 gearbox.

Gearbox main specifications:

• Overall size and sturdiness, which are two of the main characteristics of this garden tiller model.
• Upper gear tempering
• Accuracy of gear shifting engagement
• Accuracy in the gear manufacturing
• Gearbox oil quantity: 750 ml;

The presence of 2 forward gears allows the operator to carry out more efficient milling. Indeed, all this will facilitate the penetration in hard soils by increasing the control over the machinery.

While the presence of 1 reverse gear will facilitate moving and manoeuvring.

The long gear shifting lever allows shifting gears comfortably from just below the handlebar.

Detail of the oil cap

Focus on the PTO

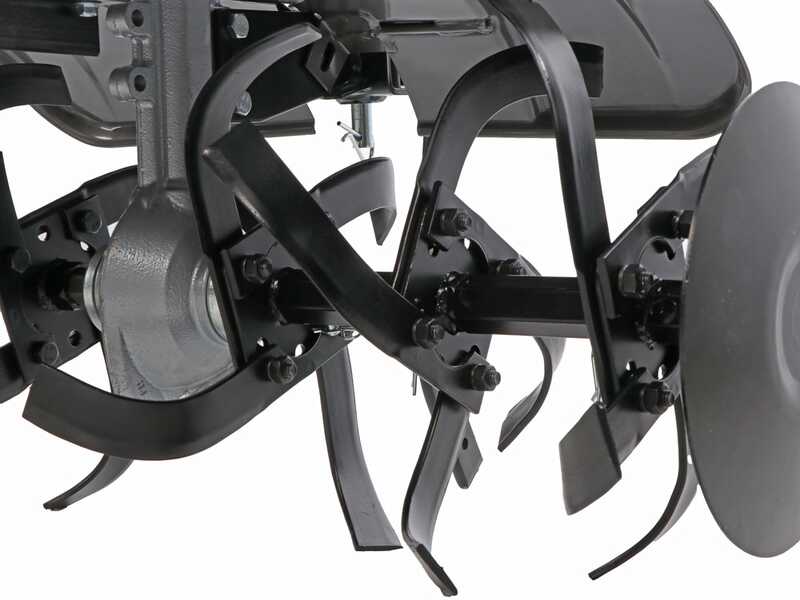

The Italian Power milling machine is equipped with a 6-star milling cutter for a working width of 75 cm and a depth of 11 cm; it is easy to manoeuvre thanks to the height-adjustable ergonomic handle and controls on the handle.

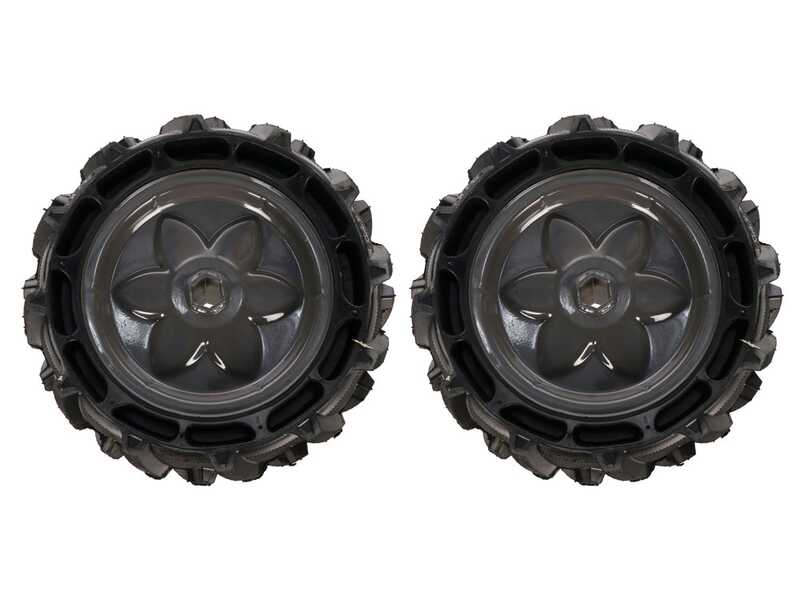

Thanks to the two robust pneumatic wheels and tiller holder, moving the tiller over different types of terrain is extremely easy. Just remove the wheels and install the tillers in one simple operation (where no tools are required) and you can start working the soil.

WARNING!

The transmission is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

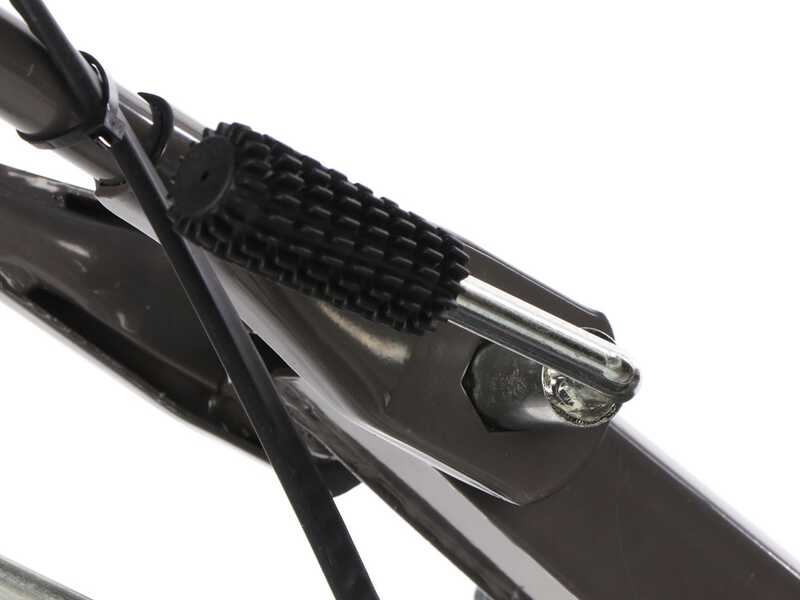

The handlebars are height-adjustable thanks to the special cast steel adjuster.

Operating controls:

• red lever activates the motion of the cutters
• throttle handle
• Gear shifting

There is a front bumper on this tiller model, which is convenient for avoiding engine shocks. In addition, it is possible to position the support foot when not working. The latter is easily retractable so as not to get in the way.

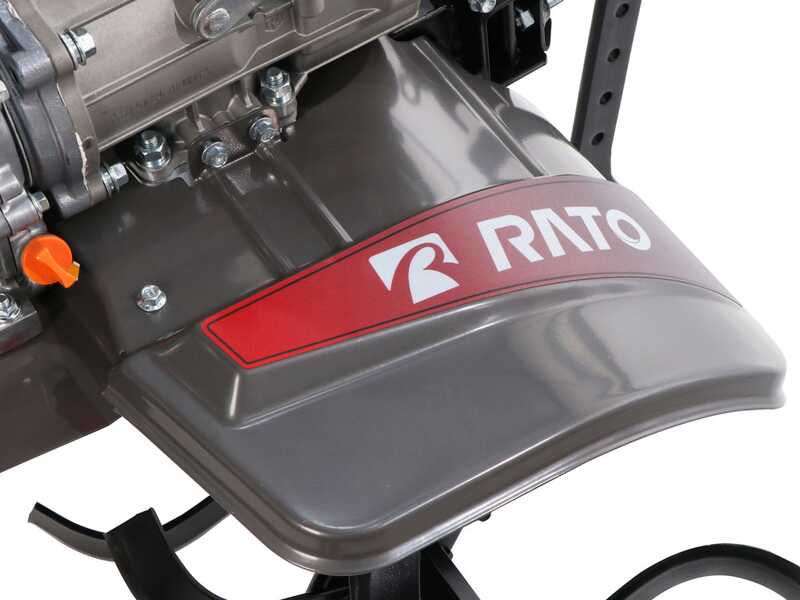

Detail of the cutter covers and adjustable spur.
