Idromatic Kon 200.15 - Three-phase Hot Water Pressure Washer - Brass Pump

Add a question
ID: K607078

EAN: 8053435095358

MPN: 20.12.A4100

Idromatic Kon 200.15 - Three-phase Hot Water Pressure Washer - Brass Pump
FREE
Gral detergent bottleGral detergent bottle
For Free: Oil & Smog Clean detergent bottleFor Free: Oil & Smog Clean detergent bottle
Mold & Moss Clean detergent bottleMold & Moss Clean detergent bottle
Free water supply connection kitFree water supply connection kit
Protection and storage tarp coverProtection and storage tarp cover
Heavy-duty linear pump
Pump head material
Nickel-plated brass
Max. flow rate per hour
900 L/h
Max. pressure
200 bar
Engine speed
1400 RPM
Operating mode
Three-phase 400 V
Thermostat
Yes
Pump brand
Annovi&Reverberi
Pump Model
RK 15.20H N
Pressure regulator
Yes
Wheeled
Type
Trolley
Weight
130 Kg
Manufacturing country
Italy
Product Features
Model:
kon 200.15
Wheeled:
Type:
Trolley
Operating mode:
Three-phase 400 V
Operation mode:
Hot water
Max. outlet temperature:
140 °
Thermostat:
Yes
Detergent tank:
6 lt
Detergent delivery:
Low-pressure
Diesel tank:
30 L
Manufacturing country:
Italy
Motor data
Motor type:
Electric three-phase
Motor speed:
1400 RPM
Max. power absorption:
6.2 Kw
Power supply:
400 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi reverberi
Pump brand:
Annovi&Reverberi
Pump Model:
RK 15.20H N
Model:
RK 15.20H N
Pump type:
Connecting rod-crank
Heavy-duty linear pump:
Pistons material:
Ceramic
Pump head material:
Nickel-plated brass
Brass pump head:
Engine speed:
1400 RPM
Flow rate:
15 lt/min. (720 lt/h.)
Max flow rate per minute:
15 L/min
Max. flow rate per hour:
900 L/h
Operating pressure:
200 bar
Max. pressure:
200 bar
Pressure regulator:
Yes
Pressure regulator:
Safety valve:
Yes
Manufacturing country:
Italy
Equipment
Detergent tank:
Yes
Type of attachment:
M22 - Screw
Delayed Total Stop:
Yes
Burner:
Yes
Stainless steel discharge pipe:
Yes
Analogue dashboard with indicator lights:
Yes
Tool holder:
Yes
Power cable holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Lance with adjustable nozzle:
Yes
Heavy-duty lance:
Yes
High-pressure hose for spray gun:
10 m
Hose length:
10 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
95X65X86 CM
Net weight:
130 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
103X68X103
Gross weight (packaging included) :
146 Kg
Assembly time:
5 minutes
Prompt Delivery
11 items in stock
Free Shipping
Estimated delivery: 04/06/2024 - 06/06/2024
€ 2.835,56
VAT Included
You're viewing:
Customers also viewed:
Description

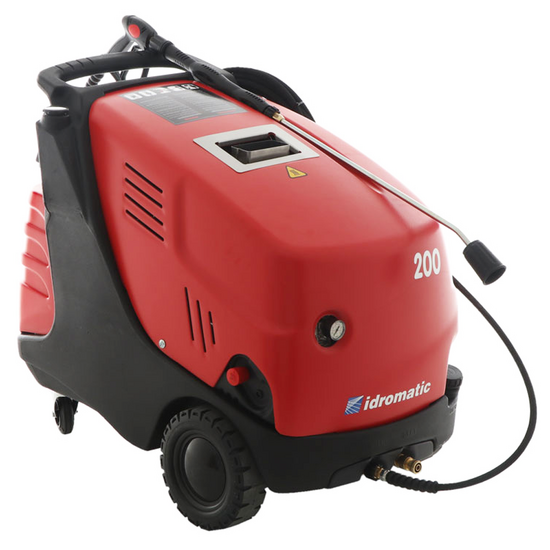

Idromatic kon 200.15 - Three-phase Hot Water Pressure Washer

The Idromatic kon 200.15 three-phase hot water pressure washer is designed to deliver outstanding performance and flawless cleaning results

Thanks to its three-phase power supply and its operating pressure of 200 bar, this machine is able to deliver constant and continuous power, allowing the most stubborn dirt to be removed quickly and efficiently.

As it can also generate hot water, the high-pressure washer provides deep, hygienic cleaning on a wide range of surfaces, from industrial flooring to heavy-duty tools.

This machine comes with a self-extinguishing abs electrical cabinet with ip55 protection with hinge for easy access to internal components.

Vertical high-efficiency stainless steel boiler with separate motor, 20" timed total stop.

In addition to its excellent performance provided by the 7.5 Hp, 1400 rpm motor, the pressure washer is also carefully designed with safety and durability, thus guaranteeing durability and reliability.

Choosing the Idromatic kon 200.15 high-pressure washer entails making an investment in a high-quality product that will give you reliable performance over time.

MAX. FLOW RATE: 15 L/m

MAX. TEMPERATURE: 140°C


Made in Italy

Annovi Reverberi Pump

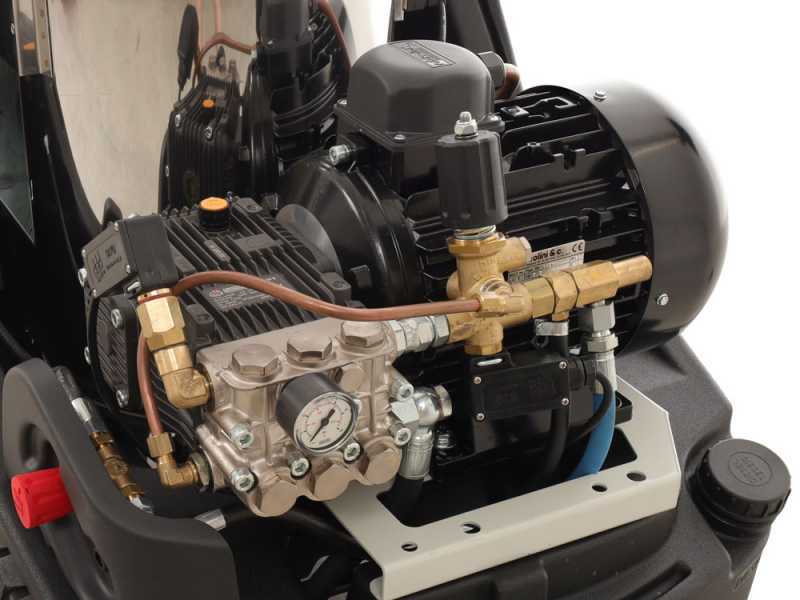

The pump is the main component of a high-pressure cleaner, and in this case idromatic has fitted a top-quality, heavy-duty RK15.20H N Annovi Reverberi pump with low rotational speed (1400 rpm).

The nickel-plated brass head makes the pump even more durable, raising the reliability and performance of the pressure washer to the highest level.

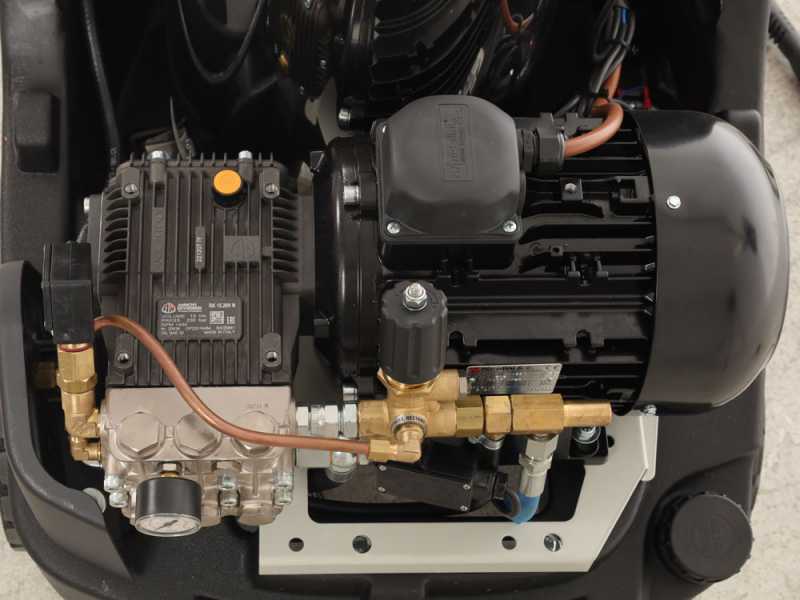

Pump main features:

  • 3 ceramic pistons
  • Die-cast aluminium alloy pump body and covers
  • Piston movement by means of the connecting rod - crank system
  • Pressed high-strength steel pump shaft
  • Pump head in brass nickel
  • Valve plugs on both suction and discharge for improved maintenance

EXCELLENT FLOW RATE:

  • 15 L/min (900 L/h) The flow rate is the most important technical data of a pressure washer, even before the pressure, as it identifies the real power of the unit.

HIGH OPERATING PRESSURE:

  • 200 bar, among the highest pressure levels of its category.

The glycerine bath pressure gauge is located at the front of the machine.

Main Features

MOTOR: electric single-phase (400 V) 7.5 HP

  • Thermal switch for motor protection
  • Temperature control thermostat
  • Low voltage 24V electrical system

Boiler with diesel oil burner:

  • Vertical stainless steel boiler with gear-driven diesel oil pump and independent burner motor.

The diesel oil tank integrated into the machine structure, made of reinforced polyethylene, has a capacity of 30 litres.

Focus on the boiler discharge chute made of stainless steel.

HIGH OPERATING PRESSURE: 200 bar

TOTAL STOP time-controlled

Lance with high/low pressure device.

Other Features

Suitable for different applications. It stands out to be the ideal unit for agricultural environments, for cleaning and maintaining machineries as well as its suitability on all those professional fields that require a deep cleaning.

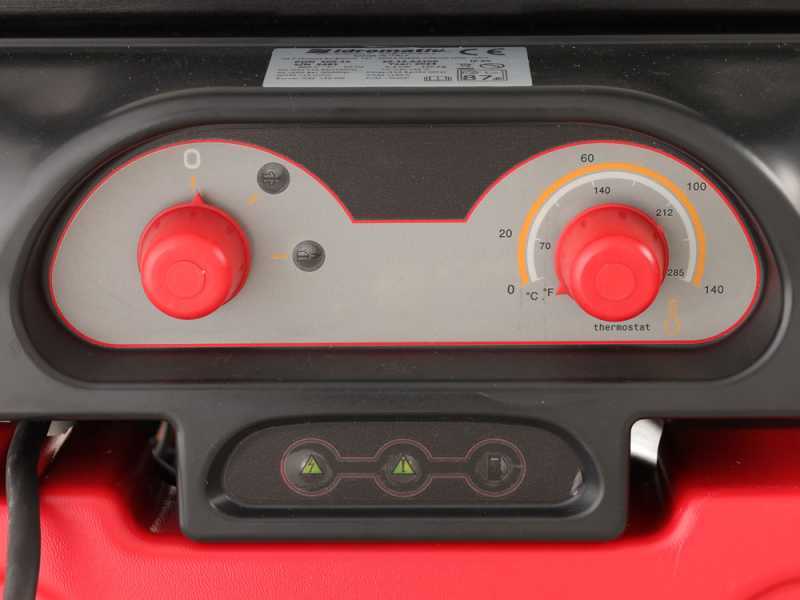

Easy and user-friendly controls which allow a rapid use of the unit with:

  • Machine voltage switch and pump ignition
  • Second switch for burner ignition
  • Water outlet temperature control knob

The two 260 mm rubberised wheels and two 100 mm pivoting wheels allow easy handling of the pressure washer despite its weight.

6 L detergent tank

The steel fairing material is plastic and sturdy at the same time

Independent regulating valve with pump reset when closing the lance

Accessory holder compartment

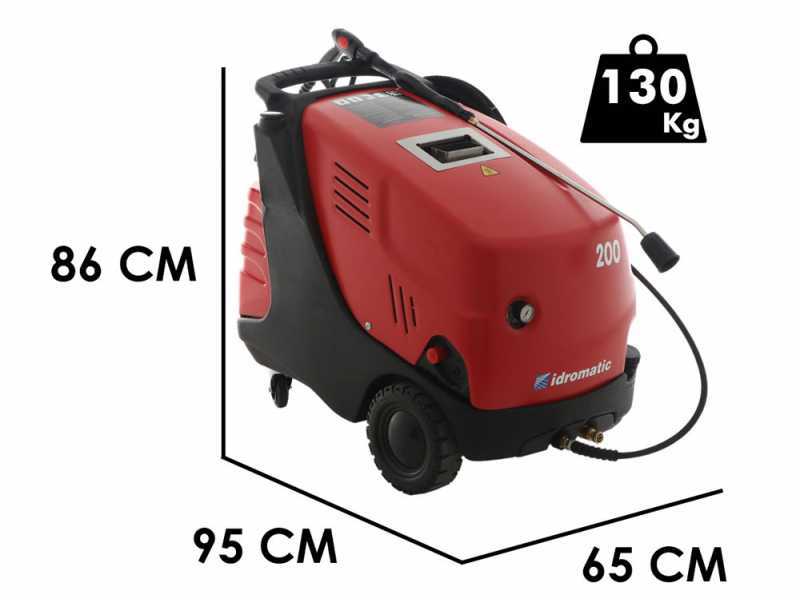

SIZE: 95x65x86 cm

WEIGHT: 130 kg

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

COMPLIMENTARY: large protection and storage cover

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower edge to perfectly fit the machine.

It is easy to fold and store in its box without taking up space!

(The pictures are for illustrative purposes only)

FOR FREE: AgriEuro Detergents Kit for Outdoor Cleaning - 3 Bottles 1 L

This AgriEuro Outdoor Detergents set includes three different 1 L bottles with different features that are essential for the cleaning of outdoor areas.

The set includes:

  • Gral: Gentle, highly effective antistatic cleaner for removing streaks and greasy dirt deposits from various types of surfaces: glass, ceramics, metal, lacquered wood, leather, plastic, etc.
  • Oil & Smog Clean: This alkaline detergent was designed for degreasing equipment, machinery, concrete and tiles effectively.
  • Recommended for removing smog from the front of houses, outdoor staircases and sidewalks.
  • Mold & Moss Clean: This chlorine acid detergent was designed to clean and sanitise at the same time. This product is essential when it comes to removing mold and moss from dark areas and environments where humidity is high. Particularly suitable for removing bad odours. Its high sanitising efficiency eliminates bacteria which cause unpleasant odour through fermentation.



Free Items Included

The Idromatic hot water pressure washer is shipped in its original packaging. It comes fully assembled. You will just need to assemble the lance.

The packaging also includes:

- Professional hydrogun

- High-pressure hose: 10 m

- Instructions Manual
