Idromatic Eco 170.13 - Three-Phase Hot Water Pressure Washer - Brass Pump

Questions & Answers (1)
ID: K607585

EAN: 8053435095334

MPN: 20.03.A0300

Idromatic Eco 170.13 - Three-Phase Hot Water Pressure Washer - Brass Pump
FREE
Gral detergent bottleGral detergent bottle
For Free: Oil & Smog Clean detergent bottleFor Free: Oil & Smog Clean detergent bottle
Mold & Moss Clean detergent bottleMold & Moss Clean detergent bottle
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
780 L/h
Max. pressure
180 bar
Body material
Stainless steel
Operating mode
Three-phase 400 V
Thermostat
Yes
Pump brand
Annovi&Reverberi
Pump Model
RC 13.17
Wheeled
Type
Trolley
Weight
120 Kg
Manufacturing country
Italy
Product Features
Model:
ECO170.13
Wheeled:
Body material:
Stainless steel
Type:
Trolley
Operating mode:
Three-phase 400 V
Operation mode:
Hot water
Max. outlet temperature:
110 °
Thermostat:
Yes
Diesel tank:
20 L
Manufacturing country:
Italy
Motor data
Motor type:
Electric three-phase
Motor speed:
1450 RPM
Max. power absorption:
4 Kw
Power supply:
400 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
AnnoviReveberi
Pump brand:
Annovi&Reverberi
Pump Model:
RC 13.17
Pump type:
Inline-three cylinders
Heavy-duty linear pump:
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Flow rate:
13lt/min. (780lt/h.)
Max flow rate per minute:
13 L/min
Max. flow rate per hour:
780 L/h
Operating pressure:
170 bar
Max. pressure:
180 bar
Safety valve:
Yes
Manufacturing country:
Italy
Equipment
Type of attachment:
M22 - Screw
Total Stop:
Yes
Burner:
Yes
Stainless steel discharge pipe:
Yes
Analogue dashboard with indicator lights:
Yes
Free gifts/extra features
Heavy-duty spray gun:
Yes
Lance with adjustable nozzle:
Yes
Heavy-duty lance:
Yes
High-pressure hose for spray gun:
10mt
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
82x92x50
Net weight:
120 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
103x68x104
Gross weight (packaging included) :
140 Kg
Assembly time:
5 minutes
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 29/05/2024 - 31/05/2024
€ 2.442,89
VAT Included
You're viewing:
Customers also viewed:
Description

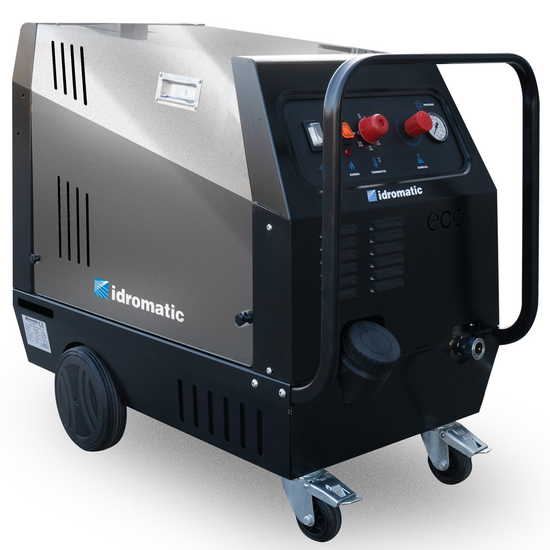

Idromatic eco 170.13 - Three-Phase Hot Water Pressure Washer

The IDROMATIC eco 170.13 three-phase hot water pressure washer is designed to deliver outstanding performance and flawless cleaning results

Thanks to its three-phase power supply and its operating pressure of 170 bar, this machine is able to deliver constant and continuous power, allowing the most stubborn dirt to be removed quickly and efficiently.

As it can also generate hot water, the high-pressure washer provides deep, hygienic cleaning on a wide range of surfaces, from industrial flooring to heavy-duty tools.

In addition to its excellent performance provided by the 5.5 Hp, 1450 rpm motor, the pressure washer is almost entirely made of steel, thus guaranteeing strength and reliability, and carefully designed with safety and durability.

Choosing the IDROMATIC astra 170.13 high-pressure washer entails making an investment in a high-quality product that will give you reliable performance over time.

MAX. FLOW RATE: 13 L/m

MAX. TEMPERATURE: 110°C


Made in Italy

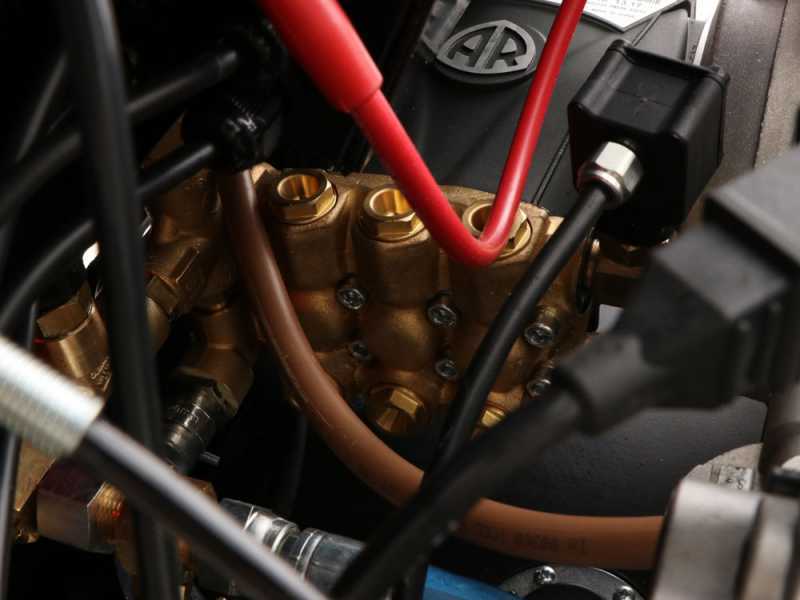

Annovi Reverberi Pump

The pump is the main component of a high-pressure cleaner, and in this case IDROMATIC has fitted a top-quality, heavy-duty Annovi reverberi pump with low rotational speed (1450 rpm).

The brass head makes the pump even more durable, raising the reliability and performance of the pressure washer to the highest level.

Pump main features:

  • 3 ceramic pistons
  • Die-cast aluminium alloy pump body and covers
  • Piston movement by means of the connecting rod - crank system
  • Pressed high-strength steel pump shaft
  • Brass head pump
  • Valve plugs on both suction and discharge for improved maintenance

EXCELLENT FLOW RATE:

  • 13 L/min (780 L/h) The flow rate is the most important technical data of a pressure washer, even before the pressure, as it identifies the real power of the unit.

HIGH OPERATING PRESSURE:

  • 170 bar, among the highest pressure levels of its category.

The glycerine bath pressure gauge is located on the machine's dashboard.

Main Features

MOTOR: electric single-phase (400 V) 5.5 hp (4 kw)

  • Thermal switch for motor protection
  • Temperature control thermostat

Boiler with diesel oil burner:

  • Vertical boiler with gear-driven diesel oil pump and independent burner motor.

The diesel oil tank integrated into the machine structure, made of reinforced polyethylene, has a capacity of 20 litres.

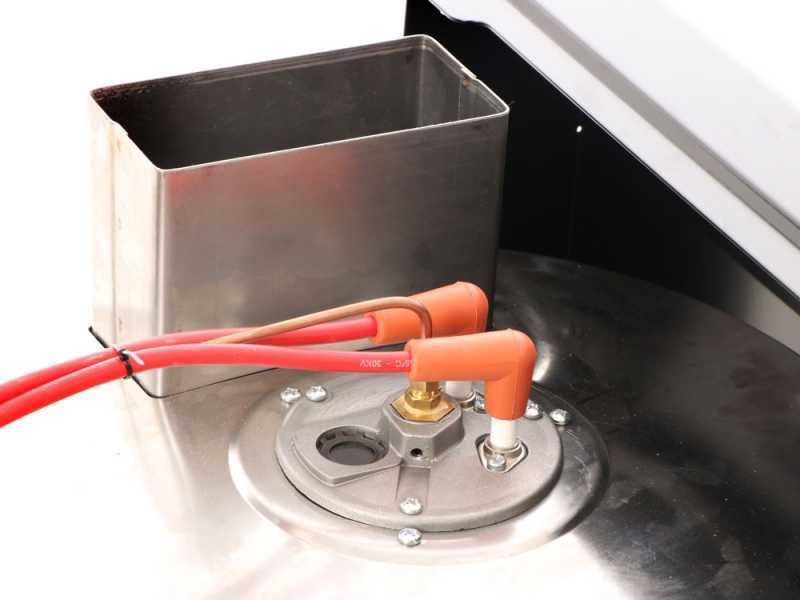

Focus on the boiler discharge chute made of stainless steel.

HIGH OPERATING PRESSURE: 170 bar

TOTAL STOP time-controlled

Lance with high/low pressure device.

Other Features

Suitable for different applications. It stands out to be the ideal unit for agricultural environments, for cleaning and maintaining machineries as well as its suitability on all those professional fields that require a deep cleaning.

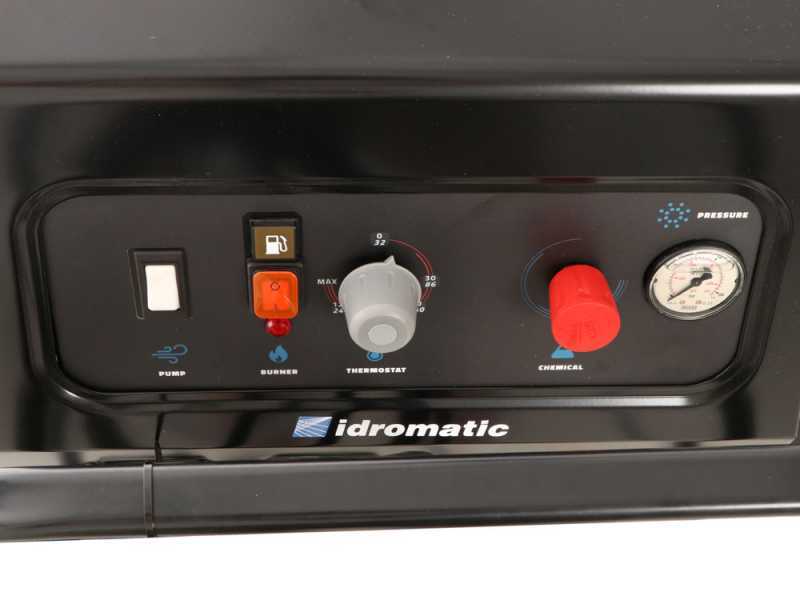

Easy and user-friendly controls which allow a rapid use of the unit with:

  • Machine voltage switch and pump ignition
  • Second switch for burner ignition
  • Water outlet temperature control knob

The 2 rubberised wheels and 2 pivoting wheels allow easy handling of the pressure washer despite its weight.

The stainless steel fairing provides superior corrosion and chemical resistance.

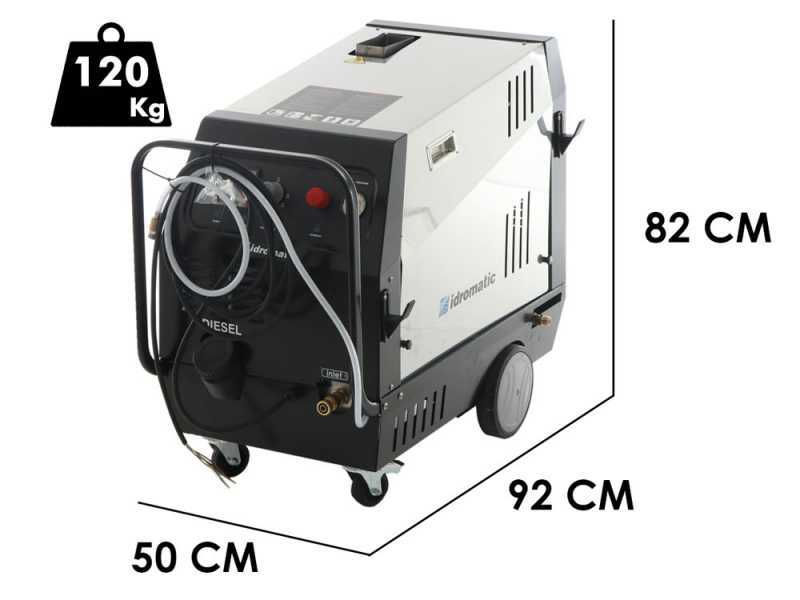

SIZE: 82x92x50 cm

WEIGHT: 120 kg

Free items & Standard equipment

FOR FREE: AgriEuro Detergents Kit for Outdoor Cleaning - 3 Bottles 1 L

This AgriEuro Outdoor Detergents set includes three different 1 L bottles with different features that are essential for the cleaning of outdoor areas.

The set includes:

  • Gral: Gentle, highly effective antistatic cleaner for removing streaks and greasy dirt deposits from various types of surfaces: glass, ceramics, metal, lacquered wood, leather, plastic, etc.
  • Oil & Smog Clean: This alkaline detergent was designed for degreasing equipment, machinery, concrete and tiles effectively.
  • Recommended for removing smog from the front of houses, outdoor staircases and sidewalks.
  • Mold & Moss Clean: This chlorine acid detergent was designed to clean and sanitise at the same time. This product is essential when it comes to removing mold and moss from dark areas and environments where humidity is high. Particularly suitable for removing bad odours. Its high sanitising efficiency eliminates bacteria which cause unpleasant odour through fermentation.



Free Items Included

The Idromatic hot water pressure washer is shipped in its original packaging. It comes fully assembled. You will just need to assemble the lance.

The packaging also includes:

- Professional hydrogun

- High-pressure hose: 10 m

- Instructions Manual
