Honda WH20 Petrol Water Pump with 50 mm fittings - 2'' - self-priming

Add a question
ID: K502149

EAN: 9999237535984

MPN: WH 20

7,6/10
After-sales assistance & Spare parts
Honda WH20 Petrol Water Pump with 50 mm fittings - 2'' - self-priming
+100 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Honda
Motor Model
GX160
Cubic capacity
163 cm³
Nominal power
4.8 HP
Power supply
Petrol
Water pump type
Self-priming
Pump material
Cast iron
Flow rate
500 L/min
Fittings diameter
50 mm
Max. head lift
50 m
Max. suction height
8 m
Contrifugal pump with cast iron pump
cast iron
Engine speed
3600 RPM
Product Features
Model:
WH20
Power supply:
Petrol
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Honda
Motor Model:
GX160
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
4.8 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
2 L
Manufacturing country:
Thailandia
Pump data
Pump brand:
Honda
Water pump type:
Self-priming
Pump material:
Cast iron
Engine speed:
3600 RPM
Fittings diameter:
50 mm
Flow rate:
500 L/min
Max. head lift:
50 m
Max. suction height:
8 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
Thailandia
Equipment
Anti-vibrating system:
Yes
Recoil start system (with rope):
Yes
Contrifugal pump with cast iron pump:
cast iron
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
52x40x45cm
Net weight:
27 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
53x42x48
Gross weight (packaging included) :
28 Kg
Assembly time:
5 minutes
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 21/10/2024 - 23/10/2024
Suggested price:
€ 924,20
€ 846,55
VAT Included

You're viewing:
Customers also viewed:
Description

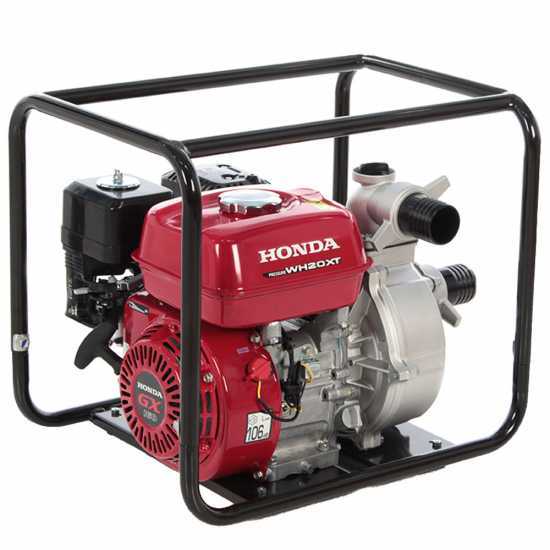

Honda WH20 Water Pump

WH20 water pump is an ideal machine for pumping water at high pressure and push it over long distances.

This pump has unparalleled structure and quality since it is entirely manufactured by Honda, leading company in engine production.

This product is very useful in the absence of electricity, or in the countryside when you need to extract water from a well, from a cistern or ponds and tanks that are difficult to reach, or even when you have to drain a flooded cellar or garage.

Made with abrasion resistant cast iron stator housing and impeller, Honda high-head lift pumps feature vanes specifically designed for improved discharge capacity.

Machine equipped with protective frame.

This model is an excellent compromise between power and size and it is easy to transport.

The pump is self-priming and you can start it by simply topping up the water through the dedicated cap in the pump body.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These water pumps are suitable for transferring water (for example from a cistern to another) of for furrow irrigation in fields and gardens.
We do not guarantee the suitability for combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), and which may require more specific types of pumps for water systems.

Engine Technical Features

Engine features:

Model: GX160 with Oil Alert
Type: 4-stroke, single-cylinder, forced-cooled, OHV
Cubic capacity: 163 cc
Power: 3.5 Hp
Fuel: petrol
Tank: 1.9 L

The engine features recoil start system and a metal tank with fuel shut-off valve.

Focus on the engine adjustment controls that adjust the air control and engine throttle.

The accessories also include an ignition primer to facilitate cold starting.

Water Pump Technical Features

The pump mounted on the WH20 features a cast iron impeller, resistant to abrasion and prolonged pumping works. It can handle debris of max. 3mm diameter

Pump features:

Suction: 50 mm - 2 inches
Discharge: 50 mm - 2 inches
Maximum suction height: 8 m
Max. flow rate: 500 L/min
Max. head lift: 50 m

Focus on the pump filling cap

Machine equipped with protective frame.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

The pump is shipped in its original packaging, equipped with tools for assembly and maintenance, 2 50 mm fittings, metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

Instructions manual included.
