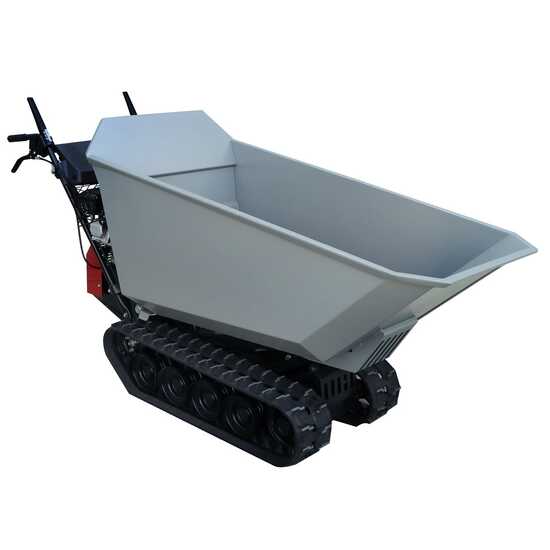

Honda HP 500H IT Tracked Power Barrow - Dumper truck - 500 Kg Load capacity

The Honda HP 500H IT power barrow has a powerful Honda GXV160 engine 163 cc, which is capable of delivering a maximum power of 4.3 HP.

Provided with hydraulic system for lifting the dumper body with a load capacity of 500 Kg / 330 L on level ground. The tracked barrow is equipped with hydrostatic transmission, which allows you to change the speed even during the machine running, without the need to stop the unit.

Large-sized body (143x77x59 cm) and thanks to the hydraulic tipping piston, the loading and unloading operations will be much faster and easier.

The tracked barrow is equipped with hydrostatic transmission, which allows you to change the speed even during the machine running, without the need to stop the unit. It can reach a forward speed of 4.3 km/h and 3.6 km/h in reverse.

Among the other features of this wheelbarrow it is possible to find its tracks, that ensure stability and safety during use of the machine even with a heavy load and gradients that normal wheelbarrow fail to address.

The frameof the machine is designed and built so as to make it lightweight and robust .

Thanks to the self-propulsion on tracks and to the powerful HONDA engine, this power barrow is intended for carrying loads.

• Up to a maximum of 500 kg on flat ground
• Up to a maximum of 350 kg of soils that have a maximum slope of 25%, thus being an indispensable tool for each type of transport.

We remind that it is always good to:
1) check the engine oil level

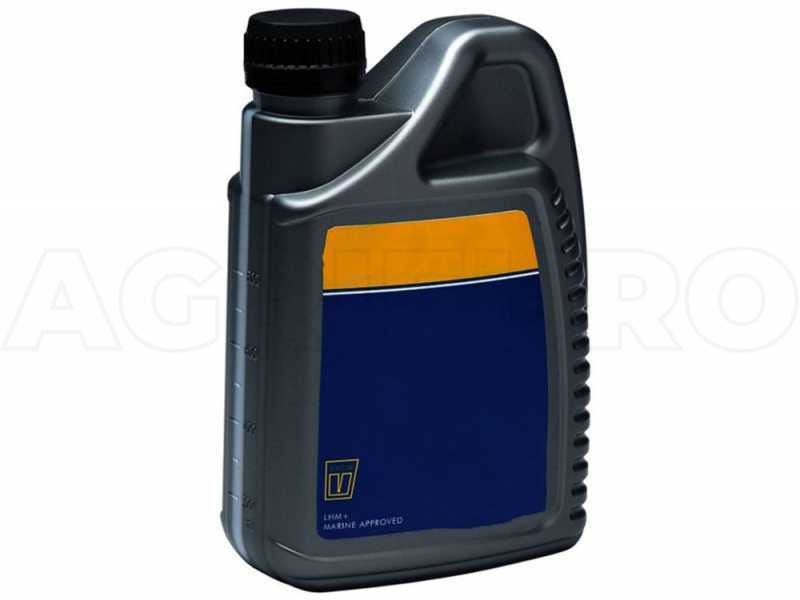

2) put oil in the filter because it is not present (in case of filter in oil bath)
3) carefully read the instructions manual before carrying out any oil check and topping up operation (the manufacturer can modify the supply modalities specified in the two upper points without any prior notice).

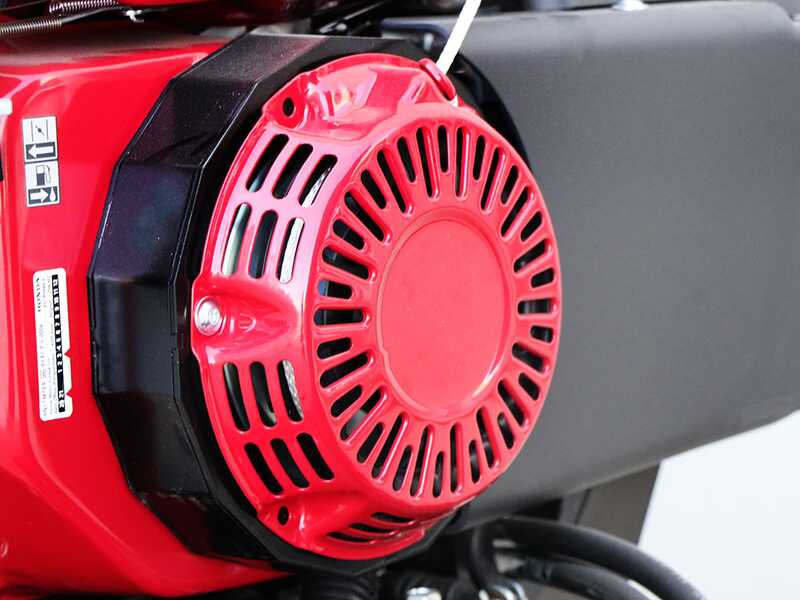

Honda GXV 160
Powerful and professional, with the latest generation technology in OHV valve head.

Features:

Nominal Power: 4.3 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Effective power: 2.7 Hp
It corresponds to the real power expressed by the crankshaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the speed of rotation provided.

This power barrow has a hydrostatic gearbox, which allows you to change speed simply by moving a lever. The gearbox is controlled by the pump unit, which is placed in front of the engine. The pump brings the oil directly from the tank to the transmission box on the tracks and allows it to be moved.

It can reach a forward speed of 4.3 km/h and 3.6 km/h in reverse.

Sturdy gears make the gearbox difficult to break. The hydrostatic transmission is by far the most modern and functional (although more expensive) compared to the traditional manual transmission gears. Whenever the speed is changed, the hydrostatic gearbox forces the operator to stop the unit, change gear, release the clutch and re-start the power barrow at the desired speed. In case of frequent speed variations (e.g. In gardens with trees, vases or other types of obstacles) the traditional gear transmission wouldn’t be practical at all. The hydrostatic transmission, on the other hand, allows immediate speed changes, without ever stopping and in a totally automatic manner, simply by varying the pressure on the drive pedal of this transmission.

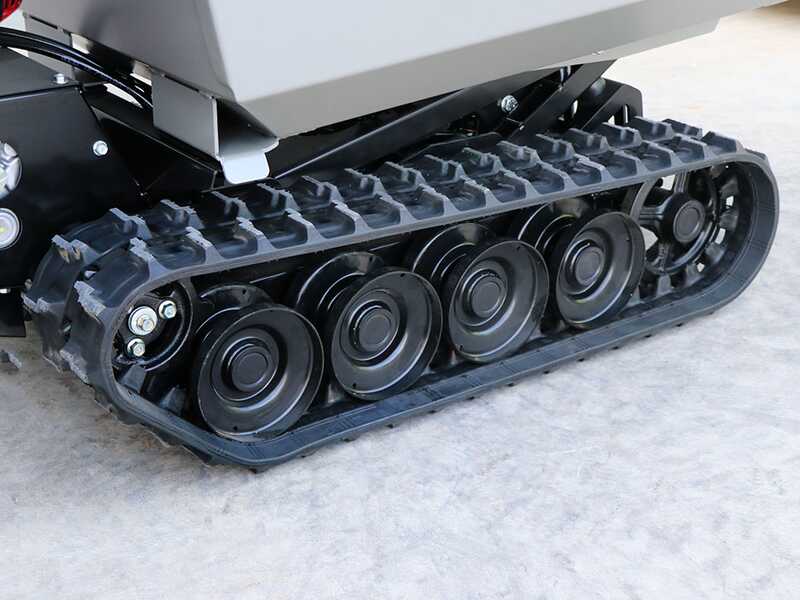

Track structure: sturdy and over-sized. Both the height and the length is greater than the average of the wheelbarrows on the market of the same size. The drive wheel is made of cast iron / steel. The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground. The rollers are self-cleaning.

Track Width: 180 mm

Total track length 106 cm

Barrow made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate the operations of loading / unloading

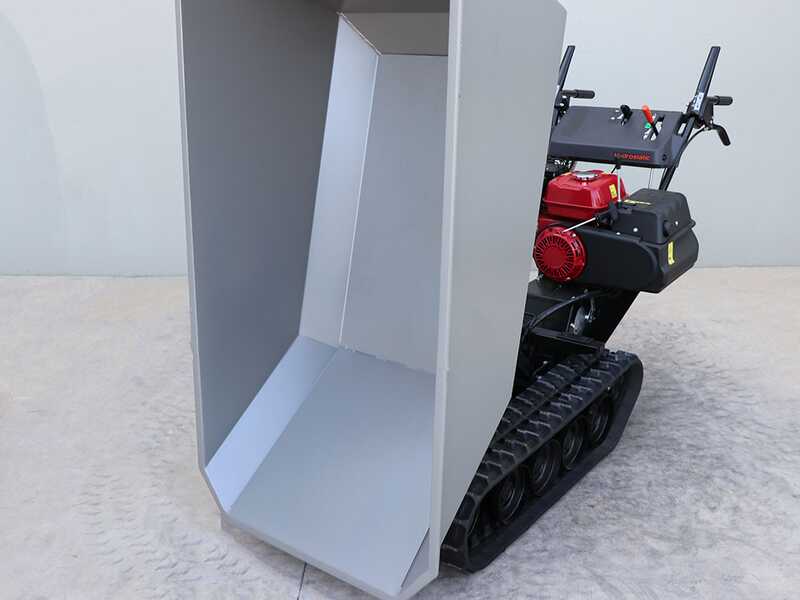

Barrow in the overturning phase

Barrow thickness 2 mm

The load capacity of the power barrow is 500 Kg on level ground and 350 kg on slope (maximum slope 25%)

Barrow dimensions: 143x77x59 cm

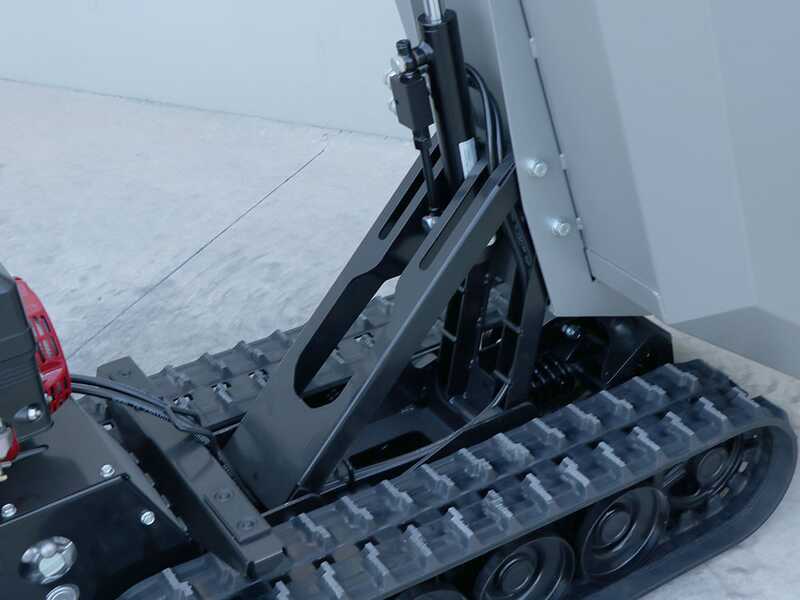

Powerful hydraulic circuit with pantograph system that allows both the body and the shovel to be lifted using the lever on the control panel.

It is characterized by:

• Hydraulic pump
• Sturdy hydraulic cylinder

Maximum tilting angle 90°

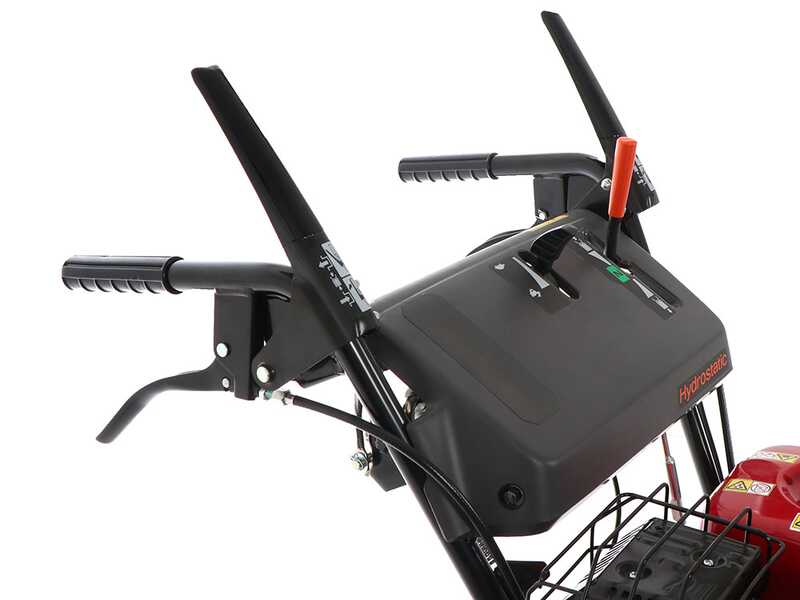

Controls: easy to operate and ergonomic, they offer precision and controllability in the work

Side levers for starting the wheelbarrow, if left in place they act as a parking brake

The two lower levers are for steering, left and right respectively.

The steering can be adjusted depending on the control lever and it allows moving smoothly. If either lever is partially pulled, the steering of the respective track, right or left, will also be partial.
This allows smoothly steering the power barrow without causing abrupt movements.

Throttle lever

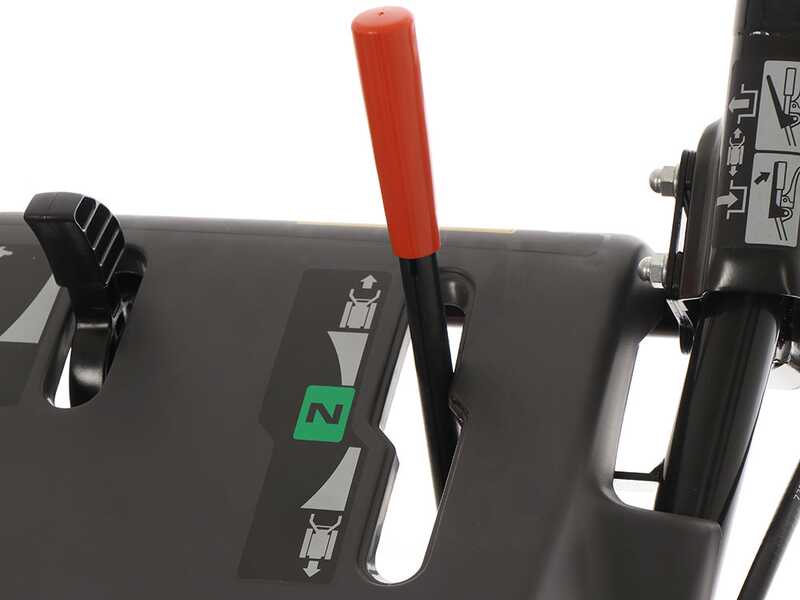

Hydrostatic Transmission

Dumper tipping lever
