Honda EU10i - 1 kW Portable Silenced Inverter Power Generator - DC 0.9 kW Single-phase

Questions & Answers (3)
ID: K502861

EAN: 9999237535892

MPN: EU10i

7,6/10
After-sales assistance & Spare parts
Honda EU10i  - 1 kW Portable Silenced Inverter Power Generator - DC 0.9 kW Single-phase
+200 sold
FREE
Honda cover sheetHonda cover sheet
Honda replacement spark plugHonda replacement spark plug
FOR FREE: Original Honda air filterFOR FREE: Original Honda air filter
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Power supply
Petrol
Type
Portable
Electric Current
Single-phase
Single-phase rated power
0.9 kW
Max. power
1 kW
Inverter technology
Yes
Silenced
Yes
Motor brand
Honda
Motor Model
GXH50
Cubic capacity
49.4 cm³
Battery charger
Yes
Product Features
Model:
EU10i
Power supply:
Petrol
Type:
Portable
Electric Current:
Single-phase
Voltage stabiliser:
Inverter
Single-phase power supply 220 V:
Yes
Frequency:
50 Hz
Inverter board:
Yes
Single-phase rated power :
0.9 kW
Max. power:
1 kW
Electric start:
No
Motor data
Motor Model:
GXH50
Cubic capacity:
49.4 cm³
No. of cylinders:
1
Silenced:
Yes
Fuel:
Petrol
Tank capacity:
2.1 L
Working autonomy:
3.3 h
Noise level:
87 dB(A)
Manufacturing country:
Thailandia
Equipment
Automatic Transfer Switch (ATS):
No
Inverter technology:
Yes
Battery charger:
Yes
Shuko power outlet:
1
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Male Shuko + Euro plugs:
1
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
45x24x38 cm
Net weight:
13 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
45x28x41 cm
Gross weight (packaging included) :
16 Kg
Assembly time:
Assembled
Prompt Delivery
31 items in stock
Free Shipping
Estimated delivery: 18/10/2024 - 22/10/2024
€ 1.175,29
VAT Included

You're viewing:
Customers also viewed:
Description

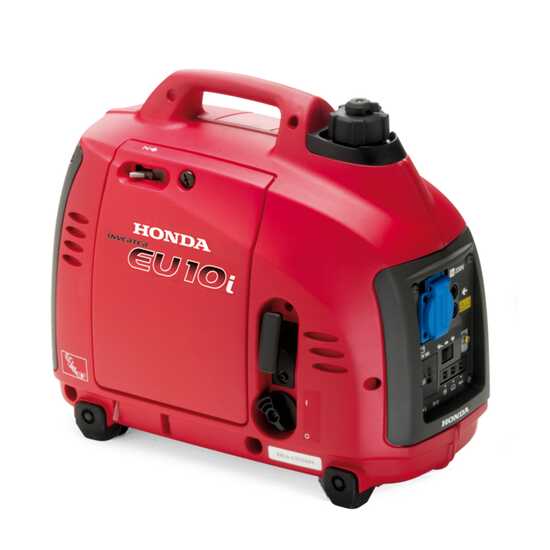

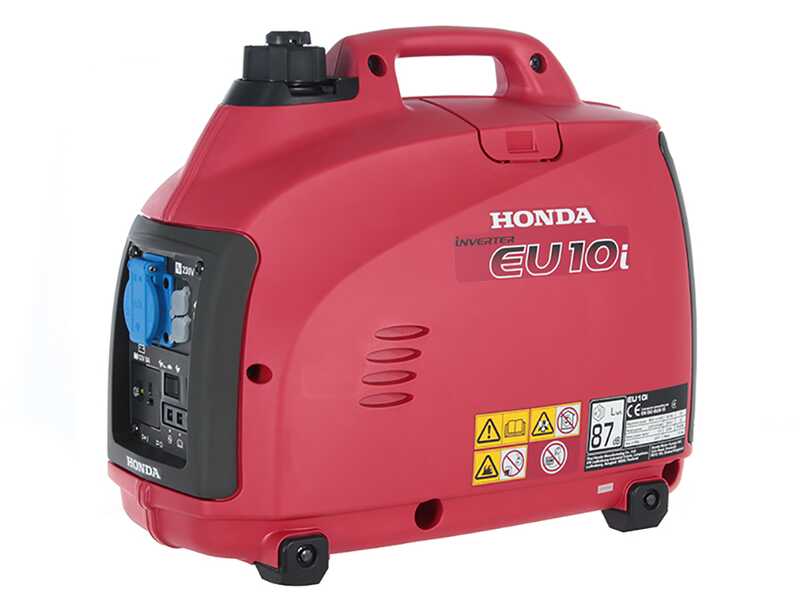

Honda EU10i Silenced Inverter 1 KVA Generator

The Honda Eui10 generator has an unparalleled constructive and quality level being entirely built by Honda, a leader in the production of engines.

The inverter technology:

This generator produces electrical energy with a constant frequency and voltage, regardless of the variation of the load and the engine speed; this is made possible by the use of an electronic converter that disengages the amplitude of the input voltage from the output.

Unlike traditional generators, a permanent magnet generator is used together with a speed monitoring system of the engine rpm according to the actually used power, which allows a significant reduction of fuel consumption and less noise with the use of average loads downs.

The reliability and the quality of the energy produced with this system allows the power supply of electronic equipment such as computers, medical equipment, measuring instruments, and any particularly device sensitive to variations in voltage and frequency.

Silenced Generator:

this aspect allows the use in camping sites, mobile homes, in public places, homes, condos, villas, townhouses, hobby or wherever it is required silent electricity.

Noise level at mt: 87 db


CAUTION: All power generators like this, belonging to one of the lowest levels of the PROFESSIONAL level products (refer to the product level rating scale used on this site) should not work for longer sessions of 3-4 hours continuously, in order to not to compromise in the medium-long term durability of the alternator and other components due to overheating or to wear. The same problem would present itself if these products were to be used daily or at least frequently. In all these cases we recommend to opt for generators classified as least as PROFESSIONAL, as listed on the rating scale on this website..

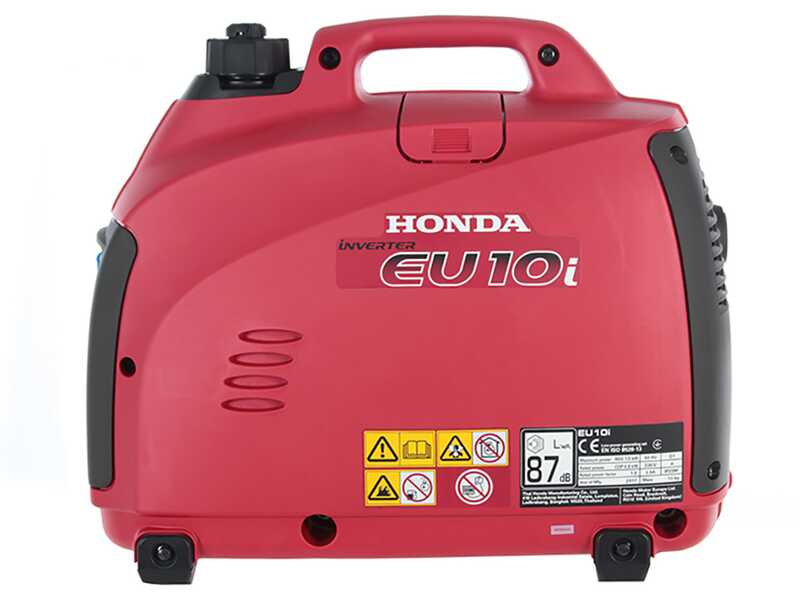

Alternator and Technical features

Maximum nominal power: 1.0 KVA

Nominal power in continuous running (COP): 0,9 KW
*This s the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

TECHNICAL DATA:

VOLTAGE: 230 volts
FREQUENCY: 50 Hz
TANK CAPACITY: 2.1 L
Autonomy (at 100% load): 3h30 hours
Weight: 13 kg

Engine and Silencer

ENGINE TYPE: 4-stroke petrol GXH 50

DISPLACEMENT: 49.4 cc
APPROX. CAPACITY OIL: 0.25 lt
COOLING: air
STARTER: recoil with self-recovery
AUTONOMY : 3H 30

WARNING: Motor without oil
(Put oil for 4-stroke engines before starting the machine)

Major advantages over conventional 2-stroke mixture engines:

  • Greater reliability
  • Higher durability
  • Easier start especially after long periods of inactivity
  • Lesser problems related to the preparation and to the fuel freshness
  • Lower fuel consumption (less than half!).
  • Less maintenance

Start: Recoil start with self recovery

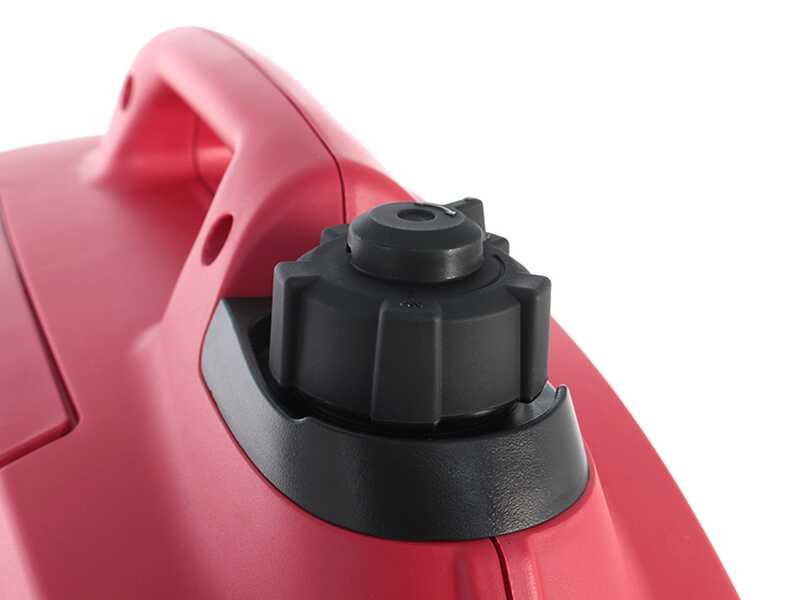

Focus on the fuel plug equipped with ventilation valve (to open in the starting phase, to be closed during storage)

Spark plug compartment

Air lever for cold start engine

Petrol supply tap

Silenced generator. The silencer allows you to use the current generator for camping, caravans, in public places, homes, condos, villas, townhouses, hobby or wherever it is required silent electricity.

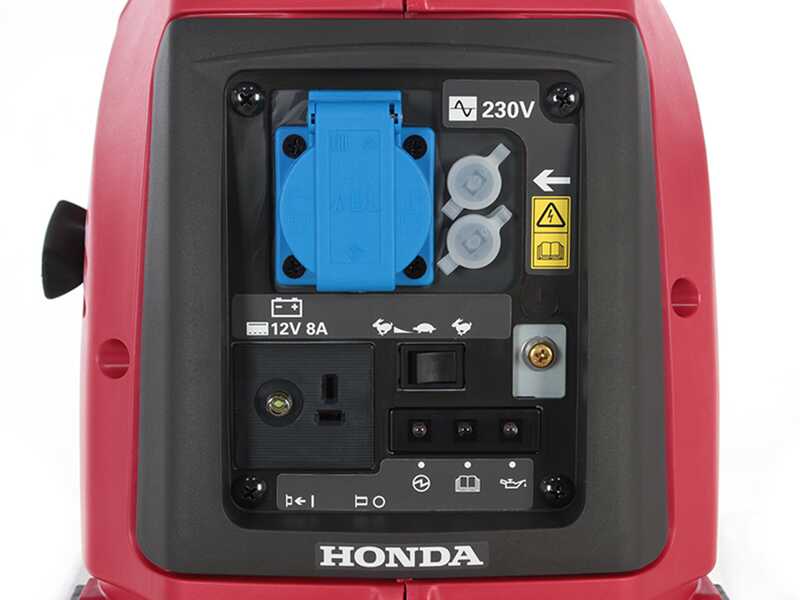

Control Panel

1 Schuko CE power outlet with delivery at 220 volts

1 taken parallel connection By connecting a second generator of the same model it is possible to double the output power.

Charger socket:
The charger is equipped with overload circuit, which can activate the charger protection device.
If this happens, you should hold the reset button (on the side)

Smart-Throttle switch: when they are not connected to the generator equipment, or when the power is off and there is no consumption of energy produced by the generator, it works in gasoline saving mode. This device is used to minimize fuel consumption and reduce noise levels when there isn’t any load applied to the generator. When recovering the energy consumption by connecting or switching on the equipment, the generator automatically switches to the correct speed so as to deliver sufficient current. * This function should only be used with the power supply 220 volts (not with the battery charger)

INDICATING LIGHTS:

- RIGHT LIGHT: Oil warning system. Designed to prevent engine damage caused by an insufficient amount of oil. Before the oil level can drop below the safety limit, the red oil warning light turns on and the oil alarm system will stop automatically the engine. * Warning: the engine is provided without oil.

- LEFT LIGHT: Electricity supply. It subsequently illuminates when power switch is on. Under normal conditions this green light should be the only one turned on.

- CENTRAL LIGHT: Overload warning. If the generator is overloaded or if there is a malfunction or a short circuit in a device connected, this red overload indicator lights up. After, it will stop the power supply and the green light will turn off.
In this case, stop the engine and find out the cause of the overload

Additional Features

Focus on the supporting rubber feet which guarantee maximum stability

Focus on the recoil starter

Transport handle

Exceptionally low weight: only 13 kg!

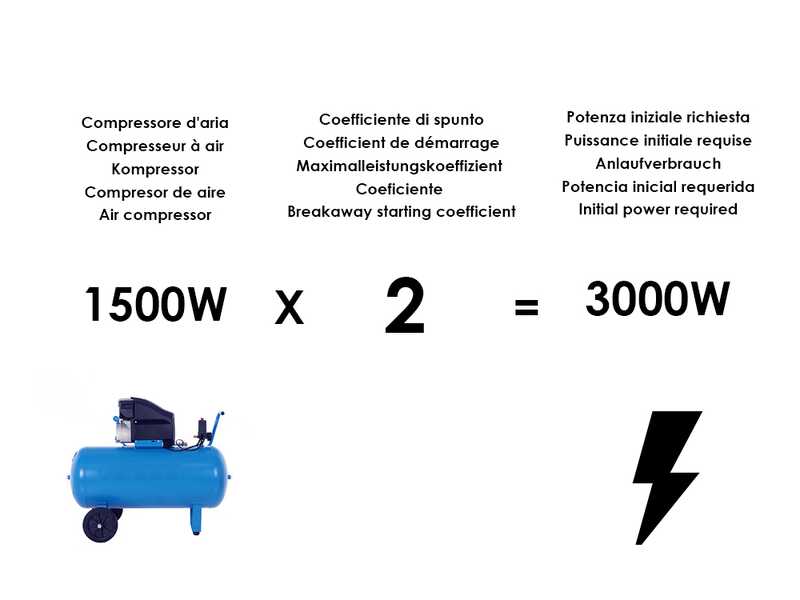

How To Select The Correct Power Rating Of The Generator

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

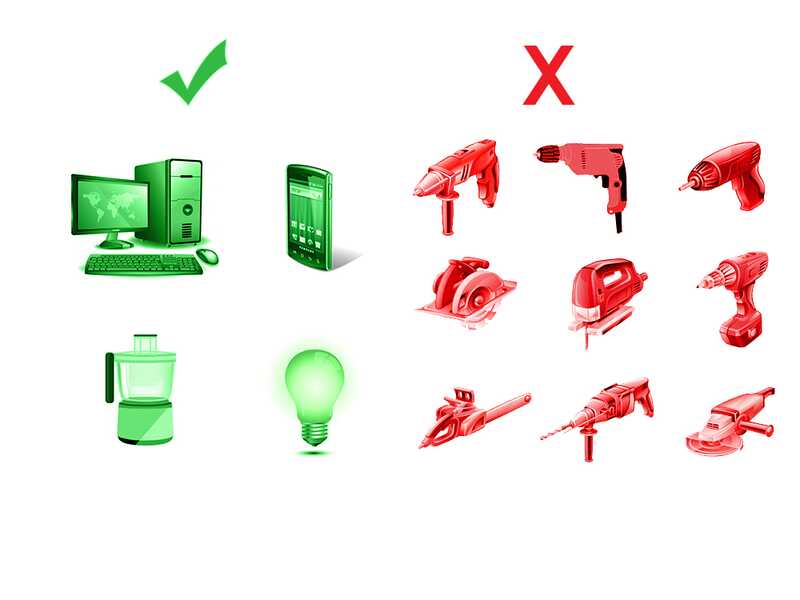

Inverter Generator – Warnings And Range Of Application

  • This inverter generator is equipped with an electronic card in order to stabilize the output current, generating an almost perfect wave.
    This makes it particularly suitable for application in certain uses, but also not suitable for other.
    Some examples of FIELD OF APPLICATION : Feeding of all kinds of electronic equipment (being equipped with electronic card which consequently require a very stable power to avoid the risk of damaging such cards), appliances, equipment and kitchen and domestic equipment, lights and lamps; In conclusion they are specific to a strictly domestic use or for vacation and leisure use (in a camper, boat, etc ...)

    Some examples of NON APPLICATION FIELDS : Construction equipment, workshop equipment, do-it-yourself, welding machines, equipment of any kind equipped with brush motors (which in the event of wear on the brushes can move back towards the generator some power surges that can damage the the generator electronic card); basically, for all this list of working, construction or artisan equipment, an inverter generator is too delicate and therefore inadequate, therefore it is necessary to focus on a classic generator, not with inverter card, but equipped with the classic alternator with stator and heavy rotor, most suitable for powering this equipment.

    We remind you that the inverter generator was designed for NOT PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator;

    The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

FOR FREE: Honda cover sheet

FOR FREE: Practical original Honda branded cover suitable for the EU10i model for covering the generator during storage.

Cover equipped with a practical opening pocket for easy access to the product handle without having to remove the cover

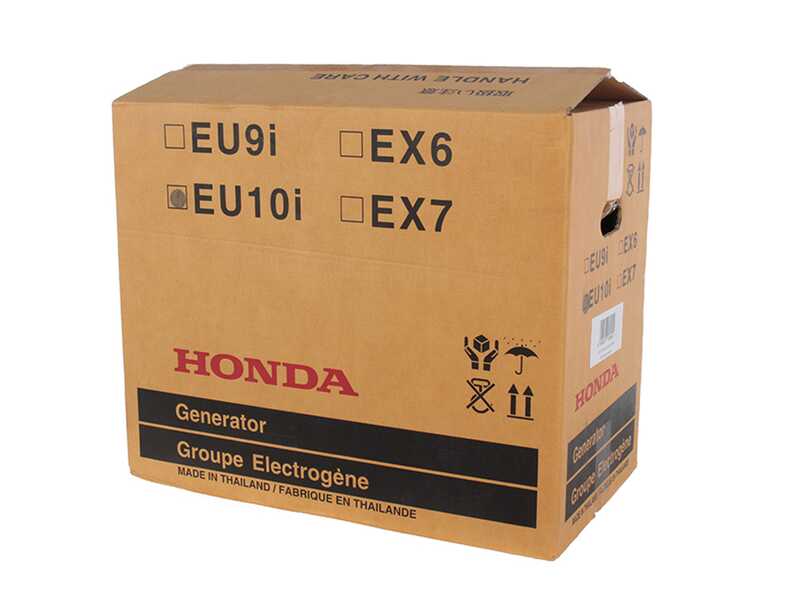

Standard Equipment

Product shipped in its original box, along with

  • Spark plug wrench
  • Instructions manual
