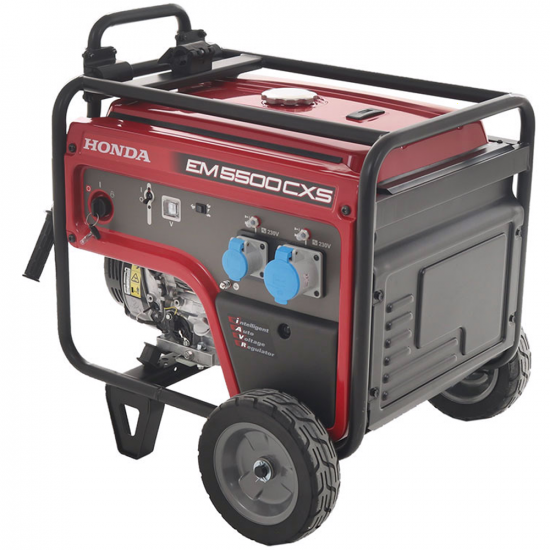

Honda EM 5500CXS - 5.5 kW Wheeled Petrol Power Generator with AVR - DC 5 kW Single-phase

The EM 5500CXS single-phase gasoline generator is a product by Honda a brand leader in this sector. This is a professional generator suitable for use in many applications and can meet the needs of businesses. The generator can emit a maximum power output of 5.5 kW.

The generator is equipped with two large wheels and handle, that can be closed, located on the upper part which allow to transport it very easily so to have it on hand wherever needed. The rubber support located under the engine are inclined to an angle of 45 degrees so to reduce even further the vibrations produced, even compared to the normal rubber supports that stand straight.

The generator is equipped with a powerful engine Honda i-GX390 with a displacement of 389cc . The engine is able to issue a nominal power of 11,7 HP .

The machine is equipped with the safety system oil alert that automatically stops the engine in case of lack of 'oil level.

The Honda engine and the alternator make of this generator a product that is really positioned at the top among the products of its kind.

The intelligent automatic voltage regulator (I-AVR) offers high loading performance goodwill and is therefore ideal for construction sites, for the hospitality industry, emergency services and generators for homes. And thanks to stable voltage and frequency, is particularly suitable for welding machines and compressors.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

Maximum single- phase power disbursement: 5,5 Kw

Nominal power in continuous running (COP):5,0 KW

Voltage: 230V

Operating frequency: 50 Hz

Nominal amperage: 21.7

Fuel tank capacity: 24.0 L

Size: 72x71x77 cm

Weight: 107 kg

The machine is equipped with the safety system oil alert that automatically stops the engine in case of lack of oil level.

Maximum single- phase power disbursement: 5,5 Kw

Nominal power in continuous running (COP):5,0 KW

Voltage: 230V

Operating frequency: 50 Hz

Nominal amperage: 21.7

Fuel tank capacity: 24.0 L

Size: 72x71x77 cm

Weight: 107 kg

The machine is equipped with the safety system oil alert that automatically stops the engine in case of lack of oil level.

-------------------------------------------------------------------

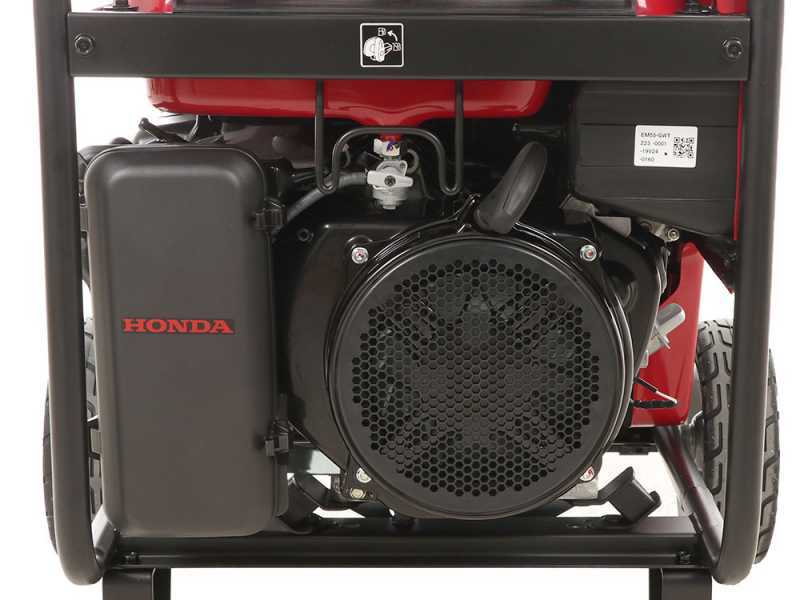

The Honda GX 390
engine is professional, powerful and with the latest generation technology in OHV valve head.

Features:

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.

Many other Honda engines on the market mount the "GP" series which was developed for limited and domestic use and is qualitatively lower than the first and with a lower cost.

GX SERIES GP SERIES

The HONDA engines of the GX Series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

ATTENTION

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Rated Power: 11.7 HP

* The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers. This technical detail is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power.

Effective power: 9.4 HP

* It corresponds to the real power expressed on the cutting organ in working phase. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

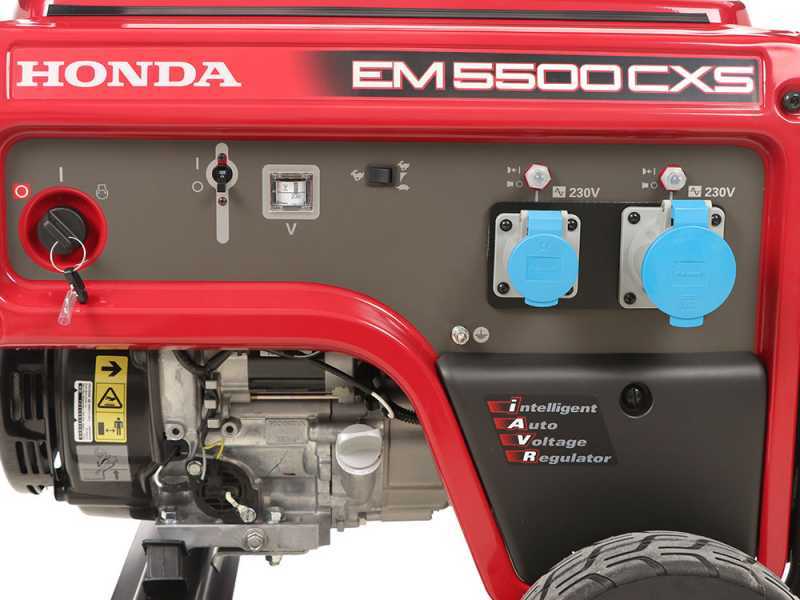

Electric control panel.

Sockets:

1 CEE industrial socket 16A 230 V single-phase and 3-pole breaker protection

1 CEE industrial socket 32A 230 V single-phase and 3-pole breaker protection

Breaker to attach and detach the power

Electric start with ignition key

Energy saving function

Focus on the steel tank and the fuel level indicator

Focus on the anti-vibration grommets

Focus on the wheels.

Focus on the rear feet

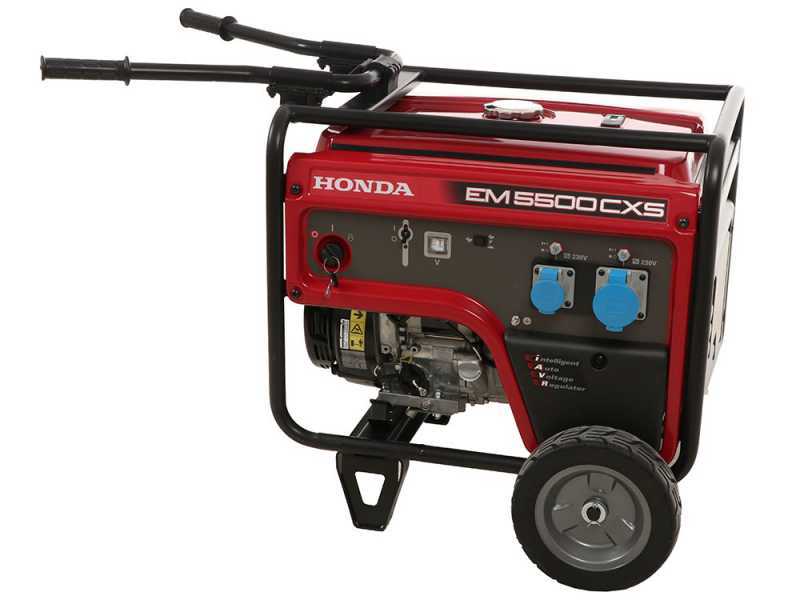

Handles for transportation

Focus on the handle block

Focus on the oil tank plug

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).
