Grifo SPB - Tomato Press with Bench - 375W - 220V Electric Motor

Add a question
ID: 113695

EAN: 8015301023087

MPN: SPB

8,3/10
After-sales assistance & Spare parts
Grifo SPB - Tomato Press with Bench - 375W - 220V Electric Motor
Motor type
Induction
Rated power
0.5 Hp
Tomato press attachment size
No. 5
Machine body material
Cast iron
Funnel and chute
Plastic
Hourly output
300 Kg/h
Nominal power (W)
375 W
Transmission type
Belt
Removable drum
yes
Weight
18 Kg
Manufacturing country
Italy
Product Features
Model:
SPB
Machine body material:
Cast iron
Power output:
375 W
Operating mode:
Electric 230 V
Hourly output:
300 Kg/h
Multi tool:
No
Manufacturing country:
Italy
Motor data
Motor type:
Induction motor
Motor type:
Induction
Rated power:
0.5 Hp
Nominal power (W):
375 W
Power supply:
220 V electric
Motor protection:
IP 54
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Pulleys material:
Metal alloy
Transmission protective cover:
Yes - Plastic
Cutting data
Removable drum:
yes
Filter material:
stainless steel
Filter length:
20 cm
Funnel material:
Plastic
Funnel diameter:
26 cm
Tomato press attachment size :
No. 5
Funnel and chute:
Plastic
No.3 Accessory:
Chute shield material:
Food-grade plastic
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

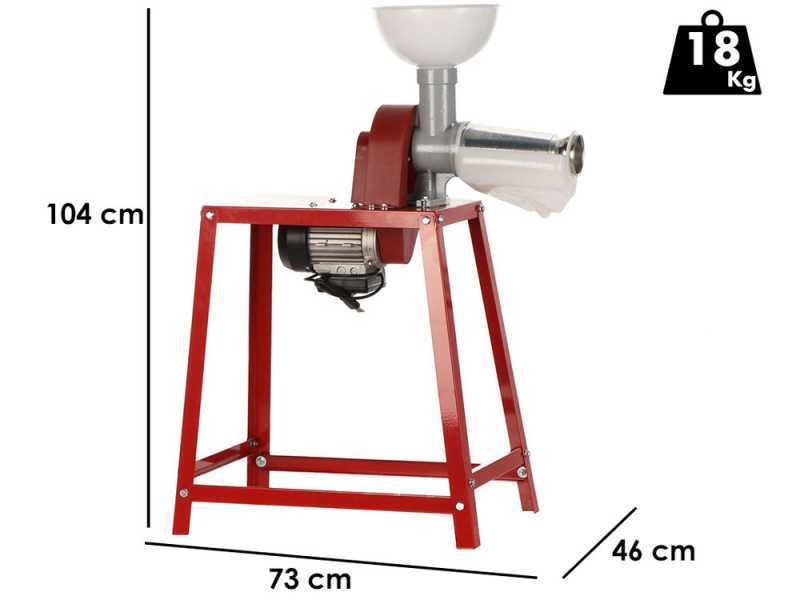

Product dimensions in cm (L x W x H):
73x46x104 cm
Net weight:
18 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
53x47x37 cm
Gross weight (packaging included) :
21.6 Kg
Assembly time:
15 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 25/02/2025 - 27/02/2025
Suggested price:
€ 261,61
€ 251,15
Vat included
You're viewing:
Customers also viewed:
Description

Grifo SPB Tomato Press with Bench

The Grifo SPB professional tomato press is a tomato sauce processing machine created specifically to be used while assembled on its own bench, ergonomically designed for easy use and clean-up.

The machine body and ferrule are both made of food-grade polished die-cast aluminium, while the other components, such as the casing, funnel, chute and chute guard are made of food-grade PPL. Only the filter, or strainer, is made of stainless steel.

One of the great advantages of this machine is definitely its user-friendliness, since it can be completely disassembled and easily washed.

Equipped with a 220V-powered electric induction motor and a waterproof switch, the LC PLAST professional tomato press is certified in accordance with Machinery Regulation 89/392.

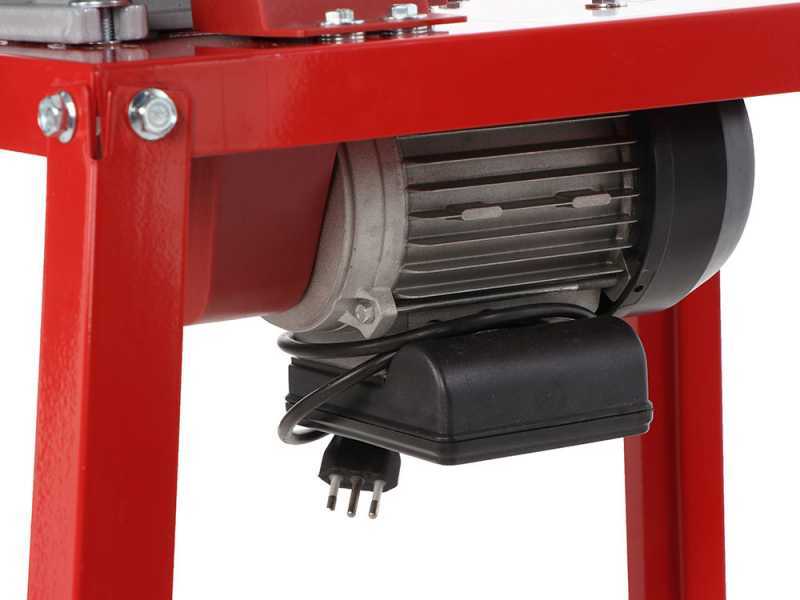

Motor and Transmission

This machine is fitted with an asynchronous 220 V single-phase induction electric motor that develops a maximum power of 0.5 HP.

The crankshaft is connected to the worm screw by the pulley-pair transmission connected by V-belt.

The transmission also acts as an engine speed reduction function, optimizing the operation of the machine.

ATTENTION: the machine is entirely made of food-grade materials, but leaves the factory unwashed in its internal components. We recommend grinding two kilos of tomatoes and throwing them away in order to obtain a perfect cleanliness of the internal parts and the removal of any possible remnants of processing left inside (including small fragments of plastic, metal or tin).

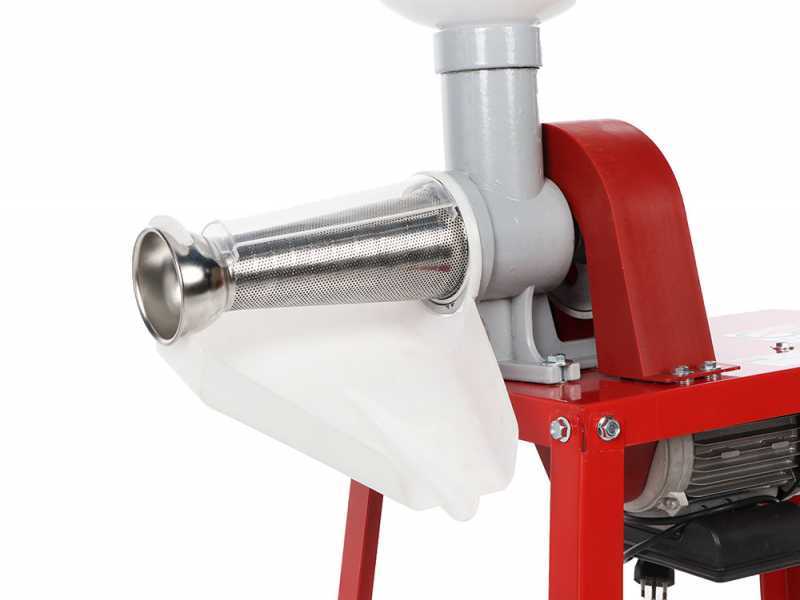

Machine Body and Components

The tomato press features elements made of food-grade copolymer polypropylene except for the filter, which is made of stainless steel, the machine body, and the ferrule, which are instead made by die-casting aluminium.

20 cm long stainless steel filter (strainer)

26 cm diameter food grade copolymer polypropylene funnel

Food-grade copolymer polypropylene chute and chute cover

The pestle is made of food-grade copolymer polypropylene

The worm screw is made of tin-plated cast iron.

49x31 cm steel work table painted with epoxy polyester type powder coating

Free items & Standard equipment

Standard Equipment

The tomato press is shipped in its original packaging, with assembly and operating/maintenance instructions in Italian and in English.

1 pestle included in the packaging.
