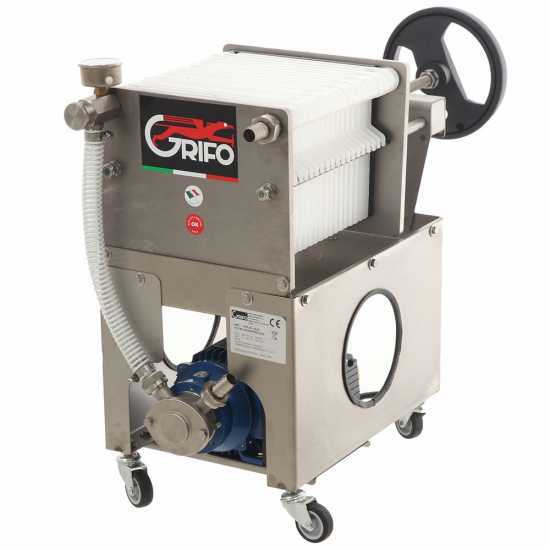

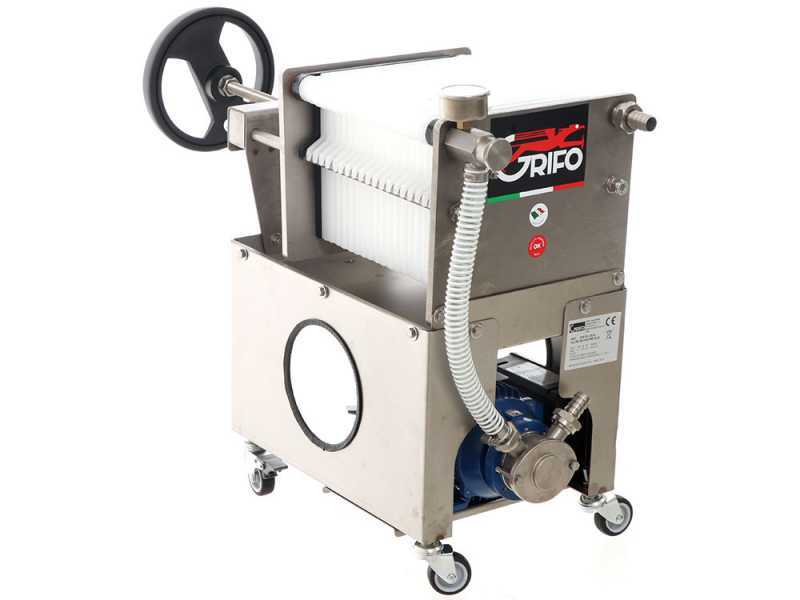

Name: Grifo Professional FCP20-Olio - Wheeled Oil Carton Filter - Liverani Stainless Steel Pump
Brand: GRIFO
SKU: K503932
Price: 1164.75 EUR
Availability: InStock

Description

Grifo FCP20-OLIO Plate Filter for Oil with Oil Filtering Pump

The FCP20-OLIO PROFESSIONAL sheet filter for oil with 20 filter sheets belongs to the “Professional” range.

This machine is designed for filtering food liquids and is built with high quality construction materials.

The FCP20 oil filter is practical and easy to use and guarantees high product filtration.

The machine frame and powerful pump are entirely built in AISI 304 stainless steel which stands for high hygiene and durability.

It features linear nylon filter plates between which the filter sheets are inserted, a pressure gauge and a flow regulation valve.

The filter can house up to 20 filter sheets, but it can also work with a lower number, thus decreasing the quantity filtered per hour.

Extra fast and easy assembly and immediate replacement of the filter sheets and more importantly, liquid leakage that can occur during filtering operations drastically reduced.

The machine is mounted on a stainless steel wheeled frame and features a built-in drain liquid collection tray.

Grifo Professional FCP20-Olio - Wheeled Oil Carton Filter - Liverani Stainless Steel Pump

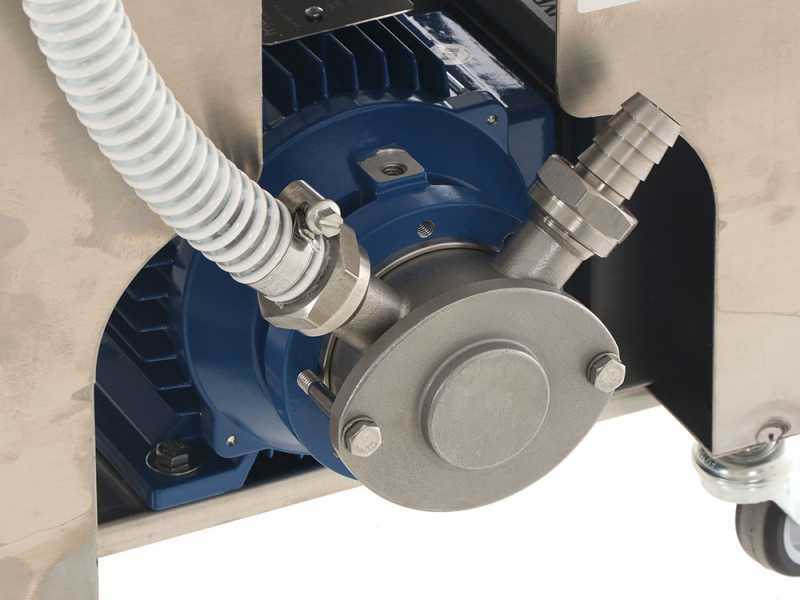

Liverani EP MINI 3/4 pump

Stainless steel flexible impeller pump and nitrile impeller.

These pumps work at lower revolutions than other pumps to avoid heating and damaging the oil during filtration or transfer.

The gaskets located between the filter plates are in silicone.

The plates are the same in all filter types, the filter sheets that are mounted on them are V0 and E4 types.

When detached from the filter, the filtering pump can also be used as a common transfer pump.

The pump can also operate with fewer than the 20 filter sheets for which it is designed.

Possibility of using a smaller number of filter plates for operation.

Pump characteristics: 230 V - 50 Hz - Single-phase - 2.1 Ah - 0.5 Hp - 0.37 Kw

Filtering system with 20 filter plates

No. 20 filter plates.

It can house up to 20 20x20 cm filter sheets

Hourly filtering capacity: 100 L

This particular type of filters allows to obtain excellent levels of drinks purification without altering the fundamental characteristics of the filtered liquid. For this reason, it is mainly used for domestic filtering operations, but also at a professional level, such as in wine cellars, pharmaceutical factories, laboratories, breweries, and wherever it is necessary to filter a drink in order to serve or bottle it perfectly clear, without any trace of residue.

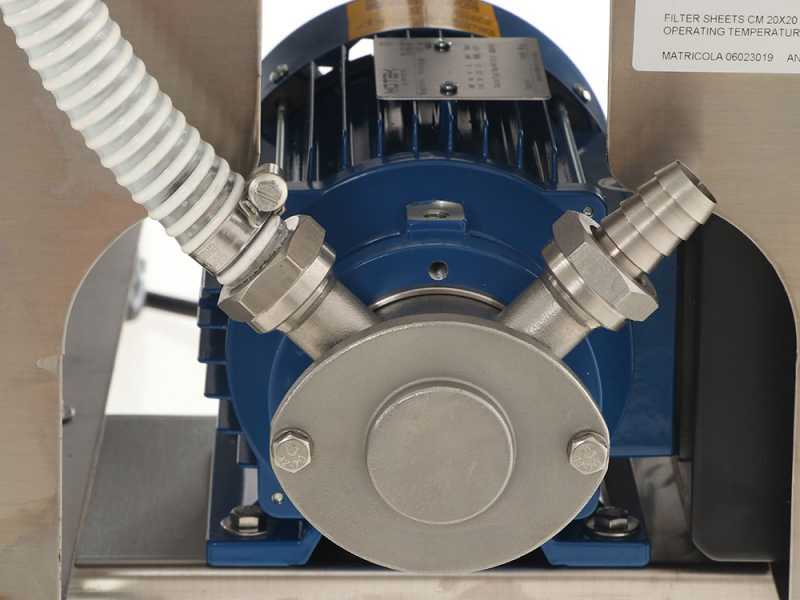

0.5 Hp electric motor

The Grifo FCP20-OLIO oil filter mounts a Liverani EP MINI 3/4 filtering pump which guarantees long service life.

This motor is capable of delivering a power of 0.5 Hp

Additional technical features:

power supply: 230 V - 50 Hz
motor rpm: 900 rpm
Kw: 0.37

Other features

Focus on the filters clamping flywheel

Focus on the power switch to turn the electric motor on

Focus on the 20 mm fittings.

Focus on the coiled connection hose between the filtering stage and the pumping stage

Focus on the pressure gauge with regulator to keep the pressure under control

Particularly sturdy frame made of thick enamelled steel.

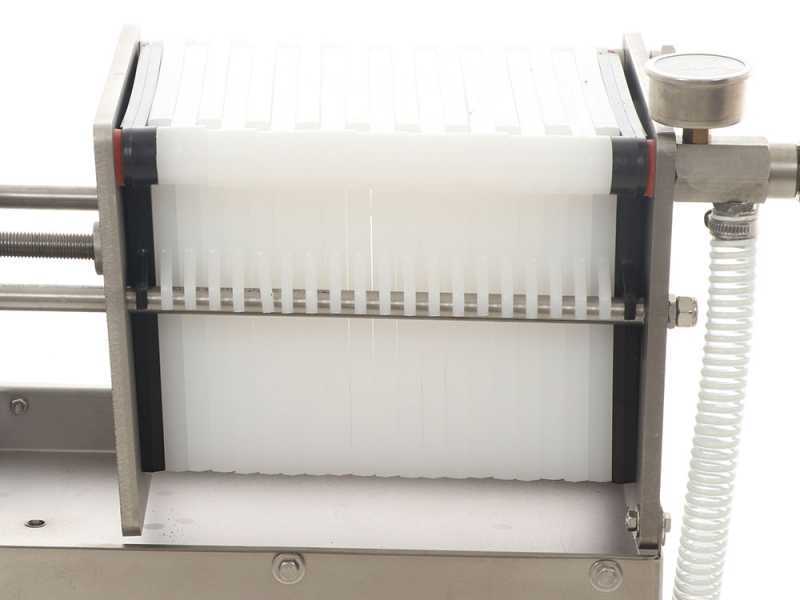

Focus on the filter plates.

Drain liquid recovery tray.

Drain tap for the liquid recovery tray.

Pivoting wheels.

Free items & Standard equipment

COMPLIMENTARY: Filter sheets

No. 18 00 type filter sheets for oil filters No. 1 packaging including: 18 “00” type filter sheets for ROVER filtering pump

FILTER SHEETS TYPES FILTERING GRADE 0 - Roughing - 25 micron 4 - Roughing/medium-clarifying - 10 micron 8 - Medium-polishing - 3 micron 12 - Polishing - 1.5 micron 16 - Polishing/medium sterilising - 0.9 micron 20 - Sterilising - 0.7 micron 24 - Sterilising with highest retention - 0.25 micron 00 - Oil filtering - 45 micron GENERAL USE OF FILTER SHEETS 0-4: suitable for filtering wine after fermentation. They retain the larger particles in suspension, so they do not produce a good finish to the wine. 8-12-16: used to retain the smaller particles and give a good gloss to the wine after transferring. To be preferred as a second filtration. 20-24: they give gloss to the wine because they remove micro impurities in suspension. Use these filter sheets only after filtering the wine at least once with finishing filters (8-12-16).
