Grifo Hobby 10 - Plate and Sheet Filter for Wine - Wine Filtering Pump

Add a question
ID: 112259

EAN: 8015301015037

MPN: FCH10

8,3/10
After-sales assistance & Spare parts
Grifo Hobby 10 - Plate and Sheet Filter for Wine - Wine Filtering Pump
Body material
Enamelled steel
Type of filter sheets
20x20 cm
No. of filter sheets
10
Portable
Motor type
Induction
Nominal power
0.5 HP
Pump material
Bronze
Fittings diameter
20 mm
Manufacturing country
Italy
Product Features
Model:
Hobby 10
Type:
a piastre e cartoni
Body material:
Enamelled steel
Portable:
Operating mode:
Electric 230 V
Type of filter sheets:
20x20 cm
No. of filter sheets :
10
Manufacturing country:
Italy
Motor data
Motor type:
Induction
Nominal power:
0.5 HP
Motor speed:
2800 RPM
Power supply:
220 V electric
Manufacturing country:
Italy
Pump data
Pump brand:
Grifo
Pump material:
Bronze
Fittings diameter:
20 mm
Flow rate:
250 lit/h
Manufacturing country:
Italy
Equipment
Lifting handle:
Yes
Drain liquid recovery tray:
Yes
Pressure gauge:
At the inlet/outlet
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics

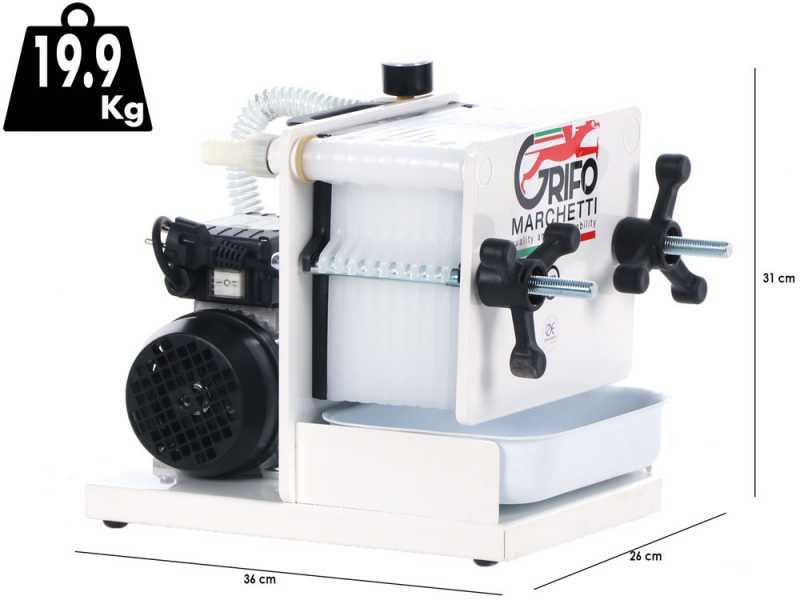

Product dimensions in cm (L x W x H):
36x26x31 cm
Net weight:
19.9 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
43x32x34
Gross weight (packaging included) :
19.9 Kg
Assembly time:
Assembled
Prompt Delivery
5 items in stock
Free Shipping
Estimated delivery: 01/08/2024 - 05/08/2024
€ 296,06
VAT Included

You're viewing:
Customers also viewed:
Description

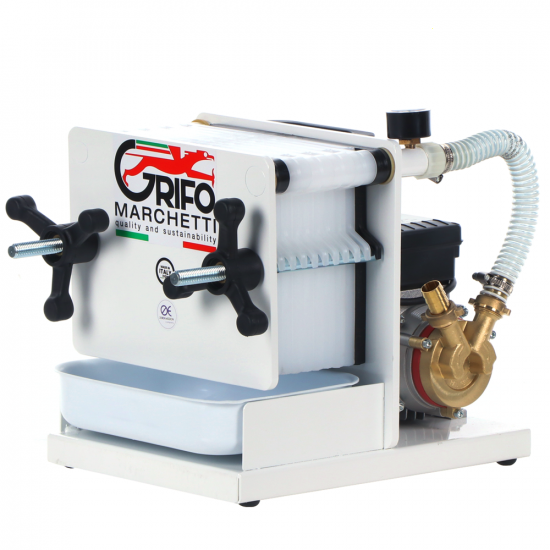

Grifo Hobby Plate and Sheet Filter for Wine

New Grifo Hobby 10-plate filter pump ideal for natural food processing.

With a practical and intuitive design, the FCH10 filter features a sturdy enamelled steel construction. High-quality, thick and durable linear nylon plates to achieve support for the filter layers.

This machine is able to store up to 10 filter cartons simultaneously, allowing you to refine, polish and even sterilize a wide range of liquids, including wines, beers, oils, juices, vinegars, liqueurs, natural essences, herbal products and cosmetics.

Equipped with a pressure gauge to monitor the pressure and a liquid collection tray, the FCH6 filter can meet your needs.

If required, you can use fewer filter cartons, such as for example 4, by simply removing unnecessary plates. By doing this, the filtered quantity will slightly decrease, but the filtering process quality is not altered.

Chose the FCH6 filter to enhance the level of your home filtration operations.

With high-quality materials, thoughtful design, and versatility of use, this tool proves to be indispensable for obtaining liquids with impeccable taste and appearance. Thanks to the FCH10 filter, make the filtering process easier. The perfect tool for cosmetic, food and wine perfection.

Bronze pump

ADVANTAGES OF THE NEW BRONZE PUMP WITH REVERSED IMPELLER SYSTEM

  • Hourly production of 250L
  • pump life is definitely increased. This is a fundamental aspect since these pumps are subjected to a continuous working effort due to the plates filtering system applied to them
  • greater constructive simplicity
  • less mixing of wine or filtered liquid
  • patented system

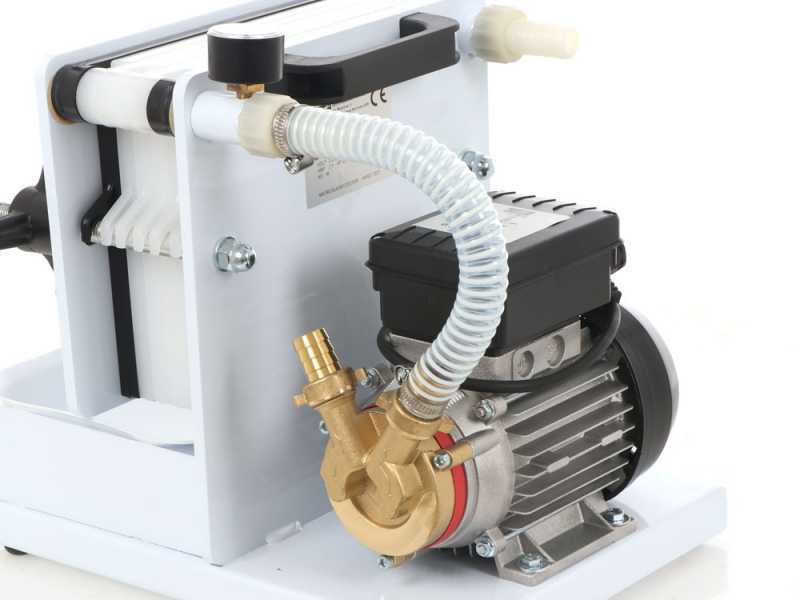

Pump body

The pump is self-priming, designed specifically for the operation of this wine filter.

Focus on the pressure gauge for pressure control

20 mm bronze fittings

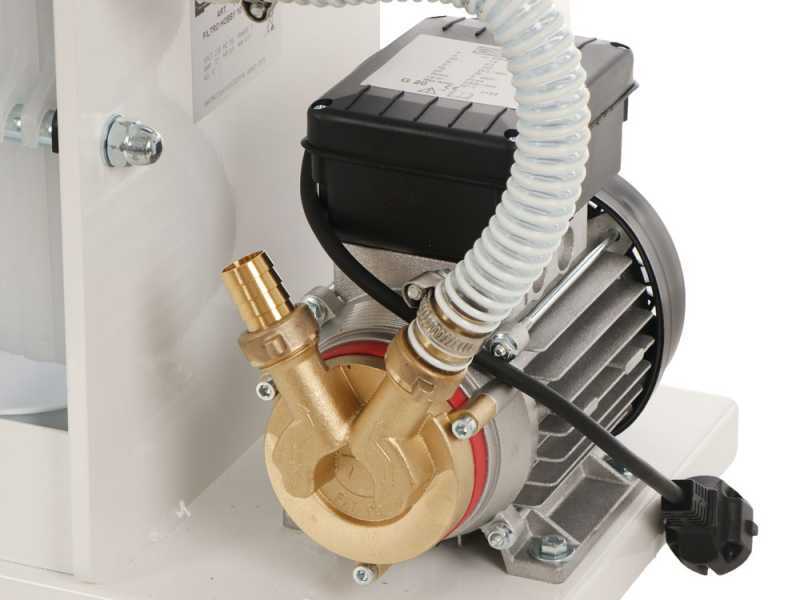

0.5 Hp electric motor

The Grifo Hobby wine pump is equipped with an electric induction motor which guarantees a long service life.

This motor is capable of delivering a power of 0.5 Hp

Additional technical features:

  • power supply: 230 V - 50 Hz
  • motor rpm: 2800 rpm

Power switch

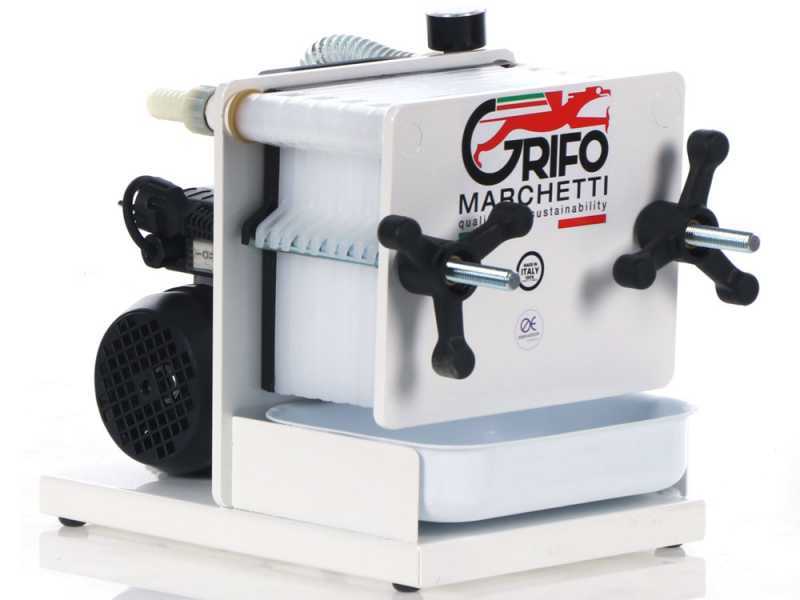

Filtering system with 7 filter plates

Top-quality linear nylon plates, renowned for their strength and optimal thickness. Within these plates, the necessary filter layers are carefully housed. Its structure allows it to accommodate up to 10 filter cartons simultaneously, offering the ability to perform roughing, polishing and sterilization processes (using the appropriate filter layers) on a wide range of beverages and liquids, such as wines, beers, oils, juices, vinegars, liqueurs, natural essences, herbal products and cosmetics.

Please note that even though the maximum capacity of the pump is designed to accommodate up to 6 filter cartons, the device is highly versatile and can operate with fewer cartons. For example, only 4 cartons can be used, simply by removing unnecessary plates.

NO. 10 plates.

It can mount up to 10 20x20 cm filter sheets

Hourly filtering capacity:max 250 L/h

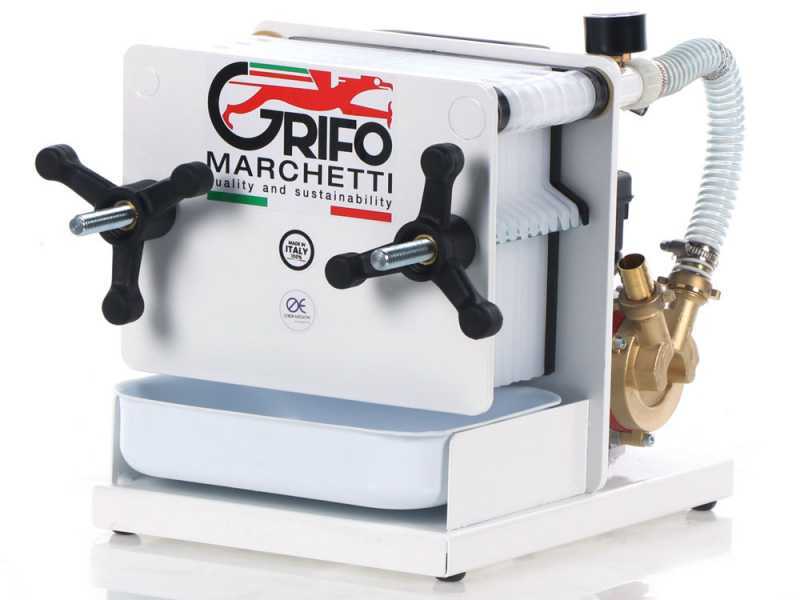

Further features

Particularly sturdy frame made of thick enamelled steel.

Focus on the filters clamping knobs

Drain liquid recovery tray with tube to immediately reintroduce the liquid to the main container.

Focus on the coiled connection hose between the filtering stage and the pumping stage

Focus on the lifting handle

Focus on the filter outlet

Free items & Standard equipment

Free items included

The plate filter for wine is shipped in its original packaging.

The package also includes:

  • Pressure gauge
  • Instruction manual
