GRIFO DVEP20 - Electric Grape Destemmer with Hopper - with Included Guards

Questions & Answers (4)
ID: K608888

EAN: 8015301012012

MPN: DVEP20

8,3/10
After-sales assistance & Spare parts
GRIFO DVEP20 - Electric Grape Destemmer with Hopper - with Included Guards
Technical data
Certifications
CE domestic
Max. hourly output
2000 Kg/h
Motor type
Induction
Nominal power
2 HP
Hopper opening size
87 x 50 cm
Fittings diameter
50 mm
Garolla fitting
Yes
Opening Frame
Pump material
Stainless steel
Stainless steel sieve
Yes
Transmission protective cover
Plastic
Manufacturing country
Italy
Product Features
Model
DVEP20
Type
Grape destemmer
Certifications
CE domestic
Body material
Enamelled steel
Opening Frame
Configuration
With wheeled frame and pump
Operating mode
Electric 230 V
Hopper opening size
87 x 50 cm
Max. hourly output
2000 Kg/h
Manufacturing country
Italy
Motor data
Motor type
Induction
Nominal power
2 HP
Nominal power (W)
1500 W
Power supply
220 V electric
Manufacturing country
Italy
Pump data
Pump type
Centrifugal
Pump material
Stainless steel
Fittings diameter
50 mm
Manufacturing country
Italy
Transmission data
Transmission type
Chain
Transmission type
Chain
Transmission protective cover
Plastic
Equipment
CE-compliant safety switch
CE-compliant
Electric start button
Yes
Auger on the upper hopper
Yes
Stainless steel sieve
Yes
Free gifts/extra features
Garolla fitting
Yes
Dimensions and logistics

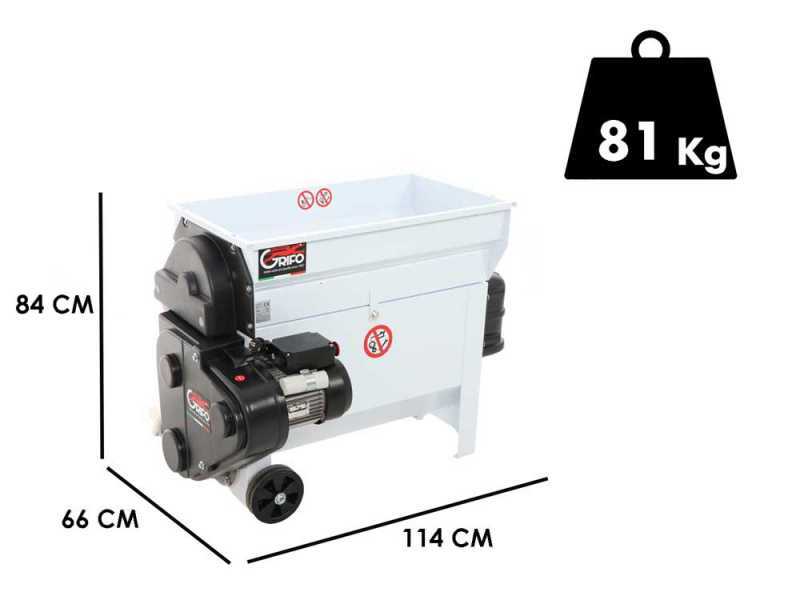

Product dimensions in cm (L x W x H)
114x66x84cm
Net weight
81 Kg
Packaging
On pallet
Original packaging/s dimensions in cm (L x W x H)
115x67x85cm
Weight including packaging
81 Kg
Assembly time
Assembled
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 05/09/2025 - 09/09/2025
€ 1.080,00
Vat included
Add Accessories and get a discount
You're viewing:
Customers also viewed:
Description

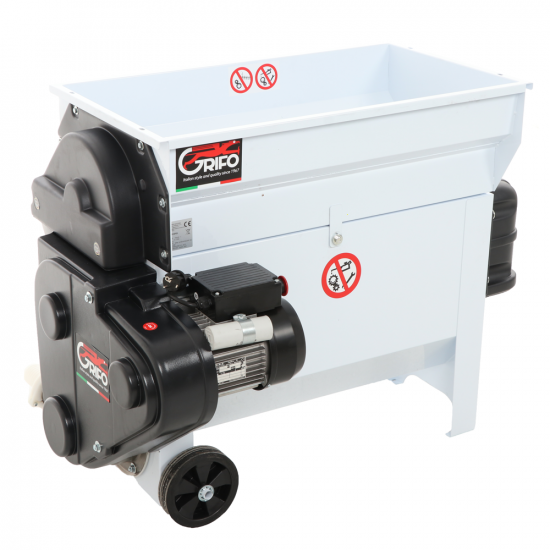

GRIFO DVEP20 Electric Grape Destemmer

The GRIFO DVEP20 grape destemmer (2 Hp), in food-grade enamelled version, is equipped with stainless steel grid and pump suitable for food contact.

This machine is extremely practical in use and cleaning thanks to its hinged opening and removable grid.

It is very durable, rust-retardant and, compared to enamelled steel models, better suited to working with foodstuffs as it is much more hygienic.

The GRIFO DVEP20 destemmer is an extremely professional product, entirely made of stainless steel.

It features an innovative two-piece frame that can be opened, a modern technology for perfect and fast internal maintenance.

The hourly output is approx. 2000 Kg/h.

The machine is equipped with a 220 V powerful motor.

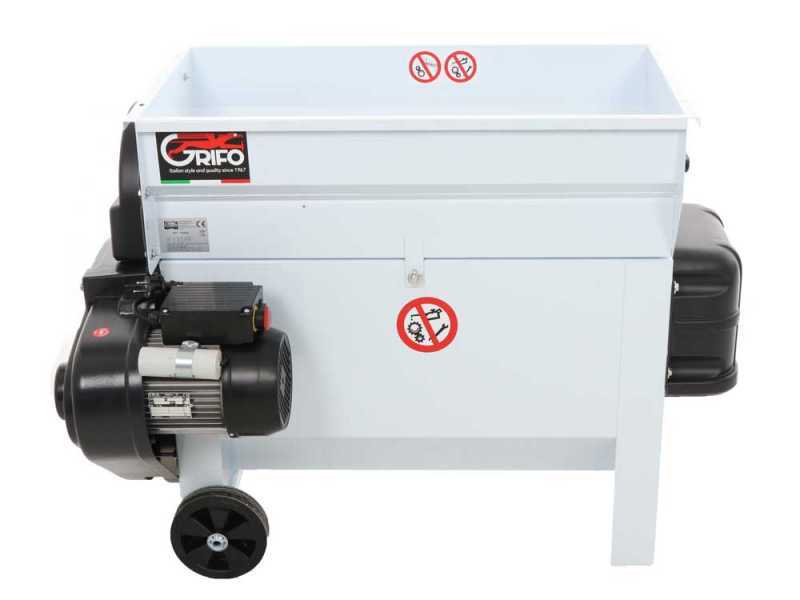

Upper Hopper and Drive Auger

87 x 50 x 99 cm hopper

Compared to most similar products on the market, this destemmer features a special hopper designed for a more comfortable use, and is in fact more compact compared to standard hoppers.

The two features combined greatly facilitate the process of tipping bunches into the hopper, whether using crates that are tipped into it or other methods.


Detail of the drive auger (located at the bottom of the machine, under the stainless steel sieve), which feeds all the final product to the pump, which then transfers it to any containers intended to be decanted into.

Equipped with fitting with gasket and clamp (included in the price).

Detail of the auger for feeding grapes into the processing machine.

Detail of the transport and hopper opening handle.

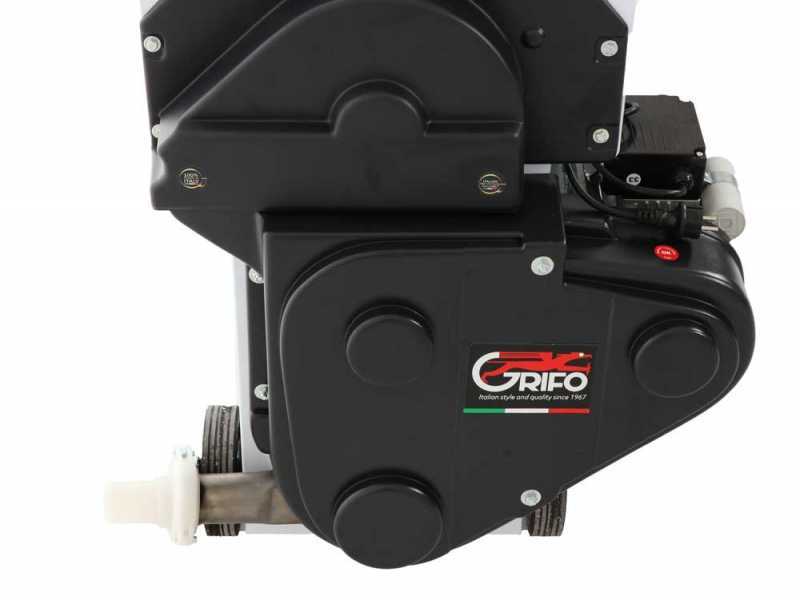

2 HP Electric Motor and Chain Drive

Powerful 2 HP electric induction motor, which allows all the various mechanisms to be operated with a greater power range than the actual power absorbed by the destemmer in all its functions.

Equipped with a red emergency STOP button, complying with CE safety regulations.

The side chain drive conveys the rotary motion from the motor to:

- the upper auger
- the intermediate rotor
- the lower drive auger leading to the pump
- the pump

Protective side casing made of hard plastic.

All gears are made of hard plastic.

Detail of the chain drive.

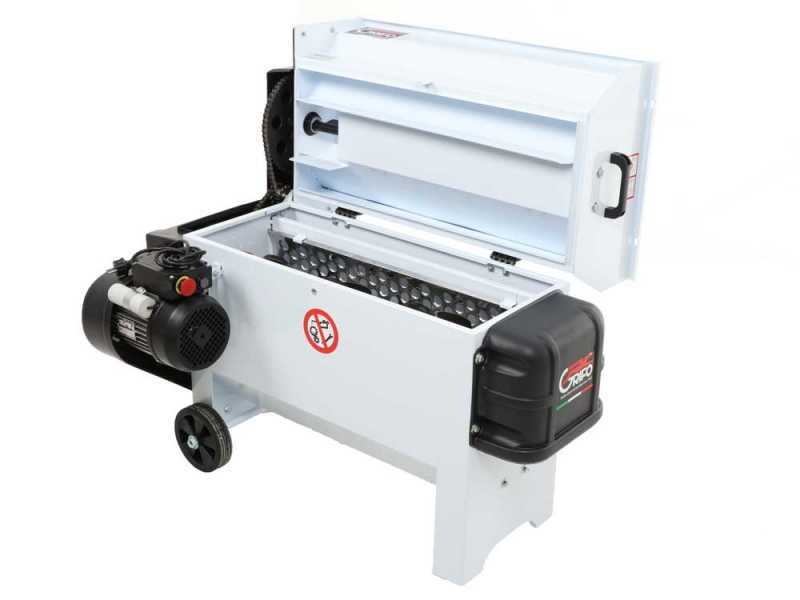

Two-piece Frame and Stainless Steel Sieve

Unlike the vast majority of destemmers on the market, this model is equipped with a two-piece frame that can be opened instantly using the special locking bolt.

Advantages:
- can be readily inspected during use (to intervene in case of any clogging, to remove any foreign objects that may have accidentally entered the machine, etc.)
- greater hygiene standards, allowing thorough cleaning and washing of the machine before and after destemming.

The sieve can be easily removed from the machine for cleaning, thanks to the guides that also act as protection for the sieve itself.

Detail of the rotor with steel paddles which carries out the destemming process (by pressing the grapes onto the sieve).

Details of the hinges.

Food Grade Stainless Steel Pump

Top quality, large-sized pump made in STAINLESS STEEL, suitable for pumping all the grapes and must.

The drive auger drags all the final product to the pump, which then transfers it to any containers required for decanting.

Equipped with fitting with gasket and clamp (included in the price).

Upper Plate for GRIFO Destemmers

Compatible with Grifo DVEP20 and DVEP20I destemmers.

Designed to have an excellent grip on any machine in order to prevent accidents during machine operation.

Easy to use. Just place it on the machine's hopper edge.

It is shipped disassembled in its original packaging with fasteners.

Free items & Standard equipment

Equipment

The product is shipped in its original packaging with the instructions manual..

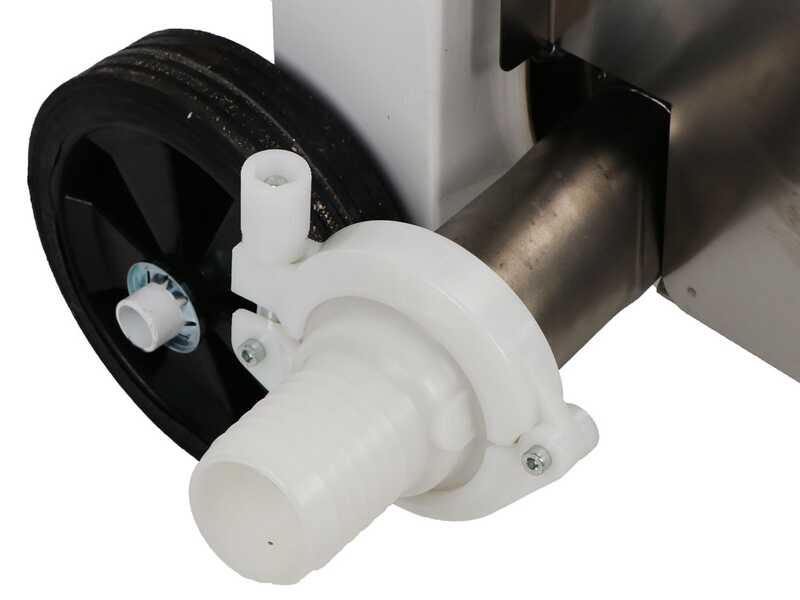

Included is the garolla fitting with gasket
