Grifo Dens - Electric stoning machine

Questions & Answers (6)
ID: K608547

EAN: 8015301013507

MPN: DENS.24

8,3/10
After-sales assistance & Spare parts
Grifo Dens - Electric stoning machine
Technical data
Operating mode
Single-phase 230 V
Max. hourly output
500 Kg/h
Hopper opening size
50 x 90 cm
Hopper material
Enamelled steel
Motor type
Induction
Nominal power
1 HP
Transmission type
Belt
Roller Adjustment
Stainless steel sieve
Yes
Manufacturing country
Italy
Product Features
Model
Dens
Operating mode
Single-phase 230 V
Hopper material
Enamelled steel
Hopper opening size
50 x 90 cm
Max. hourly output
500 Kg/h
Roller Adjustment
Manufacturing country
Italy
Motor data
Motor type
Induction
Nominal power
1 HP
Transmission data
Transmission type
Belt
Equipment
Stainless steel sieve
Yes
Free gifts/extra features
Instructions manual
Yes
Dimensions and logistics

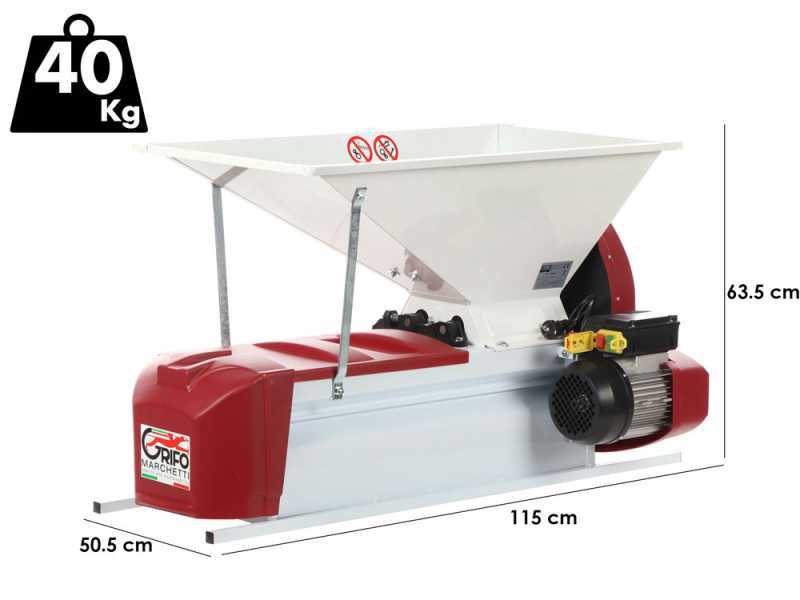

Product dimensions in cm (L x W x H)
115x50.5x63.5 cm
Net weight
40 Kg
Packaging
Original packaging
Original packaging/s dimensions in cm (L x W x H)
119x57x66.5 cm
Weight including packaging
50 Kg
Assembly time
Assembled
Arriving on 20/09/25
Free Shipping
Estimated delivery: 30/09/2025 - 02/10/2025
€ 963,30
Vat included

You're viewing:
Customers also viewed:
Description

Electric stoning machine

The new Grifo Dens INOX stoning machine designed to quickly stone a wide variety of fruit, including cherries, plums and apricots to extract the delicious pulp.

Its solid and durable structure is made entirely of high-quality enamelled steel .

Equipped with interchangeable screens with various perforations, this stoning machine can be used with different types of fruit, offering versatility in the process. Thanks to its powerful integrated electric motor, all mechanisms are precisely driven, guiding the products through the rollers for initial crushing.

Next, the fruit arrives at the separating basket, where a fin beater performs a centrifugal action to effectively separate the pulp and juices from the central part of the fruit, leaving the stones on one side.

All key components of this machine, including the removable stainless steel grid, gears and nylon rollers, have been designed with the utmost precision and attention to detail to ensure a long service life

The adjustability of the rollers by means of special supports allows millimetre control of the crushing process.

The stoning machine allows an hourly output of 500 kg/h.

Loading hopper and rollers

Stainless steel hopper 90 x 50 cm

The width of the hopper allows making an easy use of the machine, facilitating the dropping of the crates of grapes inside it.

This stoning machine is equipped with a pair of counter-rotating rollers nylon pre-processing rollers.

The products pass through rollers, made of nylon, for an initial crushing and then arrive in the separation basket.

Special supports allow the rollers to be adjusted by a few millimetres.

Detail of the fins made of enamelled steel

Roller speed 110 rpm

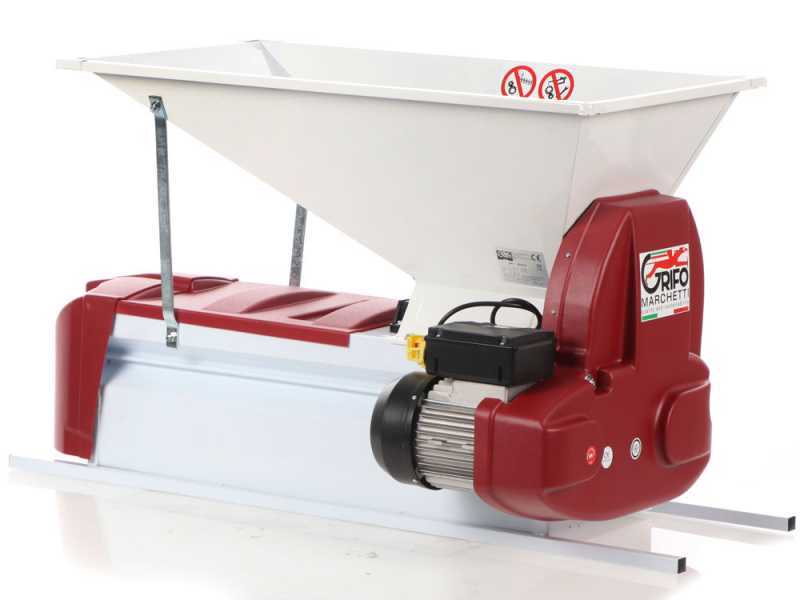

Electric induction motor

Side protecting carter made of plastic.

The belt drive has the advantage of making a slight friction effect in the event of a blockage in the machine itself.

It transmits rotary motion from the motor to:

- the upper auger
- the upper rollers
- the intermediate rotor

Powerful 1 HP electric induction motor, which drives all the various mechanisms, from the agitator to the rollers and gears for crushing the fruit.

Equipped with a red STOP emergency button, compliant with CE safety regulations

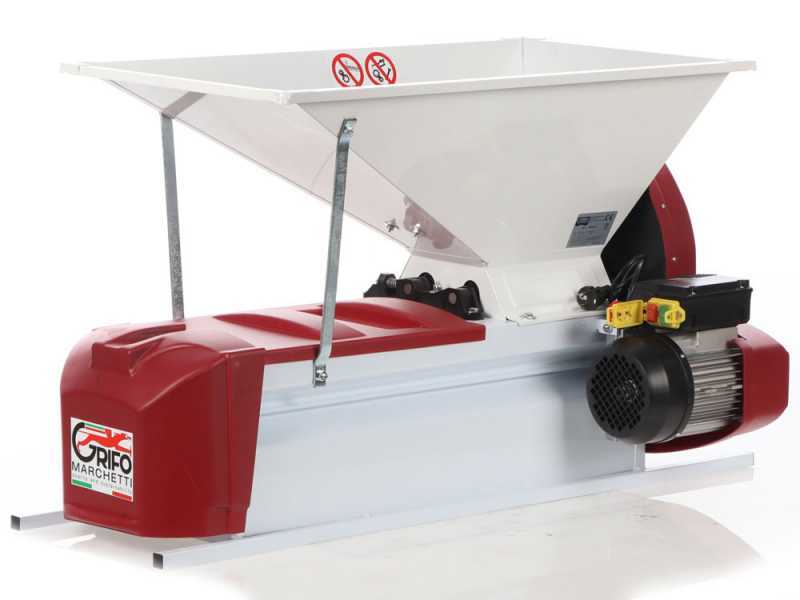

Stainless steel sieve

It can be easily removed from the machine for cleaning operations, thanks to the guides that also act as protection for the screen itself. Made of stainless steel

which guarantees great durability.

In addition, the removable sieve allows the machine to be versatile, adaptable to numerous fruits.

Detail of the rotor with enamelled steel vanes separating pulp and stones.

Detail of the holes in the interchangeable screen.

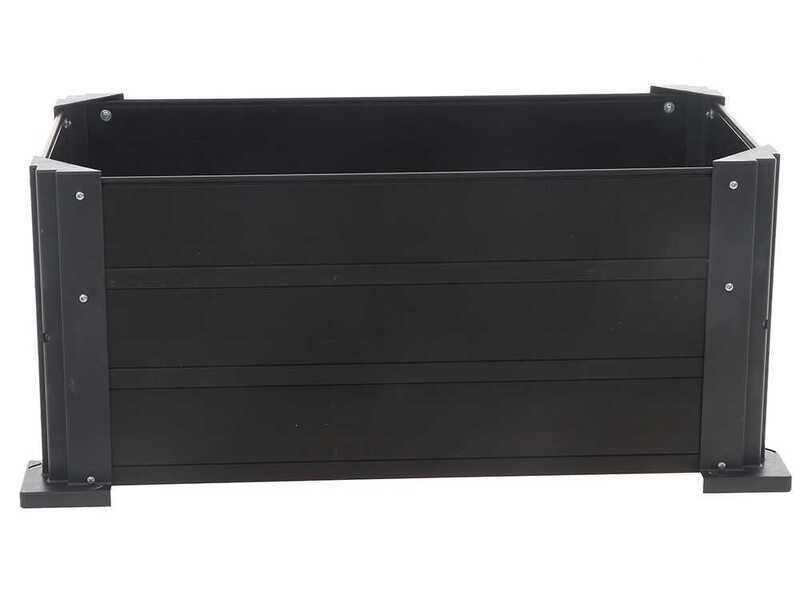

Upper Plate for GRIFO Destemmers

Compatible with Grifo DVEP20 and DVEP20I destemmers.

Designed to have an excellent grip on any machine in order to prevent accidents during machine operation.

Easy to use. Just place it on the machine's hopper edge.

It is shipped disassembled in its original packaging with fasteners.

Free items & Standard equipment

Equipment

The product come into its original packaging already assembled.

The package includes:

  • Second grill made of stainless steel
  • Riser for operator protection
  • Instructions manual
