GreenBay TSB 145 - Tractor-Mounted Stone Burier

Questions & Answers (1)
ID: 110747

EAN: 8054141548749

MPN: TSB 145

GreenBay TSB 145 - Tractor-Mounted Stone Burier
Body material
Enamelled steel
Sturdiness/Series
Light
Weight
335 Kg
Tractor power
35 to 40 HP
Working depth
12 cm
Working width
135 cm
Cardan shaft
Yes
Product Features
Model:
TSB 145
Body material:
Enamelled steel
Tractor power:
35 to 40 HP
Sturdiness/Series:
Light
Fixed 3-point hitch:
Yes
Manufacturing country:
China
Cutting data
Working width:
135 cm
Working depth:
12 cm
No. of blades:
24
Blade type:
Hoes
:
Equipment
Rear adjustable Hood:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics

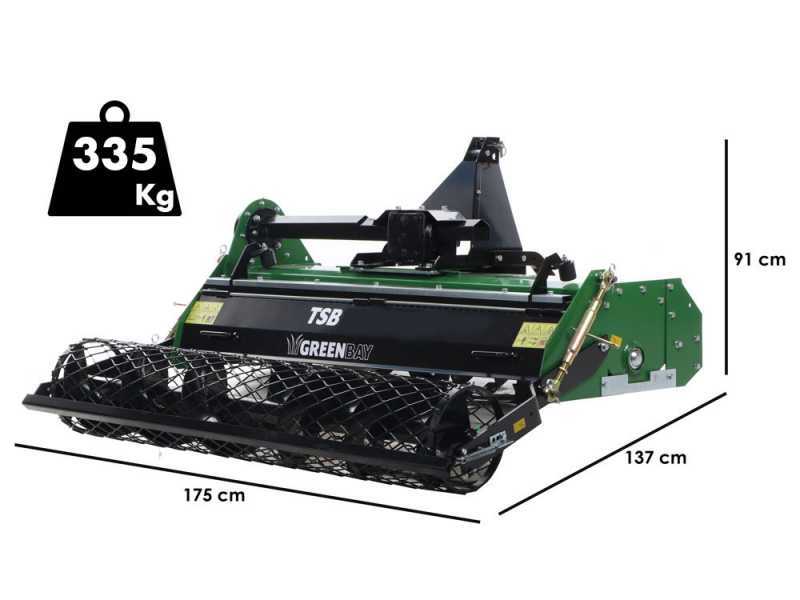

Product dimensions in cm (L x W x H):
175X137X91 cm
Net weight:
335 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
61x181x105
Gross weight (packaging included) :
365 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
10 items in stock
Free Shipping
Estimated delivery: 10/06/2024 - 12/06/2024
€ 2.145,11
VAT Included
You're viewing:
Customers also viewed:
Description

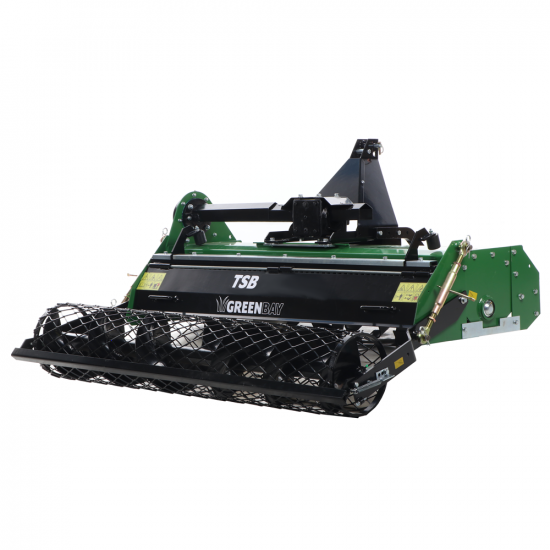

GreenBay TSB 145 Tractor-Mounted Stone Burier

The GreenBay TSB 145 tractor-mounted stone burier is an agricultural machine suitable for soil preparation for sowing.

This machine is equipped with a series of rotary hoes mounted on a central shaft, which is connected to the power take-off of a tractor or other agricultural vehicles.

The stone burier's hoes rotate at high speed and penetrate the soil, cutting and moving the soil to create an even, smooth surface for sowing.

Thanks to its ability to work deep into the soil, the GreenBay TSB 145 stone burier can also be used to break up compact soil and remove the roots belonging to any previous crop.

It is equipped with a reverse rotation system compared to conventional tillers, which enables stones to be removed from the ground surface efficiently.

technical features

The mesh roller is an agricultural tool employed for soil tilling. It is composed of a steel cylinder with a mesh surface that can be height-adjustable in order to fit to the soil specific needs.

The working depth of the stone burier can vary according to the type and settings chosen. It can work the soil up to a depth of 12 cm, removing stones on the surface layer, thus providing good aeration and adequate drainage.

The mesh roller is employed to level the terrain before sowing, reducing the creation of soil surface crusts and improving water and air penetration into the ground.

Machine weight: 380 Kg

Furthermore, it can be employed to break up lumps of soil and to create an even, smooth surface, with height adjustment system to suit specific soil requirements.

The forged hoes are highly sturdy, ensuring excellent performance even in difficult soil conditions.

Finally, the rear casing is adjustable to ensure precise and accurate work.

Universal joints suitable for all tractors on the market.

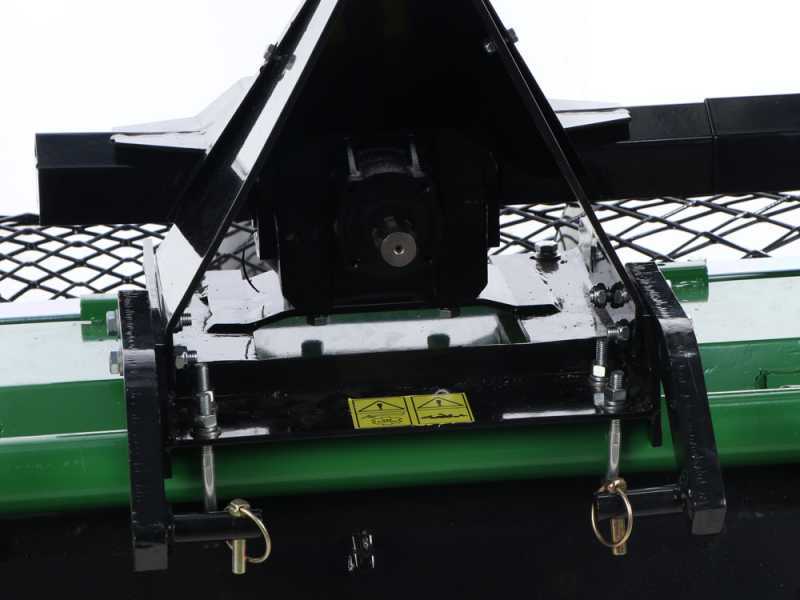

Focus on the sturdy 1° category 3-point hitch.

Universal standard PTO ( 1 3/8" Z6 ).

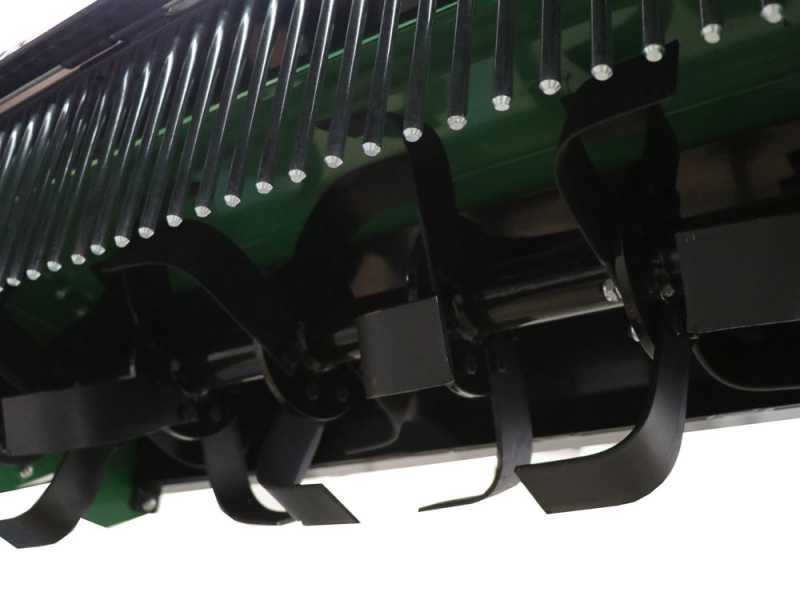

Hoe-cutting tools

The hoes of a stone burier are the machine components that perform the tilling of the soil.

They feature sharp blades mounted on a central shaft that rotates at high speed.

The hoes are placed at regular intervals along the stone burier's central shaft, and can be height-adjusted to suit specific soil and crop requirements.

When using the machine, the hoes penetrate the soil and loosen it, breaking up clumps of ground and creating an even, smooth surface suitable for sowing. Furthermore, hoes can be employed to remove the roots of any previous crop, to aerate the soil and to enhance its structure.

The stone burier's hoes are made of high-strength steel to ensure a long service life and greater efficiency when tilling the soil. Moreover, they can be easily replaced if they are worn or damaged.

There are 24 hoes with a working size of 135 cm and a cutting depth of 120 mm.

Hoes’ size:

  • Width 6 cm
  • Length 20 cm
  • Hoes hole diameter 13 mm

Side drive, mesh roller and gear reducer unit.

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

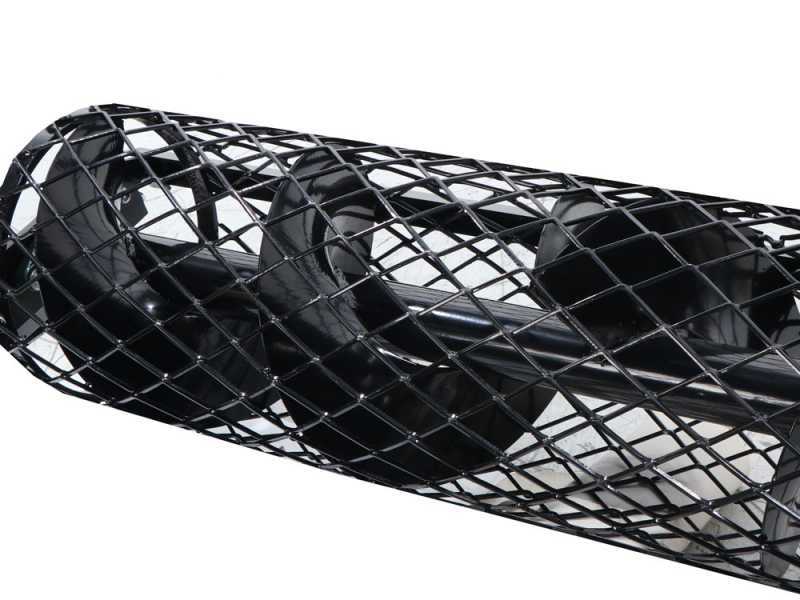

Focus on the mesh roller.

Focus on the side belt protection guard.

With protective skid under the protection guard.

Focus on the side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.


Warning!

The gearbox of this machine can contain no more than 1L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

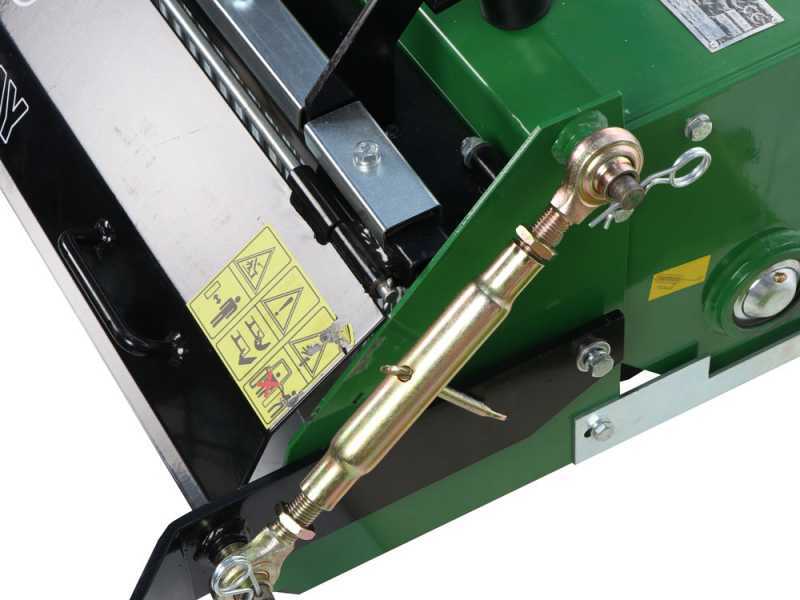

Accessories and details

Height-adjustable rear supporting mesh roller provided on standard equipment.

Focus on the mesh roller fixing bearing.

Sturdy protection rack made of shaped steel.

Reinforcing spring.

Focus on the casing handle.

Free items & Standard equipment

Standard equipment

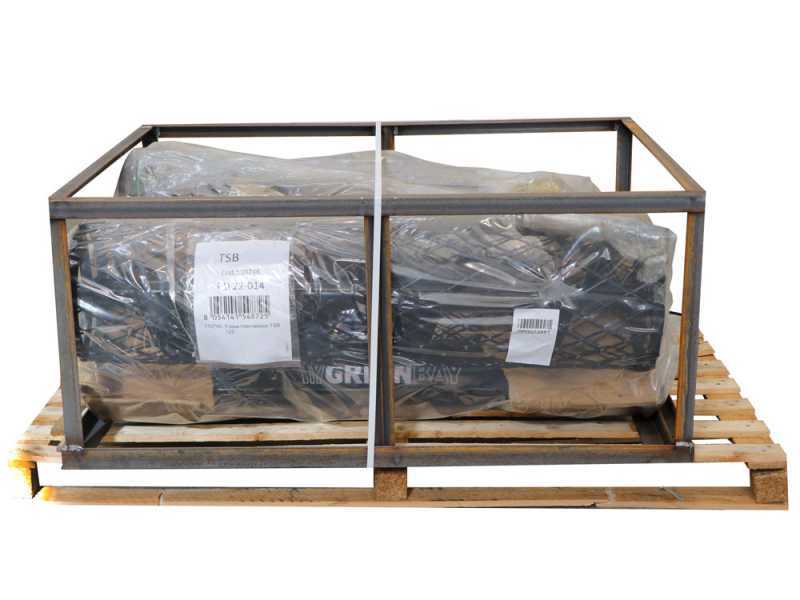

The stone burier is shipped partially assembled on pallet. You’ll only have to assemble the 3-point hitch and a few other small components.

Cardan shaft included in the package.

Instructions and assembly manual included in the package.
