GreenBay - TSB 125 Tractor-Mounted Stone Burier

Add a question
ID: 110746

EAN: 8054141548725

MPN: TSB 125

GreenBay - TSB 125 Tractor-Mounted Stone Burier
Body material
Enamelled steel
311 Kg
Tractor power
20 to 30 HP
Working depth
12 cm
Working width
115 cm
Cardan shaft
Product Features
TSB 125
Body material:
Enamelled steel
Tractor power:
20 to 30 HP
Fixed 3-point hitch:
Manufacturing country:
Cutting data
Working width:
115 cm
Working depth:
12 cm
No. of blades:
Blade type:
Rear adjustable Hood:
Free gifts/extra features
Side skids:
Cardan included:
Cardan shaft:
Instructions manual:
Dimensions and logistics

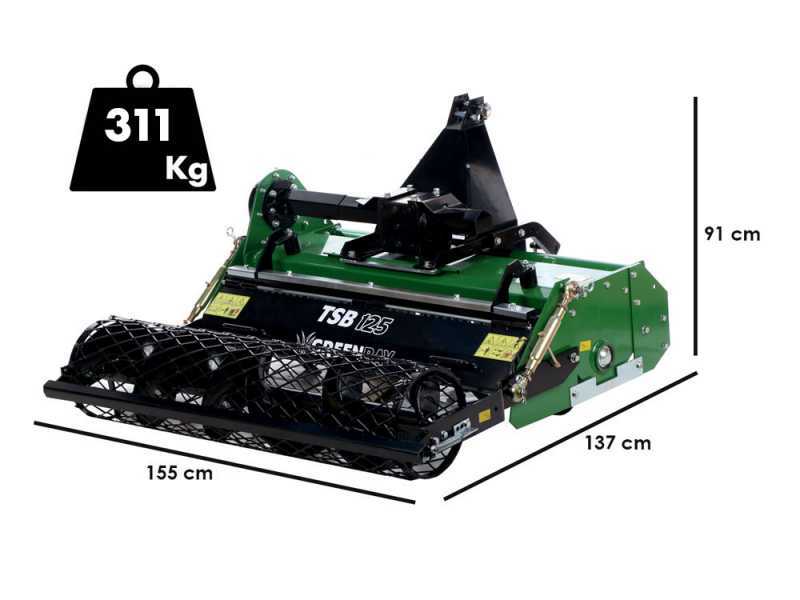

Product dimensions in cm (L x W x H):
155X137X91 cm
Net weight:
311 Kg
On pallet
Original packaging/s dimensions in cm (L x W x H):
Gross weight (packaging included) :
341 Kg
Unloading with hydraulic tail lift:
Assembly time:
30 minutes
Prompt Delivery
7 items in stock
Free Shipping
Estimated delivery: 28/05/2024 - 30/05/2024
€ 2.024,08
VAT Included
You're viewing:
Customers also viewed:

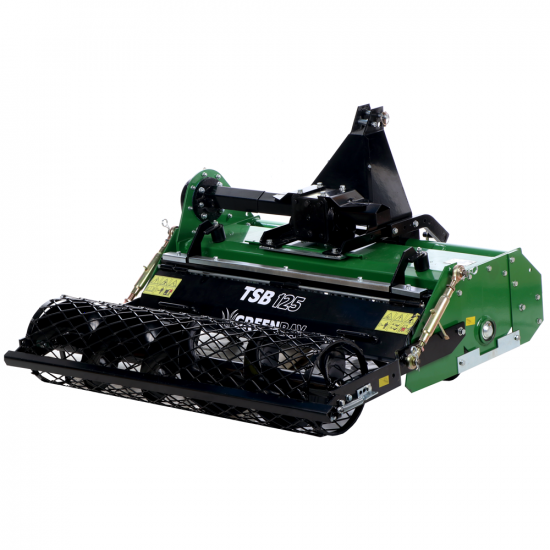

GreenBay TSB 125 Tractor-Mounted Stone Burier

The GreenBay TSB 125 tractor-mounted stone burier is an agricultural machine suitable for soil preparation for sowing.

This machine is equipped with a series of rotary hoes mounted on a central shaft, which is connected to the power take-off of a tractor or other agricultural vehicles.

The stone burier's hoes rotate at high speed and penetrate the soil, cutting and moving the soil to create an even, smooth surface for sowing.

Thanks to its ability to work deep into the soil, the GreenBay TSB 125 stone burier can also be used to break up compact soil and remove the roots belonging to any previous crop.

It is equipped with a reverse rotation system compared to conventional tillers, which enables stones to be removed from the ground surface efficiently.

technical features

The mesh roller is an agricultural tool employed for soil tilling. It is composed of a steel cylinder with a mesh surface that can be height-adjustable in order to fit to the soil specific needs.

The working depth of the stone burier can vary according to the type and settings chosen. In general, the stone burier can work the soil down to a depth of 12 cm, providing good aeration and adequate drainage; e.g. horticultural crops can benefit from deep tillage.

The mesh roller is employed to level the terrain before sowing, reducing the creation of soil surface crusts and improving water and air penetration into the ground.

Furthermore, it can be employed to break up lumps of soil and to create an even, smooth surface, with height adjustment system to suit specific soil requirements.

The forged hoes are highly sturdy, ensuring excellent performance even in difficult soil conditions.

Finally, the rear casing is adjustable to ensure precise and accurate work.

Universal joints suitable for all tractors on the market.

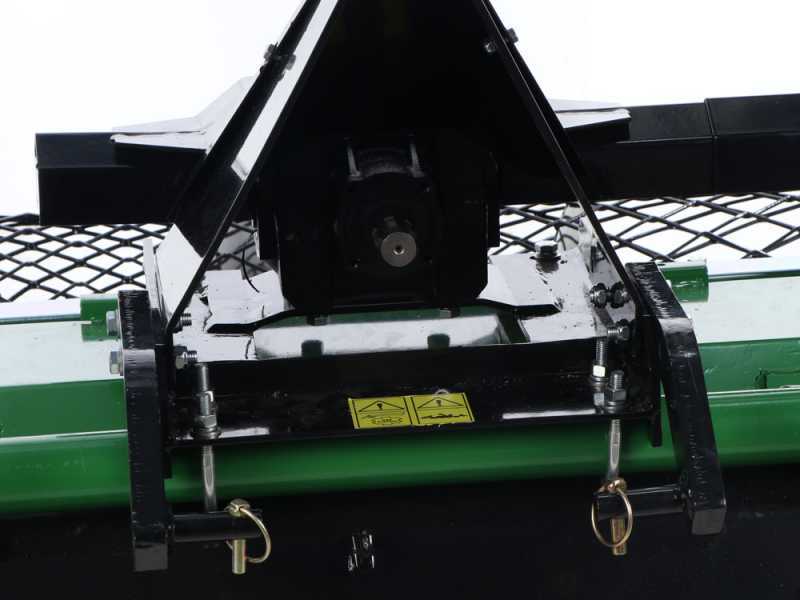

Focus on the sturdy 1° category 3-point hitch.

Universal standard PTO ( 1 3/8" Z6 ).

Machine weight: 355 Kg

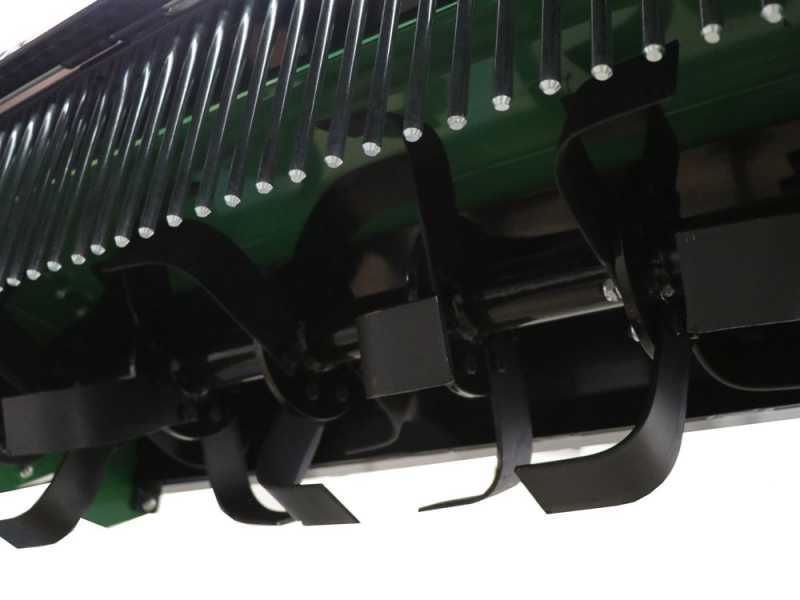

Hoe-cutting tools

The hoes of a stone burier are the machine components that perform the tilling of the soil.

They feature sharp blades mounted on a central shaft that rotates at high speed.

The hoes are placed at regular intervals along the stone burier's central shaft, and can be height-adjusted to suit specific soil and crop requirements.

When using the machine, the hoes penetrate the soil and loosen it, breaking up clumps of ground and creating an even, smooth surface suitable for sowing. Furthermore, hoes can be employed to remove the roots of any previous crop, to aerate the soil and to enhance its structure.

The stone burier's hoes are made of high-strength steel to ensure a long service life and greater efficiency when tilling the soil. Moreover, they can be easily replaced if they are worn or damaged.

There are 20 hoes with a working size of 115 cm and a cutting depth of 120 mm.

Hoes’ size:

  • Width 6 cm
  • Length 20 cm
  • Hoes hole diameter 13 mm

Side drive, mesh roller and gear reducer unit.

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

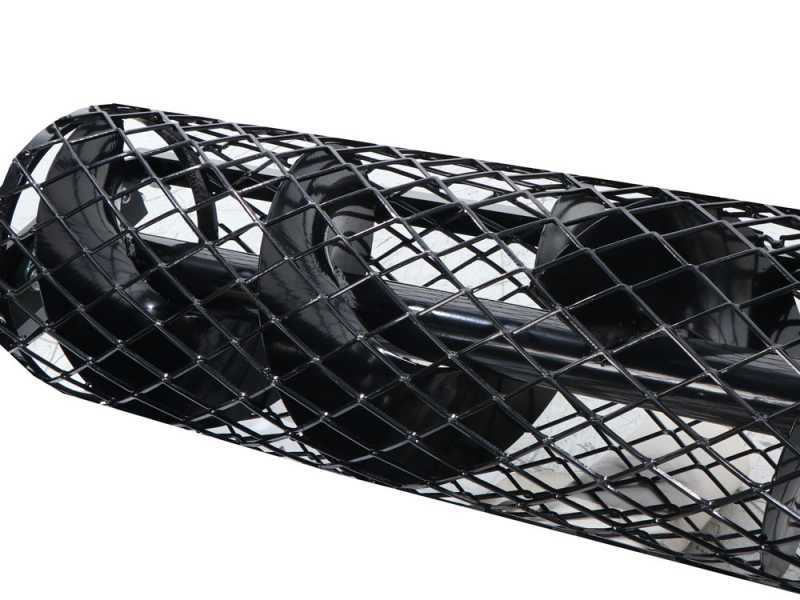

Focus on the mesh roller.

Focus on the side belt protection guard.

With protective skid under the protection guard.

Focus on the side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.


The gearbox of this machine can contain no more than 1L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Accessories and details

Height-adjustable rear supporting mesh roller provided on standard equipment.

Focus on the mesh roller fixing bearing.

Sturdy protection rack made of shaped steel.

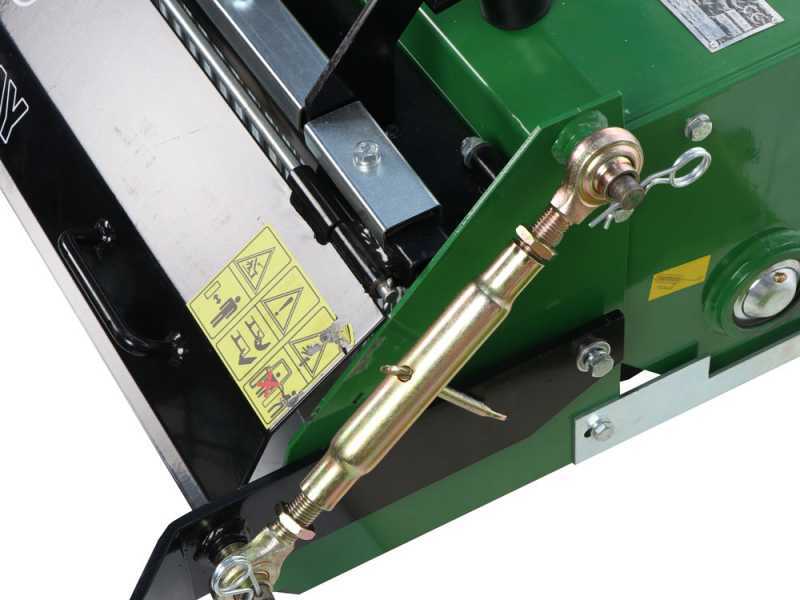

Reinforcing spring.

Focus on the casing handle.

Side support slides supplied as standard, also adjustable.

Sturdy set of front protection slaps made of shaped steel.

Support stand

Free items & Standard equipment

Standard equipment

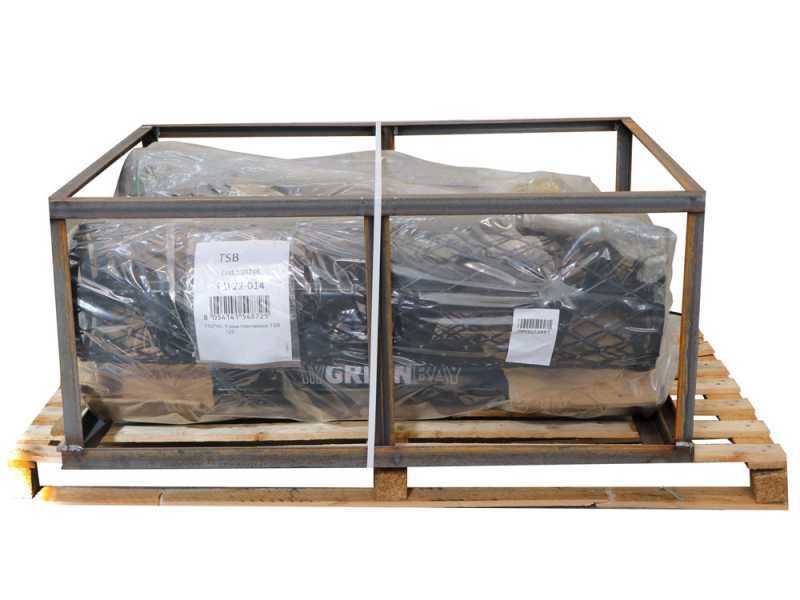

The stone burier is shipped partially assembled on pallet. You’ll only have to assemble the 3-point hitch and a few other small components.

Cardan shaft included in the package.

Instructions and assembly manual included in the package.
