Name: Greenbay FMM 175 - Tractor-mounted flail mower - Medium series
Brand: GreenBay
SKU: 110741
Price: 1767.57 EUR
Availability: InStock
Rating: 4.44 (8 reviews)

Description

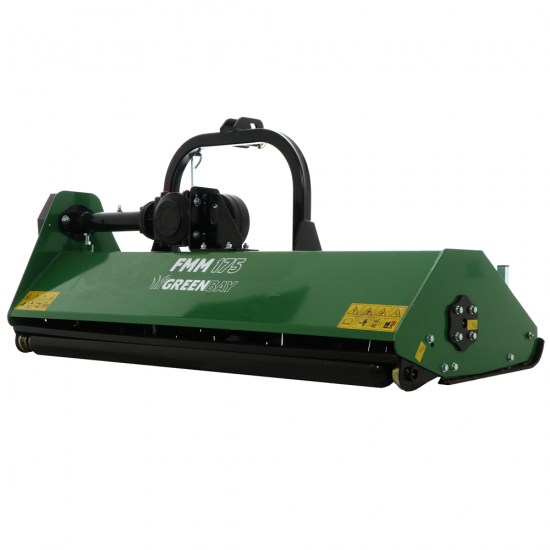

Greenbay FMM 175 series tractor-mounted flail mower

The FMM series tractor-mounted flail mower with horizontal axis features a medium-sized body that can be used for shredding twigs, grass and small shrubs.

In brief, a medium-sized tractor-mounted flail mower is a versatile, practical and easily transportable machine, which can be used for different works in the agricultural industry.

Medium-sized series flail mower, suitable for hobby use.

Fixed linkage, 3 drive belts and rear roller.

TECHNICAL DATA (brief view):

Real working width: 172 cm
Real width (side skids already assembled): 190 cm
Weight: 359 kg
Category 1° 3-point hitch
3-belt drive transmission
Slotted shell ( provides sturdiness to the structure)
wheelbase size 67 cm

ON STANDARD EQUIPMENT:

Hammer blades
Adjustable rear roller
PTO

Warning: the machine is shipped ready for use Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

Greenbay FMM 175 - Tractor-mounted flail mower - Medium series

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 26 hammers, 800 g each

These hammers are mounted on a sturdy 18 mm diameter hardened steel bolt. (8.5Mm lenght)

Focus on the cutting hammers, mounted on the rotating roller.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Focus on the double row of underframe counter-hammers.

Figurative image of the double-spiral rotor.

Rotor, side bearings and 3 point hitch

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

The hammers ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Universal standard PTO ( 1 3/8" Z6 )

Universal joints suitable for all tractors on the market.

Focus on the sturdy 1° category 3-point hitch.

wheelbase size 67 cm.

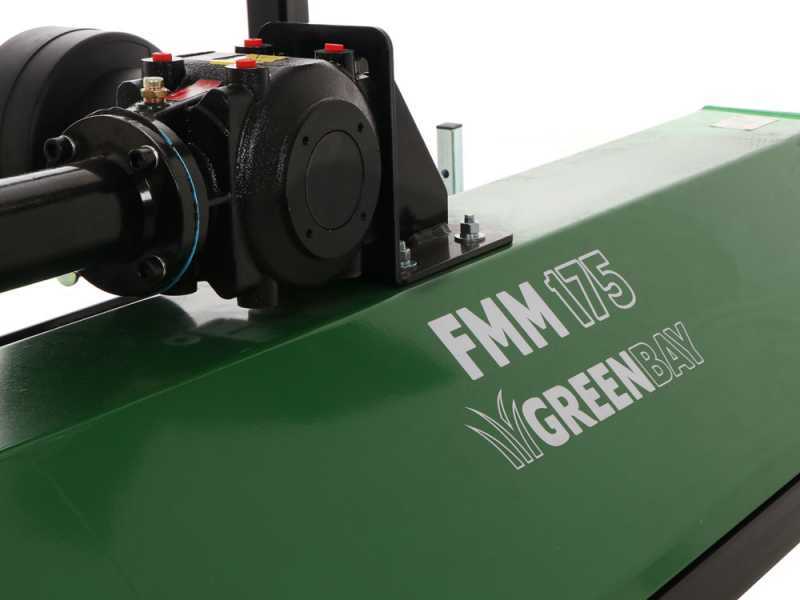

Side belt transmission and gearbox

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

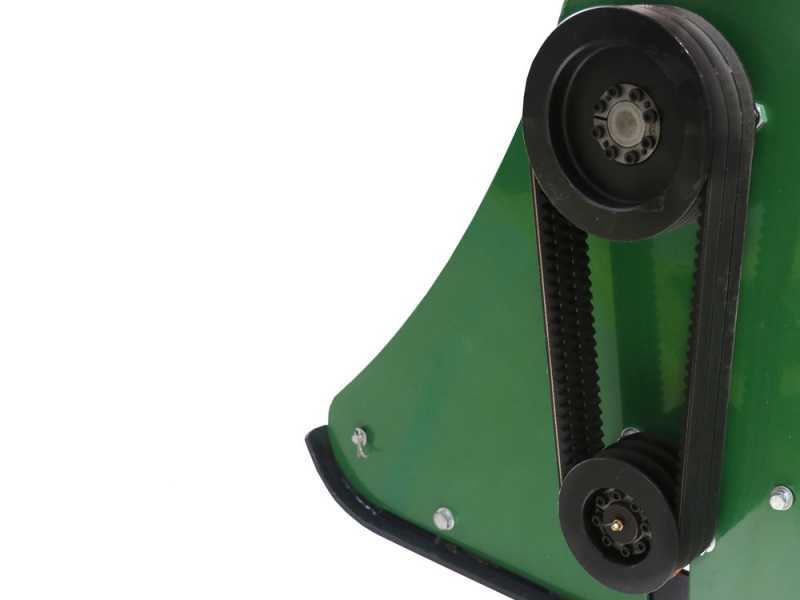

3-belt side transmission (most tractor-mounted flail mowers in this weight category are equipped with standard 2-belt transmission)

Focus on the side belt protection guard.

Focus on the side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.

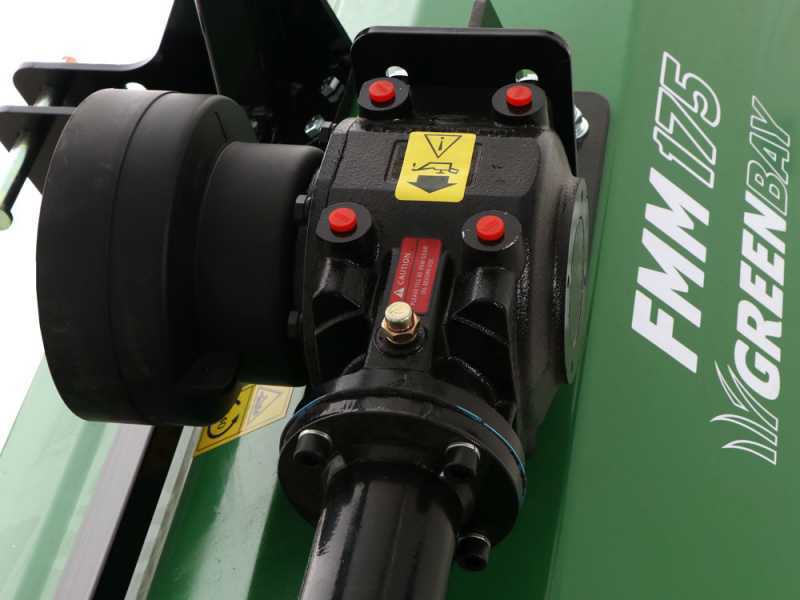

Detail of the gearbox:
1 - Oil level cap
2 - Oil drain cap
3 - SAE 80/90 oil filler cap and vent

The gearbox of this machine can contain no more than 1L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Stabilizing accessories – rear roller and side skids

Height-adjustable rear supporting roller provided on standard equipment.

Focus on roller fixing bearing.

Side support slides supplied as standard, also adjustable.

Sturdy set of front protection slaps made of shaped steel.

Support stand

Recommendations for Use - Tractor-mounted Fixed Flail Mowers

To ensure correct operation, a longer service life and safe working conditions, it is essential to use the tractor-mounted flail mower in accordance with the instructions set out in the user manual and the machine’s technical specifications. Incorrect use may result in premature wear of components, reduced performance or damage not covered by the warranty.

Before starting work, always check that the tractor is compatible with the flail mower by verifying the required power, hitch type and intended operating conditions. Correct matching of the machine and the tractor ensures optimum performance and prevents the transmission from being overloaded.

Use the flail mower exclusively on suitable surfaces: the machine is designed for grass shredding, wild vegetation, plant residues and materials compatible with the machine’s category. Avoid contact with unintended objects such as stones, metal, plastic or other foreign bodies.
Adjust the working height correctly: maintaining an adequate distance from the ground reduces the impact on the cutting units and limits excessive stress on the machine’s structure.
Do not operate the machine where there are hidden obstacles or unsuitable ground conditions: ditches, stumps, exposed roots, loose stones or uneven ground can cause sudden impacts and damage to the cutting parts or transmission components.
Do not use the flail mower for operations other than shredding: the machine must not be used for earthmoving, ground levelling or other applications not specified by the manufacturer.
Always adjust the forward speed to suit the working conditions: excessive speed can reduce the quality of the shredding, increase vibrations and subject the machine to stresses greater than those for which it was designed.
Avoid using the machine on excessively damp material: wet grass or particularly damp vegetation can cause material to build up inside the machine, reducing its efficiency.
Do not force the tractor forward: if the rotor slows down, vibrations increase or cutting capacity decreases, speed must be reduced and the work adapted to the conditions of the ground and vegetation.
Check the condition of the cutting components regularly: worn, damaged or missing blades, hammers or other cutting elements can compromise the machine’s operation and increase vibrations during use.
Carry out periodic checks and routine maintenance: check that components are correctly tightened, inspect the condition of the transmission components and ensure the machine is generally clean to maintain its efficiency and safety.

Use of the power take-off (PTO):

The tractor’s power take-off (PTO ) must be used in accordance with the rotational speed specified by the flail mower manufacturer. An incorrect rotational speed may compromise the machine’s operation, causing overheating, accelerated wear or excessive stress on mechanical components.

When attaching and detaching the flail mower, the power take-off must always be disengaged and the tractor switched off. It is also necessary to check that the PTO shaft is correctly installed and has sufficient clearance to move freely while working.

Free items & Standard equipment

Free gifts & Standard equipment

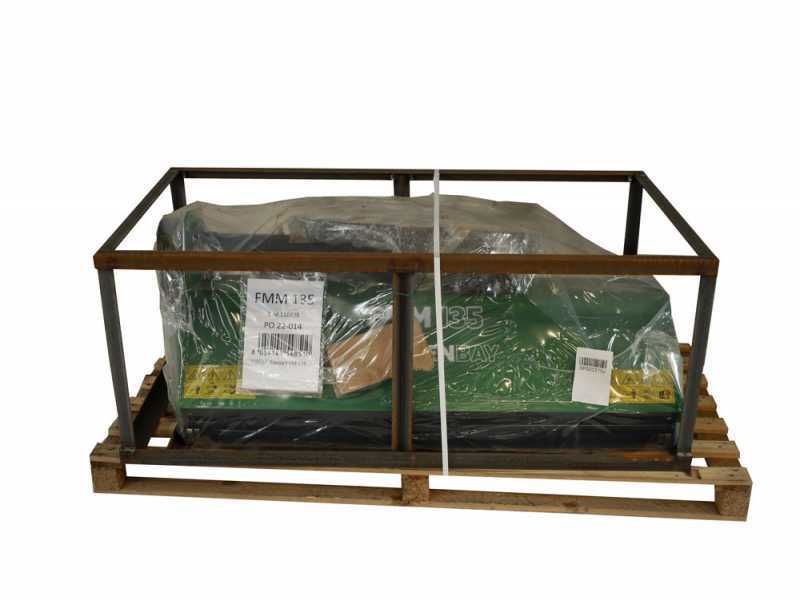

The flail mower is shipped partially assembled on pallet, you’ll only have to assemble the 3-point hitch and a few other small components.

Cardan shaft included in the package.

Instructions manual
