Name: Greenbay FMM 155 - Tractor-mounted flail mower - Medium series
Brand: GreenBay
SKU: 110740
Price: 1605.15 EUR
Availability: InStock
Rating: 4.83 (6 reviews)

Description

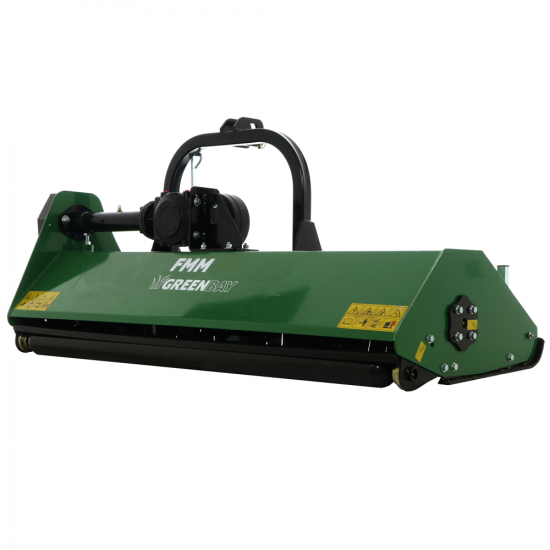

Greenbay FMM 155 series tractor-mounted flail mower

The FMM series tractor-mounted flail mower with horizontal axis features a medium-sized body that can be used for shredding twigs, grass and small shrubs.

In brief, a medium-sized tractor-mounted flail mower is a versatile, practical and easily transportable machine, which can be used for different works in the agricultural industry.

Medium-sized series flail mower, suitable for hobby use.

Fixed linkage, 3 drive belts and rear roller.

TECHNICAL DATA (brief view):

Real working width: 152 cm
Real width (side skids already assembled): 170 cm
Weight: 332 kg
Category 1° 3-point hitch
3-belt drive transmission
Slotted shell ( provides sturdiness to the structure)
wheelbase size 67 cm

ON STANDARD EQUIPMENT:

Hammer blades
Adjustable rear roller
PTO

Warning: the machine is shipped ready for use Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

Greenbay FMM 155 - Tractor-mounted flail mower - Medium series

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 22 hammers, 800 g each

These hammers are mounted on a sturdy 18 mm diameter hardened steel bolt. (8.5Mm lenght)

Focus on the cutting hammers, mounted on the rotating roller.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Focus on the double row of underframe counter-hammers.

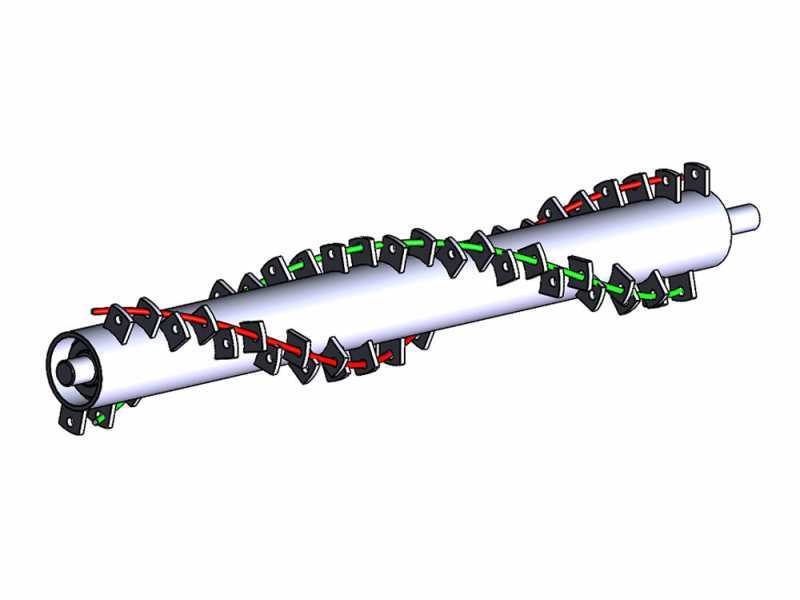

Figurative image of the double-spiral rotor.

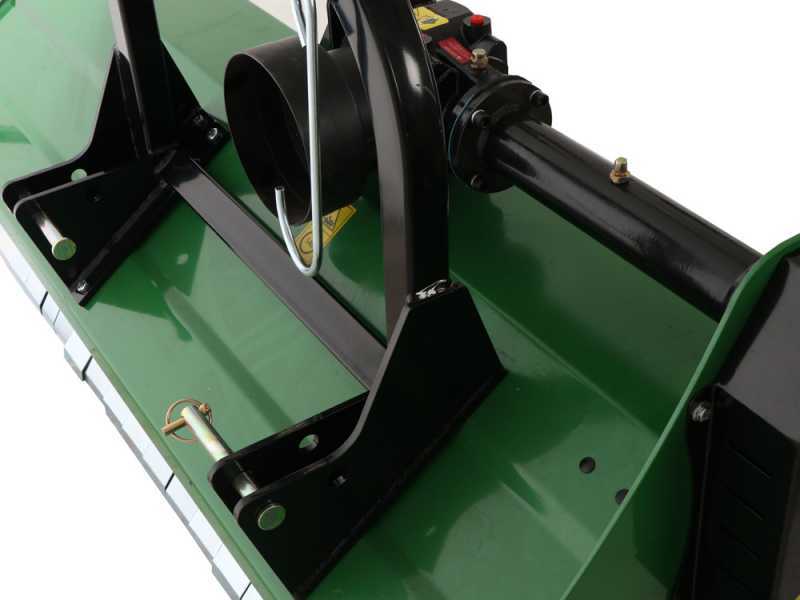

Rotor, side bearings and 3 point hitch

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

The hammers ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Universal standard PTO ( 1 3/8" Z6 )

Universal joints suitable for all tractors on the market.

Focus on the sturdy 1° category 3-point hitch.

Side belt transmission and gear reducer unit

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-belt side transmission (most tractor-mounted flail mowers in this weight category are equipped with standard 2-belt transmission)

Focus on the side belt protection guard.

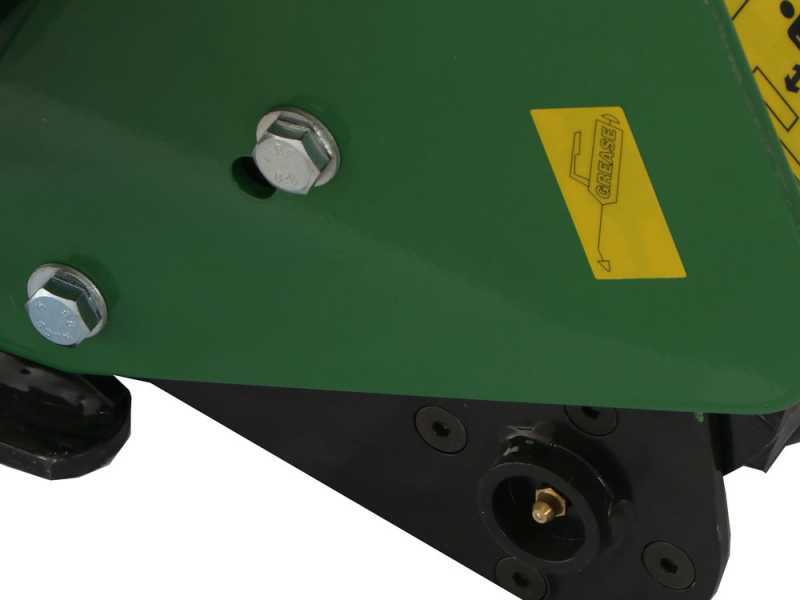

Focus on the side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.

The gearbox of this machine can contain no more than 1L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).
