Name: Greenbay FMM-H 135 - Tractor-mounted flail mower - Medium series - Hydraulic shift
Brand: GreenBay
SKU: 110742
Price: 1779.03 EUR
Availability: InStock
Rating: 4.67 (6 reviews)

Description

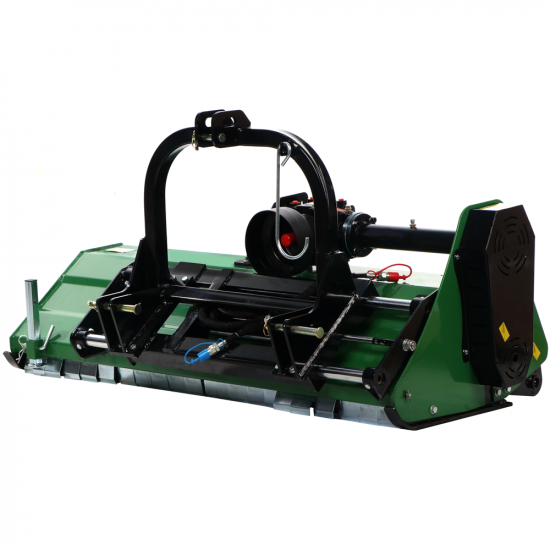

Greenbay FMM-H 135 medium-sized Hydraulic Side Shift Tractor Flail Mower

The FMM-H 135 hydraulic side shift tractor flail mower is a machine suitable for cutting and shredding vegetation, such as trees, shrubs and grass. The distinctive feature of this machine is its hydraulic side shift system, which allows to move laterally the tractor flail mower for a precise and efficient work.

The tractor flail mower with hydraulic side shift is composed by a strong and sturdy frame, on which is installed a cutting system consisting of sharp blades, which rotate at high speed to cut vegetation. The hydraulic side shift system is integrated in the frame and allows the machine to be moved sideways precisely, thanks to a system of hydraulic pistons that control the movement of the machine.

Medium-sized series flail mower, suitable for hobby use.

Hydraulic side shift, 3 drive belts and rear roller.

TECHNICAL DATA (brief view):

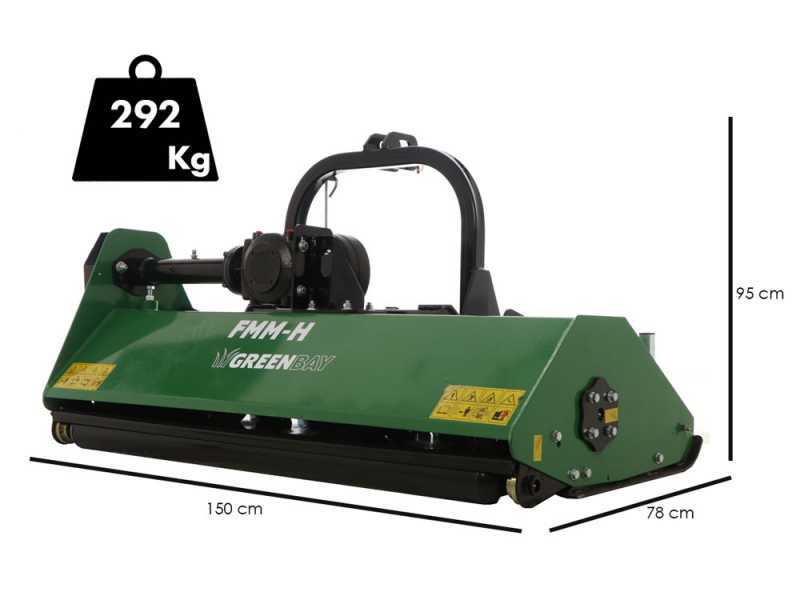

Real working width: 132 cm
Real width (side skids already assembled): 150 cm
Weight: 292 kg
Side hydraulic shift
Category 1° 3-point hitch
3-belt drive transmission
Maximum side shift: 74 cm
Wheelbase size 67 cm.

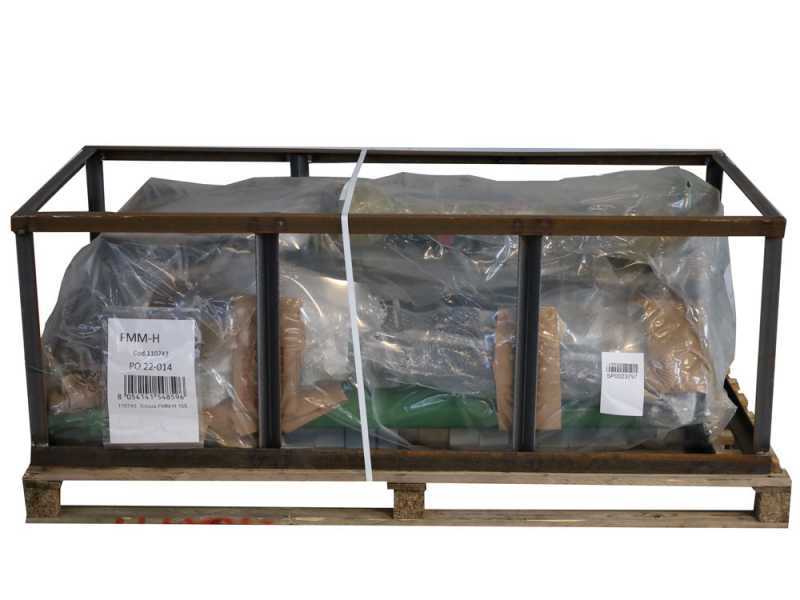

ON STANDARD EQUIPMENT:

Hammer blades
Adjustable rear roller
Adjustable slides
PTO

Warning: the machine is shipped ready for use Once mounted all the parts check the bolts tightening.
Please carefully read the instructions manual before starting the unit.

Greenbay FMM-H 135 - Tractor-mounted flail mower - Medium series - Hydraulic shift

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 22

These hammers are mounted on a sturdy 18 mm diameter hardened steel bolt. (85mm length)

Focus on the cutting hammers, mounted on the rotating roller.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

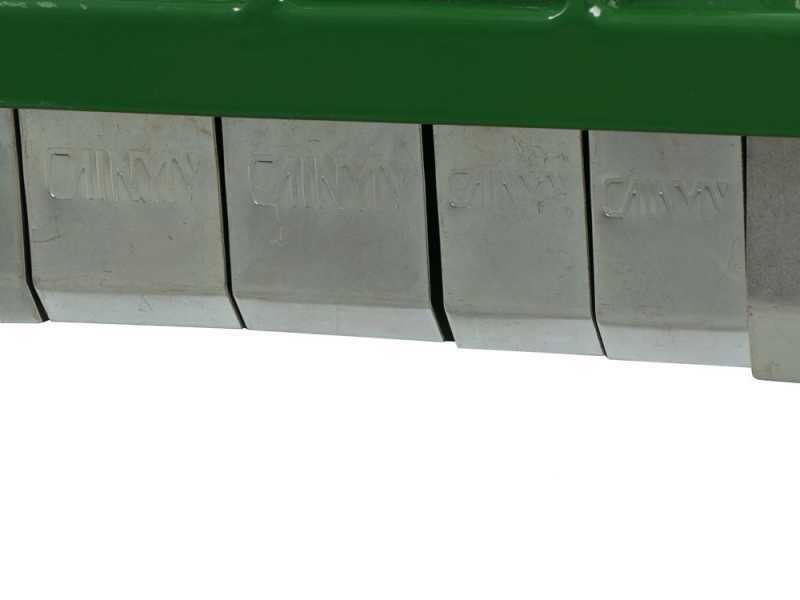

Focus on the double row of underframe counter-hammers.

Figurative image of the double-spiral rotor.

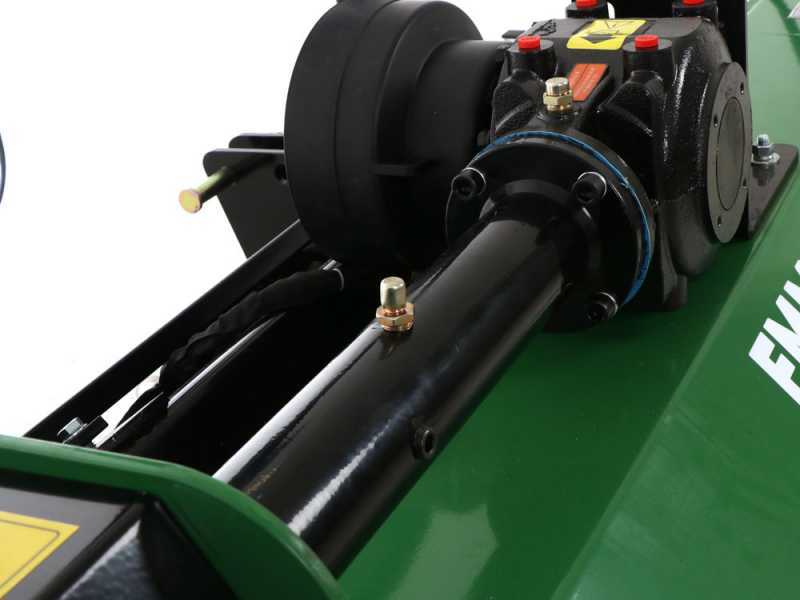

Side belt transmission and gearbox

Gearbox in oil bath.. The housing is made of cast iron, while the internal gears are made of hardened steel. Equipped with lubricated extension.

This machine is equipped with a freewheel device (or additional joint) built in the gearbox; this ensures a long service life of all the moving parts of the machine, preventing the kickback that would be caused by changing from 540 rpm to 0 rpm and allowing the rotor to turn freely until it stops.

3-belt side transmission (most tractor-mounted flail mowers in this weight category are equipped with standard 2-belt transmission)

Focus on the side belt protection guard.

Focus on the side grease nipple on the transmission side, laced in a convenient position, accessible through the proper opening.

The gearbox of this machine can contain no more than 1L of lubricating oil.

Please carefully read the instructions manual before starting the unit.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Hydraulic side shift and 3 points hitch

The flail mower is equipped with hydraulic shift.

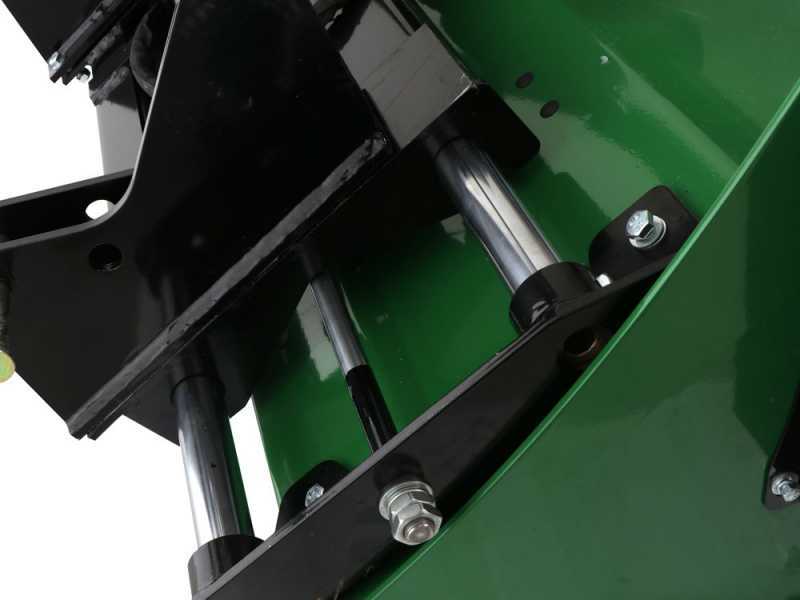

The 3-point hitch slides on a sturdy tube that runs the full width of the flail mower.

Focus on the piston that controls the hydraulic shift of this flail mower.

Universal standard PTO ( 1 3/8" Z6 )

Universal joints suitable for all tractors on the market.

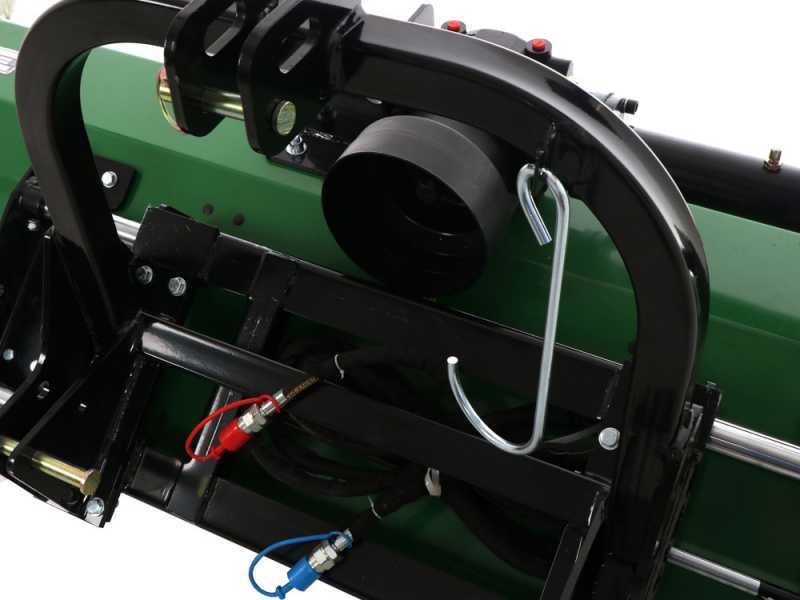

Focus on the 1° category sturdy 3-point hitch.

Rotor and side bearings

Focus on the side supporting device with hammer rotor internal locking bearing.

Focus on the external rotor, with central opening provided with greaser.

The hammers ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.
