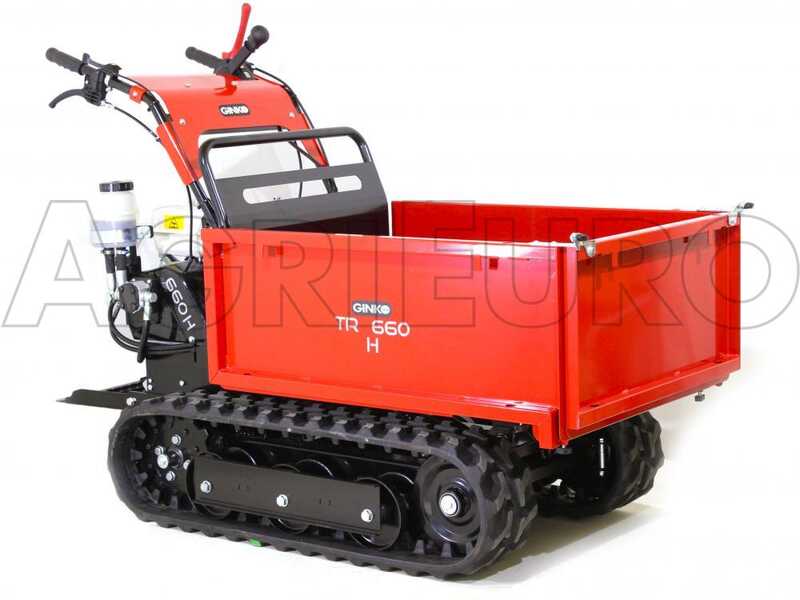

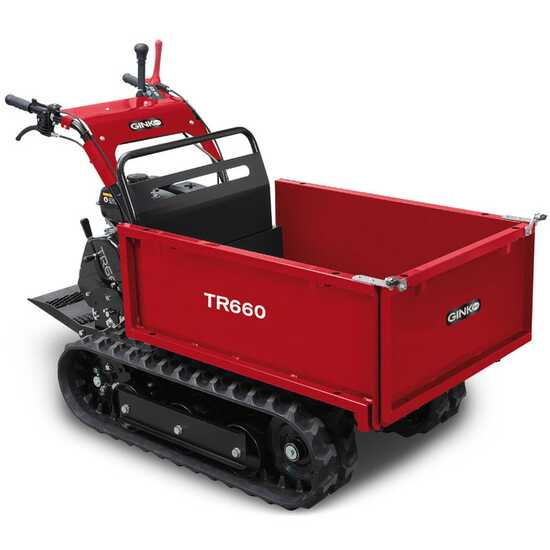

GINKO TR 660 Extensible Tracked Power Barrow with Hydraulic Tipping, Honda GX200 Engine

The tracked power barrow with extendable tipping with an actual capacity of 600 kg.

Thanks to its tracks and to the HONDA GX 200engine this tracked power barrow is capable of carrying loads of 550 Kg even on sloping grounds, thus being an indispensable tool for all types of transport, which is useful in many different fields of use from agriculture to livestock up to construction and gardening. Height from the ground of 9cm.

The tracked power barrow with hydraulic tipping which it is equipped makes it extremely easy and practical to work.

The sturdy steel frame and the gearbox with six forward and two steps back make this tracked power barrow versatile and efficient.

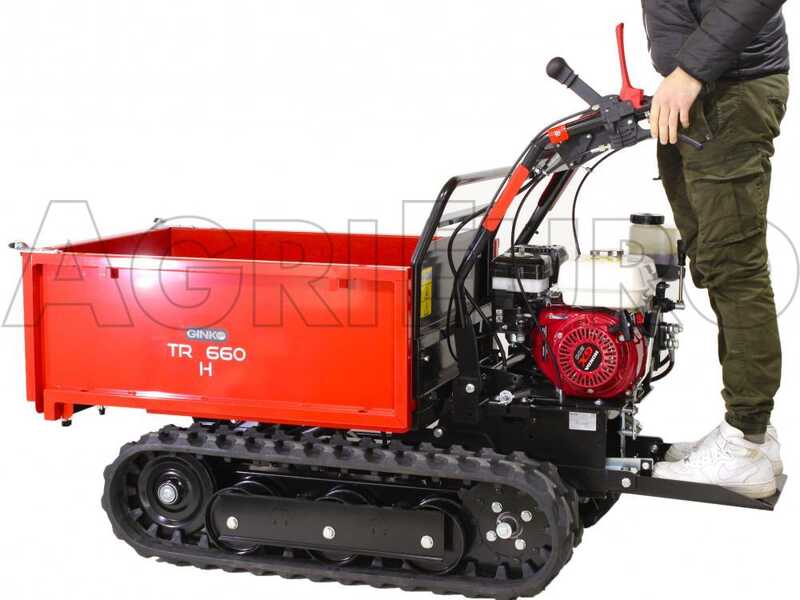

The GINKO TR 660 tracked power barrow is equipped with a comfortable transport platform which allows to climb on board the machine.

The rapid lowering hydraulic system of the platform consequently will also lift the handlebars allowing for a more comfortable ride.

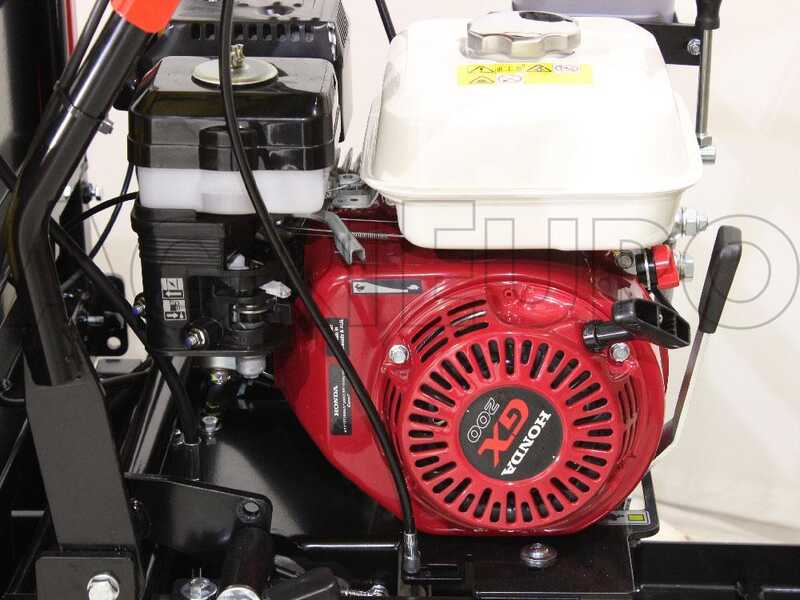

The Honda GX 200
engine is professional, powerful and with the latest generation technology in valve head.

Features:

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.



Before using the machine, read the instruction manual carefully.

The GX Honda engine stands out compared to the models belonging to the Honda "GC" series which was specifically designed for a more domestic use and therefore the cost and performances are lower.

GX series GC SERIES

The HONDA engines of the GX Series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

The GINKO TR 660 tracked power barrow is equipped with a comfortable transport platform which allows to climb on board the machine.

The rapid lowering hydraulic system of the platform consequently will also lift the handlebars allowing for a more comfortable ride.

The release of the platform and the consequent automatic adjustment of the handlebars is possible after the unlocking of the release lever.

In reverse, for safety reasons, the release of the platform is prevented by the transmission system, as well as the insertion of the reverse gear in the lowered platform.

Gearbox: It is entirely of Italian manufacture and equipped with gear reducer, which allows to double the gears to 4 forward + 2 in reverse, always assuring the necessary traction in any situation.

Speed:
4 forward
2 reverse gears (With reducer)

Parking brakes:
annexes to the gearbox, for greater stability and security.
These are automatically activated to release the command (leaving the car in neutral, even in strong gradient, the machine remains perfectly blocked)

Transmission:
The control levers on the handlebars allow the operator to shift into neutral the corresponding tracks, if you pull up halfway, and to restrain them if pulled up to the stroke end. This allows to better manage the steering acting on the single track deactivating the rotation.

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

Crawler wagon: Robust and over sized. Both the height and the length is greater than the average of the tracked power barrows on the market of the same size. The perfect front / rear balance ensures the distribution of loads and a perfect adherence to the ground.

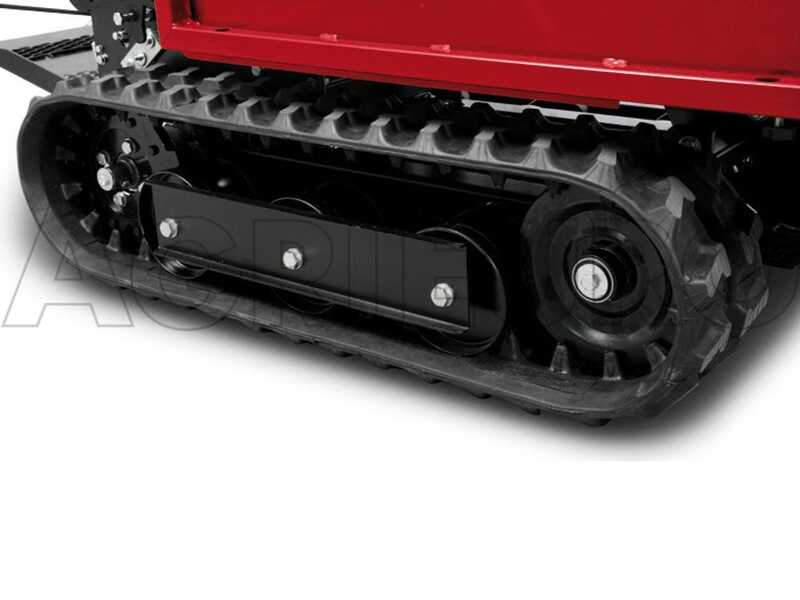

Tracks: tracks of a greater width than the average tracked power barrow of equal size and category are used. With their width and tread profile they guarantee perfect grip and stability on all types of terrain. Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

The robust frame with steel structure in high thickness which limits the vibrations and noise. The low center of gravity also ensures an optimal stability during the work the position of the engine and the transmission facilitates maintenance

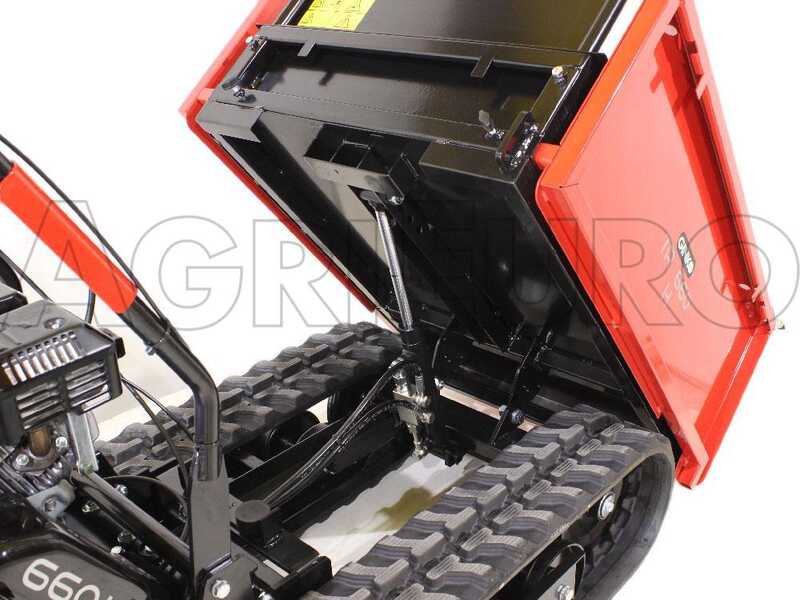

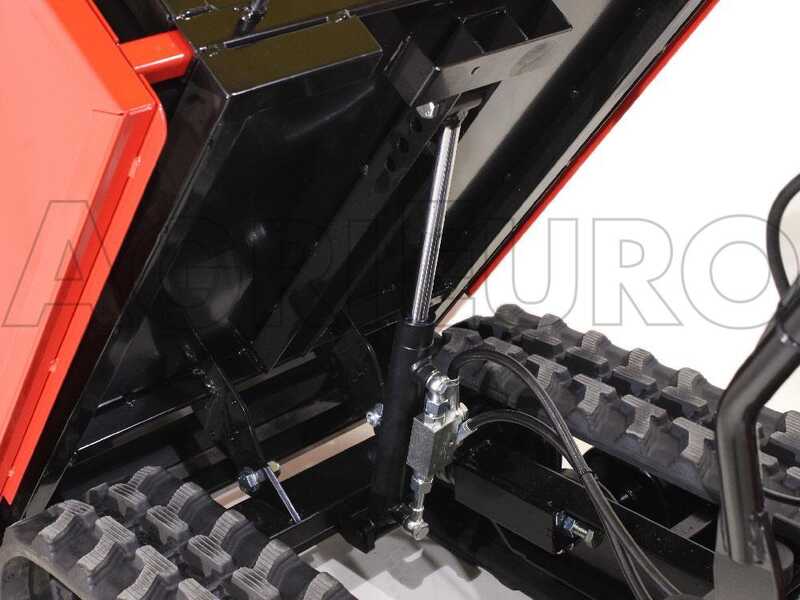

Powerful hydraulic circuit characterized by:

- oversized hydraulic pump

- distributor equipped with a lever to start the pump

- sturdy hydraulic cylinder.

Example of hydraulic tipping:

• Sample Image 1
• Sample Image 2
• Sample Image 3
• Sample Image 4
• Large tilting angle

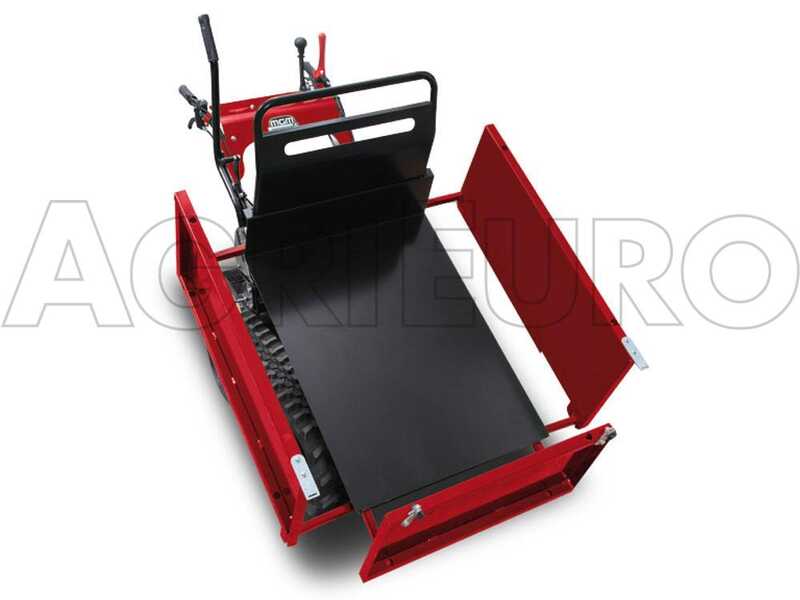

All the sides are extensible: to increase significantly the dimensions of the platform loading, allow the enhancement of even the most bulky transport.

Focus on the side handle opening, simple but effective and the retention screws of the sides.

There are many possibilities of use for the sides:

• Sample Image 1
• Sample Image 2
• Sample Image 3
• Sample Image 4
• Sample Image 5
• Sample Image 6
• Sample Image 7

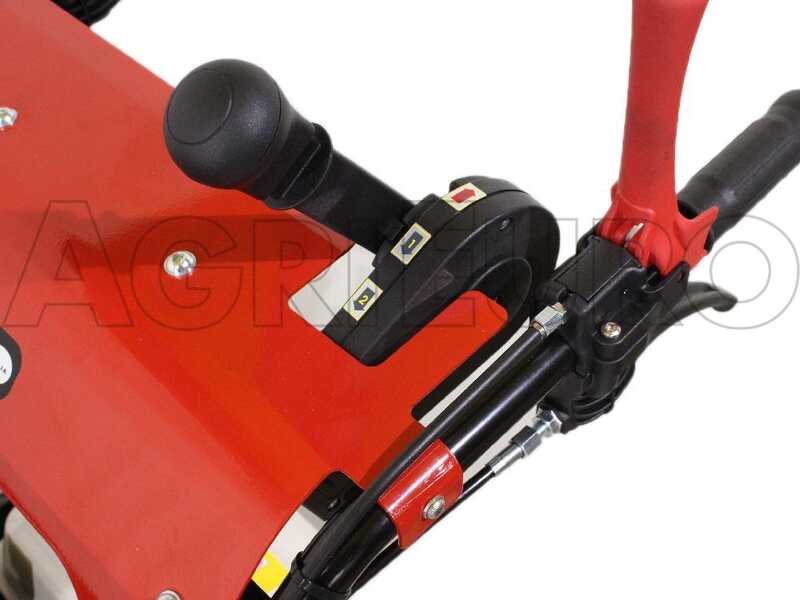

Control: easy to operate and ergonomic, they offer precision and can be controlled in the work

Large red lever for motion activation.

The two lower levers are for the steering.

The steering is modulated as a function of the control lever and allows it to move smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.

This allows the steering of the tracked power barrow in an extremely easy way, without causing any sudden movements.

The safety brake provides an immediate stop.

Accelerator lever
